Accessory Installation Guide
| 2021 Crosstrek (all models) Front Bumper Under Guard | E551SFL200 |
Installation Instructions
INSTALLATION INSTRUCTIONS
PART NUMBER: SPN0003352
DESCRIPTION: Crosstrek Front Bumper Under Guard
Surface Preparation
1
Make sure that all installation surfaces are clean, free of dirt, grease and debris using soap and water solution. Clean the indicated tape adhesion area with the alcohol wipe (provided).
Front Bumper Under Guard Installation
2
Identify the (3) locations of the factory retainers in underside of bumper and remove with either Philips head screwdriver or plastic pry bar. Discard the 3 retainers.
3
Peel back approx. 50mm / 2” of tape liner at each end of the part and fold at 45 degrees to part. Tape peeled back section of tape liner to outside surface of the bumper under guard using masking tape.
4
Install Front Bumper Under Guard in position of best fit ensuring that folded tape liners remains outside.
5
Install (3) provided replacement retainer plugs in (3) available holes in Front Bumper Under Guard.
6
Under Guard where the double sided tape liner has been removed, (as shown).
7
While applying moderate forward pressure towards bumper, pull exposed tape liners towards opposite end of Front Bumper Under Guard, one side at a time (as shown).
8
side to side approx. 5 times to ensure proper tape adhesion is achieved.
ISSUE 01
DATE 11-07-19
E551SFL200
- Genuine Subaru

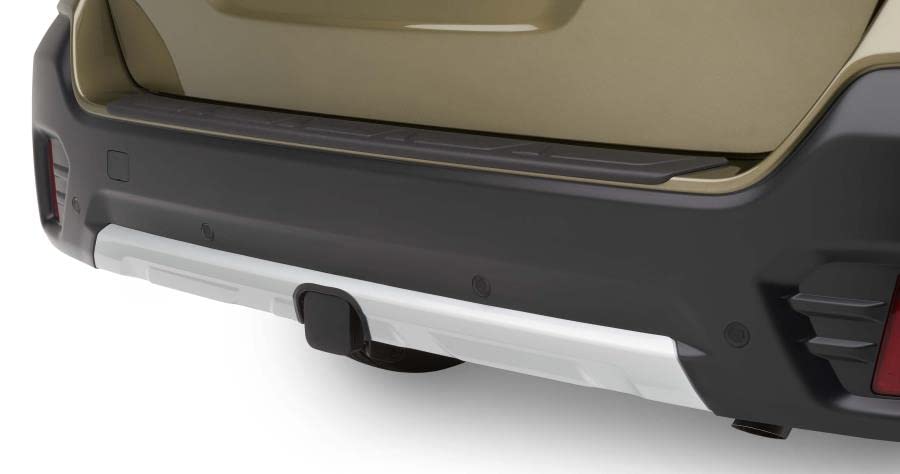

REAR Bumper Under Guard - 57734AN11A
- 2020-2025 Outback (BASE AND PREMIUM)
- Adds a rugged styling accent Look to the Outback.
- Fitment: Compatible with 2015-2021 Subaru WRX; Compatible with 2015-2021 Subaru STI. And it also compatible with most aftermarket headers & oil pan spacers
- Material: Made from high-quality aluminum materials, lightweight and much more protection. These added holes to help hot air escape from the engine compartment. So as to improve the airflow
- Features: Compared with plastic splash guard, it not only have a better protection, but also will strengthen your bumper and make your vehicle easier to work on. Side brackets offer additional support and aid in keeping the engine clean from the sides. Keeping the engine clean and offering much better protection
- Package: Including 1 x Engine Splash Shield Skid Plate. And it will be placement on Front, Lower of the vehicle
- Installation: Bolt and snap installation design makes the installation process simple and fast. Installation accessories are included. Without instructions
- Special Design：Designed specifically for your Crosstrek 2024 2025 2026 model, this Rear Bumper Protector seamlessly fits into your car's interior, enhancing both functionality and aesthetics.
- High-Quality Materials: Made of durable ABS plastic with excellent corrosion resistance and toughness. It can protect your rear bumper panel from wear and scratches.
- Easy Installation: Wipe the rear bumper clean, remove the adhesive backing film, position the protection strip, stick it flat, and press evenly for a few seconds to ensure it adheres securely.
- Multiple Use: Effectively prevents scratches and damage during loading and unloading in the car trunk. Also covers existing scratches and stains to keep the car looking new and clean.
- Good Service: We care about your feedback,and if there is any issues with our product or service for any reason, do not hesitate to contact us. We will spare no effort to get your satisfaction.

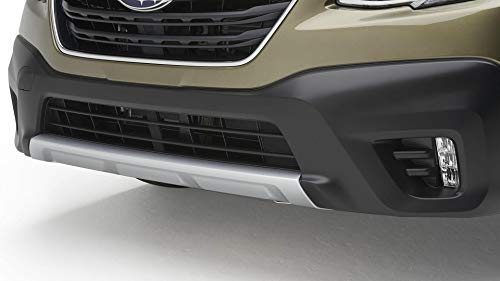

- Bumper Under Guard Front Kit
