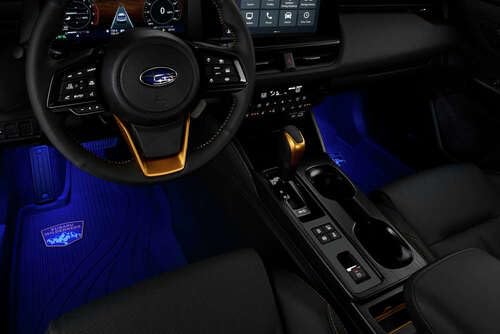

2021 Subaru Legacy/Outback Footwell Illumination Kit

SEOCONTENT-START

G+iv Kit Part No/No de piece: H461 SAN003 SUBARU LEGACY /OUTBACK Kit Part No/No de piece: H461 SAN003 INTERIOR FOOTWELL ILLUMINATION ECLAIRAGE DE L’ESPACE POUR LES PIEDS SPN0003589 Page 1 of 10 Issue/Version: 0.6 Date: 17.08.2020 © Lumen North America 2018 G+~ Kit Part No/No de piece: H461 SAN003 SUBARU General Notes • Read through the fitting instructions before installation of the accessory. Install the accessory following the fitting instructions. Failure to do so may cause damage to the vehicle or the accessory. • Ensure all recyclable discarded vehicle accessory components and packaging are recycled following local recycle regulations. • It is always recommend that this accessory is fitted by a qualified automotive technician. • Safely store and protect any removed vehicle components. • Ensure all bare metal surface are protected using automotive bare metal primer and touch-up paint, or suitable automotive rust inhibitor. • Remove all metals swart and dust from all vehicle surface if surface is used for accessory installation. Remarques generales • Veuillez lire toutes les directives d’installation avant de poser l’accessoire. Posez l’accessoire conformement aux instructions d’installation. Foute de quoi, des dommages pourraient survenir au vehicule ou a l’accessoire. • Assurez-vous que les composants recyclables et l’emballage de l’accessoire sont recycles conformement aux regles en vigueur. • II est fortement recommande de confier !’installation de l’accessoire a un technicien qualifie. • Les composants deposes doivent etre entreposes de fm;on securitaire. • Les surfaces metalliques nues doivent etre protegees. Pour ce faire, appliquez un appret a peinture et de la peinture a retouche ou un inhibiteur pour la rouille. • Enlevez les eclats metalliques et la salete qui pourraient couvrir la surface de pose. Safety Notes • Check that all work practices comply with safety standards. • Please wear appropriate clothing and use safety equipment. Remarques de securite • Verifiez que les methodes de travail sont conformes aux normes de securite. • Portez des vetements appropries et utilisez de l’equipement de securite. SPN0003589 Page 2 of 10 Issue/Version: 0.6 Date: 17.08.2020 © Lumen North America 2018 G+~ Kit Part No/No de piece: H461 SAN003 SUBARU Parts Supplied / Pieces fournies A B C D E ~ d ~ ~ Lightx2 Harness xl Cable Tie x5 Foam Tape – Large xl Foam Tape -Small xl Appareil d’eclairage x2 Faisceau xl Attaches x5 Ruban mousse – Large xl Ruban mousse – etroit xl Tools Required/ Outils requis / ~ ~ ‘ ‘ Phillips Head Screwdriver Trim Removal Tool l0mmSocket Torque Wrench Ratchet Toumevis a pointe Phillips Outil de finition Douille de 10mm Cle dynamometrique Cle a rochet SPN0003589 Page 3 of 10 Issue/Version: 0.6 Date: 17.08.2020 © Lumen North America 2018 G+~ Kit Part No/No de piece: H461 SAN003 SUBARU ( Wiring outline / Schema de cablag~ A Light / Appareil d’eclairage B Harness / Faisceau SPN0003589 Page 4 of 10 Issue/Version: 0.6 Date: 17.08.2020 © Lumen North America 2018 G+~ Kit Part No/No de piece: H461 SAN003 SUBARU Step 1 / Etape 1 • Disconnect the negative battery terminal. • Debranchez la borne negative de la batterie. Step 2 / Etape 2 • Remove passenger side lower trim panel. There are three clips. Step 3 I Etape 3 • Remove driver side lower trim panel. There are three clips. ———- SPN0003589 Page 5 of 10 Issue/Version: 0.6 Date: 17.08.2020 © Lumen North America 2018 G+~ SUBARU Step 4 I Etape 4 • Remove driver side dash cover { 1 J. • Remove the two phillips head screw {2J. • Remove driver side lower dash cover {3Jand unplug all switches. • Retirez le protecteur du tableau de bord du c6tegauche { 1 J. • Retirez la vis Phillips {2J . • Retirez le protecteur inferieur du tableau de bord {3Jdu cote gauche et debranchez toutes les alimentations electriques. Step 5 / Etape 5 • Route harness {BJ through the driver footwell area. • Secure harness {BJwith the three cable ties {C) at the white tape marks of illumination harness. • Acheminez le faisceau {BJa travers la console centrale. Step 6 / Etape 6 • Continue routing harness {BJ through the center console. • Continuez d’acheminer le faisceau {BJ a travers la console centrale. Kit Part No/No de piece: H461 SAN003 DRIVER SIDE/ C6TE CONDUCTEUR DRIVER SIDE / C6TE CONDUCTEUR PASSENGER SIPE COTE PASSAGER SPN0003589 Page 6 of 10 Issue/Version: 0.6 Date: 17.08.2020 © Lumen North America 2018 G+~ SUBARU Step 7 / Etape 7 • Secure harness (BJ on passenger side with two cable ties (CJ at the white tape marks of illumination harness. Step 8 / Etape 8 • Mount LED lamp (A)to passenger side lower trim panel • Plug in harness connector (B4) to LED lamp (A) . Step 9 / Etape 9 • Secure passanger side lower trim cover SPN0003589 Page 7 of 10 © Lumen North America 2018 Kit Part No/No de piece: H461 SAN003 ,—::-===).~— ) /_:_ __ _ – ./– Issue/Version: 0.6 Date: 17.08.2020 G+~ SUBARU Step 10 / Etape 10 • Plug in harness connector (B 1 ) to Factory illumination control harness ( 1 ) . • Plug in harness connector (B2) to power port (2) . • Wrap harness connectors in Foam tapes. Step 11 / Etape 11 • Reinstall driver side Lower Dash Cover ( 1 ) . and plug back all switches. • Reinstall the two Phillips head screw (2) . • Reinstall driver Side Dash Cover (3). Step 12 / Etape 12 • Mount LED lamp (A)to driver side lower trim panel. • Plug in harness connector (B3)to LED lamp (A). SPN0003589 Page 8 of 10 © Lumen North America 2018 Kit Part No/No de piece: H461 SAN003 Issue/Version: 0.6 Date: 17.08.2020 G+~ SUBARU Step 13 / Etape 13 • Secure driver side lower trim cover. Step 14 / Etape 14 • Reconnect the negative battery terminal (Torque is 7.5 Nm, 66 inlbs). • Test Footwell Illumination in a dark area by turning the park lamps on and checking both footwells for correct illumination. • Rebranchez le coble negatif de la batterie (serrage : 7,5 Nm, 66 po-lb) . • Testez l’eclairage de l’espace pour !es pieds de la maniere suivante : alors que l’habitacle est sombre, allumez !es feux de stationnement et verifiez que !es deux espaces pour !es pieds sont correctement eclaires. SPN0003589 Page 9 of 10 © Lumen North America 2018 Kit Part No/No de piece: H461 SAN003 ———- Issue/Version: 0.6 Date: 17.08.2020 G+iv Kit Part No/No de piece: H461 SAN003 SUBARU Wiring Diagram I Schema de cablage Vehicle/ Vehicule ———————————————-Vehicle/ Vehicule 2 1 rTI5l L..Q.ill 2 1 rTI5l L..Q.ill Accessory – Footwell Illumination ‘·—–A-c-c-e-s-s-o–ir-e- —e-c–la-i-r-a-g-e- -d-e– l-‘e-s–p-a-c-e- -p-o-u–r- le-s- -p-i-e-d-s- —–· ILL CONT SW CONTACT ILL E. & O.E. This document is copyright and must not be used except as permitted below or under the CopyrightAct 1968. You may reproduce and publish this document in whole or in part for your or your organisation’s own personal or internal compliance, educational or non-commercial purposes. You must not alter or amend this document in any way. You must not reproduce or publish this document for commercial gain without the prior written consent of the copyright owner. Sauf erreurs ou omissions, le present document est protege par le droit d’auteur et ne peut done etre utilise que dans l’un desbuts presentes ci-dessous ou en vertu de la loi sur le droit d’auteur de 1968 (Copyright Act 1968). Vous pouvez reproduire ou publier le present document, entierement ou en partie, aux fins de conformite personnelle; de conforrnite a l’inteme dans le cas d’une organisation; educatives; et non commerciales.Ne pas alterer ou modifier, de quelconque fac;;on que ce soil. Ne pas reproduire ou publier a des fins commerciales sans le consentement ecrit prealable du titulaire du droit d’auteur. SPN0003589 PagelO of 10 Issue/Version: 0.6 Date: 17.08.2020 © Lumen North America 2018

**************************************************************************************************************
