NHTSA ID Number: 10188193
Manufacturer Communication Number: 05-76-20R
Summary
This bulletin announces availability of new front wheel hub assemblies incorporating bearing surfaces having increased resistance to imperfections resulting from shock loads.
NUMBER: 05-76-20R
DATE: 08/31/20
REVISED: 02/22/21
| APPLICABILITY: | 2014-19MY Crosstrek 2014-18MY Forester 2014-19MY Impreza 2014MY WRX  |
| SUBJECT: | Front Wheel Hub Assembly- Design Change |
INTRODUCTION:
This bulletin announces availability of new front wheel hub assemblies incorporating bearing surfaces having increased resistance to imperfections resulting from shock loads. Excessive shock loads can occur when hitting a significant imperfection in the road surface (e.g. large pothole or expansion joint). If the bearing surface is affected, a growling -type sound may become audible when vehicle speed exceeds 25 MPH.
PRODUCTION CHANGE INFORMATION:
This bulletin will be revised with starting VIN information when it becomes available.
PART INFORMATION:
| Description | Part Number | Application |
| HUB COMPLETEFRONT AXLE | 28373FL010 | SBR (Japan) Built Models |
| 28373FL00C | SIA (U.S.) Built Models | |
| 28373FL01A |
NOTE: The new part can be easily identified by “7”s made onto the back of the flange as shown here.
REMINDER: Always order the most up-to-date replacement parts for the specific VIN being repaired.
SERVICE PROCEDURE / INFORMATION:
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
The service procedures for front wheel hub / bearing assembly replacement remain unchanged. Always refer to the applicable Service Manual and review the full requirements of the repair being performed. The Service Manual procedures contain information critical to performing an effective repair the first time, every time. This includes but is not limited to important SAFETY precautions, proper inspection criteria, necessary special tools, required processes and related one-time-use parts needed for a complete and lasting repair.
18 Affected Products
Vehicles
1 Associated Document
Manufacturer Communications
NUMBER: 05-76-20R
DATE: 08/31/20
REVISED: 02/22/21
MC-10188193-0001.pdf 1044.896KB
NHTSA ID Number: 10179421
Manufacturer Communication Number: 05-76-20
Summary
This bulletin announces availability of new front wheel hub assemblies incorporating bearing surfaces having increased resistance to imperfections resulting from shock loads.
1 Associated Document
Manufacturer Communications
NUMBER: 05-76-20
DATE: 08/31/20
MC-10179421-0001.pdf 1044.265KB
- WIDE APPLICATION: This front wheel hub puller set is compatible with most vehicles with independent front wheel suspension; designed to pull out the rear flange type axle; fits 4, 5 or 6 bolt stud designs and all non-C lock GM axles
- KIT INCLUDE: This wheel hub removal tool includes a universal 3-3/4" to 4-1/2" hub puller, 4-1/2" to 5-1/2" axle puller, 5/8 inch x 18 forcing bolt, fastening nut, helpful socket to quickly and easily loosen and remove your wheel hubs & axles, and a pair of gloves
- USEFUL TOOL: This wheel hub puller uses the existing lug nuts to fix to the wheel studs and tighten the forcing bolts; the threads of our 5 lb forced bolts can be used with other 5/8" x18 bolt or slide hammer to handle a variety of vehicle models or other work around the engine
- PREMIUM MATERIAL: This drive belt replacement kit is made of high hardness AISI 1045 medium carbon steel, heat-treated, sturdy and stability, corrosion resistant, wear resistant, with reliable use and long service life
- AFTER-SALES DESCRIPTION: If you have any questions about the purchased tool, please contact us in time, customer’s satisfaction is our top priority
- 5-Lug Brake Rotor(Most common) Compatibility Range： High-Profile Caliper (Front Hub Puller) Suitable for vehicles with a Mounting Bolt Hole Circle Diameter (PCD) of 100~118 mm (4.00~4.65 inches). Low-Profile Caliper (Rear Hub Puller) Suitable for vehicles with a Mounting Bolt Hole Circle Diameter (PCD) of 110~144 mm (4.33~5.67 inches). Note: It is recommended to use a slide hammer with the rear hub puller to enhance efficiency and safety during removal.
- 4-Lug Brake Rotor Compatibility Range： High-Profile Caliper (Front Hub Puller) Suitable for vehicles with a Mounting Bolt Hole Circle Diameter (PCD) of 100~118 mm (4.00~4.65 inches). Low-Profile Caliper (Rear Hub Puller) Suitable for vehicles with a Mounting Bolt Hole Circle Diameter (PCD) of 114~144 mm (4.5~5.67 inches). Note: It is recommended to use a slide hammer with the rear hub puller to enhance efficiency and safety during removal.
- 6-Lug Brake Rotor Compatibility Range： ※※The High-Profile Caliper (Front Hub Puller) is designed specifically for 5-lug or 4-lug brake disc configurations. The 6-lug brake disc’s bolt pattern causes adjacent bolts to interfere with the puller’s installation, making it incompatible. Low-Profile Caliper (Rear Hub Puller) Suitable for vehicles with a Mounting Bolt Hole Circle Diameter (PCD) of 114~144 mm (4.5~5.67 inches).
- How to Verify Compatibility The Mounting Bolt Hole Circle Diameter (PCD) can typically be obtained from your vehicle manufacturer or brake Rotor supplier. If this information is unavailable, for 4-hole or 6-hole brake Rotor, you can directly measure the center-to-center distance between two opposite bolt holes, which is the PCD. For 5-hole brake Rotor, you can measure the center-to-center distance between two adjacent bolt holes: For front hub brake Rotor: The center-to-center distance should be 62–72 mm (2.44–2.83 inches). For rear hub brake Rotor: The center-to-center distance should be 65–80 mm (2.56–3.15 inches). Ensure your vehicle’s specifications match these ranges before purchasing.
- Universal Compatibility: The front hub puller (4" to 4-5/8") is compatible with most vehicles with independent front wheel suspension. The rear axle puller (4-5/16" to 5-2/3" ) is designed to pull out the rear flange type axle. Hub & axle grapplers fit 4, 5 or 6 bolt stud designs and all non-C lock GM axles

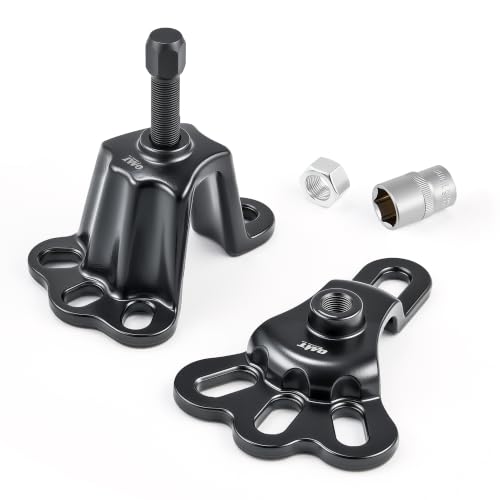

- PULL WHEEL HUBS & AXLES: This flange type axle puller tool set by Orion Motor Tech includes a universal 3-3/4" to 4-1/2" hub puller, 4-1/2" to 5-1/2" axle puller, 5/8 inch x 18 forcing bolt, fastening nut, and helpful socket to quickly and easily loosen and remove your wheel hubs
