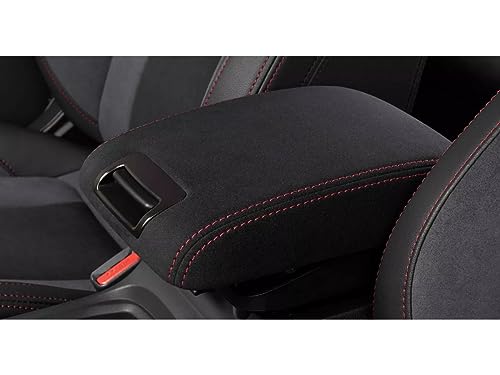

CENTER ARMREST EXTENSION WRX 2022MY～ PART No. J2010VC000, J2010VC001 1.Components 000 001 1 CENTER ARMREST EXTENSION (PVC) 1 2 CENTER ARMREST EXTENSION (ULTRASUEDE) 1 3 INSTALLATION INSTRUCTION 1 1 1) Philips Screwdriver. 2) Trim removal tool. 3. Precaution 4. Installation Procedure Fig.1 1). Remove the rear cover from center console box. Pull the upper cover open with a trim removal tool placed in the center of the cover and center console as shown in Fig.1. 2). Pull and remove the rear console box cover rearward as shown in Fig.2. Fig.2 3). Remove the lid by unfastening three attached screws as shown in Fig.3. 4). Attach the armrest extension to the console box with previously removed screws. Fig.3 5). Re-install the rear console box cover (Fig.2→Fig.1). 6).Verify that the armrest extension latches to the center console when closed and that the lid can be extended by pushing button as shown in Fig.4. Fig.4 ! Keep the removed screw for re-use ! Do not over-tighten the screws. Recommended value 1.3±.15 Ft lbs CAUTION1 : MAXIMUM LOAD LIMIT OF ARMREST EXTENSION IS 66Lbs/30KG IN THE VERTICAL DIRECTION. 2: BE CAREFUL TO AVOID FINGER OR HAND CAUGHT BY UPPER AND LOWER LID WHEN FOLDED. No. Components Q’ty 2. Tool Required 1) Review the instructions completely before starting installation. ! Be careful not to brake the rear cover INSTALLATION INSTRUCTION

**************************************************************************************************************
