NHTSA ID Number: 10234850
Manufacturer Communication Number: 1216714
Summary
Door Latch / Actuator Freezing
NUMBER: 12-167-14
DATE: 04/29/14
| APPLICABILITY: | 2013-14MY BRZ |
| SUBJECT: | Door Latch / Actuator Freezing |
INTRODUCTION
This bulletin provides a repair procedure to prevent water from accumulating then freezing inside the door latch / actuator assembly in cold temperatures and binding the mechanism. Application of a self-adhesive sealing tape to cover the water entry points will reduce the possibility of this condition occurring.
COUNTERMEASURE IN PRODUCTION
The sealing tape has been added to the latch / actuator assembly in production starting with VIN E*602754.
PART INFORMATION
The Sealing Tape part number is: 61039CA000. 2pcs. (1 per side) are required per vehicle.
SERVICE PROCEDURE / INFORMATION
The illustrations below show the different pathways water can travel to enter the latch / actuator.
- CAREFULLY remove the door trim panels and the latch / actuator assemblies following the procedures outlined in the applicable Service Manual. Always store the trim panels in a safe place to avoid damage while they are removed from the vehicle.
IMPORTANT: Review the illustrations below for proper application of the sealing tape. A “dry run” with the sealing tape is recommended before peeling the adhesive backing to prevent improper installation.
The illustrations and step-by-step photos below are provided as a reference for how the sealing tape needs to be applied to the latch / actuator assembly. The term “close together” refers to areas where the sealing tape material is adhered to itself to form a “seal”.
- Reassemble the doors in reverse order and verify proper operation to complete the repair.
NOTE: In the event a latch / actuator assembly is being replaced and the replacement part does not have the sealing tape, it must be applied before installation.
2 Affected Products
Vehicle
| MAKE | MODEL | YEAR |
SUBARU | BRZ | 2013-2014 |
1 Associated Document
Manufacturer Communications
NUMBER: 12-167-14
DATE: 04/29/14
MC-10234850-9999.pdf 1670.47KB
NHTSA ID Number: 10067894
Manufacturer Communication Number: 12-167-14
Summary
SUMMARY TO BE PROVIDED ON A FUTURE DATE.
1 Associated Document
Service Bulletin Document
NUMBER: 12-167-14
DATE: 04/29/14
SB-10067894-0699.pdf 1670.47KB
- Front or Rear Driver Side Interior Door Handle
- Compatible with Subaru
Forester Impreza Legacy Outback 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 Year.Please check the year/make/model of your vehicle with the part finder tool on the top left corner before you purchase. - Compatible with Toyota 86 / Scion FRS 2013 2014 2015 2016 2017 2018 2019 2020.
- Made of hard plastic material,more wear-resistant and smoothly.Meets the original manufacturer's specifications and features.Direct replacement of the old worn one
- Warranty & Customer Support – We offer a 1-year product warranty. If you encounter any issues with installation, product quality, or other concerns, please feel free to contact us for prompt assistance.

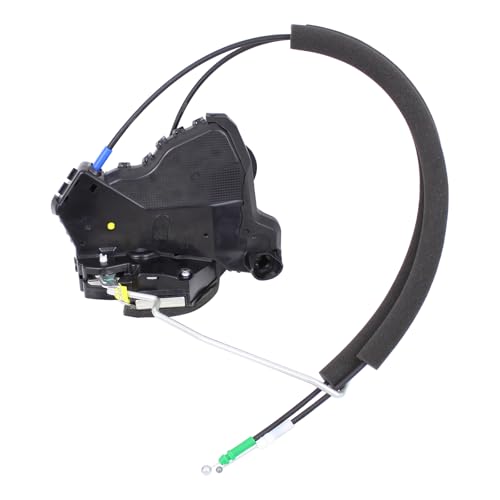

- [Vehicle Fitment]: Compatible with Subaru Forester 2014-2018 --- It fits the model without Smart Key
- [Reference Number]: SM2532, 61032SG080--Please enter your vehicle information in the top left corner of the listing and check our Special Notes before ordering the door latch
- [Location]: Front Right Passenger Side; Door Lock Actuator Comes With 2-Pin Connector

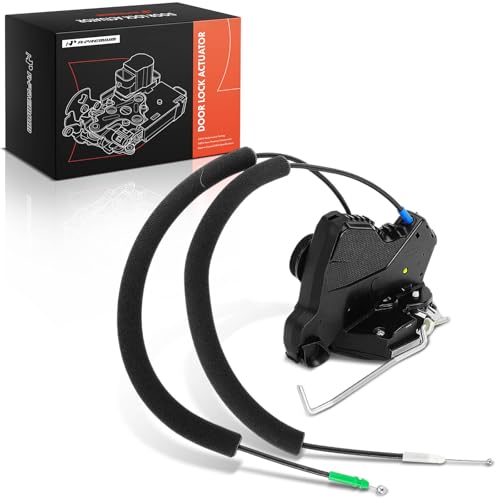

- [Function]: The A-Premium door lock actuator is made of sturdy plastic and high-density metal, which improves the durability and reliability of the product. The first-class design and technologies applied to the actuator make it meet or even exceed OE specifications and prevent deformation. Replace the door latch assembly to restore the normal door lock functions by solving locking and unlocking problems and control your car door sensitively
- [Buy with Confidence]: A-Premium offers a one-year unlimited-mileage guarantee on our meticulously crafted door lock latch actuator. We offer a wide variety of automotive accessory categories, ensuring that you can hit the road with peace of mind.
- Vehicle-specific: Compatible with Subaru Forester 2004-2024, Outback 2004-2026, Impreza 2008-2023, Crosstrek 2013-2025, Legacy 2004-2020, WRX 2013-2025, WRX STI 2013-2019, XV 2012-2022

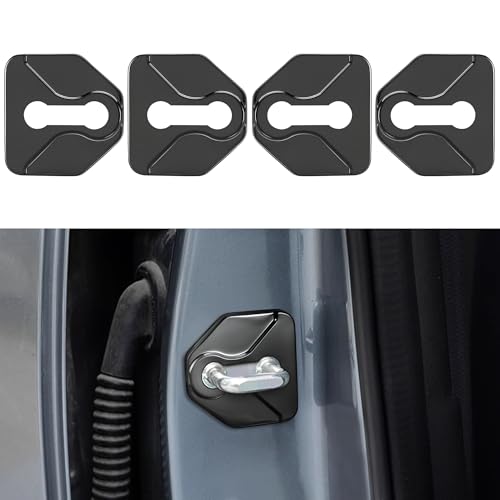

- Stainless Steel: This door lock cover is made of stainless steel with a glossy surface. It is highly wear-resistant and can stay on your door lock latch for a long time
- Excellent Function: It has adhesive tape on the back to cover the latch well, it slows down rusting of the latch and protects the latch better
- Protect Lock: The original door lock of the car is not protected, it is easy to scratch, and it will affect the smoothness of the car door over time. The purpose of the product is also to protect your car
- What You Get: The package contains 4pcs car door lock protective cover. If you're not sure if it will fit your car, please send a picture of your car's original door latches, and the year model of the car
- For Subaru Forester without Smart Key 2014-2018
- Connector: 2-pin
- 2 Pins Door Lock Actuator: Replacement for 2005-2009 Subaru Legacy Sedan, 2005-2008 Legacy Wagon, 2005-2007 Outback Sedan, 2005-2009 Outback Wagon
- OEM Number: 61100AG01A, 759-044, 759044. If only your model is consistent with our door latch lock assembly, it is the right choice for your vehicle
- Efficient Locking: This door latch assembly is suitable for multiple locations, please refer to compatibility table. Help you solve the following problems ① Noise from inside the door ② Interior lights in your car that don't shut off like they're supposed to ③ The door lock does not unlock or lock
- Straight Replacement of OEM Actuator: Replacement faulty door latch actuator help to restore a normally functioning lock system, YHTAUTO actuator was an exact replacement for the factory part and performed flawlessly, using fine quality materials with superior performance and reliability
- What You'll Get: Purchase 1 x door latch assembly it will be covered by a year warranty. If you have any further questions or need fitment information for your vehicle, please feel free to contact us, customer satisfaction is our everlasting pursuit
Last update on 2026-06-19 / Affiliate links / Images from Amazon Product Advertising API
SEOCONTENT-START
Bulletin Number: 12-167-14; Date: 04/29/14 Page 1
INTRODUCTION
This bulletin provides a repair procedure to prevent water from accumulating then freezing inside
the door latch / actuator assembly in cold temperatures and binding the mechanism. Application
of a self-adhesive sealing tape to cover the water entry points will reduce the possibility of this
condition occurring.
COUNTERMEASURE IN PRODUCTION
The sealing tape has been added to the latch / actuator assembly in production starting with VIN
E*602754.
PART INFORMATION
The Sealing Tape part number is: 61039CA000. 2pcs. (1 per side) are required per vehicle.
SERVICE PROCEDURE / INFORMATION
The illustrations below show the different pathways water can travel to enter the latch / actuator.
NUMBER: 12-167-14
DATE: 04/29/14
APPLICABILITY: 2013-14MY BRZ
SUBJECT: Door Latch / Actuator Freezing
SERVICE BULLETIN
ATTENTION:
GENERAL MANAGER q
PARTS MANAGER q
CLAIMS PERSONNEL q
SERVICE MANAGER q
IMPORTANT – All
Service Personnel
Should Read and
Initial in the boxes
provided, right.
Continued…
CAUTION: VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD
RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS.
Subaru Service Bulletins are intended for use by professional technicians ONLY. They
are written to inform those technicians of conditions that may occur in some vehicles, or
to provide information that could assist in the proper servicing of the vehicle. Properly
trained technicians have the equipment, tools, safety instructions, and know-how
to do the job correctly and safely. If a condition is described, DO NOT assume that this
Service Bulletin applies to your vehicle, or that your vehicle will have that condition.
SUBARU OF AMERICA, INC. IS
“ISO 14001 COMPLIANT”
The international standard for excellence
in Environmental Management Systems.
Please recycle or dispose of automotive
products in a manner that is friendly to our
environment and in accordance with all
local, state and federal laws and regulations.
Pathways for water entry
Pathways for
water entry
Actuator Lever
Bulletin Number: 12-167-14; Date: 04/29/14 Page 2
• CAREFULLY remove the door trim panels and the latch / actuator assemblies following the
procedures outlined in the applicable Service Manual. Always store the trim panels in a safe
place to avoid damage while they are removed from the vehicle.
IMPORTANT: Review the illustrations below for proper application of the sealing tape. A “dry
run” with the sealing tape is recommended before peeling the adhesive backing to prevent improper
installation.
The illustrations and step-by-step photos below are provided as a reference for how the sealing tape
needs to be applied to the latch / actuator assembly. The term “close together” refers to areas where
the sealing tape material is adhered to itself to form a “seal”.
Continued…
Sealing Tape
must cover all
3 holes on
each side
Do NOT cover over
the drain hole.
Side holes
Cross-section View
Close together
Do NOT cover over
the drain hole.
Side holes
Close together
around the
cable.
Sealing Tape is folded here.
61039CA000 Seal Tape
1 2 3
Bulletin Number: 12-167-14; Date: 04/29/14 Page 3
• Reassemble the doors in reverse order and verify proper operation to complete the repair.
NOTE: In the event a latch / actuator assembly is being replaced and the replacement part does not
have the sealing tape, it must be applied before installation.
WARRANTY / CLAIM INFORMATION
For vehicles within the Basic New Car Limited Warranty period, this repair may be claimed using the
following information:
LABOR DESCRIPTION LABOR
OPERATION #
FAIL
CODE
LABOR
TIME
2013-14 BRZ DOOR LATCH FREEZING REPAIR A915-254 SCD-48 1.1
Close together
around the cable. Close together
Do NOT cover over
the drain hole.
Sealing Tape must cover
all 6 holes of the lever cover
but NOT block the drain hole.
Completed Tape
Installation
**************************************************************************************************************
**************************************************************************************************************
SEOCONTENT-END
