NHTSA ID Number: 10188158
Manufacturer Communication Number: 07-155-19R
Summary
This bulletin replaces TSB 07-143-18R and announces additional changes made to the PRG control module. These changes are in response to a limited number of customer concerns regarding the rear gate not opening when operating the gate mounted switch, dashboard switch or the rear gate button on the key fob.
NUMBER: 07-155-19R
DATE: 06/12/19
REVISED: 02/03/21
| APPLICABILITY: | 2019-20MY Forester 2019-20MY Ascent |
| SUBJECT: | Power Rear Gate (PRG) Control Module- Design Change |
INTRODUCTION:
This bulletin replaces TSB 07-143-18R and announces additional changes made to the PRG control module. These changes are in response to a limited number of customer concerns regarding the rear gate not opening when operating the gate mounted switch, dashboard switch or the rear gate button on the key fob. In addition to ensuring proper PRG system operation, the new logic also optimizes the PRG communication function. The change will prevent excessive dark draw which may over time, cause a low battery condition.
Additional enhancements applicable to FORESTER ONLY at this time:
- When the PRG operates with an increased load (e.g. weight of snow added or frozen / binding rear gate stays), the PRG does not resume normal operation after being closed electrically or manually.
- When the PRG is closed electrically after being left open for a certain period of time, an unusual “beep” sound is heard before the normal closing “beep” sound occurs.
PRODUCTION CHANGE INFORMATION:
The new PRG control modules were incorporated into production as follows:
- Forester: Starting with VIN LH477261
- Ascent: Start of 2020MY production.
PART INFORMATION:
| Description | Part Number | Application |
| ECU- POWER REAR GATE | 63350SJ007 | 2019-20MY Forester |
| 63350XC10B | 2019-20MY Ascent |
REMINDER: Always order the most up-to-date replacement parts based on the specific VIN being repaired.
NOTE: These new PRG ECUs also contain the the logic previously addressed in TSB 07-143-18R.
SERVICE PROCEDURE / INFORMATION:
REMINDER: Customer satisfaction and retention starts with performing quality repairs. The service procedures for replacing the PRG control module remain unchanged. Always refer to the applicable Service Manual and review the full requirements of the repair being performed. The Service Manual procedures contain information critical to performing an effective repair the first time and every time. This includes but is not limited to: important SAFETY precautions, proper inspection criteria, necessary special tools, required processes and related one-time-use parts needed for a complete and lasting repair.
4 Affected Products
Vehicles
1 Associated Document
Manufacturer Communications
NUMBER: 07-155-19R
DATE: 06/12/19
REVISED: 02/03/21
MC-10188158-0001.pdf 287.108KB
NHTSA ID Number: 10182176
Manufacturer Communication Number: 07-155-19R
Summary
This bulletin replaces TSB 07-143-18R and announces additional changes made to the PRG control module.
1 Associated Document
Manufacturer Communications
NUMBER: 07-155-19R
DATE: 06/12/19
REVISED: 10/06/20
MC-10182176-0001.pdf 282.221KB
NHTSA ID Number: 10179415
Manufacturer Communication Number: 07-155-19R
Summary
This bulletin replaces TSB 07-143-18R and announces additional changes made to the PRG control module.
1 Associated Document
Manufacturer Communications
NUMBER: 07-155-19R
DATE: 06/12/19
REVISED: 08/25/20
MC-10179415-0001.pdf 278.391KB
NHTSA ID Number: 10179413
Manufacturer Communication Number: 07-143-18R
Summary
IMPORTANT: This bulletin has been replaced by TSB 07-155-19R which includes all the latest service and parts ordering information.
1 Associated Document
Manufacturer Communications
NUMBER: 07-143-18R
DATE: 11/16/18
REVISED: 08/25/20
NHTSA ID Number: 10176017
Manufacturer Communication Number: 07-155-19R
Summary
This bulletin announces a design change made to the PRG control module.
1 Associated Document
Manufacturer Communications
NUMBER: 07-155-19R
DATE: 06/12/19
REVISED: 05/15/20
MC-10176017-0001.pdf 276.576KB
NHTSA ID Number: 10173121
Manufacturer Communication Number: 07-155-19R
Summary
This bulletin announces a design change made to the PRG control module. This change is in response to a limited number of customer concerns regarding the rear gate not opening when operating the gate switch or dashboard switch on the vehicle or the button on the key fob. In addition to ensuring proper PRG system operation, the new logic also optimizes the PRG communication function.
1 Associated Document
Manufacturer Communications
NUMBER: 07-155-19R
DATE: 06/12/19
REVISED: 03/16/20
MC-10173121-0001.pdf 276.887KB
NHTSA ID Number: 10173120
Manufacturer Communication Number: 07-155-19R
Summary
This bulletin announces a design change made to the PRG control module. This change is in response to a limited number of customer concerns regarding the rear gate not opening when operating the gate switch or dashboard switch on the vehicle or the button on the key fob. In addition to ensuring proper PRG system operation, the new logic also optimizes the PRG communication function.
1 Associated Document
Manufacturer Communications
NUMBER: 07-155-19R
DATE: 06/12/19
REVISED: 03/16/20
MC-10173120-0001.pdf 276.887KB
NHTSA ID Number: 10163522
Manufacturer Communication Number: 07-155-19R
Summary
This bulletin announces a design change made to the PRG control module. This change is in response to a limited number of customer concerns regarding the rear gate not opening when operating the gate switch or dashboard switch on the vehicle or the button on the key fob. This condition is also accompanied by three short beeps. Logic changes have been incorporated into the new module to ensure proper operation of the PRG system.
1 Associated Document
Manufacturer Communications
NUMBER: 07-155-19R
DATE: 06/12/19
REVISED: 07/09/19
MC-10163522-0001.pdf 276.023KB
NHTSA ID Number: 10163005
Manufacturer Communication Number: 07-155-19
Summary
This bulletin announces a design change made to the PRG control module. This change is in response to a limited number of customer concerns regarding the rear gate not opening when operating the gate switch or dashboard switch on the vehicle or the button on the key fob. This condition is also accompanied by three short beeps. Logic changes have been incorporated into the new module to ensure proper operation of the PRG system.
1 Associated Document
Manufacturer Communications
NUMBER: 07-155-19
DATE: 06/12/19
MC-10163005-9999.pdf 271.869KB

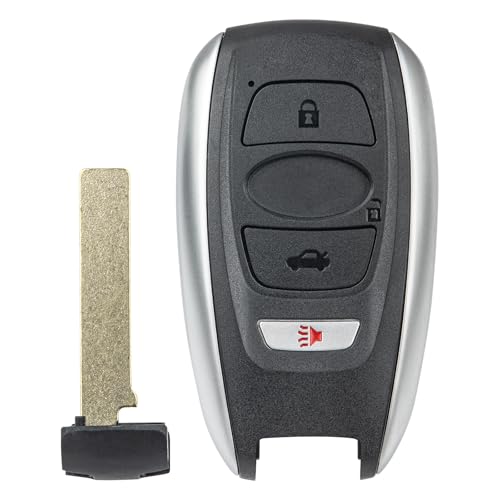

- Compatibility : This remote key fits for Subaru Ascent 2019-2024,for Crosstrek 2019-2023,for Forester 2019-2023,for Impreza 2017-2023,for Legacy 2018-2021,for Outback 2018-2023,for BRZ 2022 2023 2024,for WRX STI 2019-2021
- Confirm It Fits for Your Car: Please check the appearance of the key fob(including key buttons and shape); then check if your key has the same part number,Frequency: 433MHz,Chip: 8A,Board ID: 231451-7000,FCC ID: HYQ14AHK,OEM P/N: 88835-FL03A, 88835-FL03B, 88835-FL03C
- How to check part number: Open your original key, then you can see the part information on the key shell or the circuit board, just compare it to my key fob. If you lost your key, you need check with your dealership
- Key Programming and Cutting: You need program and cut the remote fob to your vehicle before it can work on your car by a locksmith or the dealership
- Complete Remote Key Fob: The package includes battery, uncut blade, 8A chip and circuit board, it will function is same as your original one, just ready to program
- Self-Programming Capability: This key fob replacement is designed for easy, self-programming, making it a convenient DIY solution. You won't need professional assistance to set it up-just follow the simple instructions provided. In just a few easy steps, you can program the fob to your vehicle, restoring full functionality without costly visits to the dealership. It's a quick, cost-effective way to replace a lost or damaged key fob while maintaining convenience and security
- Premium Replacement Quality: This car fob is designed to match the specifications of the factory remote. Unlike generic alternatives, this premium replacement ensures a seamless integration with your car's security system, maintaining the same high-quality performance while offering an affordable and convenient option for replacing a lost or damaged remote (PN: 88036SC030)
- Three-Button Functionality: This Keyless Option replacement remote features convenient 3-button options, providing a range of functions for added security and ease of use with your vehicle's keyless entry system
- Complete Package Included: This product comes as a complete key fob with electronics and a battery already installed, ready for programming and immediate use upon delivery
- Vehicle Compatibility: This car remote can only be programmed for specific Makes and Models including 1999-2011 Subaru Impreza, Legacy, WRX, and Outback vehicles. Please verify compatibility with your vehicle before purchase
- 【Replacement】For FCC ID:HYQ14AHK; P/N:88835FL032, 88835FL031, 88835FL030, 88835-FL03C, 88835-FL03B, 88835-FL03A; Frequency:434 MHz; Please Make Sure That Your Original Remote Has the Same Buttons on it
- 【Compatibility】Compatible with 2019-2024 Subaru Ascent/ 19-23 Crosstrek Forester/ 17-23 Impreza/ 18-21 Legacy/ 18-23 Outback/ 22-24 BRZ/ 19-21 WRX STI. Please Check Our Product Description and Vehicle Fitment Tool for Full Compatible Vehicles List
- 【Programming Methord】Self-Programming is Not Available, it's necessary to be cut and programmed by a qualified dealer or locksmith.【NOTE】This Key Fob Only Supports Vehicles Equipped with Push to Start / Stop Button on The Dashboard and Proxy Keyless Entry System. It Doesn’t Support Regular Key/Keyed Ignition Vehicles.
- 【OEM-Quality】Made of Premium Plastic Materials, Shockproof, Every Single Keyless Entry Remote Start Control Car Key Fob is Fully Pre-tested by Professional Locksmith Tools before Shipping. 100% New Brand Remote Control Car Key Fob, The Function is the Same as the Factory Original Car Key Fob.
- 【Package Include】1x Keyless Entry Remote Start Control Key Fob with Electronics and Battery Pre-Installed.【WARRANTY】Buy with Confidence, 24-Months Warranty and Lifetime Support. If You Find They Don't Work or Any Problems, Just Feel Free to Contact us Anytime, We Will Arrange Free Refund or Return for You

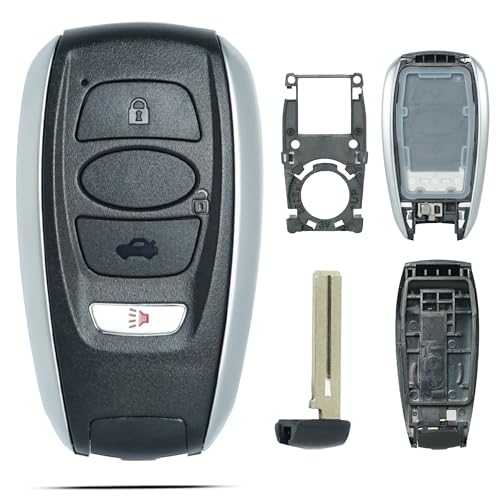

- Only Key Fob Shell: This is just a key shell case replacement with no electronics, transponder chip, or battery inside.
- Fitment: An empty key fob cover shell replacement compatibility with 2014-2022 Subaru BRZ, 2015-2022 Legacy & Crosstrek, 2015-2023 Outback & Impreza, 2016-2018 Forester, 2016-2023 Subaru WRX & STI, 2019-2022 Ascent Fits for FCC ID: HYQ14AHK.
- Installation: Our remote key fob shell case is easy to install. Just open your original key fob control and then put the internals like a circuit board in this new key case shell. (Does not require reprogramming). The New Blank key needs to be cut by a hardware store or locksmith.
- Materials: Mixed metal and plastic composition, durable replacement key shell case. It is a good replacement key fob case for broken or worn remotes.
- Remote Key Shell Appearance: Please check the button position and appearance of your car remote fob key is the same as our key case shell before you buy.

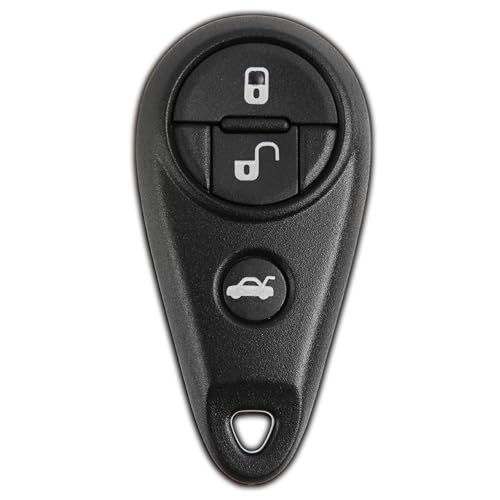

- Complete Replacement Solution: This pack includes 2 KeylessOption key fob replacements designed specifically for 2010-2014 Subaru Forester, Impreza, WRX, and STI models, providing a cost-effective alternative to dealership replacements while maintaining full functionality
