NHTSA ID Number: 10185067
Manufacturer Communication Number: 12-305-20
Summary
This bulletin announces a design change made to the front hood air intake duct.
NUMBER: 12-305-20
DATE: 12/07/2020
INTRODUCTION:
This bulletin announces a design change made to the front hood air intake duct used on the models listed above. The new duct utilizes larger holes at the attachment points to facilitate the use of mounting bolts with a larger shoulder (boss) diameter as shown (in green) in the illustrations below. For this reason, the new mounting bolts are not interchangeable and cannot be used with the original style duct.
PRODUCTION CHANGE INFORMATION:
The new duct and mounting bolts were incorporated into production starting with VIN L9819487.
PART INFORMATION:
- New Mounting Bolt: 901020030
- New Duct-Inner Front Hood: 57253VA011
REMINDER: Always order the most up-to-date replacement parts based on the specific VIN being repaired.
SERVICE PROCEDURE / INFORMATION:
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
The service procedures for hood duct replacement remain unchanged. Always refer to the applicable Service Manual and review the full requirements of the repair being performed. Service Manual procedures contain information critical to performing an effective repair the first time, every time. This includes but is not limited to important SAFETY precautions, proper inspection criteria, necessary special tools, required processes and related one-time-use parts needed for a complete and lasting repair.
12 Affected Products
Vehicles
1 Associated Document
Manufacturer Communications
NUMBER: 12-305-20
DATE: 12/07/2020
MC-10185067-0001.pdf 1110.067KB

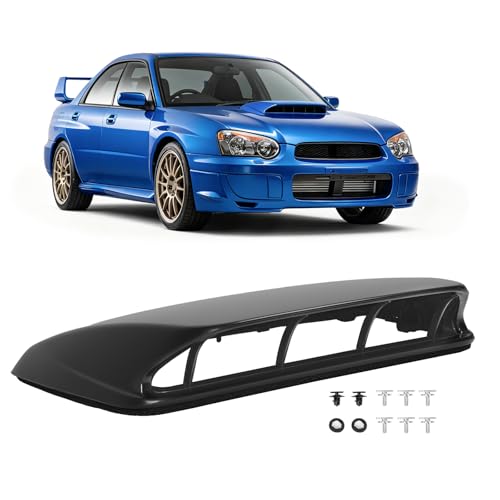

- Vehicle Fitment: Compatible with 2004-2005 Subaru
Impreza WRX/WRX STI. Replace for 90821FE080NN. Please confirm whether it is suitable for the vehicle model before purchasing - Robust Construction: Crafted from premium Aluminium, it combines exceptional quality with lightweight design. Maintains pristine appearance even after prolonged use in harsh outdoor conditions, eliminating the hassle of frequent replacements
- Superior Functionality: The hood air intake reduces engine compartment and transmission temperatures by promoting airflow, mitigating overheating issues. Not only does it ensure peak vehicle performance, but it also prevents high-temperature-induced failures
- Enhanced Aesthetics: The hood louvers feature a streamlined design whose contours harmonize with the vehicle's body lines. The unfinished black finish accentuates a sleek, sporty character, elevating the car's overall visual appeal
- Package Contents: 1 X Hood Vent w/Installation hardware. Instructions not included. Features a simple and direct replace design, it can be installed in no time

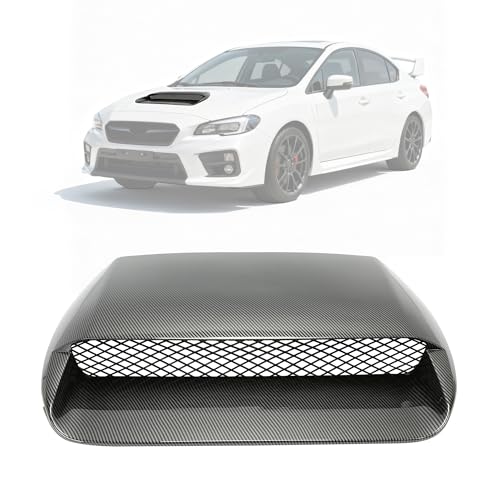

- Fitment:Compatible with 2015-2021 Subaru WRX/WRX STI models,Please verify your vehicle's compatibility before purchase
