NHTSA ID Number: 10235927
Manufacturer Communication Number: 1217514
Summary
Design Change to Rear Door Power Window Regulator
NUMBER: 12-175-14
DATE: 11/10/14
| APPLICABILITY: | 2014-15MY Forester Models |
| SUBJECT: | Design Change to Rear Door Power Window Regulator |
INTRODUCTION
This bulletin announces a design change to the rear door power window regulator / motor assembly. The internal gearing has been changed to prevent the mechanism from binding.
COUNTERMEASURE IN PRODUCTION
The updated regulator was incorporated into production on May 9, 2014 starting with VIN F*443708.
PART INFORMATION
| PART NUMBER | PART NAME |
|---|---|
| 61042SG200 | REG & MOT ASSY R RH |
| 61042SG210 | REG & MOT ASSY R LH |
SERVICE PROCEDURE / INFORMATION
When diagnosing the Power Window System, follow the Symptom / Inspection order as shown in the table below. If determined the motor / regulator assembly requires replacement, the service procedure for installation is unchanged from the existing steps outlined in the applicable Service Manual.
| Symptoms | Inspection Order |
| All power windows do not operate. |
|
| Particular window does not operate. |
|
2 Affected Products
Vehicle
| MAKE | MODEL | YEAR |
SUBARU | FORESTER | 2014-2015 |
1 Associated Document
Manufacturer Communications
NUMBER: 12-175-14
DATE: 11/10/14
MC-10235927-9999.pdf 250.697KB
NHTSA ID Number: 10068666
Manufacturer Communication Number: 12-175-14
Summary
SUMMARY TO BE PROVIDED ON A FUTURE DATE.
1 Associated Document
Service Bulletin Document
NUMBER: 12-175-14
DATE: 11/10/14
SB-10068666-0699.pdf 250.697KB
- Electric Power Window Regulator: Location: Front Left (Front Driver Side) ,inspected before shipment in the factory, offering the quality, reliability, and durability
- Fit Vehicles: Window Regulator With Motor(6pins) compatible with Subaru Legacy 2010-2014 Outback 2010-2014, Please confirm if the Power Window Regulator fits your Vehicle before purchase
- Replaces Part Number: 61041-AJ03A, 61041-AJ03B, 751-345, Manufactured to OE specification for fit, form, and function, full fit original car absolutly Brand New
- Why To Replace: Help you resolve problems such as jamming, shaking, vibration, abnormal noise, damage or inability to lift or down, in time to ensure the safety on the road and a comfortable driving experience, please replace it as soon as possible
- When to replace: When you press the window switch, the window can’t lift or lower smoothly. Common symptoms in bad Window Lift include cable reels to bind, cable tension and stress to be too high, window fall down or can’t close fully, stuck-can’t move etc
- 【Directly Fit】OE Replacement Power Window Regulator with Motor, Directly Fit
- 【Vehicle Fitment】Compatible with Subaru Forester 2014-2018 with One Touch Up/Down
- 【Position】Front Left (Front Driver Side)
- 【Reference Number】61041SG010, 61041SG011, 61041SG012
- 【Buy with Confidence】: A-Premium offers a one-year unlimited-mileage guarantee on our meticulously crafted power window regulator. We offer a wide variety of automotive accessory categories, ensuring that you can hit the road with peace of mind.
- 【Directly Fit】OE Replacement Power Window Regulator with Motor, Directly Fit
- 【Vehicle Fitment】Compatible with Subaru Forester 2003-2008 Sport Utility
- 【Position】Front Left (Front Driver Side)
- 【Reference Number】61188SA011, 61222SA011, 741-003, 88944
- 【Buy with Confidence】: A-Premium offers a one-year unlimited-mileage guarantee on our meticulously crafted power window regulator. We offer a wide variety of automotive accessory categories, ensuring that you can hit the road with peace of mind.

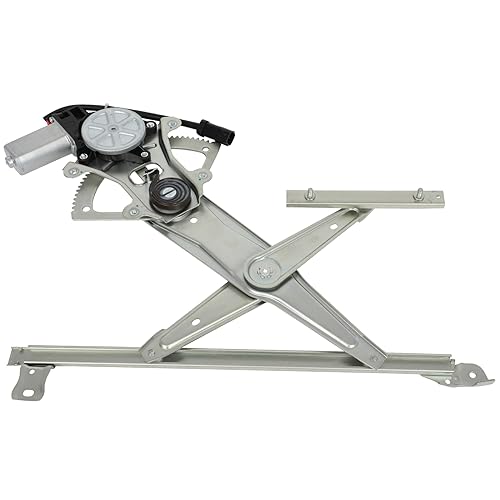

- Replace OE: 748-896. The window regulators are manufactured according to OEM standards and fit the original car
