Vortex Generator – 2022 Subaru BRZ

Accessory Installation Guide

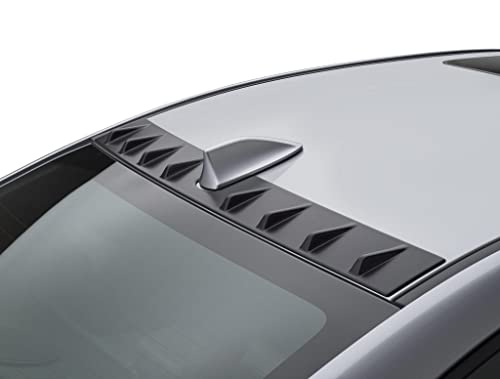

2022MY BRZ Vortex GeneratorE751SCC000




INSTALLATION MANUAL

BRZ – VORTEX GENERATOR

PART NUMBER: E751SCC000



READ THIS MANUAL CAREFULLY



BEFORE INSTALLING

WASH & CLEAN PROPERLY



AFTER INSTALLING

DO NOT WASH IN 24 HRS



TOOLS

Soft Tip Marker

Rubbing Alcohol / Water Solution (1:1 ratio)

Spray Bottle (optional)



DUE CARE:
Please do not apply Isopropyl Alcohol to the Vortex Generator during the installation process.
This may lead to discoloration. Alcohol is intended for cleaning the vehicle installation surface only.



The ideal temperature range of the part and the vehicle when installing must be 16ºC (60ºF) to 40ºC (104ºF), this guarantees a correct assembly.



1 SURFACE PREPARATION

Make sure that all installation surfaces (shown left) are clean, free of dirt, grease, and debris.

Use a clean, lint-free cloth and rubbing alcohol and water solution (1:1 ratio).

Inspect vehicle for damage before installation of Vortex Generator. The recommended adhesive surface temperature range is 15°C – 43°C (60° – 110°F).

If the temperature is below 15°C (60°F), heat the adhesive side of the Vortex Generator and roof surface to a temperature of 27°C (80°F).

A one-hour cure time is recommended before exposing the vehicle to extreme temperatures (hot or cold).



2 REMOVE AND SAVE THE WHITE DOTS

Remove the white dots and stick them onto a smooth clean non-porous surface for re-use later.

White dots are there to protect the part during shipment.



3 NUMBER THE WHITE DOTS

Use a soft tip marker to number each white dot as shown.



4 FOLD AND STICK THE TAPE LINER TABS

A. Fold tape liner tabs towards the outside of the part. Side (vertical) tape tabs should be folded towards outside ends of the part, lengthwise (horizontal) tape tabs should be folded towards the upper and lower outer edges of part.

B. Use the white dots to help stick tape liner onto the part’s top surface.



5 CLEAN

Use the supplied alcohol wipe to thoroughly clean the installation area on the roof. See Step 1 for location.



6 POSITION THE PART

Place the part on vehicle and center it between the outside edges of the roof. Align the back edge of the part along the rear tangent of the roof. Ensure there is even clearance around shark fin antenna.

When properly positioned, there should be even clearance around the antenna.



8 REMOVE LINER 1

While holding the part in position, pull tape tab 1 to remove tape liner. Apply light pressure behind tape tab as it is removed to adhere the tape to the vehicle surface.

Before pulling tape tab ensure ends of the part are properly located on both sides of the vehicle.



9 REMOVE LINER 2

While holding the part in position, pull tape tab 2 to remove tape liner. Apply light pressure behind each tape tab as it is removed to adhere the tape to the vehicle surface.



10 REMOVE LINER 3

While holding the part in position, press the area of the part (indicated by the large white arrow) down onto the roof and pull tape tab 3 to remove tape liner. Apply light pressure behind tape tab as it is removed to adhere the tape to the vehicle surface.



11 REMOVE LINER 4

While holding the part in position, press the area of the part (indicated by the large white arrow) down onto the roof and pull tape tab 4 to remove tape liner. Apply light pressure behind tape tab as it is removed to adhere the tape to the vehicle surface.



12 REMOVE LINER 5

While holding the part in position, press the area of the part (indicated by the large white arrow) down onto the roof and pull tape tab 5 to remove tape liner. Apply light pressure behind tape tab as it is removed to adhere the tape to the vehicle surface.



13 REMOVE LINER 6

While holding the part in position, press the area of the part (indicated by the large white arrow) down onto the roof and pull tape tab 6 to remove tape liner. Apply light pressure behind tape tab as it is removed to adhere the tape to the vehicle surface.



14 REMOVE LINER 7

While holding the part in position, pull tape tab 7 to remove tape liner. Apply light pressure behind tape tab as it is removed to adhere the tape to the vehicle surface.



15 REMOVE LINER 8

While holding the part in position, pull tape tab 8 to remove tape liner. Apply light pressure behind tape tab as it is removed to adhere the tape to the vehicle surface.



16 PRESS

After all tape liners are removed, apply 30 PSI downward for 10 seconds to all taped areas for proper bond. Tape reaches maximum bond after 24 hours of contact. Visually inspect entire perimeter of part to ensure complete adhesion between tape and roof surface.



Part Number
E751SCC000

Issue
01

Date
12/16/2020

SUBARUeBay logo OF AMERICA




BRZ – VORTEX GENERATOR

PART NUMBER: E751SCC000

https://techinfo.subaru.com/stis/doc/accInstallGuide/Installation%20Instructions%20-%20E751SCC000%20BRZ%20Vortex%20Generator.pdf
https://static.oemdtc.com/AccessoryInstallationGuide/E751SCC000.pdf
