D441SVC000 - STI Performance Mufflers

Accessory Installation Guide

2022MY WRX

STI

Performance Mufflers

D441SVC000

INSTALLATION INSTRUCTIONS

PART NUMBER: D441SVC000

DESCRIPTION: STI PERFORMANCE MUFFLERS

STEP 1: Safely lift up and secure the vehicle. CAUTION: Vehicle components are extremely hot after driving. Do not touch any component until the vehicle has cooled down.

STEP 2: Remove and discard the nuts and bolts connecting the rear exhaust pipe to the mufflers.

STEP 3: Spray muffler hangers with a mild soapy solution. Repeat on other side.

STEP 4: First disengage the inboard muffler hanger from rubber exhaust hangers. Then repeat for the outboard muffler hanger. Repeat for the muffler on the other side.

STEP 5: Spray rubber exhaust hanger with soapy solution.

STEP 6: Remove the old muffler gasket and discard. Replace with a new muffler gasket and securely seat it.

STEP 7: Mount the outboard STI muffler hanger onto the rubber exhaust hanger. Then mount the inboard muffler hanger. Repeat for the STI muffler on the other side.

STEP 8: Adjust muffler positioning on the muffler hangers to line up the holes on the muffler to midpipe flange. Use a torque wrench to tighten nuts to 35.4 ft-lbs (48 N·m). Recheck tip position and adjust if necessary.

Installation Complete: Refer to Disclaimer and Care instructions prior to starting the vehicle. Remove any protective wraps from the STI Performance Mufflers. Ensure mufflers tips are unobstructed and vehicle is in a well-ventilated area. Any contaminants left on the exhaust systems such as grease, oils, and/or fingerprints may result in permanent staining. Store the Disclaimer and Care Sheet in the vehicle’s glove compartment.

IMPORTANT INFORMATION REGARDING YOUR STI PERFORMANCE MUFFLERS

These mufflers comply with industry noise standards issued by the Society of Automotive Engineers. You should ensure that it also complies with any state or local noise regulations that may exist in your area.

To prevent permanent staining of your new STI Performance Mufflers, wipe the surfaces clean with a solution of mild detergent and water (Suggestion: Windex) before starting the engine. Any contaminants left on the mufflers such as grease, oil, and/or fingerprints will result in PERMANENT staining.

D441SVC000

https://techinfo.subaru.com/stis/doc/accInstallGuide/2022MY%20WRX%20Performance%20Mufflers%203.29.22%20Rev%20B.pdf

https://static.oemdtc.com/AccessoryInstallationGuide/D441SVC000.pdf

⬇ Download PDF (2.91 MB)

Bestseller No. 1

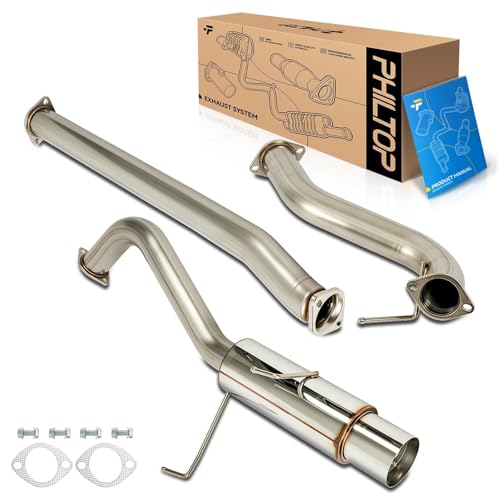

PHILTOP Cat-Back System, Stainless Steel Cat Back Exhaust System Fit for 2015-2017 Subaru WRX/WRX STI

Vehicle Fitment - The Catback System exhaust kit compatible with 2015-2017 Subaru WRX/WRX STI
Engineering Excellence - Vehicles are all about dependability and capability, which is why MagnaFlow engineers every one of our durable, corrosion resistant stainless-steel exhausts to last the lifetime of your vehicle
Reduce Noise - The larger pipes, low-restriction mufflers, and tuned resonators of a well-designed performance exhaust system can make stunned effect on your vehicle: lower auto exhaust back pressure and a much better sound
Premium Materials - Made of high quality T-304 stainless steel with computerized mandrel-bends for strength and durability; TIG welded CNC machine flange for resistance against pressure and corrosion
Easy to Install - Direct bolt-on. No drilling or modifications needed for installation. Gaskets and hardware are Included

Bestseller No. 2

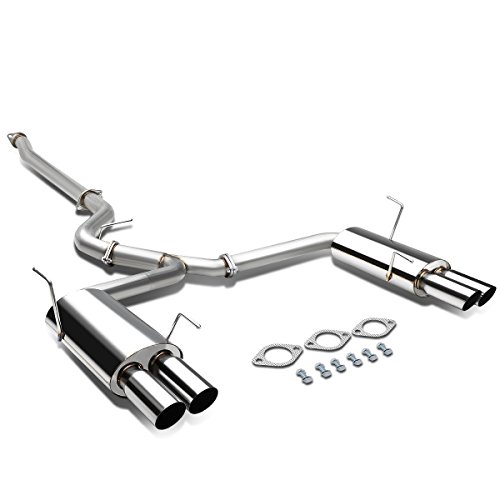

DNA MOTORING CBE-WRX15-D Stainless Steel Cat Back Exhaust System [Compatible with 15-17 Subaru WRX & STI Sedan]

【FITMENT】Compatible with 15-17 Subaru WRX & STI Sedan
【Quality Construction】Made of High Quality T-304 Stainless Steel with Computerized Mandrel-Bends for Strength and Durability. TIG welded CNC machine flange for resistance against pressure and corrosion.
【Enhance Performence】Dyno proven to instantly increases 15 - 25 horsepower / low end torque. Aggressive deep and smooth tone while ensures smooth exhaust gas flow, increase engine output and efficiency.
【Muffler & Diameter】4"(Od) Muffler tip with removable silencer/ 2. 5"(Od) inlet/ 2. 5"(Od) main piping
【Design】The larger pipes, low-restriction mufflers, and tuned resonators of a well-designed performance exhaust system can make stunned effect on your vehicle: lower auto exhaust back pressure and a much better sound.

Bestseller No. 3

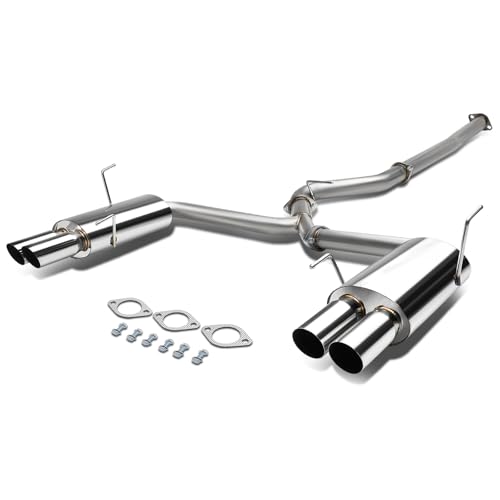

BEZT Cat Back Exhaust System Compatible with 15-20 Subaru WRX & STI Sedan

Compatibility: This catback exhaust system compatible with 2015, 2016, 2017, 2018, 2019, 2020 Subaru WRX & STI Sedan.
Sturdy & Durable: This Catback Exhaust System Kit is made of high quality Stainless Steel, welded and flange processes ensure that the catback exhaust system maintains excellent impact resistance and durability throughout the vehicle's service life.
Superior Performance: Performance muffler with 3" dual exit outlet tips, the design aims to enhance the reverberation effect, thereby providing a mellow, deep and smooth tone. The burnt design of the tip makes your car look more stylish and elegant.
Product Specification: 3" Inlet / 3" ID Main piping; 3" outlet muffler tip. Items Includes muffler, gasket, pipe, tip and mounting hardware.
Easy Installation: Direct fit for easy installation, use exhaust clamps for connection, or welding for maximum durability and stability.

Bestseller No. 4

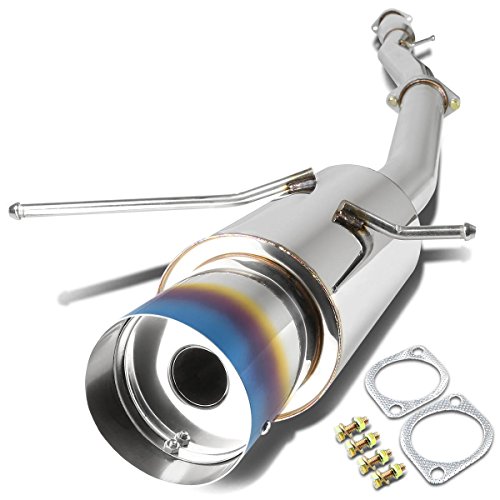

DNA MOTORING CBE-WRX02-BT Stainless Steel Cat Back Exhaust System [Compatible with 02-07 Subaru Impreza WRX/WRX STI]

02-07 Subaru Impreza WRX/ WRX STI
【Quality Construction】Made of High Quality T-304 Stainless Steel with Computerized Mandrel-Bends for Strength and Durability. TIG welded CNC machine flange for resistance against pressure and corrosion.
【Enhance Performence】Dyno proven to instantly increases 15 - 25 horsepower / low end torque. Aggressive deep and smooth tone while ensures smooth exhaust gas flow, increase engine output and efficiency.
【Muffler & Diameter】4"(Od) dual Muffler rolled tip/ 2. 25"(Id) inlet/ 2. 25"(Id) main piping/ double walled Muffler tip
【Design】The larger pipes, low-restriction mufflers, and tuned resonators of a well-designed performance exhaust system can make stunned effect on your vehicle: lower auto exhaust back pressure and a much better sound.

Bestseller No. 5

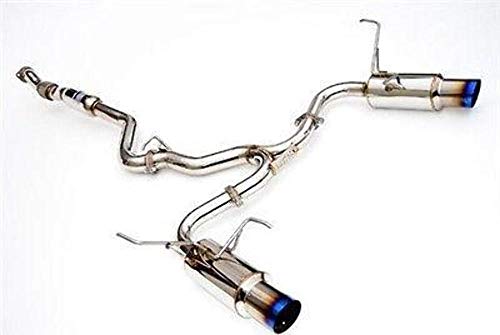

Invidia (HS11STIGTT) N1 Twin Outlet Single Layer Cat-Back Exhaust System with Titanium Tip for Subaru WRX STI 4-Door
