Accessory Installation Guide
2025MY Forester- REAR BUMPER TRIM | E5510SL200 |
Installation manual
REAR BUMPER TRIM
Genuine SUBARU part numbers:
E5510SL200 (Turquoise blue)
E5510SL220 (Silver)
Vehicle model: FORESTER 2025MY~
To installation worker
This manual describes how to install and handle REAR BUMPER TRIM.
1.Before installation, be sure to read thismanual for proper work.
2.The caution mark ⚠in this manualindicates important instructions. Strictly follow them.
3.SUBARUmay not be held responsible for problems that occur due to your failure to follow thisinstallation manual.
Important instructions
1.Before starting installation work, move the vehicle to a safe location.
2.To work safely, make sure that the vehicle does not move. (Make sure to apply parking brake.)
3.After turning the ignition off, disconnect the battery ground terminal.
4.Handlethis product with care not to damage it or the vehicle.
Work outline
Replacementof Rear Bumper Molding
①Unpack the box and check that theproduct has no defect.
②Remove the rear bumper.And then remove the bumper guard.
③Replace the molding of the bumper guard with this product.
④Install thebumper guard to the rear bumper. And then install it to the vehicle.
⑤After completing theabove, check the appearance to ensure there is no scratch and such.
Work procedures
1.Remove the rear bumper.
(1)To replace the molding with this product, remove the rear bumper from the vehicle.
・Read the service manual todo this work.
・Theremovedparts are reused.
Be careful not to lose or damagethem during work.
・Be careful of harness connectors including sensors.
If excessive load is applied to them, wire breakage or connector failure could occur.
2.Remove the bumper guard.
(1)To replace the molding with this product, remove the bumper guard from the bumper.
①.Removethe clips (2 places) that fasten the bumper guard.
②.Loosen theclaws (13 places) and remove the bumper guard.
Remove the bumper guard from one side first (either right side or left side) and then the other side.
Important instructions
Without removing the bumper, you cannot access some screws that fasten themolding.
3.Replace the molding with this product.
(1)Remove the screw (one side: 1 place) that fastens the molding
to the bumper guard.
(2)While widening the claw fitting portion (on bumper guard), remove the claws (one side: 6 places) on the molding.
(A plastic remover helps remove claws easily.)
(3)After removing all the claws, install this product to the bumper guard.
Make sure that all the fitting portions are inserted.
(4)After the replacement, fasten this product with the removed screws. (Tightening torque: 0.8 N・m)
Important instructions
・Theremoved screws are used again. Be careful not to lose them.
・Be care not to damage the vehicle, this product, or surrounding parts.
4.Install the bumper again.
(1)Install the rear bumper guard to the bumper.
(2)Install the rear bumper to the vehicle.
*Installthem in the reverse order to removal.
*Be care not to damage thevehicle, this product, or surrounding parts.
5.Check after replacement completion
(1)Make sure that there is no scratch on thisproduct or surrounding areas, and that this product is surely installed.
(2)Return the removed parts to the customer. Thisis the completion of molding replacement.
E5510SL200
https://techinfo.subaru.com/stis/doc/accInstallGuide/ixi%20E5510SL200,220_00.pdf
- 【Fitment】: Rear Bumper Cover Protector Compatible with Subaru Forester 2013-2018.
- 【Easy to Install】: No assembly or drilling required, rear bumper guard with pre-applied 3M tape.
- 【High Quality】: Silicone polymer material, heat /cold resistance,abrasion resistance.
- 【Design】: Automotive Grade UV-Resistant Durable Black PVC, design for maximum coverage, textured surface, groove design, ultra thin profile.
- 【Function】: Rear Bumper Cover Protectors give your car a distinct new look, as well as added functionality, Prevent from scuffs, nicks, scratches, and other damaging marks.
- FITMENT - Compatible with 2018-2023 Subaru Crosstrek. Replacement part number: E771SFL100.
- FEATURE - Rear bumper cover protector replacement, provide protection for the upper surface from scratches. Protect the paint and give your vehicle a new appearance.
- MATERIAL - This brand new bumper cover is constructed of heavy duty plastic to ensure a long lasting service life under outdoor conditions, UV-Resistant and Anti-Scratch, preventing scuffs and gouges.
- DESIGN - Custom fit design for maximum coverage damage. Surface design with grooves and textures, non-slip function, preventing the falling of things.
- INSTALLATION - Install with 3M adhesive. Before installing, wipe off the dirty oil and attach it. Carefully place the product in the correct position and press it. Do not wash the car for 24 hours to get good adhesion. Instruction and mounting hardware are NOT included.
- 【Fitment】:Rear Bumper Protector Guard for Subaru Outback 2021 2022 2023 2024
- 【EASY installation】:This rear bumper guard is very durable,flexible,will not crack or break, glue tape is coming under the trim, just stick on sill, easy to install.
- 【HIGH-quality materials】: The rear bumper protector is Made of high quality silicone polymer material. heat /cold resistance, abrasion resistance, anti-aging, waterproof & UV resistance. Hardness 60 (Shore A).
- 【Function】: The car accessories effectively protect car rear bumper when loading or unloading luggages, groceries, tools box and so on, It prevents nasty scratches and provides protection. Also it can be used to cover any existing scratches, paint damage. The fashionable appearance can not only make your car look cool, but also protect your car.
- 【Attention】: Installed with 3M Double Sided tape, please ensure the surface is free of dirt and waxes before applying.
- 【Fitment】: Rear Bumper Cover Protector Genuine OE OEM Compatible with Subaru XV Crosstrek 2018 2019 2020 2021 2022 2023
- 【Install】Perfect fit, install easily with 3M double sided tape
- 【Design】: Textured surface, groove design, ultra thin profile, unique pattern for style and slip resistance.
- 【High Quality】: High quality silicone polymer material, precision accents to compliment existing OEM accent.
- 【Function】: Custom fit design for maximum coverage damage, Protect car rear bumper when loading or unloading luggages, groceries, tools box and so on.
- 👍Fitment: Compatible with Subaru Forester 2013 2014 2015 2016 2017 2018
- 👍Install: Installed with 3M Double Sided tape, please ensure the surface is free of dirt and waxes before applying
- 👍: Made of high quality silicone polymer material, automotive Grade UV-Resistant Durable Black PVC
- 👍Function: Custom fit design for maximum coverage damage, Protect car rear bumper when loading or unloading luggages, groceries, tools box and so on
- 👍Slip-resistant: Provide slip resistance, to reduce the damage caused by the falling of the luggage in the suitcase effectively and prevent the items from falling
- 【Fitment】: Rear Bumper Cover Protector Subaru Forester 2019 2020 2021 2022 2023
- 【Install】: Installs easily with 3M Double Sided Tape, please ensure the surface is clean before applying
- 【Design】: Textured surface provides slip resistance, provide slip resistance and channels away water
- 【High Quality】: High quality silicone polymer material, heat /cold resistance, abrasion resistance, waterproof & UV resistance
- 【Function】: Measured, pre-cut, and precision engineered to match, add protection against scuffs, nicks, scratches, and other damaging marks
- Genuine Subaru Rear Bumper Protector
- E101EAJ501
- Ascent Forester Legacy Outback Forester Wrx Impreza Sti Crosstrek Solterra BRZ
- 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 Subaru
- Helps protect top surface of rear bumper when loading or unloading cargo area. (Not Compatible with Cargo Tray)
- 【Fitment】: Rear Bumper Cover Protector Genuine OE OEM Compatible with Subaru XV Crosstrek 2012-2017.
- 【High Quality】: Silicone polymer material, skid-resistant surface with stylish tread pattern.
- 【Function】: Cover existing scratches, protects your bumper from scuffs, nicks, and scratches.
- 【Design】: Groove design and non-slip function, does not hinder trunk release.
- 【Appearances】: Decorate car appearances, stylish tread pattern, making your car particular and unique.
- Product Adaptation: Compatible with Subaru Forester 2019 2020 2021 2022 2023 2024
- Convenient Installation: Textured surface provides slip resistance, Quick and easy no-drill installation with the use of self-adhering 3M Tape
- Product Function: Added protection against scuffs, nicks, scratches, and other damaging marks. Provide slip resistance, to reduce the damage caused by the falling of the luggage in the suitcase effectively and prevent the items from falling
- Product Material: Made of high quality silicone polymer material, automotive Grade UV-Resistant Durable Black PP
- Product Size: To ease concerns about fitment, use the size variations above to see images of our bumper protector on your vehicle, please feel free to contact us if you have problems
- 【Fitment】: Rear Bumper Cover Protector Genuine OE OEM Compatible with Subaru Crosstrek 2024
- 【Install】Perfect fit, install easily with 3M double sided tape, Molded pattern, ultra thin profile, textured surface, giving your car a distinct new look, as well as added functionality.
- 【Design】: Textured surface, groove design, ultra thin profile, unique pattern for style and slip resistance.
- 【High Quality】: High quality silicone polymer material, precision accents to compliment existing OEM accent.
- 【Function】: Measured, pre-cut, and precision engineered to match, add protection against scuffs, nicks, scratches, and other damaging marks, Custom fit design for maximum coverage damage, Protect car rear bumper when loading or unloading luggages, groceries, tools box and so on.
Last update on 2024-04-29 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
SEOCONTENT-START
1
Δ00
Rev. No.
Revision content
Date
00
New establishment
2023/8/9
This manual describes how to install and handle REAR BUMPER TRIM.
1.Before installation, be sure to read thismanual for proper work.
2.The caution mark ⚠in this manualindicates important instructions.
Strictly follow them.
3.SUBARUmay not be held responsible for problems that occur due to
your failure to follow thisinstallation manual.
To installationworker
⚠Important instructions
1.Before starting installation work, move the vehicle to a safe location.
2.To work safely, make sure that the vehicle does not move.
(Make sure to apply parking brake.)
3.After turning the ignition off, disconnect the battery ground terminal.
4.Handlethis product with care not to damage it or the vehicle.
REAR BUMPER TRIM
Installation manualGenuine SUBARU part numbers: E5510SL200 (Turquoise blue)E5510SL220 (Silver)Vehicle model: FORESTER 2025MY~
Distributor: SUBARU Co., Ltd.
2
①
②
Rear Bumper Trim■E5510SL200 (turquoise blue) / E5510SL220 (silver)No.Item nameQty①Rear Bumper Trim RH1②Rear Bumper Trim LH1

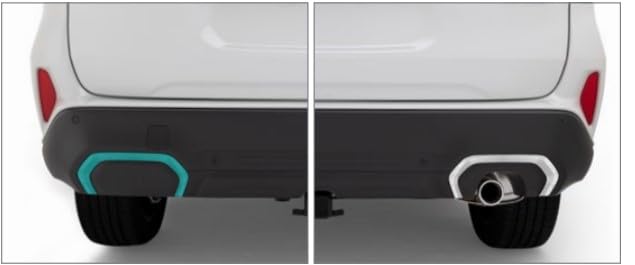

Completed installation sketch
