NUMBER: 05-41-08R
DATE: 08/11/09

APPLICABILITY: 2009 and later Forester
2008 and later Impreza / WRX / STI
2006 and later Tribeca
SUBJECT: Front Stabilizer Bar Bushings





INTRODUCTION

If you encounter a rubbing type noise coming from the front stabilizer bar, especially at low ambient temperatures, the stabilizer bar bushings may need to be replaced. A modification was made using a different material that is more durable which will eliminate the noise.



PART INFORMATION / STABILIZER BUSHING

MY / MODEL PART NUMBER (OLD) PART NUMBER (NEW) STABILIZER BAR DIAMETER (MM)
2009 and later Forester 20414AG030 20414AG070 Front Stabilizer Bar Bushings - 2006-2014 Subaru | small light 21
2008 and later Impreza 20414AG040 20414FG020 Front Stabilizer Bar Bushings - 2006-2014 Subaru | small light 20
2008 WRX 20414AG040 20414FG020 Front Stabilizer Bar Bushings - 2006-2014 Subaru | small light 20
2009 and later WRX 20414AG030 20414AG070 Front Stabilizer Bar Bushings - 2006-2014 Subaru | small light 21
2008 and later STI 20414AG040 20414FG020 Front Stabilizer Bar Bushings - 2006-2014 Subaru | small light 20
2006 and later Tribeca 20414XA00A 20414XA01A Front Stabilizer Bar Bushings - 2006-2014 Subaru | small light 25

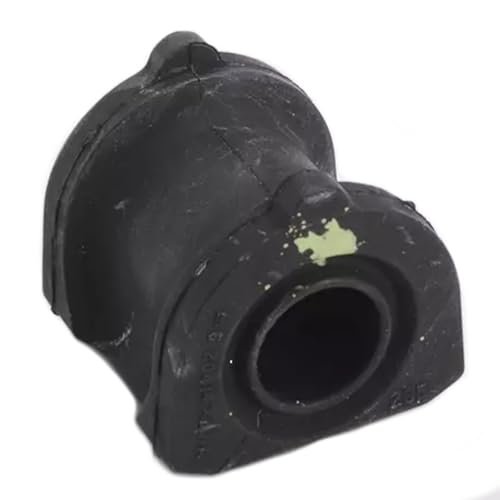

PART IDENTIFICATION

STABILIZER BUSHING



REPAIR PROCEDURE/INFORMATION

Refer to the applicable Service Manual for replacement procedure.

Make sure stabilizer bar surface is clean prior to installing new bushing.

When installing new style bushing, both sides should be replaced at the same time.



WARRANTY/CLAIM INFORMATION

For vehicles within the Basic New Car Limited Warranty period, refer to the Subaru Warranty Wizard for claim information.
