NHTSA ID Number: 10163532
Manufacturer Communication Number: 12-268-19
Summary
This Service Information bulletin announces a change made to the mass damper plate and sub-woofer mounting bolts. The threaded end of the new bolts has been changed to a round type instead of square to prevent getting caught on items as they are loaded into and out of the trunk.
4 Affected Products
Vehicle
MAKE | MODEL | YEAR |
SUBARU | LEGACY | 2015-2018 |
INTRODUCTION:
This Service Information bulletin announces a change made to the mass damper plate and sub-woofer mounting bolts. The threaded end of the new bolts has been changed to a round type instead of square to prevent getting caught on items as they are loaded into and out of the trunk.
PRODUCTION CHANGE INFORMATION:
This bulletin will be updated with the starting VIN for the production change when it becomes available.
PART INFORMATION:
The part numbers for the new flange bolts are:
- 901270013 for the sub-woofer (hex bolt & washer assembly)
- 901000474 for the mass damper plate (flange-type bolt as shown).
SERVICE PROCEDURE / INFORMATION:
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
The service procedures and torque specifications for these new bolts remain unchanged. Always refer to the applicable Service Manual and review the full requirements of the repair being performed. The Service Manual procedures contain information critical to performing an effective repair the first time and every time.
SEOCONTENT-START
Bulletin Number: 12-268-19; Date: 07/22/19 Page 1 of 2
Continued…
NUMBER: 12-268-19
DATE: 07/22/19
APPLICABILITY: 2015-2018MY Legacy
SUBJECT: Mounting Bolt Change: Mass Damper Plate
and Sub-Woofer
CAUTION: VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD
RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS.
Subaru Service Bulletins are intended for use by professional technicians ONLY. They
are written to inform those technicians of conditions that may occur in some vehicles,
or to provide information that could assist in the proper servicing of the vehicle. Properly
trained technicians have the equipment, tools, safety instructions, and know-how to
do the job correctly and safely. If a condition is described, DO NOT assume that this
Service Bulletin applies to your vehicle, or that your vehicle will have that condition.
Subaru of America, Inc. is
ISO 14001 Compliant
ISO 14001 is the international standard for
excellence in Environmental Management
Systems. Please recycle or dispose of
automotive products in a manner that is friendly
to our environment and in accordance with all
local, state and federal laws and regulations.
INTRODUCTION:
This Service Information bulletin announces a change made to the mass damper plate and sub-woofer
mounting bolts. The threaded end of the new bolts has been changed to a round type instead of
square to prevent getting caught on items as they are loaded into and out of the trunk.
PRODUCTION CHANGE INFORMATION:
This bulletin will be updated with the starting VIN for the production change when it becomes
available.
PART INFORMATION:
The part numbers for the new flange bolts are:
• 901270013 for the sub-woofer (hex bolt & washer assembly)
• 901000474 for the mass damper plate (flange-type bolt as shown).
SERVICE INFORMATION BULLETIN
ATTENTION:
GENERAL MANAGER q
PARTS MANAGER q
CLAIMS PERSONNEL q
SERVICE MANAGER q
IMPORTANT – All
Service Personnel
Should Read and
Initial in the boxes
provided, right.
©2019 Subaru of America, Inc. All rights reserved.
Bulletin Number: 12-268-19; Date: 07/22/19 Page 2 of 2
SERVICE PROCEDURE / INFORMATION:
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
The service procedures and torque specifications for these new bolts remain unchanged. Always refer
to the applicable Service Manual and review the full requirements of the repair being performed. The
Service Manual procedures contain information critical to performing an effective repair the first time
and every time.
IMPORTANT REMINDERS:
• SOA strongly discourages the printing and/or local storage of service information as
previously released information and electronic publications may be updated at any time.
• Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
• Always refer to STIS for the latest service information before performing any repairs.
NUMBER: 12-268-19
DATE: 07/22/19
https://www.nhtsa.gov/recalls?nhtsaId=10163532
https://static.nhtsa.gov/odi/tsbs/2019/MC-10163532-0001.pdf
“This site contains affiliate links for which OEMDTC may be compensated” |

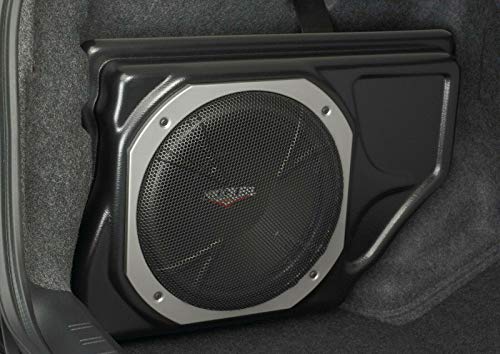

- Genuine Subaru 10" Powered Subwoofer 4 door
