Accessory Installation Guides
2020 Legacy Trunk Spoiler
Applicability:
2020 Legacy (Non-Sport models)
E721SAN000
SEOCONTENT-START
PART NUMBER: E721SAN000XX
TOOLS REQUIRED:
INSTALLATION INSTRUCTIONS DESCRIPTION: Legacy Trunk Spoiler
PART NUMBER:
E721SAN000XX
ISSUE
00
6/24/19 SUBARU OF AMERICA PAGE 1 / 9
Spring Loaded Center Punch
Power Drill
1/4″ Drive Ratchet
1/4″ Drive Torque Wrench 1/4″ Drive
10mm Deep
Socket
Deburring Tool
91% or Greater
Isopropyl Alcohol
Soft Lint Free Cloths and
Large Disposable Cloth or
Plastic Sheet
Flathead Screwdriver
Rust Preventative or
Touch Up Paint
Masking Tape
Vacuum
Safety Glasses
Work
Gloves
Metric Step Drill Bit
SAE
Step Drill Bit:
(1/2″)
(5/16″)
(25/64″)
8mm
10mm
13mm
PART NUMBER: E721SAN000XX
KIT CONTENTS:
STEP 1: Clean trunk lid with isopropyl alcohol and a soft clean cloth towel.
PART NUMBER:
E721SAN000XX
ISSUE
00
6/24/19 SUBARU OF AMERICA PAGE 2 / 9
Legacy Spoiler with
pre-installed studs
Top View
Bottom View
4x Compression Nuts 2x Clips
Mylar Template
4x 70% Alcohol Pads
Soft Lint Free Cloth
PART NUMBER: E721SAN000XX
STEP 2: Open the trunk lid. Using a flat head screwdriver, remove the 12 (twelve) clips and remove the liner.
STEP 3: Close trunk. Lay mylar template on trunk lid. Use the two corner arrows to align and center template.
Tape template flat to trunk lid.
PART NUMBER:
E721SAN000XX
ISSUE
00
6/24/19 SUBARU OF AMERICA PAGE 3 / 9
Flathead Screwdriver
PART NUMBER: E721SAN000XX
STEP 4: Use a spring loaded center punch to mark all 7 (seven) hole locations.
STEP 5: Open trunk lid and lay down a disposable cloth or plastic sheet to protect the trunk area and catch any metal shavings. Remove
template and confirm all 7 (seven) punch marks are visible. Close trunk lid.
PART NUMBER:
E721SAN000XX
ISSUE
00
6/24/19 SUBARU OF AMERICA PAGE 4 / 9
PART NUMBER:
E721SAN000XX
ISSUE
00
6/24/19 SUBARU OF AMERICA PAGE 5 / 9
PART NUMBER: E721SAN000XX
STEP 6B – See STEP 6B:SAE Hole Drilling: Use tape to mark the stopping position on the step drill bit. Drill the 7 (seven) hole locations
according to the sizes as shown below.
STEP 6 – See STEP 6A if using a metric step drill bit. Skip to 6B if using an SAE step drill bit.
STEP 6A: Metric Hole Drilling: Use tape to mark the stopping position on the step drill bit. Drill the 7 (seven) hole locations according to the
sizes as shown below.
Your step drill bit
may look different
than the one shown.
Confirm the proper
stopping step before
drilling.
8mm
10mm
13mm
Your step drill bit
may look different
than the one shown.
Confirm the proper
stopping step before
drilling.
1/2″
5/16″
25/64″
PART NUMBER: E721SAN000XX
STEP 7: Deburr holes. Vacuum trunk lid. CAUTION: Be careful not to scratch the vehicle’s paint.
Open trunk, carefully dispose of cloth or sheet and vacuum trunk area.
Apply rust preventative (or touch up paint) and wait 30 minutes.
STEP 8: Use the supplied alcohol wipes to clean the surface of the trunk lid where the spoiler will be installed.
PART NUMBER:
E721SAN000XX
ISSUE
00
6/24/19 SUBARU OF AMERICA PAGE 6 / 9
PART NUMBER: E721SAN000XX
STEP 9: Insert the white clips into the trunk lid first. Then line up spoiler but DO NOT press the spoiler down yet.
PART NUMBER:
E721SAN000XX
ISSUE
00
6/24/19 SUBARU OF AMERICA PAGE 7 / 9
STEP 10: Carefully align the 8mm (5/16”) locating pin and studs with the holes in the trunk lid.
CAUTION: Take extra care with aligning the outboard T-bolts with the white clips from Step 9.
DO NOT
PRESS YET
PART NUMBER:
E721SAN000XX
ISSUE
00
6/24/19 SUBARU OF AMERICA PAGE 8 / 9
PART NUMBER: E721SAN000XX
STEP 11: When ready, position hands over the RH clip and press down vertically to engage the clips. You will hear a series of clicks. Then
proceed to the LH clip and make sure the T-bolt is still aligned with the clip. Press down to engage the clips. You will hear a series of click.
CAUTION: Failure to align the T-bolt to the white clip can cause the white clip to be damaged and pressed into the hole.
STEP 12: Open trunk lid and install the 4 (four) compression nuts. Loosely tighten all 4x nuts then torque using the following
sequence below.
Torque: 5.65 +/- 0.40 N•m (50 in-lbs +/- 3 in-lbs).
#2
#1
1/4″ Drive
Deep Socket
1/4″ Drive
1/4″ Drive Ratchet Torque Wrench
PART NUMBER:
E721SAN000XX
ISSUE
00
6/24/19 SUBARU OF AMERICA PAGE 9 / 9
PART NUMBER: E721SAN000XX
STEP 13: Close trunk lid and firmly press down again on locations #1 and #2 to ensure white clips are fully engaged.
STEP 15: Open trunk and reinstall the trim. Installation complete.
STEP 14: Clean trunk lid and spoiler.
#2
#1
NUMÉRO DE PIÈCE :
E721SAN000XX
VERSION
00
24/06/2019 SUBARU OF AMERICA Page 1 de 9
NUMÉRO DE PIÈCE : E721SAN000XX
OUTILS REQUIS :
INSTRUCTIONS D’INSTALLATION DESCRIPTION : Déflecteur de coffre de la Legacy
Pointeau à ressort
Perceuse électrique
Clé à cliquet à prise
de 1/4 po
Clé dynamométrique à
prise de 1/4 po
Clé de 1/4 po
Douille longue
de 10 mm
Outil d’ébavurage
Alcool isopropylique
de concentration
minimale de 91 %
Linges non pelucheux
et grande pièce de
tissus ou de pellicule
plastique jetable.
Tournevis à tête plate
Antirouille ou
Peinture de retouche
Ruban-cache
Aspirateur
Lunettes de
Gants de sécurité
travail
Foret étagé
SAE
Foret étagé :
(1/2
(5/16
(25/64
8 m
10 mm
13 m
NUMÉRO DE PIÈCE :
E721SAN000XX
VERSION
00
24/06/2019 SUBARU OF AMERICA Page 2 de 9
NUMÉRO DE PIÈCE : E721SAN000XX
CONTENU DU KIT :
ÉTAPE 1 : Nettoyez le couvercle du coffre à l’aide de l’alcool isopropylique et d’un linge doux propre.
Déflecteur de la Legacy
avec goujons préinstallés
Vue de
dessus
Vue de dessous
4 écrous à compression
2 attaches
Gabarit en
4 lingettes imbibées
d’alcool à 70 %
Linge non
pelucheux doux
ÉTAPE 3 : Fermez le coffre. Placez le gabarit en Mylar sur le couvercle du coffre. Utilisez les deux flèches dans les
coins pour aligner et centrer le gabarit.
Fixez le gabarit à plat sur le couvercle de coffre avec du ruban.
NUMÉRO DE PIÈCE :
E721SAN000XX
VERSION
00
24/06/2019 SUBARU OF AMERICA Page 3 de 9
NUMÉRO DE PIÈCE : E721SAN000XX
ÉTAPE 2 : Ouvrez le couvercle de coffre. Utilisez un tournevis à tête plate pour retirer les 12 (douze) attaches et
retirez la doublure intérieure.
Tournevis à tête plate
ÉTAPE 5 : Ouvrez le couvercle de coffre et étendez une pièce de tissu ou une pellicule plastique jetable pour protéger
le plancher du coffre et recueillir les copeaux métalliques. Retirez le gabarit et confirmez que les 7 (sept) repères
marqués sont visibles. Fermez le couvercle de coffre.
NUMÉRO DE PIÈCE :
E721SAN000XX
VERSION
00
24/06/2019 SUBARU OF AMERICA Page 4 de 9
NUMÉRO DE PIÈCE : E721SAN000XX
ÉTAPE 4 : Utilisez un pointeau à ressort pour marquer les 7 (sept) emplacements des trous.
NUMÉRO DE PIÈCE : E721SAN000XX
ÉTAPE 6B – consultez l’ÉTAPE 6B Perçage avec le foret étagé SAE : Marquez la position de butée du foret étagé
au moyen de ruban adhésif. Percez les 7 (sept) trous selon les dimensions indiquées ci-dessous.
ÉTAPE 6 – Voir l’ÉTAPE 6A en cas d’utilisation d’un foret étagé métrique. Passer à l’étape 6B en cas
d’utilisation d’un foret étagé SAE.
ÉTAPE 6A – Perçage avec le foret métrique : Marquez la position de butée du foret étagé au moyen de ruban
adhésif. Percez les 7 (sept) trous selon les dimensions indiquées ci-dessous.
NUMÉRO DE PIÈCE :
E721SAN000XX
VERSION
00
24/06/2019 SUBARU OF AMERICA Page 5 de 9
Votre foret étagé
peut paraître différent
que celui illustré.
Vérifiez que la position
de la butée est correcte
8 m
10 m
13 m
Votre foret étagé
peut paraître différent
que celui illustré.
Vérifiez que la position
de la butée est correcte
1/2 p
5/16
25/64
NUMÉRO DE PIÈCE :
E721SAN000XX
VERSION
00
24/06/2019 SUBARU OF AMERICA Page 6 de 9
NUMÉRO DE PIÈCE : E721SAN000XX
ÉTAPE 7 : ébavurez les trous. Passez l’aspirateur sur le couvercle du coffre. MISE EN GARDE : Prenez garde de ne pas égratigner la
peinture du véhicule.
Ouvrez le coffre, retirez soigneusement la pièce de tissus ou la pellicule plastique et passez l’aspirateur dans le coffre.
Appliquez de l’antirouille (ou de la peinture de retouche) et attendez 30 minutes.
ÉTAPE 8 : utilisez les lingettes imbibées d’alcool fournies pour nettoyer la surface du couvercle du coffre où le
déflecteur sera posé.
NUMÉRO DE PIÈCE : E721SAN000XX
ÉTAPE 9 : insérez d’abord les attaches blanches dans le couvercle de coffre. Alignez ensuite le déflecteur, mais SANS APPUYER pour
le moment.
NUMÉRO DE PIÈCE :
E721SAN000XX
VERSION
00
24/06/2019 SUBARU OF AMERICA Page 7 de 9
ÉTAPE 10 : alignez avec précaution le détrompeur de 8 mm (5/16 po) et les goujons sur les trous du couvercle du coffre.
MISE EN GARDE : : Prenez grand soin de bien aligner les attaches blanches de l’étape 9 avec les boulons à T externes.
NE PAS EXERCER
DE PRESSION POUR
LE MOMENT.
NUMÉRO DE PIÈCE : E721SAN000XX
ÉTAPE 11 : Lorsque vous êtes prêt, placez vos mains sur l’attache droite et exercez une pression verticale pour la fixer.
Vous entendrez une série de clics. Passez ensuite à l’attache gauche et assurez-vous que l’attache est toujours alignée
avec le boulon à T. Exercez une pression verticale pour fixer les attaches. Vous entendrez une série de clics.
MISE EN GARDE : Si les attaches blanches ne sont pas alignées sur les boulons à T, celles-ci risquent d’être
endommagées et de s’enfoncer dans les trous.
ÉTAPE 12 : Ouvrez le couvercle de coffre et installez les 4 (quatre) écrous de compression. Serrez légèrement les 4 écrous, puis
terminez de les serrer en suivant la séquence ci-dessous.
Couple de serrage : 5,65 + 0,40 N.m (50 po-lb + 3 po-lb).
NUMÉRO DE PIÈCE :
E721SAN000XX
VERSION
00
24/06/2019 SUBARU OF AMERICA Page 8 de 9
2
1
Clé de 1/4 po
Douille longue
Clé de 1/4 po
Clé à cliquet à Clé dynamométrique
prise de 1/4 po
NUMÉRO DE PIÈCE : E721SAN000XX
ÉTAPE 13 : Fermez le couvercle du coffre et appuyez fermement sur les emplacements no 1 et 2 pour vous assurer
que les attaches blanches sont bien fixées.
ÉTAPE 15 : Ouvrez le coffre et réinstallez la garniture. L’installation est terminée.
ÉTAPE 14 : Nettoyez le couvercle du coffre et le déflecteur.
NUMÉRO DE PIÈCE :
E721SAN000XX
VERSION
00
24/06/2019 SUBARU OF AMERICA Page 9 de 9
2
1
Loading...
Reload document
Open in new tab
| “This site contains affiliate links for which OEMDTC may be compensated” |

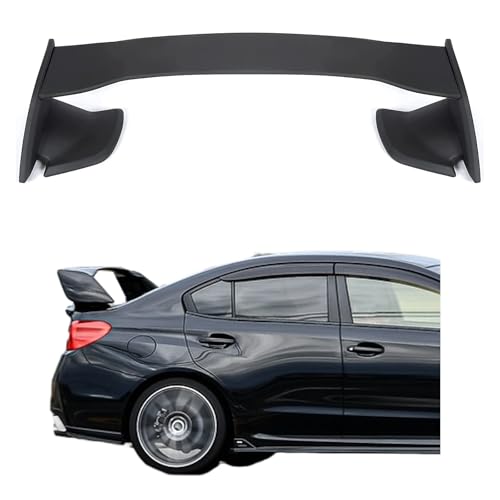

- FITMENT - Compatible with 2015-2021 Subaru WRX 4 Door Sedan; Compatible with 2015-2021 Subaru WRX STI 4 Door Sedan. Please confirm the product if it matches your car before you purchase.
- PREMIUM MATERIAL - Made of high quality plastic, durable, impact resistance and heat resistance, which has the advantages of high shock resistance and light weight. The painted surface can adapt to any environment and give your vehicle an attractive appearance.
- EXCELLENT PERFORMANCE - This trunk spoiler will provide better aerodynamic characteristics for your vehicle, increase the downforce of the wheels, and reduce the air resistance when facing high speed driving, which improves grip and driving stability. It can also improve the grade of your vehicle and make it look cooler.
- PACKAGE INCLUDED - 1 Set of Trunk Spoiler (Carbon Fiber Color). Mounting hardware is included. Instructions are NOT included.
- INSTALLATION - The Trunk Spoiler is mounted with screws, which are more stable and may require additional drilling. Professional installation is recommended.
- Fit For 2002-2007 SUBARU IMPREZA WRX
- Style: OE STYLE | Material: High Quality ABS | Color: Unpainted Raw Material Color
- Package Includes: 1x Trunk Spoiler With LED Light
- Instructions are not included, Professional Installation is Highly Recommended.
- 30 Days Limited Warranty (This is NOT an OEM part. This product is designed to be a replacement for the OEM part)
- Fit For 2012-2016 Subaru Impreza 4-Door Sedan Only, Includes Base, Limited, Premium Models ;2015-2021 Subaru WRX STI, Includes Base, Limited, Launch Edition, Series.HyperBlue, Type RA and S209 Models ;2015-2021 Subaru WRX, Includes Base, Limited and Premium Models
- Style: OE Style | Material: High Quality ABS Plastic | Color: Unpainted Raw Material
- Package Includes: 1x Trunk Spoiler
- Instructions included, Professional Installation is Highly Recommended.
- 30 Days Limited Warranty (This is NOT an OEM part. This product is designed to be a replacement for the OEM part)
- Fit For 2008 - 2014 Subaru Impreza WRX STi / 2.5i / 2.5GT / Sport 4-Door Sedan Models Only
- Made of High Quality Light Weight and Durable Material
- Unpainted Finished; Ready To Be Painted To Match Your Vehicle
- Gives Your Vehicle Upgrade And Style Look
- Installation Manual is Not Included, Professional Installation Is Highly Recommend
- FITMENT - Compatible with 2002-2007 Subaru Impreza WRX Sedan 4-Door. Please confirm the product if it matches your car before you purchase.
- PREMIUM MATERIAL - Made of high quality plastic, which has the advantages of high shock resistance and light weight. The painted surface can adapt to any environment and improve the sporty appearance.
- EXCELLENT PERFORMANCE - This trunk spoiler will reduce the air resistance when facing high speed driving and it will improve the stability of the vehicle. Brake light is very easy to be seen by the car behind, greatly avoiding a rear-end accident.
- PACKAGE INCLUDED - 1 x Trunk Spoiler & Brake Light (Matte Black). Hardware is included.
- EASY INSTALLATION - Bolt-on installation. Easy to install without drilling or cutting. Instructions are NOT included.
- Fitment: The trunk spoiler and brake light compatible with 2002-2007 Subaru Impreza WRX Sedan 4-Door. Please confirm your model before purchasing to avoid that the purchased trunk spoiler and brake light are not suitable for your vehicle.
- Feature: Made of high quality automotive grade plastic, wear resistance, stable and reliable, high strength, good impact resistance, not easy to damage, good anti-aging performance. The painted finish provides protection for the surface, improve durability.
- Ideal Replacement: The trunk spoiler can adds more down force, reducing wind resistance, saving fuel, maintaining the stability of the vehicle when in high speeds, and making drivers safer and more comfortable at high speeds. The third bright light when braking is easy to be seen by the rear vehicle, can effectively avoid rear-end collision, protect your safety.
- Installation: Bolt-on, easy to operate. We sincerely recommend you to choose professional installation.
- Package Content: 1 X Trunk Spoiler W/LED Third Brake Light. No installation instructions. Installation hardware are included.
- 【Fitment】Compatible with Subaru Legacy 2015-2020
- 【What You Get】1 X STP-Style Rear Trunk Lid Spoiler
- 【Selected Materials 】Carbon Fiber / Fiberglass Construction, High Gloss Resin Top Coat Finish
- 【Enhance Appearance】Will Dramatically Improve the Styling & Sporty Appearance for your Vehicle
- 【Easy Installation】Affixes to Vehicle via doublesided Automotive Adhesive; No Drilling is Required
- Fit For 2008-2014 IMPREZA WRX & STI 4DR (SEDAN) & 2008-2011 SUBARU IMPREZA BASE 4DR SEDAN (2.5I/SPORT/2.5 GT);WON'T FIT FOR 2012-2014 SUBARU IMPREZA BASE 4DR (2.5I/SPORT/2.5 GT)
- Material: High Quality ABS Plastic | Color: Unpainted Raw Material Color
- Package Includes: 1x Trunk Spoiler
- Instructions included, Professional Installation is Highly Recommended.
- 30 Days Limited Warranty
- 【CUSTOM FITMENT】-- IKON MOTORSPORTS custom and direct fit rear trunk spoiler Fits 2022-2024 Subaru BRZ & Toyota GR86. Each piece in our inventory is precision-designed using the latest technology, guaranteeing the precise fitment and adherence to your vehicle's dimensions.
- 【PREMIUM & DURABLE MATERIAL】-- This automotive vehicle rear wing spoiler is made of high quality and sturdy ABS, strong and durable to withstand wear and tear. Scratchproof, durable, reliable and long-lasting. Whether you're looking to hit the ground running or rebuild after an accident, our premium aftermarket tail spoiler bring you the performance you love at an affordable price.
- 【ADD STYLISH LOOK】-- The Matte Black rear trunk spoiler wing lip can enhances the aesthetics of your vehicle. Its unique style will perfectly complement the fine lines of your car, and its distinctive shape will set your car apart from others.
- 【EASY TO INSTALL】-- Simply stick double sided tape on the bottom side, you can easily install the trunk lid spoiler. If you wish to use it for a long time, you may need to drill holes or modify it. Before trying, you can watch some web installation videos for some installation tips. Of course, using a professional installer is highly recommended.
- 【AERODYNAMICS PERFORMANCE】-- Rear wing spoiler plays an important role in improving speed and stability. The design of the deck lid wing spoiler helps to improve the aerodynamic performance of the car by reducing drag and increasing downforce. At the same time, it saves gas mileage. Try now to enjoy a more confident and engaging driving experience.
- Fits ALL 2015-2021 Subaru WRX | WRX STi Models
- 100 % Brand New Condition, A Brand-New, Unused, Unopened, Undamaged Item in its Original Packaging (Where Packaging is Applicable).
- Package is Included with 1 X Subaru WRX | WRX STi Rocket Bunny High-Kick Duckbill Style ABS Plastic Primer Black Rear Trunk Lid Wing Spoiler & 1 X Bag of Hardware
- Test Fitted Prior Shipment to Ensure Fitment Issue - Guarantee to Fit. Hardware is Included for Direct Bolt-On Installation
Last update on 2024-04-22 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
