NHTSA ID Number: 10186364
Manufacturer Communication Number: 03-82-18R
Summary
This bulletin announces a design change to the clutch release bearing.
![Subaru Logo](/Uploads/Subaru-Logo.webp)
NUMBER: 03-82-18R
DATE: 10/26/18
REVISED: 01/12/21
APPLICABILITY: | 2000 – 2014MY Legacy and Outback 2003 – 2007MY Baja 2001 – 2018MY Impreza 2013 – 2018MY Crosstrek 2001 – 2018MY Forester 2002 – 2005MY WRX |
SUBJECT: | Clutch Release (Throw-Out) Bearing- Design Change |
INTRODUCTION:
This Service Information bulletin announces a design change to the clutch release bearing used on the models as listed above. During assembly of the bearing, a different type of grease is used which has a higher resistance to heat. In cases where the operator keeps a foot on the clutch pedal for extended periods, an increased amount of heat is generated which can cause the grease inside the bearing to deteriorate. In a case of prolonged clutch pedal application, seizure of the bearing can occur with potential damage to other related components.
PRODUCTION CHANGE INFORMATION:
The new release bearings were incorporated into production as per the table below:
Model | Starting VIN |
Legacy | H1068448 |
Outback | H1389250 |
Impreza 4-Door | H1620092 |
Impreza 5-Door | H1739055 |
Crosstrek | HG250241 |
Forester | HG553016 |
PART INFORMATION:
The new release bearing part numbers are 30502AA121 and 30502AA150. Always order the most updated part number based on the specific VIN. Comparison images for identification purposes are supplied below.
SERVICE PROCEDURE / INFORMATION:
IMPORTANT REMINDERS:
- Customer satisfaction and retention starts with performing quality repairs.
- The service procedures for replacing the release bearing remain unchanged. Always refer to the applicable Service Manual and review the full requirements of the repair being performed. The Service Manual procedures contain information critical to performing an effective repair the first time and every time. This includes but is not limited to: important SAFETY precautions, proper inspection criteria, necessary special tools and related onetime-use parts needed for a complete and lasting repair.
- To avoid customer concerns of a post-repair creaking, squeaking or clicking sound possibly accompanied by increased pedal effort (stiffness) when operating the clutch pedal, always thoroughly clean, inspect for signs of wear and re-lubricate the clutch release components. Any worn components identified should be replaced. For example: see the photos below which show excessive wear on areas of the release fork which was the root cause of a squeaking sound heard while the engine was running.
Note the excessive wear into the release fork resulting from lack of lubrication.
- Cleaning the transmission case surrounding the clutch assembly is also necessary to prevent dirt or debris from contaminating the lubricant and interfering with release lever or bearing operation.
- Where applicable, the release lever (fork), shaft, pivot ball / stud, ends of the operating cylinder rod, release bearing contact points on both the release lever and pressure plate along with the input shaft splines should all be properly lubricated with the grease specified in the Service Manual (Nichimoly N-130, Conoco-Philips Multiplex Red #2 or Subaru p.n. 000041000) then checked closely for smooth operation before reinstalling the transmission. It is also important to apply the grease sparingly as shown below, especially on the transmission input shaft splines to avoid grease contamination of the clutch disc’s friction material.
80 Affected Products
Vehicles
MAKE | MODEL | YEAR |
SUBARU | BAJA | 2003-2006 |
SUBARU | CROSSTREK | 2013-2018 |
SUBARU | FORESTER | 2001-2018 |
SUBARU | IMPREZA | 2001-2018 |
SUBARU | LEGACY | 2000-2014 |
SUBARU | OUTBACK | 2000-2014 |
SUBARU | WRX | 2002-2005 |
1 Associated Document
Manufacturer Communications
NUMBER: 03-82-18R
DATE: 10/26/18
REVISED: 01/12/21
https://www.nhtsa.gov/recalls?nhtsaId=10186364
MC-10186364-0001.pdf 638.743KB
NHTSA ID Number: 10179416
Manufacturer Communication Number: 03-82-18R
Summary
This service information bulletin announces a design change to the clutch release bearing used on the models listed.
1 Associated Document
Manufacturer Communications
NUMBER: 03-82-18R
DATE: 10/26/18
REVISED: 08/26/20
https://www.nhtsa.gov/recalls?nhtsaId=10179416
NHTSA ID Number: 10150949
Manufacturer Communication Number: 03-82-18
Summary
This Service Information bulletin announces a design change to the clutch release bearing used on the models as listed above. During assembly of the bearing, a different type of grease is used which has a higher resistance to heat. In cases where the operator keeps a foot on the clutch pedal for extended periods, an increased amount of heat is generated which can cause the grease inside the bearing to deteriorate. In a case of prolonged clutch pedal application, seizure of the bearing can occur with potential damage to other related components.
1 Associated Document
Manufacturer Communications
NUMBER: 03-82-18
DATE: 10/26/18
https://www.nhtsa.gov/recalls?nhtsaId=10150949
MC-10150949-9999.pdf 628.747KB
NHTSA ID Number: 10150924
Manufacturer Communication Number: 03-82-18
Summary
This Service Information bulletin announces a design change to the clutch release bearing used on the models as listed above. During assembly of the bearing, a different type of grease is used which has a higher resistance to heat. In cases where the operator keeps a foot on the clutch pedal for extended periods, an increased amount of heat is generated which can cause the grease inside the bearing to deteriorate. In a case of prolonged clutch pedal application, seizure of the bearing can occur with potential damage to other related components.
1 Associated Document
Manufacturer Communications
NUMBER: 03-82-18
DATE: 10/26/18
https://www.nhtsa.gov/recalls?nhtsaId=10150924
MC-10150924-9999.pdf 628.747KB
“This site contains affiliate links for which OEMDTC may be compensated” |

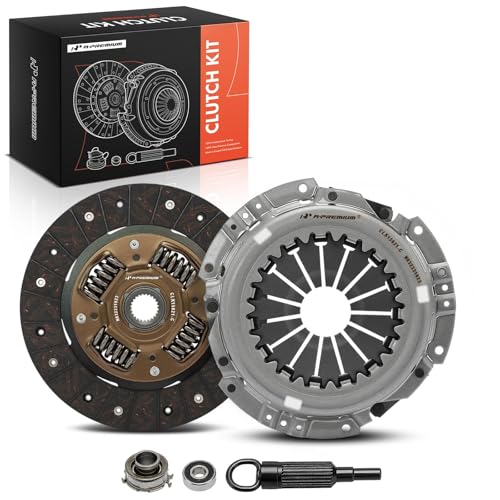

- [Vehicle Fitment-1]: Compatible with Subaru Baja 2003-2004 H4 2.5L, Baja 2005-2006 H4 2.5L, Crosstrek 2016-2017 H4 2.0L, Forester 1999-2011 H4 2.5L, Forester 2012-2013 H4 2.5L, Impreza 2001 H4 2.2L, Impreza 1999-2003 H4 2.5L, Impreza 2004 H4 2.5L, Impreza 2004 H4 2.5L, Impreza 2005-2010 H4 2.5L
- [Vehicle Fitment-2]: Compatible with Subaru Impreza 2005-2010 H4 2.5L, Impreza 2005-2010 H4 2.5L, Impreza 2011 H4 2.5L, Impreza 2012-2014 H4 2.0L, Impreza 2015-2016 H4 2.0L, Legacy 2000-2006 H4 2.5L, Legacy 2007-2008 H4 2.5L, Legacy 2008-2009 H4 2.5L, Outback 2000-2009 H4 2.5L, XV Crosstrek 2013-2015 H4 2.0L
- [Reference Number]: 15-021, 15-004, 623 3466 00
- [Specifications]: ①Clutch Diameter: 11-1/4 inch; ②Clutch Disc Diameter: 8.86 inch; ③Clutch Disc Spline Quantity: 24; ④Input Shaft Diameter: 1 inch; ⑤Number of clutch disc springs: 4
- [Kit Contents]: Pressure Plate, Clutch Disc, Release Bearing, Alignment Tool, Disc Lubricant Grease, Pilot Bearing

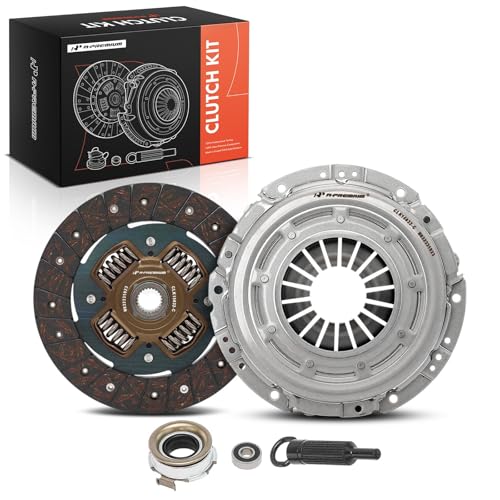

- [Vehicle Fitment]: Compatible with Subaru Impreza 2004-2004 H4 2.5L (6 Speed Transmission), Impreza 2005-2014 H4 2.5L, WRX STI 2015-2021 H4 2.5L
- [Reference Number]: 15-023, 15-025, 15023, 15025
- [Specifications]: ①Clutch Diameter: 10-15/16 or 9-7/16 inch; ②Clutch Disc Diameter: 9.45 inch; ③Clutch Disc Spline Quantity: 24; ④Input Shaft Diameter: 1 inch; ⑤Number of clutch disc springs: 4
- [Kit Contents]: Pressure Plate, Clutch Disc, Release Bearing, Alignment Tool, Disc Lubricant Grease, Pilot Bearing
- [Customer Support]: 1 Year Unlimited-mileage Quality Guarantee; Being sturdy and brand-new, this clutch kit is the ideal replacement. Please get in touch with us at any time if the product has any quality issues, such as damage or isn't appropriate for your automobile.
- SACHS OE Quality Clutch Kit Application Matched for OE Form, Fit, and Function
- Manufactured with high-quality materials, using state-of-the-art technology and processes
- Delivers more transmittable torque and more stability, longer life and superior thermal resistance
- For confirmed fitment of this SACHS Transmission Clutch Kit please verify your vehicle with the Check Fit option above
- Fits: Subaru Forester: 2014 - 2015, Subaru Legacy: 2010 - 2014, Subaru Outback: 2010 - 2014

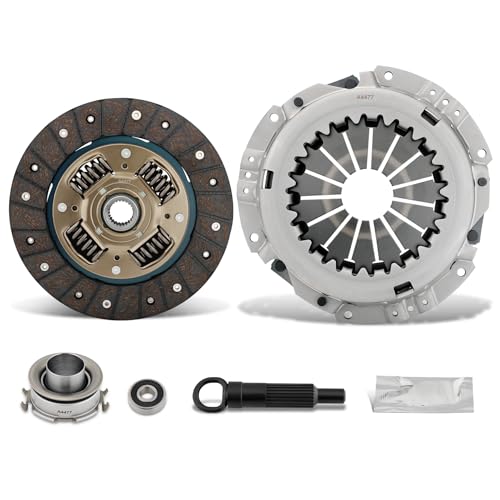

- [Vehicle Fitment-1]: Compatible with Subaru Baja 2003-2004 H4 2.5L Naturally Aspirated, Baja 2005-2006 H4 2.5L Naturally Aspirated (Sport), Forester 1999-2011 H4 2.5L Naturally Aspirated, Forester 2012-2013 H4 2.5L Naturally Aspirated (X, X Premium), Impreza 2001 H4 2.2L Naturally Aspirated, Impreza 1999-2003 H4 2.5L Naturally Aspirated, Impreza 2004 H4 2.5L Turbocharged (5 Speed Trans), Impreza 2004 H4 2.5L Naturally Aspirated (5 Speed Trans), Impreza 2005-2010 H4 2.5L Naturally Aspirated
