NHTSA ID Number: 10203889
Manufacturer Communication Number: 05-71-19R
Summary
This bulletin provides an inspection procedure to follow when addressing customer concerns of a rattling, knocking or klunk type sound when going over slight bumps and / or uneven road surfaces.
NUMBER: 05-71-19R
DATE: 10/25/19
REVISED: 11/05/21
INTRODUCTION:
This bulletin provides an inspection procedure to follow when addressing customer concerns of a rattling, knocking or klunk type sound when going over slight bumps and / or uneven road surfaces.
PRODUCTION CHANGE INFORMATION:
New front coil springs were incorporated into production starting with VIN L3406693.
PART INFORMATION:
There has been no change to the current front coil spring part number.
REMINDER: Always order the most up-to-date replacement parts based on the specific VIN being repaired.
The handy reference table below lists all the parts, quantities needed and torque specifications for this repair (per side) as most of the hardware required consists of one-time use items.

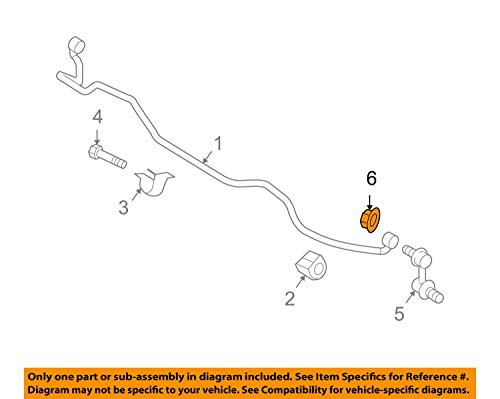

Description | Qty. Req’d. Per Side | Location: | Torque Spec: | Part Number |
COIL SPRING F | 1 | n/a | 20330XC00A* | |
20330XC01A** | ||||
SELF-LOCKING NUTS: ALL ARE 1-TIME USE | 2 | Strut to Knuckle | 155 Nm (114.3 Ft. Lbs.) | 902330007 |
1 | Stab. Link to Strut | 60 Nm (44.3 Ft. lbs.) | 902370063 | |
1 | Strut Mt. to Strut | 55 Nm (40.6 Ft. lbs.) | 902350027 | |
3 | Strut Mt. to Body | 32 Nm (23.6 Ft. lbs.) | 902350029 |
* Models without moonroof
** Models with moonroof
SERVICE PROCEDURE / INFORMATION:
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
After verifying the customer concern, inspect the front coil springs closely for any contact (witness) marks as shown in the example photos supplied below. If any contact marks are confirmed, replace the affected coil spring closely following the procedure in the applicable Service Manual. The current procedures for coil spring replacement are unchanged.
The Service Manual procedures contain information critical to performing an effective repair the first time and every time. This includes but is not limited to: important SAFETY precautions, proper inspection criteria, necessary special tools, required processes and related one-time use parts needed for a complete and lasting repair.
2 Affected Products
Vehicle
MAKE | MODEL | YEAR |
SUBARU | ASCENT | 2019-2020 |
1 Associated Document
Manufacturer Communications
NUMBER: 05-71-19R
DATE: 10/25/19
REVISED: 11/05/21
https://www.nhtsa.gov/recalls?nhtsaId=10203889
MC-10203889-0001.pdf 1215.76KB
NHTSA ID Number: 10171078
Manufacturer Communication Number: 05-71-19R
Summary
This bulletin provides an inspection procedure to follow when addressing customer concerns of a rattling, knocking or klunk type sound when going over slight bumps and/or uneven road surfaces.
1 Associated Document
Manufacturer Communications
NUMBER: 05-71-19R
DATE: 10/25/19
REVISED: 01/08/20
https://www.nhtsa.gov/recalls?nhtsaId=10171078
MC-10171078-0001.pdf 1207.447KB
NHTSA ID Number: 10166952
Manufacturer Communication Number: 05-71-19
Summary
This bulletin provides an inspection procedure to follow when addressing customer concerns of a rattling, knocking of klunk type sound when going over slight bumps and/ or uneven road surfaces.
1 Associated Document
Manufacturer Communications
NUMBER: 05-71-19
DATE: 10/25/19
https://www.nhtsa.gov/recalls?nhtsaId=10166952
MC-10166952-0001.pdf 1182.603KB
