Accessory Installation Guide
| Cigarette Lighter Kit
APPLICABILITY: | H6710AL010  |
|
| |
SEOCONTENT-START
1
PRECAUTIONS
• Please refer to the precautions below before you begin work, in order to install the product safely and accurately
Please also refer to the vehicle Service manual.
• This manual shows typical installation procedures on LHD vehicle. Installation will be mirror image for RHD vehicles.
• Always check the latest service manual, and follow it when this Installation Instruction is revised and a difference
occurs between the revised contents and the latest service manual.
EN: CIGARETTE LIGHTER KIT
LEGACY / OUTBACK, IMPREZA, XV / Crosstrek /
Crosstrek HYBRID, ASCENT, FORESTER
PART No.

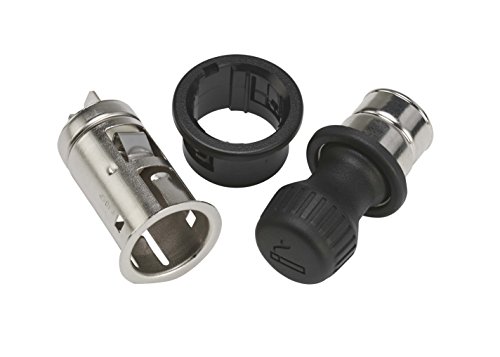

EN: COMPONENTS
No. Name Qty
Socket ASSY 1
Plug 1
Ring 1
TOOLS NEEDED
H6710AL010
Installation Instruction
1 2 3
ATTENTION
• Please disconnect the battery cable while conducting wiring operations. Failure to do so
may result in electrical shock or injury.
• Please confirm that the electrical components of the vehicle operate normally. Also, please
make an note of data in the memory of the electrical components such as the radio. This
will help avoid problems that may arise when performing the repair check after the installation.
• When tightening bolts or screws, use the proper tools and the proper size, and comply for
the specified torque specified for the part.
Failure to securely tighten the bolt and nut may cause them to loosen and fall off, causing
damage.
• When removing the connector from the vehicle, remember to remove the lock that holds
the main body of the connector, instead of pulling the lead line.
This protects against a lead wire cuts, etc.
06
2
• Please be sure to properly connect the connector and terminal. This helps to avoid a poor
connection.
• When wiring the harness(wiring), clamp the wires together along with the wiring harness
of the vehicle. This protects the harness from becoming entangled or causing strange
sounds.
• When connecting or disconnecting parts or installing or removing the finisher, etc, be careful
not to let the harness be hooked or pulled from the back. This protects against a cut
wire or shorts.
• Be careful not to forcefully pull the wiring harness of the vehicle. This helps prevent the
connector from being disconnected, and the wires from being cut or damaged.
• After installing the wiring, perform an operations check on the newly installed parts before
reassembling. This helps prevent mis-wiring.
LEGACY / OUTBACK
BEFORE BEGINNING INSTALLATION
1. Apply parking brake firmly and shift the selector lever in N range.
2. For models with power seats, move the seats to the furthest forward position before disconnecting
the battery negative cable.
DISCONNECTING THE BATTERY TERMINAL
1. Open the engine hood and disconnect the battery negative cable.
Follow the latest service manual when disconnecting and/or connecting the battery negative cable.
3
(a) (a)
(a)
Before Action (a),
remove 2 phillips screws.
MOUNTING THE CIGARETTE LIGHTER (REPLACING WITH ACCESSORY SOCKET)
1. Removing associated parts
– Upon removal, wrap the screwdriver
with vinyl tape to avoid scratching the
ornament panels.
1
2
4
3
4
5
5
6
7
8
Tightening torque:
6.5 N・m / 4.8 ft-lb
6
9
10
11 12
Remove socket
Remove ring
Install cigarette lighter as set
Install ring set
Re-install the removed parts
7
IMPREZA, XV / Crosstrek / Crosstrek HYBRID
1. BEFORE BEGINNING INSTALLATION
● Apply parking brake firmly and shift the selector lever in N range.
● For models with power seats, move the seats to the furthest forward position before disconnecting the
battery negative cable.
1-1.Disconnecting the battery terminal
(1) Open the engine hood and disconnect the battery negative cable.
Illustration 1
Illustration 2
2. INSTALLING THE CIGARETTE
LIGHTER
(REPLACING WITH ACCESSORY
POWER SOCKET)
2-1. Removal of related parts
(1) Lift up the cup holder and remove the clips
located towards the rear end of the cover
ASSY – front (models with hand brake) (Illustration
1).
(2) Remove the boot – hand brake (models with
hand brake) (Illustration 2).
Follow the latest service manual when disconnecting and/or connecting the battery negative cable.
8
Illustration 3
(3) Remove the selector knob (Illustration 3)
Pull down the boot ASSY (for boot type models)
or the cover grip AT (for blind type models)
vertically along the lever in the direction.
Remove the pin by pulling it forward in the
direction.
Remove grip ASSY.
(4) Remove the shift knob (MT model).
Illustration 5 (6) Remove the cover ASSY – front (models
with hand brake) (Illustration 5).
Illustration 4 (5) Remove the cover ASSY – front (models
with EPB) (Illustration 4).
9
Illustration 6 (7) Pull out the harness connector (models with
EPB) (Illustration 6).
WARNING
For models with keyless entry and push-button
start system, an interior antenna is located in
the inner side of the tray – center LWR. Take
care not to damage the harness when removing
the cover ASSY – front.
Illustration 8 (10) Remove the console box ASSY (models
with EPB) (Illustration 8).
Illustration 7 (8) Pull out the harness connector (models with
hand brake) (Illustration 7).
WARNING
For models with keyless entry and push-button
start system, an interior antenna is located in
the inner side of the tray – center LWR. Take
care not to damage the harness when
removing the cover ASSY – front.
(9) Remove the mat – center tray and tray – center
LWR.
WARNING
The mat may be damaged if you remove the
Mat – center tray first. Make sure to remove
mat – center tray and tray – center LWR
together.
10
Illustration 9 (11) Remove the console box ASSY (models
with hand brake) (Illustration 9).
Illustration 11 (13) Attach a protective tape to the instrument
panel (for models with audio or navigation
system) (Illustration 11).
(14) Remove the grille ASSY – CTR ventilation
(for models with audio or navigation system)
(Illustration 11).
WARNING
In order to avoid the grille ASSY – CTR
ventilation from being damaged, wrap the
remover with protective tape or cloth, and
remove it by pressing the remover against the
side of the instrument panel.
protective tape
Illustration 10 (12) Remove the panel center LWR (Illustration
10).
11
Illustration 12 (15) Remove the panel – center UPR (for models
with audio or navigation system) (Illustration
12).
Illustration 14
(17) Remove the pocket ASSY (manual A/C model) (Illustration 14).
Illustration 13 (16) Remove the audio or navigation system (for
models with audio or navigation system)
(Illustration 13).
12
Illustration 15 (18) Remove the under cover ASSY – passenger
(manual A/C model) (Illustration 15).
Illustration 17 (20) Remove the ornament – panel ASSY passenger
(manual A/C model) (Illustration 17).
Illustration 16 (19) Remove the cover – instrument panel side
RH (manual A/C model) (Illustration 16).
13
Illustration 18 (21) Remove the back panel – pocket (manual
A/C model) (Illustration 18).
Illustration 20 (23) Push the heater control ASSY from behind
and remove it (Illustration 20).
Illustration 19 (22) Disconnect the cable – mode and cable –
temperature (manual A/C model) (Illustration
19).
WARNING
Check the dial position before disconnecting the
cables.
14
Illustration 21 (24) Pull out the USB connector (Illustration 21).
(25) Pull out the 2 polar (white) power connector
from the accessory power socket (Illustration
21).
(27) Using a flat tip screwdriver, press the 2
claws of the holder (black) attached to the
tray – center UPR and remove the accessory
power socket (Illustration 23).
Illustration 23
(26) Remove the tray – center UPR (Illustration
22). Illustration 22
15
2-2. Installation of related parts
(1) Install socket along the groove of the holder attached to the tray – center UPR. Make sure that
the holder and the hole of socket are fitted firmly (Illustration 24).
(2) Confirm the fitting of socket , and insert the cigarette lighter into socket .
(3) Firmly connect the power connector (2 polar) to the terminal of the accessory power socket.
(4) Connect the USB connector.
(5) Install the related parts in the reverse order of removal.
Illustration 24
socket
cigarette lighter
holder
socket terminal power connector
2 polar (white)
groove
2-3. Operation check
(1) Connect the battery and shift the selector lever in the P range. Turn the ignition/starter switch to the
ACC position, and check that the cigarette lighter operates normally.
(2) Check the operation of the other removed parts. Set the clock and settings for audio system, etc.
and complete the procedure by cleaning the vehicle.
16
ASCENT
MOUNTING THE CIGARETTE LIGHTER (REPLACING WITH ACCESSORY SOCKET)
1. Removing associated parts
– Upon removal, wrap the screwdriver with vinyl tape to avoid scratching the ornament panels.
BEFORE BEGINNING INSTALLATION
1. Apply parking brake firmly and shift the selector lever in N range.
2. For models with power seats, move the seats to the furthest forward position before disconnecting
the battery negative cable.
DISCONNECTING THE BATTERY TERMINAL
1. Open the engine hood and disconnect the battery negative cable.
Follow the latest service manual when disconnecting and/or connecting the battery negative cable.
17
1
C62(W)
Carefully remove vent trim on each side of the radio. Use a trim tool to remove, starting at the
bottom section as shown.
Follow the vehicle service manual for complete removal instruction.
18
2
3
x4
C62(W)
Tightening torque:
1.8 Nm / 1.3 ft-lb
19
4
5
Pawl
Pawl
Align
Install cigarette lighter as shown
• Re-install the removed parts
• Reconnect the battery
• Shift the selector lever into P from N
20
FORESTER
1
(a)
C63(L)
2
(a)
MOUNTING THE CIGARETTE LIGHTER (REPLACING WITH ACCESSORY SOCKET)
1. Removing associated parts
– Upon removal, wrap the screwdriver with vinyl tape to avoid scratching the ornament panels.
BEFORE BEGINNING INSTALLATION
1. Apply parking brake firmly and shift the selector lever in N range.
2. For models with power seats, move the seats to the furthest forward position before disconnecting
the battery negative cable.
DISCONNECTING THE BATTERY TERMINAL
1. Open the engine hood and disconnect the battery negative cable.
Follow the latest service manual when disconnecting and/or connecting the battery negative cable.
21
3
4
5
C63(L)
22
6
7
C63(L)
C62(W)
x2
x2
C63(L)
8
C63(L)
23
9
10
Install cigarette lighter as shown
Align
• Re-install the removed parts
• Reconnect the battery
• Shift the selector lever into P from N
24
Content of revision
Content Date
01
02 Added procedure for Impreza 10/2016
03 Added procedure for ASCENT 1/2018
04 Added procedure for FORESTER 7/2018
05 Added warning of Gasoline engine model/ HEV model 9/2018
06
Changed operation procedure for disconnecting and/or connecting
battery terminal 11/2018
SEOCONTENT-END
Loading...
Reload document
Open in new tab
| “This site contains affiliate links for which OEMDTC may be compensated” |
- 【12V/24V 3.1A Dual Socket】The 12V Cigarette Lighter Socket is design with 2 female sockets, which can be used at the same time, the total output of the two ports is 3.1A, the output power is 120W, the voltage is DC 12V-24V, suitable for 12-24V vehicle power supply equipment, such as GPS, Dash Cam, Vacuum Cleaner, Car Fridge, Heated Seats, and Sat Nav, ect.
- 【DURABLE PLASTIC & METAL CORE】The housing of this 12V motorcycle power outlet is made of durable plastic, which has high current resistance, high temperature resistance and abrasion resistance. Besides the dual cigarette lighter socket are made of all metal inner core, so solid and strong. The solid construction makes the 12v motorcycle cigarette lighter last a long time.
- 【15A BLADE FUSE & DUSTPROOF WATERPROOF COVER】Come with a standard 15A in-line fuse, protect your device from over-voltage, over-heating, over-load, or short-circuit. Equipped with waterproof and dustproof cover, effectively protects the marine power outlet against sudden water splashes and influence of dust, avoid short-circuited and poorly contacted, which effectively prolongs the service life.
- 【14AWG GAUGE PURE COPPER CABLE & EASY TO INSTALL】The Cable of the 12v plug and socket is made of pure copper wire, the Gauge of the cable is 14AWG, which has better conductivity. The long length of 17.5 inches is conveninent for installation. Just connect the RED wire to ''+'' and BLACK wire to "-".
- 【WIDE USES & PACKAGE INCLUDES】The 12 volt outlet socket fits for any vehicles powered by DC 12V/24V, such as car, motorcycle, boat, marine, truck, RV, golf cart, ATV, UTV, Van etc. It's can power the GPS, dashcam, air purifier, car vacuum cleaners, car heater etc, and also be used in conjunction with a car charger to charge your phone. (Package includes: 1* 12V Cigarette Lighter Socket; 2* Mounting Screws)
- 🔎 Cigarette Socket Parameters: 12 Volt cigarette lighter socket measures 2.55x1.46 inches, cable length is 2.03 feet, comes with a standard 10A fuse, input voltage is 12-24V, output power is 120W, suitable for powering 12-24V automotive power supply equipment, before purchasing, please measure the required size before purchase, so as not to be unable to use after purchase!
- 🔎 Superior Materials: Cigarette lighter socket is made of premium metal shell and ceramic core material, which is wear-resistant and heat-resistant, and has excellent performance of durability and not easy to aging. The cover of the 12V socket is made of tight rubber, which is effective in waterproofing and dustproofing, and protects the internal structure.
- 🔎 Wide Application Range: This 12V power outlet not only connects to cigarette lighter, but also connects to a variety of electronic devices such as car chargers, navigators, car recorders, etc. And is suitable for powering 12-24V vehicle-powered devices such as riding lawn mowers, cars, trucks, off-road vehicles, RVs, vans, motorcycles, boats, ATVs and more!
- 🔎 Safety Protection: The 12V socket power outlet built-in overload protection fuse device has a high load capacity and high temperature resistance, which can prevent overcurrent, overvoltage, overload and short circuit, protect the safety of the inserted device and safeguard you and your vehicle.
- 🔎 Easy Installation: The car cigarette lighter plug is very easy to install. Simply connect the extension cable to the plug, the red wire to the positive terminal (gold pin), the black wire to the negative terminal (silver pin), and then connect to the car's power supply, you can easily add extra charging ports to your car without additional tools.
- MATERIAL: The cigarette lighter socket made of corrosion resistant materials to ensure solid contact and low voltage drop.It has watertight cap to keep aways from the water and dust.Rating,This female car cigarette lighter rated 12V 10A,120W.
- Mounting Hole Size: This 12v cigarette lighter socket requires 26mm mounting hole size, with a bulge to prevent the socket spinning after mounting.MINI SIZE,Electronic cigarette lighter size is 2.56 in x 1.18 in.You can insert it to a hole which diameter is 1.22 inch .It is convenient that the central electrode can be twisted.
- EASY TO INSTALL: This 12v cigarette lighter outlet is easy to use,just need to snaps the cigarette lighter socket in the hole, it will work anywhere you can mount it and run the leads to the 12v power supply.
- GOOD PROTECTION:This cigarette lighter outlet will come with a set of cables,which with a 10A in-line fuse on the red cable for safer use.With the protection function of the preventing circuit overload,overvoltage and short circuit,the power supply is safe and fast.
- WIDELY USE: The car auxiliary socket power outlet fits for all 12V accessory plugs, apply to any DC,12V motorcycles, boats, mowers, tractors, cars, etc.Work perfectly with any car powered devices.
- 🩹【Stylish Design】 Want to give your car cigarette lighter a whole new look? Want to stop letting it just for collecting dust? We use the bright car cigarette lighter socket with a circle of metal chrome decoration, the metallic texture will never go out of style, I guarantee he will be an attractive car decoration in your car interior and bring convenience to your life.
- 🩹【Universal Car Power Socket】 This unique 12V cigarette lighter socket is suitable for use with most cars, boats, ships, motorcycles, ATVs, RVs, trucks, golf carts, etc. You can use it to power your MP3, GPS, cell phone, camera, cigarette lighter shunt, car vacuum cleaner and other electronic devices, replacing your broken or boring cigarette lighter.
- 🩹【Multifunction Car Cigarette Lighter Adapter】 The kit also contains a cigarette lighter plug that can be used for lighting cigarettes! Ideal for car owners who like to smoke in car, built with a hollow heat dissipating ceramic core and stainless steel. Plug in the cigarette lighter, heated for about 30 sec, its button automatically pops out can be used, so that the uninformed amazed.
- 🩹【Reliable Construction】 One of the safest car lighter plugs with built-in 10A fuse and multiple protection system with over-current, overheat and short-circuit protection, providing safety protection regarding temperature. The cigarette lighter plugs can also be waterproof and dustproof, effectively protecting the internal circuit and prolonging the service life.
- 🩹【Easy to Install】 Convenient for daily use. Each socket has a fastening nut against the panel. The kit also contains 2Ft/23.7inch long leads, color coded positive and negative, you only need to have a 1.2 inch diameter hole to install, no need to prepare other tools. (May require you to learn something about how to wire.)
- ⌛ Buyer's Guide: The 12V socket size is 2.22x1.44 inch, the cable is 3.28 feet long and comes with standard 8A fuse, input voltage 12-24V, output power 100W, suitable for powering 12-24V automotive power supply devices, please measure the size you need before purchasing, so as not to be unable to use it after purchase!
- ⌛ Durable Materials: The shell of the cigarette lighter socket is made of hard plastic, which has excellent performance such as sturdy and durable, not easy to aging, and the cover of the 12V socket is made of tight rubber, which is effectively waterproof and dustproof, providing you with long-lasting use.
- ⌛ Multi-purpose Usage: This 12V cigarette lighter socket is not only can you connect the cigarette lighter, but also can connect your car charger, navigation device, car recorder and other kinds of electronic devices, and suitable for 12-24V vehicle power supply equipment power supply, such as cars, trucks, SUVs, RVs, vans, motorcycles, boats, ATVs, and so on!
- ⌛ Safety Protection: The 12 volt cigarette lighter socket built-in overload protection fuse device has a high load capacity and high temperature resistance, which can prevent overcurrent, overvoltage, overload and short circuit, protect the safety of the inserted device and safeguard you and your vehicle.
- ⌛ Easy Installation: Car cigarette lighter plug is very easy to install. Simply connect the outlet's power cord to the car's power source, red wire to positive terminal and black wire to negative terminal, equipped with fuse to secure the outlet in place, you can easily add extra charging ports to your car without additional tools.
- Turns One Fuse Slot Into Two Therefore Providing Individual Protection for Each Circuit
- Can be used as GPS Charging, Cell Phone Charger, Car MP3 Power Supply, Car Vacuum Cleaner, Car Tire Inflation Power and many other 12 Volt DC Devices
- ATM Add-A-Circuit Fuse Holder Tap Adapter Cable, Easy Installation
- Package Includes: 1x Car Cigarette Lighter, 1x Add-A-Circuit Fuse Holder Tap Adapter Cable, 1x Free 15-Fuse-Set: 5,10,15,AMPS
- One year warranty. Any questions about this Cigarette Lighter, you can easily and quickly contact our helpful customer support. Your satisfaction is our priority
- Cigarette Lighter Female Socket Plug to "O" ring terminal style. The size of the hole in the ring terminal: 0.32in/8.3mm.
- Cable: SPT-2 16AWG/2C; Length: 13FT（156”）. With Fuse case: 15A for safety. 12V solid socket has a nice rubber cap which keeps out dirt and water.
- With standard ring terminal connector, appropriate for you wiring directly to 12v deep cycle batteries. Powering for tire inflator, power inverter, radio, fridge, fan, dash cam, air compressors and other 12v accessories
- Widely use in Golf Cart, motorcycle, boat, lawn tractors, travel trailer, bike, pickup, RV, truck, sprayer, snowmobile, ATV
- 30days return and exchange freely, If for any reasons you are not satisfied with our product or service, please contact us first, we will be responsible for any un-expectable issues.
- 【3-Sockets Car Charger& Dual USB Cigarette Lighter sockets】- Three sockets meet enough for GPS,dash cam & simultaneous use of a variety of portable appliance in your 12V/24V vehicle.(NOTE:Only used in devices with a total power of 100W)
- 2 Smart USB Ports - 2-Port USB charging ports with 3.1A total output enables you to rapidly charge 2 devices simultaneously. with built-in Smart IC technology that can intelligently detect your devices to deliver its fastest possible charging speed
- Independent Power Switch & LED Voltage Display- cigarette lighter matched with its individual switch for energy-saving and devices protection. Monitor battery voltage in real time to protect the battery, prolong the service life of battery
- Multi-Protect safety system & Long Cable- Built-in Safe fuse and smart recognition chip prevent from over-current, over-voltage, and short-circuit protection, ensure complete protection for you and your devices. 2.3ft extension cord make it convenient for your family and friends in the backseat
- Widely Application & 2-Years Warranty- Universal for 12-24V vehicles, adapt to main stream vehicle types such as cars, SUVs, trucks, off-road. We provide 2-years warranty policy. Buy with confidence. If you have any concerns or questions about this product. Please feel free to contact us
- 【Package Included】:Includes 1×cigarette lighter male plug. Cable: 2468 16AWG/2C; Length: 10.62 inch, designed for convenience and portability.
- 【Built-In Safety Feature】:Crafted with high-quality PVC, rubber, and pure copper, this car plug adapter integrates a 15A fuse, ensuring overload protection and accessory safety.
- 【Wide Compatibility】:This 12V - 24V automotive cigarette lighter male plug caters to your diverse needs, compatible with DC 12V/24V car blankets, washers, kettles, coolers, CB radios, power inverters, etc.
- 【LED Indicator】:The 12-volt cigarette lighter plug features an LED indicator, facilitating easy status checks and nighttime use. Power-up indication to avoid multiple operations.
- 【Easy Installation】:Equipped with a heavy-duty 16 AWG cigarette lighter plug, red wire for the positive electrode, and black for the negative. Pre-soldered and ready for instant use, compatible with almost all outlets.
- ACCURATE SIZE: 2.9x5.5cm/1.2x2.2inch( Height: about 5.5cm; Outside diameter: about 3.65cm.) Extremely fit for your car, Widely to supply power for vehicle, GPS, mobile phone, camera, mp3, Suitable for any DC 12V/24V Marine Boat motorcycle, boat, riding mower, tractor, car, etc
- EASY TO INSTALL :Convenient for daily use.Dust cover is waterproof and keeping away from dust.Each socket has a retaining nut against a panel.
- HARD PLASTIC MATERIAL; Durable flame-resistant hard plastic, which is resistance to high current, high temperature and wear resistant,work perfectly with any car powered devices，and also you can use the connectors we offered for higher load capacity.
- 39.4 INCHES WIRE:Long wire can fit most car ,need not to worry about that the socket can’t reach the power.
- FUSE FOR OVER-LOAD PROTECTION: Any DC 12V/24V or high load capacity will be protected to burn when the current is to high.Don’t worry about the current in your car.
Last update on 2025-04-17 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
