NHTSA ID Number: 10187305
Manufacturer Communication Number: 01-168-09r
Summary
The purpose of this bulletin is to provide replacement key and immobilizer information along
with an overview of the Subaru Lock Information web-site.
NUMBER: 01-168-09R
DATE: 06/17/09
Revised: 01/04/21
APPLICABILITY: | 2000MY to Current, All Models |
SUBJECT: | Replacement Key and Immobilizer Information |
INTRODUCTION
The purpose of this bulletin is to provide replacement key and immobilizer information along with an overview of the Subaru Lock Information web-site.
OVERVIEW OF THE RETAILER-ONLY SUBARU LOCK INFORMATION SITE
The Subaru Lock Information Site (SLIS) is located at https://lockinfo.subaru.com, and provides information on how to obtain immobilizer codes and key cut codes for Subaru vehicles from the 2000MY to present. This bulletin identifies the equipment required to initialize (reset) the immobilizer code and cut the key blanks, for both immobilizer and non-immobilizer type keys. Subaru of America began using immobilizer systems in some 2005MY vehicles (please refer to Immobilizer Chart for more detailed information).
KEY BLANK TYPES
Subaru vehicles are equipped with either standard edge cut keys or high security laser cut keys. All high security keys are equipped with an immobilizer device installed. Some standard edge cut keys may or may not be equipped with an immobilizer device. Key blanks can be purchased through normal parts channels. The following page are examples of the Subaru key blank styles:
There are many different styles of key cuts. Be sure to order the correct blank for your particular application and verify your key cutting equipment is compatible. Master keys are shown below.
2005-2007 Legacy & Outback edge cut key w/immobilizer (also available without immobilizer) | 2008-2011 Impreza, WRX, & STI and 2012-2014 WRX & STI high security laser cut key w/immobilizer |
![]() |
![]() |
2008 Legacy, Outback, and Tribeca edge cut key w/immobilizer and keyless entry | 2009-2013 Forester high security laser cut key w/immobilizer |
![]() |
![]() |
2009 Legacy & Outback and 2009-2014 edge cut key w/immobilizer and keyless entry |
2010-2014 Legacy & Outback high security standard laser cut key w/immobilizer and keyless entry |
![]() |
![]() |
2012+ Impreza, 2013+ Crosstrek and 2014+ Forester, 2015+ Legacy & Outback, and 2015+ WRX & STI edge cut key w/immobilizer and keyless entry | 2013+ BRZ edge cut key w/immobilizer and keyless entry |
![]() |
![]() |
2013-2014 BRZ keyless access with push-button start system access key with inside cut high security laser cut emergency key, immobilizer, and keyless entry | 2013-2014 Legacy & Outback keyless access with push-button start system access key with high security laser cut emergency key, immobilizer, and keyless entry |
![]() |
![]() |
2014-2015 Forester, 2014 Crosstrek Hybrid, and 2015 WRX & STI keyless access with push-button start system access key with inside cut high security laser cut emergency key, immobilizer, and keyless entry. (Different part number and key cutting code from 2013 BRZ.) | 2015+ BRZ, 2015+ Legacy, Outback, Impreza, Crosstrek and 2016+ WRX, WRX STI and Forester keyless access with push-button start system access key with single sided inside cut high security laser cut emergency key, immobilizer, and keyless entry. |
![]() |
![]() |
SUBARU VEHICLES EQUIPPED WITH ENGINE IMMOBILIZER SYSTEM
Baja | Forester | Impreza | Legacy | Outback | Tribeca | BRZ | Crosstrek | |
---|---|---|---|---|---|---|---|---|
2005 | n/a | 2.5XT | STi | 2.5GT | 2.5XT, 3.0R | — | — | — |
2006 | n/a | 2.5XT | WRX, STi | All | All | All | — | — |
2007 | — | 2.5XT | WRX, STi | All | All | All | — | — |
2008 | — | 2.5XT | All | All | All | All | — | — |
> 2009 | — | All | All | All | All | All | All | All |
WEB SITE ACCESS: AUTOMOTIVE SECURITY PROFESSIONALS
The public-facing locksmith site (linked off of STIS, via the “Immobilizer Key Access” button), is a pay site for lock professionals.
WEB SITE ACCESS: AUTHORIZED SUBARU RETAILERS
Authorized Subaru Retailers can access SLIS through Subarunet (under the Service tab, or by directly following the URL https://lockinfo.subaru.com. Access to the immobilizer information is restricted to Subaru Dealership Service Managers and Parts Managers. Access will be granted by using the managers’ SKILS user name. Subaru Parts Managers (PM) and Service Managers (SM) who are registered in the Dealer Employee Maintenance Database as such are designated as the only persons at a retailer authorized to access the Subaru Lock Information System (SLIS). Sharing of access information with other retailer employees is not allowed.
Access to and use of the SLIS system is provided strictly for internal retailer use. Use of this system is restricted to Subaru vehicles owned or being repaired by the SM/PM’s respective retailer as documented by a properly executed and signed repair order with a complaint requesting a repair requiring the information provided by SLIS.
Use of the SLIS system for any other purpose is strictly forbidden. Anyone found to be providing lock code or immobilizer information to any entity (outside their respective retailer for authorized purposes) will have their (and their retailer’s) access immediately terminated and may be referred to law enforcement officials for prosecution if the VIN accessed is subsequently reported to the National Insurance Crime Bureau (NICB) as a stolen vehicle.
Note: It is the retailers’ responsibility to perform due diligence by entering or deleting employees in the SKILS Dealer Employee Maintenance Database. This is especially true of Service Manager and Parts Manager position changes.
Step by Step Process To Access the Site
- Once on the SLIS home page, the Service Manager or Parts Manager will be asked for their SKILS user name. At that time, if this is the first time he/she has logged on to the web site, the password “Welcome” should be used. He/she will then be prompted to create a new password (this will not change your current SKILS password).
- The Service Manager or Parts Manager will then be prompted to read the disclaimer and answer “accept” or “not accept”. If they answer “not accept”, the system will not let them access the immobilizer information.
- A page will then be displayed, allowing for entry of the full 17 character VIN of the vehicle in question.
- Provided the VIN is found in the database, the immobilizer Security ID along with the key/ cutting code will appear.
- A charge of $2.80 will be incurred for each immobilizer
Note: Costs are $9.95 per transaction, or $25.95 for a 24 hour subscription access (with no transaction limit).
SOA Warranty will only reimburse an approved warranty claim with an Immobilizer Code access cost of $2.80 per transaction, as a sublet cost. The public-facing (professional locksmith) web site’s public access fees of $9.95 and $25.95 will be reduced to $2.80 per transaction, if those fees are submitted as a part of a warranty claim.
NASTF SECURE DATA RELEASE MODEL (SDRM)
Positive Identification Policy
NASTF SDRM Subaru Parts and Service Managers who are registered in the Deale Employee Maintenance Database and are designated as Registry Vehicle Security Professionals (VSPs) shall comply with the following Positive Identification Policy when servicing orders for keys, immobilizer reset, or other anti-theft services for vehicles:
1. Inform the Customer – At the time of initial request, ask the customer whether he or she has identification and authority for the service. Inform them of the requirements of this Positive Identification Policy.
2. Complete the Form – Upon arrival at the job site or when the customer comes in, the VSP shall complete an Authorization for Automotive Key Generation and/or Immobilizer System / Anti-Theft Services form (aka Form D-1, page 15) that asks for the name, address, phone number, driver’s license, vehicle make, model and year, vehicle license plate number, Vehicle work order that contains all identifying information, when stapled to a duly signed Form D-1, is acceptable for collection of this customer information. Subarunet.com user name should be used in place of LSID.
3. Verify D. – Verify the customer’s valid photo ID and compare to the information provided by the customer on the authorization form. The customer must present a valid state issued driver’s license as proof of identity to qualify for use of Registry services.
4. Verify Authority – Ask the customer to present proof of entitlement, which shall include at least one of the following: a valid registration certificate, a valid insurance ID card, a valid insurance policy, vehicle title or a certificate of ownership for the vehicle. The name and address on the proof of entitlement document must match the information on the driver’s license to qualify for use of Registry services. In the event that necessary documentation is locked within the vehicle, the vehicle may be entered to verify the authority of the requestor. If upon entry to the vehicle, you are unable to verify the authority of the requestor, the vehicle information to the requestor and destroy all information acquired from the automaker during the transaction.
5. Ask for Signature – Require the customer to read and sign Form D-1(page 15). The customer is attesting to:
a. the information given by the customer being correct and truthful,
b. the customer having the authority to obtain keys or immobilizer services for the vehicle and,
c. the customer agreeing to indemnify and hold harmless the service provider and related parties against liability.
6. File the Form – Keep the completed Form D-1 on file for two (2) years, or longer as required by law.
7. Compliance with Applicable Laws. The VSP will take all other actions required by applicable laws. In the event of a conflict between the steps set forth herein and the applicable laws, the VSP should comply with applicable laws.
8. Sublet work – A mobile VSP doing work for a body shop, garage, or dealership may accept a legible photocopy of the picture I.D. in order to match it to the registration/title documents This cannot be a faxed The shop owner or manager must verify the customer’s I.D. in person and attest they have done so by signing the bottom of the Form D-1
EQUIPMENT
The Subaru Diagnostic System (SDS) is required to reprogram Subaru immobilizer codes. See the Subaru Technical Information System (STIS) (https://techinfo.subaru.com) for more information. Instructions for Immobilizer re-initialization for keys, etc., can be found in the applicable Immobilizer Manual on STIS.
TEACHING OPERATION CODES
A Teaching Operation Code may be needed. The following are the necessary Teaching Codes:
VEHICLE LINE | MODEL YEAR | TEACHING CODE |
---|---|---|
Legacy | 2005-2014 | 3781 |
Impreza | 2005~07 | 3178 |
2008-2011 | 3781 | |
Forester | 2005~08 | 3178 |
2009-2013 | 3781 | |
Tribeca | 2006-2014 | 3781 |
KEY CUTTING MACHINERY RECOMMENDATIONS
Subaru of America recommends the use of the Class C Solutions Group key cutting machines, “BD Laser Max” for standard edge cut and high security laser cut keys and the “PC + Flash” machine for standard edge cut keys. Consult https://subaru.service-solutions.com for key machine purchases.
BD Laser Max
RETAILER CENTRALIZED KEY CUTTING SERVICE
The Subaru of America Parts Department offers a key cutting service for retailers who have not purchased the key cutting machine. The service program details can be found on Subarunet.com, in the Fixed Operations (“Fixed Ops – Inventory/Ops”) area, using the “Key Request” link. Forms, details, and costs are found in this area of Subarunet.com.
Key Cutting Tips For Using a BD Laser Max
Every Subaru vehicle has a key code that can be found on the original key ring tag and on Subarunet. This code is known as an indirect (obfuscated) code. To cut a key, the indirect code must be translated to the direct code which is the actual key cutting depth information.
Behind the scenes there is a database for each key type which converts the indirect key codes into the respective they could program their key cutting machines for indirect code cutting. The indirect key code could be typed into the key machine and the key machine would automatically convert the indirect code into the direct depth code and cut the key.
For security reasons Subaru is no longer providing this database. The keys for newer Subaru models must be cut using the direct method. The direct code cut depth information for a given key must be obtained through Subaru Lock Information Service (SLIS).
The following information will guide you through both indirect and direct depth key cutting methods.
Prior to Using Machine
1. Locate model and model year in the Key Type & Cutting Information chart found on the following pages to find the vehicle specific cutting information
2. Note Cut By, Jaw, Cutter Size and Adapter requirement
3. If the Cut By is listed as Code, obtain the key code for the vehicle through Subaru.net or through the SLIS service (listed as Key No in SLIS)
4. If the Cut By is listed as Depth, obtain the Depth Code through the SLIS service (listed as Key Code in SLIS)
Machine Tips
1. To limit the selection to US market vehicles, from the Main menu go to Cars and change region to North America
2. Maintain up-to-date software. Software releases prior to March 2016 will not cut all of the keys listed in this bulletin. Refer to attached BD Laser Max instructions for updating software and sign up for software update alerts at https://blueclassc.mscdirect.com/acton/form/1684/0039:d-0001/0/index.htm
3. When inserting a key blank into the jaw, make sure that the jaw is clear of debris
4. Press down on the blank as you tighten the jaw to ensure that the blank is fully seated
Cutting a Subaru Key
1. From the main menu, select CARS
2. Select Subaru
3. Select Subaru model
4. Select the row with the year range and key type
5. If cut by code, select CODES and input the key code
6. If cut by depth, select DIRECT and input the depth code per the input sequence chart
7. Follow the machine prompts to set up the required cutter size and jaw type
8. Follow the machine prompts to set up the tip stop or adapter (if required). For assistance in setting up the tip stop and adapter refer to following pages for more information
9. If application calls for F/G jaw, either a F or G jaw can be used
10. If an original key is available, check that the image of the key cut matches the original key and proceed with cutting the key
KEY TYPE & CUTTING INFORMATION (Legend for charts on Pages 8-11):
Multiple part numbers = Refer to Electronic Parts Catalog for the correct VIN specific part number
Sub Master = Master Key without remote keyless entry functions
Valet = Door and ignition only. No remote keyless entry functions. Will not unlock glovebox on Forester and Outback, trunk and glovebox on Legacy and 2008-2011 Impreza, and trunk on BRZ
Push-Button Start Emergency = Emergency Key for Keyless Access with Push-Button Start
Pre-cut available = A pre-cut replacement key can be ordered through the TRMI service
Tip Stop Setup for A and C Jaws
A and C jaws use an integrated tip stop that slides into place when required
|

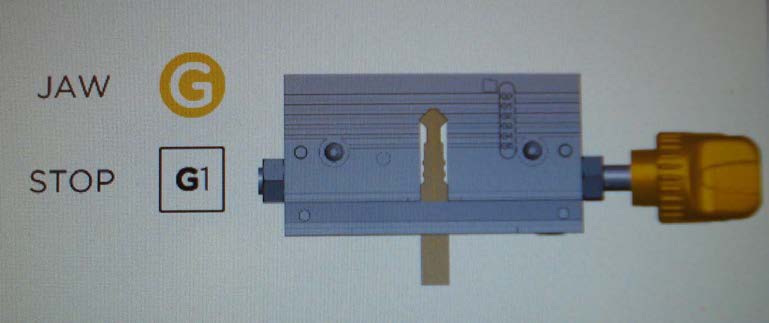

Tip Stop Setup for F/G Jaw
F/G jaws use a magnetic tip stop that is placed into the required grooved track
Tip Stop In G1 Position
Magnetic Tip Stop |
Adapter (AD03) Setup
4IT 4+4 thin type emergency keys require use of the AD03 adapter that is placed into the jaw as shown prior to inserting the key blank Adapter AD03
|
Model | Key Type & Cutting Information | 2008MY | 2009MY | 2010MY | 2011MY | 2012MY | 2013MY | 2014MY | 2015MY | 2016MY | 2017MY | |
Impreza | Master | 57497AG070 | 57497AG070 | 57497FG080 | 57497FG160 | 57497FJ021 | 57497FJ021 | 57497FJ021 | 57497FJ230 | 57497FJ230 | 57497FL00A | |
Sub Master | – | – | – | – | 57497FJ090 | 57497FJ090 | 57497FJ090 /
57497FJ250 |
57497FJ250 | 57497FJ250 | 57497FL08A | ||
Valet | 57497FG010 | 57497FG010 | 57497FG090 | 57497FG170 | – | – | – | – | – | – | ||
Pre-cut available | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
Cut Type | Laser | Laser | Laser | Laser | Edge | Edge | Edge | Edge | Edge | Edge | ||
Key Type | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 10 | 10 | 10 | 10 | 10 | 10 | ||
Key Code Series | T0001-3000 | T0001-3000 | T0001-3000 | T0001-3000 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | ||
BD Laser Setup | Cut By | Code | Code | Code | Code | Depth | Depth | Depth | Depth | Depth | Depth | |
Jaw | A | A | A | A | F/G | F/G | F/G | F/G | F/G | F/G | ||
Cutter Size | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||
Adapter Required | No | No | No | No | No | No | No | No | No | No | ||
Push Button Start Emergency | – | – | – | – | – | – | – | 57497AL020 | 57497AL020 | 57497AL02A | ||
Pre-cut available | – | – | – | – | – | – | – | Yes | Yes | Yes | ||
Cut Type | – | – | – | – | – | – | – | Laser | Laser | Laser | ||
Key Type | – | – | – | – | – | – | – | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | ||
Key Code Series | – | – | – | – | – | – | – | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | ||
BD Laser Setup | Cut By | – | – | – | – | – | – | – | Depth | Depth | Depth | |
Jaw | – | – | – | – | – | – | – | C | C | C | ||
Cutter Size | – | – | – | – | – | – | – | 2.5 mm | 2.5 mm | 2.5 mm | ||
Adapter Required | – | – | – | – | – | – | – | Yes | Yes | Yes | ||
Key Type & Cutting Information | 2018MY | 2019MY | 2020MY | 2021MY | ||||||||
Master | 57497FL00A | 57497XC01A | 57497XC01A | 57497XC01B | ||||||||
Sub Master | 57497FL08A | 57497FL08A | 57497FL08A | 57497FL08B | ||||||||
Valet | – | – | – | – | ||||||||
Pre-cut available | Yes | Yes | Yes | Yes | ||||||||
Cut Type | Edge | Edge | Edge | Edge | ||||||||
Key Type | 10 | 10 | 10 | 10 | ||||||||
Key Code Series | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | ||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | Depth | |||||||
Jaw | F/G | F/G | F/G | F/G | ||||||||
Cutter Size | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||||||||
Adapter Required | No | No | No | No | ||||||||
Push Button Start Emergency | 57497AL02A | 57497AL02A | 57497AL02A | 57497AL02A | ||||||||
Pre-cut available | Yes | Yes | Yes | Yes | ||||||||
Cut Type | Laser | Laser | Laser | Laser | ||||||||
Key Type | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | ||||||||
Key Code Series | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | ||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | Depth | |||||||
Jaw | C | C | C | C | ||||||||
Cutter Size | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | ||||||||
Adapter Required | Yes | Yes | Yes | Yes |
Model | Key Type & Cutting Information | 2008MY | 2009MY | 2010MY | 2011MY | 2012MY | 2013MY | 2014MY | 2015MY | 2016MY | 2017MY | |
WRX / STI | Master | 57497AG070 | 57497AG070 | 57497FG080 | 57497FG160 | 57497FG160 | 57497FG160 | 57497FG160 | 57497FJ021 | 57497FJ230 | 57497FJ230 | |
Sub Master | – | – | – | – | – | – | – | 57497FJ090 | 57497FJ250 | 57497FJ250 | ||
Valet | 57497FG010 | 57497FG010 | 57497FG090 | 57497FG170 | 57497FG170 | 57497FG170 | 57497FG170 | – | – | – | ||
Pre-cut available | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
Cut Type | Laser | Laser | Laser | Laser | Laser | Laser | Laser | Edge | Edge | Edge | ||
Key Type | T0001-3000 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 10 | 10 | 10 | ||
Key Code Series | T0001-3000 | T0001-3000 | T0001-3000 | T0001-3000 | T0001-3000 | T0001-3000 | T0001-3000 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | ||
BD Laser Setup | Cut By | Code | Code | Code | Code | Code | Code | Code | Depth | Depth | Depth | |
Jaw | A | A | A | A | A | A | A | F/G | F/G | F/G | ||
Cutter Size | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||
Adapter Required | No | No | No | No | No | No | No | No | No | No | ||
Push Button Start Emergency | – | – | – | – | – | – | T0001-3000 | 57497FJ060 | 57497AL020 | 57497AL020 | ||
Pre-cut available | – | – | – | – | – | – | – | Yes | Yes | Yes | ||
Cut Type | – | – | – | – | – | – | – | Laser | Laser | Laser | ||
Key Type | – | – | – | – | – | – | – | 4IT 5+4 | 4IT 4+4 thin | 4IT 4+4 thin | ||
Key Code Series | – | – | – | – | – | – | – | 77000 – 78569 | 90000 – 94999 | 90000 – 94999 | ||
BD Laser Setup | Cut By | – | – | – | – | – | – | – | Depth | Depth | Depth | |
Jaw | – | – | – | – | – | – | – | A | C | C | ||
Cutter Size | – | – | – | – | – | – | – | 2.5 mm | 2.5 mm | 2.5 mm | ||
Adapter Required | – | – | – | – | – | – | – | No | Yes | Yes | ||
Key Type & Cutting Information | 2018MY | 2019MY | 2020MY | |||||||||
Master | 57497FJ230 | 57497FJ230 | 5749VA330 | |||||||||
Sub Master | 57497FJ250 | 57497FJ250 | 57497FJ250 | |||||||||
Valet | – | – | – | |||||||||
Pre-cut available | Yes | Yes | Yes | |||||||||
Cut Type | Edge | Edge | Edge | |||||||||
Key Type | 10 | 10 | 10 | |||||||||
Key Code Series | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | |||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | ||||||||
Jaw | F/G | F/G | F/G | |||||||||
Cutter Size | 1.5 mm | 1.5 mm | 1.5 mm | |||||||||
Adapter Required | No | No | No | |||||||||
Push Button Start Emergency | 57497AL020 | 57497AL020 | 57497AL020 | |||||||||
Pre-cut available | Yes | Yes | Yes | |||||||||
Cut Type | Laser | Laser | Laser | |||||||||
Key Type | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | |||||||||
Key Code Series | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | |||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | ||||||||
Jaw | C | C | C | |||||||||
Cutter Size | 2.5 mm | 2.5 mm | 2.5 mm | |||||||||
Adapter Required | Yes | Yes | Yes |
Model | Key Type & Cutting Information | 2008MY | 2009MY | 2010MY | 2011MY | 2012MY | 2013MY | 2014MY | 2015MY | 2016MY | 2017MY | 2018MY | |
Forester | Master | 57497FC000 | 57497SC010 | 57497SC010 | 57497AJ070 | 57497AJ070 | 57497AJ070 | 57497FJ021 | 57497FJ021 | 57497FJ230 | 57497FJ230 | 57497FJ230 | |
Sub Master | – | – | – | – | – | – | – | – | – | – | – | ||
Valet | 57497FC030 | 57497SC020 | 57497SC020 | 57497AJ010 | 57497AJ010 | 57497AJ010 | 57497SG000 | 57497SG000 | 57497SG000 | 57497SG000 | 57497SG000 | ||
Pre-cut available | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
Cut Type | Edge | Laser | Laser | Laser | Laser | Laser | Edge | Edge | Edge | Edge | Edge | ||
Key Type | 10 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 10 | 10 | 10 | 10 | 10 | ||
Key Code Series | 30001-37850 | T0001-3000 | T0001-3000 | T0001-3000 | T0001-3000 | T0001-3000 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | ||
BD Laser Setup | Cut By | Code | Code | Code | Code | Code | Code | Depth | Depth | Depth | Depth | Depth | |
Jaw | F/G | A | A | A | A | A | F/G | F/G | F/G | F/G | F/G | ||
Cutter Size | 1.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||
Adapter Required | No | No | No | No | No | No | No | No | No | No | No | ||
Push Button Start Emergency | – | – | – | – | – | – | 57497FJ060 | 57497FJ060 | 57497AL020 | 57497AL020 | 57497AL020 | ||
Pre-cut available | – | – | – | – | – | – | Yes | Yes | Yes | Yes | Yes | ||
Cut Type | – | – | – | – | – | – | Laser | Laser | Laser | Laser | Laser | ||
Key Type | – | – | – | – | – | – | 4IT 5+4 | 4IT 5+4 | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | ||
Key Code Series | – | – | – | – | – | – | 77000 – 78569 | 77000 – 78569 | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | ||
BD Laser Setup | Cut By | – | – | – | – | – | – | Depth | Depth | Depth | Depth | Depth | |
Jaw | – | – | – | – | – | – | A | C | C | C | C | ||
Cutter Size | – | – | – | – | – | – | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | ||
Adapter Required | – | – | – | – | – | – | No | No | Yes | Yes | Yes | ||
Key Type & Cutting Information | 2018MY | 2019MY | 2020MY | 2021MY | |||||||||
Master | 57497FJ230 | 57497SJ050 | 57497SJ050 | 57497SJ051 | |||||||||
Sub Master | – | 57497SJ000 | 57497SJ000 | 57497SJ001 | |||||||||
Valet | 57497SG000 | – | – | – | |||||||||
Pre-cut available | Yes | Yes | Yes | Yes | |||||||||
Cut Type | Edge | Edge | Edge | Edge | |||||||||
Key Type | 10 | 10 | 10 | 10 | |||||||||
Key Code Series | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 |
|||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | Depth | ||||||||
Jaw | F/G | F/G | F/G | F/G | |||||||||
Cutter Size | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | |||||||||
Adapter Required | No | No | No | No | |||||||||
Push Button Start Emergency | 57497AL020 | 57497AL020 | 57497AL020 | 57497AL020 | |||||||||
Pre-cut available | Yes | Yes | Yes | Yes | |||||||||
Cut Type | Laser | Laser | Laser | Laser | |||||||||
Key Type | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | |||||||||
Key Code Series | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 |
|||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | Depth | ||||||||
Jaw | C | C | C | C | |||||||||
Cutter Size | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | |||||||||
Adapter Required | Yes | Yes | Yes | Yes |
Model | Key Type & Cutting Information | 2008MY | 2009MY | 2010MY | 2011MY | 2012MY | 2013MY | 2014MY | 2015MY | 2016MY | 2017MY | |
Crosstrek | Master | – | – | – | – | – | 57497FJ021 | 57497FJ021 | 57497FJ230 | 57497FJ230 | 57497FJ230 | |
Sub Master | – | – | – | – | 57497FJ090 | 57497FJ090 /
57497FJ250 |
57497FJ250 | 57497FJ250 | 57497FJ250 | |||
Valet | – | – | – | – | – | – | – | – | – | – | ||
Pre-cut available | – | – | – | – | – | Yes | Yes | Yes | Yes | Yes | ||
Cut Type | – | – | – | – | – | Edge | Edge | Edge | Edge | Edge | ||
Key Type | – | – | – | – | – | 10 | 10 | 10 | 10 | 10 | ||
Key Code Series | – | – | – | – | – | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | ||
BD Laser Setup | Cut By | – | – | – | – | – | Depth | Depth | Depth | Depth | Depth | |
Jaw | – | – | – | – | – | F/G | F/G | F/G | F/G | F/G | ||
Cutter Size | – | – | – | – | – | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||
Adapter Required | – | – | – | – | – | No | No | No | No | No | ||
Push Button Start Emergency | – | – | – | – | – | – | 57497FJ060 | 57497AL020 | 57497AL020 | 57497AL020 | ||
Pre-cut available | – | – | – | – | – | – | Yes | Yes | Yes | Yes | ||
Cut Type | – | – | – | – | – | – | Laser | Laser | Laser | Laser | ||
Key Type | – | – | – | – | – | – | 4IT 5+4 | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | ||
Key Code Series | – | – | – | – | – | – | 77000 – 78569 | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | ||
BD Laser Setup | Cut By | – | – | – | – | – | – | Depth | Depth | Depth | Depth | |
Jaw | – | – | – | – | – | – | A | C | C | C | ||
Cutter Size | – | – | – | – | – | – | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | ||
Adapter Required | – | – | – | – | – | – | No | Yes | Yes | Yes | ||
Key Type & Cutting Information | 2018MY | 2019MY | 2020MY | 2021MY | ||||||||
Master | 57497FL000 | 57497SJ051 | 57497SJ051 | 57497SJ051 | ||||||||
Sub Master | 57497FL080 | 57497FL081 | 57497FL081 | 57497FL081 | ||||||||
Valet | – | – | – | – | ||||||||
Pre-cut available | Yes | Yes | Yes | Yes | ||||||||
Cut Type | Edge | Edge | Edge | Edge | ||||||||
Key Type | 10 | 10 | 10 | 10 | ||||||||
Key Code Series | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | ||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | Depth | |||||||
Jaw | F/G | F/G | F/G | F/G | ||||||||
Cutter Size | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||||||||
Adapter Required | No | No | No | No | ||||||||
Push Button Start Emergency | 57497AL020 | 57497AL020 | 57497AL020 | 57497AL020 | ||||||||
Pre-cut available | Yes | Yes | Yes | Yes | ||||||||
Cut Type | Laser | Laser | Laser | Laser | ||||||||
Key Type | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | ||||||||
Key Code Series | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | ||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | Depth | |||||||
Jaw | C | C | C | C | ||||||||
Cutter Size | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | ||||||||
Adapter Required | Yes | Yes | Yes | Yes |
Model | Key Type & Cutting Information | 2008MY | 2009MY | 2010MY | 2011MY | 2012MY | 2013MY | 2014MY | 2015MY | 2016MY | 2017MY | |
Legacy | Master | 57497AG35A | 57497AG48A | 57497AJ00A | 57497AJ10A | 57497AJ10A | 57497AJ10A | 57497AJ10A | 57497AL00A | 57497AL00A | 57497AL00A | |
Sub Master | – | – | – | – | – | – | – | – | – | – | ||
Valet | 57497AG12A | 57497AG12A | 57497AJ01A | 57497AJ01A | 57497AJ01A | 57497AJ01A | 57497AJ01A | 57497AL01A | 57497AL01A | 57497AL01A | ||
Pre-cut available | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
Cut Type | Edge | Edge | Laser | Laser | Laser | Laser | Laser | Edge | Edge | Edge | ||
Key Type | 10 | 10 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 10 | 10 | 10 | ||
Key Code Series | 30001-37850 | 30001-37850 | T0001-3000 | T0001-3000 | T0001-3000 | T0001-3000 | T0001-3000 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | ||
BD Laser Setup | Cut By | Code | Code | Code | Code | Code | Code | Code | Depth | Depth | Depth | |
Jaw | F/G | F/G | A | A | A | A | A | F/G | F/G | F/G | ||
Cutter Size | 1.5 mm | 1.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||
Adapter Required | No | No | No | No | No | No | No | No | No | No | ||
Push Button Start Emergency | – | – | – | – | – | 57497AJ11A | 57497AJ11A | 57497AL02A | 57497AL02A | 57497AL02A | ||
Pre-cut available | – | – | – | – | – | Yes | Yes | Yes | Yes | Yes | ||
Cut Type | – | – | – | – | – | Laser | Laser | Laser | Laser | Laser | ||
Key Type | – | – | – | – | – | 4ET 5+5 | 4ET 5+5 | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | ||
Key Code Series | – | – | – | – | – | T0001-3000 | T0001-3000 | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | ||
BD Laser Setup | Cut By | – | – | – | – | – | Code | Code | Depth | Depth | Depth | |
Jaw | – | – | – | – | – | A | A | C | C | C | ||
Cutter Size | – | – | – | – | – | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | ||
Adapter Required | – | – | – | – | – | No | No | Yes | Yes | Yes | ||
Key Type & Cutting Information | 2018MY | 2019MY | 2020MY | 2021MY | ||||||||
Master | 57497AL27A | 57497AL37A | 57497AN00A | 57497AN00B | ||||||||
Sub Master | – | – | – | – | ||||||||
Valet | 57497AL02A | 57497AL01A | 57497XC00A | 57497XC00B | ||||||||
Pre-cut available | Yes | Yes | Yes | Yes | ||||||||
Cut Type | Edge | Edge | Edge | Edge | ||||||||
Key Type | 10 | 10 | 10 | 10 | ||||||||
Key Code Series | 32000 – 39999 | 32000 – 39999 | 32000-39999 | 32000-39999 | ||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | Depth | |||||||
Jaw | F/G | F/G | F/G | F/G | ||||||||
Cutter Size | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||||||||
Adapter Required | No | No | No | No | ||||||||
Push Button Start Emergency | 57497AL02A | 57497AL02A | 57497AL02A | 57497AL02A | ||||||||
Pre-cut available | Yes | Yes | Yes | Yes | ||||||||
Cut Type | Laser | Laser | Laser | Laser | ||||||||
Key Type | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | ||||||||
Key Code Series | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | ||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | Depth | |||||||
Jaw | C | C | C | C | ||||||||
Cutter Size | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | ||||||||
Adapter Required | Yes | Yes | Yes | Yes |
Model | Key Type & Cutting Information | 2008MY | 2009MY | 2010MY | 2011MY | 2012MY | 2013MY | 2014MY | 2015MY | 2016MY | 2017MY | |
Outback | Master | 57497AG35A | 57497AG48A | 57497AJ00A | 57497AJ10A | 57497AJ10A | 57497AJ10A | 57497AJ10A | 57497AL00A | 57497AL00A | 57497AL00A | |
Sub Master | – | – | – | – | – | – | – | – | – | – | ||
Valet | 57497AG12A | 57497AG12A | 57497AJ01A | 57497AJ01A | 57497AJ01A | 57497AJ01A | 57497AJ01A | 57497AL01A | 57497AL01A | 57497AL01A | ||
Pre-cut available | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
Cut Type | Edge | Edge | Laser | Laser | Laser | Laser | Laser | Edge | Edge | Edge | ||
Key Type | 10 | 10 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 4ET 5+5 | 10 | 10 | 10 | ||
Key Code Series | 30001-37850 | 30001-37850 | T0001-3000 | T0001-3000 | T0001-3000 | T0001-3000 | T0001-3000 | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | ||
BD Laser Setup | Cut By | Code | Code | Code | Code | Code | Code | Code | Depth | Depth | Depth | |
Jaw | F/G | F/G | A | A | A | A | A | F/G | F/G | F/G | ||
Cutter Size | 1.5 mm | 1.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||
Adapter Required | No | No | No | No | No | No | No | No | No | No | ||
Push Button Start Emergency | – | – | – | – | – | 57497AJ11A | 57497AJ11A | 57497AL02A | 57497AL02A | 57497AL02A | ||
Pre-cut available | – | – | – | – | – | Yes | Yes | Yes | Yes | Yes | ||
Cut Type | – | – | – | – | – | Laser | Laser | Laser | Laser | Laser | ||
Key Type | – | – | – | – | – | 4ET 5+5 | 4ET 5+5 | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | ||
Key Code Series | – | – | – | – | – | T0001-3000 | T0001-3000 | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | ||
BD Laser Setup | Cut By | – | – | – | – | – | Code | Code | Depth | Depth | Depth | |
Jaw | – | – | – | – | – | A | A | C | C | C | ||
Cutter Size | – | – | – | – | – | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | ||
Adapter Required | – | – | – | – | – | No | No | Yes | Yes | Yes | ||
Key Type & Cutting Information | 2018MY | 2019MY | 2020MY | 2021MY | ||||||||
Master | 57497AL27A | 57497AL37A | 57497AN00A | 57497AN00B | ||||||||
Sub Master | – | – | – | – | ||||||||
Valet | 57497AL02A | 57497AL01A | 57497XC00A | 57497XC00B | ||||||||
Pre-cut available | Yes | Yes | Yes | Yes | ||||||||
Cut Type | Edge | Edge | Edge | Edge | ||||||||
Key Type | 10 | 10 | 10 | 10 | ||||||||
Key Code Series | 32000 – 39999 | 32000 – 39999 | 32000-39999 | 32000-39999 | ||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | Depth | |||||||
Jaw | F/G | F/G | F/G | F/G | ||||||||
Cutter Size | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||||||||
Adapter Required | No | No | No | No | ||||||||
Push Button Start Emergency | 57497AL02A | 57497AL02A | 57497AL02A | 57497AL02A | ||||||||
Pre-cut available | Yes | Yes | Yes | Yes | ||||||||
Cut Type | Laser | Laser | Laser | Laser | ||||||||
Key Type | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | ||||||||
Key Code Series | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | ||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | Depth | |||||||
Jaw | C | C | C | C | ||||||||
Cutter Size | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | ||||||||
Adapter Required | Yes | Yes | Yes | Yes |
Model | Key Type & Cutting Information | 2008MY | 2009MY | 2010MY | 2011MY | 2012MY | 2013MY | 2014MY | 2015MY | 2016MY | 2017MY | |
BRZ | Master | – | – | – | – | – | 57497CA110 | 57497CA110 | 57497CA310 | 57497CA310 | 57497CA310 | |
Sub Master | – | – | – | – | – | – | – | – | – | – | ||
Valet | – | – | – | – | – | 57497CA250 | 57497CA250 | 57497CA250 | 57497CA250 | 57497CA250 | ||
Pre-cut available | – | – | – | – | – | Yes | Yes | Yes | Yes | Yes | ||
Cut Type | – | – | – | – | – | Edge | Edge | Edge | Edge | Edge | ||
Key Type | – | – | – | – | – | 10 | 10 | 10 | 10 | 10 | ||
Key Code Series | – | – | – | – | – | 50000 – 69999 | 50000 – 69999 | 50000 – 69999 | 50000 – 69999 | 50000 – 69999 | ||
BD Laser Setup | Cut By | – | – | – | – | – | Code | Code | Code | Code | Code | |
Jaw | – | – | – | – | – | F/G | F/G | F/G | F/G | F/G | ||
Cutter Size | – | – | – | – | – | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||
Adapter Required | – | – | – | – | – | No | No | No | No | No | ||
Push Button Start Emergency | – | – | – | – | – | 57497CA200 | 57497CA200 | 57497AL020 | 57497AL020 | 57497AL020 | ||
Pre-cut available | – | – | – | – | – | Yes | Yes | Yes | Yes | Yes | ||
Cut Type | – | – | – | – | – | Laser | Laser | Laser | Laser | Laser | ||
Key Type | – | – | – | – | – | 4IT 5+5 | 4IT 5+5 | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | ||
Key Code Series | – | – | – | – | – | 40000 – 49999 | 40000 – 49999 | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | ||
BD Laser Setup | Cut By | – | – | – | – | – | Depth | Depth | Depth | Depth | Depth | |
Jaw | – | – | – | – | – | C | C | C | C | C | ||
Cutter Size | – | – | – | – | – | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | 2.5 mm | ||
Adapter Required | – | – | – | – | – | No | No | Yes | Yes | Yes | ||
Key Type & Cutting Information | 2018MY | 2019MY | 2020MY | |||||||||
Master | 57497CA310 | 57497CA310 | – | |||||||||
Sub Master | – | – | – | |||||||||
Valet | 57497CA250 | 57497CA250 | – | |||||||||
Pre-cut available | Yes | Yes | – | |||||||||
Cut Type | Edge | Edge | – | |||||||||
Key Type | 10 | 10 | – | |||||||||
Key Code Series | 50000 – 69999 |
50000 – 69999 | – | |||||||||
BD Laser Setup | Cut By | Code | Code | – | ||||||||
Jaw | F/G | F/G | – | |||||||||
Cutter Size | 1.5 mm | 1.5 mm | – | |||||||||
Adapter Required | No | No | – | |||||||||
Push Button Start Emergency | 57497AL020 | 57497AL020 | 57497AL020 | |||||||||
Pre-cut available | Yes | Yes | Yes | |||||||||
Cut Type | Laser | Laser | Laser | |||||||||
Key Type | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | |||||||||
Key Code Series | 90000 –
94999 |
90000 – 94999 | 90000 – 94999 | |||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | ||||||||
Jaw | C | C | C | |||||||||
Cutter Size | 2.5 mm | 2.5 mm | 2.5 mm | |||||||||
Adapter Required | Yes | Yes | Yes |
Model | Key Type & Cutting Information | 2019MY | 2020MY | 2021MY | ||||||||
Ascent | Master | 57497XC01A | 57497XC01A | 57497XC01A | ||||||||
Sub Master | – | – | – | |||||||||
Valet | 57497XC00A | 57497XC00A | 57497XC00A | |||||||||
Pre-cut available | Yes | Yes | Yes | |||||||||
Cut Type | Edge | Edge | Edge | |||||||||
Key Type | 10 | 10 | 10 | |||||||||
Key Code Series | 32000 – 39999 | 32000 – 39999 | 32000 – 39999 | |||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | ||||||||
Jaw | F/G | F/G | F/G | |||||||||
Cutter Size | 1.5 mm | 1.5 mm | 1.5 mm | |||||||||
Adapter Required | No | No | No | |||||||||
Push Button Start Emergency | 57497AL02A | 57497AL02A | 57497AL02A | |||||||||
Pre-cut available | Yes | Yes | Yes | |||||||||
Cut Type | Laser | Laser | Laser | |||||||||
Key Type | 4IT 4+4 thin | 4IT 4+4 thin | 4IT 4+4 thin | |||||||||
Key Code Series | 90000 – 94999 | 90000 – 94999 | 90000 – 94999 | |||||||||
BD Laser Setup | Cut By | Depth | Depth | Depth | ||||||||
Jaw | C | C | C | |||||||||
Cutter Size | 2.5 mm | 2.5 mm | 2.5 mm | |||||||||
Adapter Required | Yes | Yes | Yes |
Model | Key Type & Cutting Information | 2008MY | 2009MY | 2010MY | 2011MY | 2012MY | 2013MY | 2014MY | |
Tribeca | Master | 57497AG35A | 57497AG48A | 57497XA12A | 57497XA20A | 57497XA20A | 57497XA20A | 57497XA20A | |
Sub Master | – | – | – | – | – | – | – | ||
Valet | 57497AG12A | 57497AG12A | 57497XA13A | 57497XA13A | 57497XA13A | 57497XA13A | 57497XA13A | ||
Pre-cut available | No | No | No | No | No | No | No | ||
Cut Type | Edge | Edge | Edge | Edge | Edge | Edge | Edge | ||
Key Type | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||
Key Code Series | 30001-37850 | 30001-37850 | 30001-37850 | 30001-37850 | 30001-37850 | 30001-37850 | 30001-37850 | ||
BD Laser Setup | Cut By | Code | Code | Code | Code | Code | Code | Code | |
Jaw | F/G | F/G | F/G | F/G | F/G | F/G | F/G | ||
Cutter Size | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | ||
Adapter Required | No | No | No | No | No | No | No | ||
Push Button Start Emergency | – | – | – | – | – | – | – |
Depth Code Input Sequence
Edge cut key depth code input sequence
2012MY+ Impreza, 2015MY+ WRX/STI 2013MY+ Crosstrek, 2014MY+ Forester, 2015MY+ Legacy, 2015MY+ Outback The machine will automatically populate the second row Depth Code: 1-2-3-4-5-6-7-8-9-10 |
Emergency key depth code input sequence (4IT 4+4 key) 2015MY+ Impreza, 2016MY+ WRX/STI 2015MY+ Crosstrek, 2016MY+ Forester, 2015MY+ Legacy, 2015MY+ Outback, 2015MY+ BRZ
Enter code in reverse order from sequence provided Depth Code: 1-2-3-4-5-6-7-8 |
Emergency key depth code input sequence (4IT 5+5 key)
2013-14MY BRZ
Enter code in reverse order from sequence provided Depth Code: 1-2-3-4-5-6-7-8-9-10
|
Emergency key depth code input sequence (4IT 5+4 key)
2015MY WRX/STI, 2014MY Crosstrek, 2014-15MY Forester
Enter code in reverse order from sequence provided Depth Code: 1-2-3-4-5-*-7-8-9-10
|
BD Laser Max Keyonline Via PC (USB Memory Stick) Update Instruction
USB Memory stick requirements: 2-4 GB flash/thumb drive. Drive must be free of information
prior to performing the update.
1. From the main menu select:
a. Setup
b. Updates
c. Keyonline via pc
i. Do you want to update the software?
1. Select “Yes”.
ii. Please insert the USB memory stick in to the console and press “OK”.
1. The BD Laser Max will then transfer a “.csk” file to the USB memory stick.
iii. Once the file transfer is complete the machine will display “Please remove the USB memory stick, download the update from Keyonline website on your personal computer and save it on the USB memory stick”
1. Select “OK” and remove the USB memory stick from the console.
2. Insert USB memory stick in to desktop/laptop.
3. Visit https://bdlaser.mscdirect.com/
4. Double click “choose file”.
5. Search and select the “.csk” file downloaded from the BD Laser Max and select “open”.
6. Click “request update”
a. A dialogue box with the message “This action may require some time. Please wait” will appear. Select “OK”.
7. The update package will then be created.
a. Once the package creation is completed select
i. For Windows users: Select “SAVE” and then “SAVE AS” under the drive that
ii. For Chrome users: Select the “Show in folder” option, then pull to transfer the file to the USB drive.
8. Once the download/transfer is complete, safely eject the USB memory stick from the desktop/laptop.
9. Return to the BD Laser Max which displays the message “Please insert the USB memory stick containing the update”.
a. Insert the USB memory stick and select “OK”.
10. The BD Laser Max will then display the message “Do you want to update the software?”
a. Select “yes”.
b. Please note: The update process may take some time.
11. Once the update file transfer is complete the machine will display “Software update successfully installed”. Select “OK” then remove the USB memory stick and save for future use.
1301 E. 9th Street Suite, #700 ∙ Cleveland, OH 44114
Email: keymachines@MSCDirect.com ∙ Phone: 866-438-6767
Confidential – Property of Class C Solutions Group, a business of MSC Industrial Supply Co.
Form D1
01-168-09R-Form
24 Affected Products
Vehicles
MAKE | MODEL | YEAR |
SUBARU | IMPREZA | 2008-2011 |
SUBARU | LEGACY | 2005-2007 |
SUBARU | OUTBACK | 2005-2007 |
SUBARU | WRX | 2008-2014 |
SUBARU | WRX STI | 2008-2014 |
1 Associated Document
Manufacturer Communications
NUMBER: 01-168-09R
DATE: 06/17/09
Revised: 01/04/21
https://www.nhtsa.gov/recalls?nhtsaId=10187305
MC-10187305-0001.pdf 2563.105KB
MC-10187305-0001
NHTSA ID Number: 10186348
Manufacturer Communication Number: 01-168-09R
Summary
The purpose of this bulletin is to provide replacement key and immobilizer information.
1 Associated Document
Manufacturer Communications
NUMBER: 01-168-09R
DATE: 06/17/09
Revised: 01/04/21
https://www.nhtsa.gov/recalls?nhtsaId=10186348
MC-10186348-0001.pdf 2563.105KB
MC-10186348-0001
NHTSA ID Number: 10177827
Manufacturer Communication Number: 01-168-09R
Summary
The purpose of this bulletin is to provide replacement key and immobilizer information along with an overview of the Subaru Lock Information web-site.
1 Associated Document
Manufacturer Communications
NUMBER: 01-168-09R
DATE: 06/17/09
Revised: 07/20/20
https://www.nhtsa.gov/recalls?nhtsaId=10177827
MC-10177827-0001.pdf 2552.514KB
MC-10177827-0001
NHTSA ID Number: 10171084
Manufacturer Communication Number: 01-168-09R
Summary
The purpose of this bulletin is to provide replacement key and immobilizer information along with an overview of the Subaru Lock Information web-site.
1 Associated Document
Manufacturer Communications
NUMBER: 01-168-09R
DATE: 06/17/09
Revised: 01/10/20
https://www.nhtsa.gov/recalls?nhtsaId=10171084
MC-10171084-0001.pdf 2595.199KB
MC-10171084-0001
NHTSA ID Number: 10165500
Manufacturer Communication Number: 01-168-09R
Summary
The purpose of this bulletin is to provide replacement key and immobilizer information along
with an overview of the Subaru Lock Information web-site.
1 Associated Document
Manufacturer Communications
NUMBER: 01-168-09R
DATE: 06/17/09
Revised: 09/09/19
https://www.nhtsa.gov/recalls?nhtsaId=10165500
MC-10165500-0001.pdf 2593.382KB
MC-10165500-0001
NHTSA ID Number: 10150909
Manufacturer Communication Number: 01-168-09R
Summary
The Subaru Lock Information Site (SLIS) is located at https://lockinfo.subaru.com, and provides information on how to obtain immobilizer codes and key cut codes for Subaru vehicles from the 2000MY to present. This bulletin identifies the equipment required to initialize (reset) the immobilizer code and cut the key blanks, for both immobilizer and non-immobilizer type keys
1 Associated Document
Manufacturer Communications
NUMBER: 01-168-09R
DATE: 06/17/09
Revised: 10/11/18
https://www.nhtsa.gov/recalls?nhtsaId=10150909
MC-10150909-9999.pdf 2573.047KB
MC-10150909-9999
NHTSA ID Number: 10150934
Manufacturer Communication Number: 01-168-09R
Summary
The Subaru Lock Information Site (SLIS) is located at https://lockinfo.subaru.com, and provides information on how to obtain immobilizer codes and key cut codes for Subaru vehicles from the 2000MY to present. This bulletin identifies the equipment required to initialize (reset) the immobilizer code and cut the key blanks, for both immobilizer and non-immobilizer type keys
1 Associated Document
Manufacturer Communications
NUMBER: 01-168-09R
DATE: 06/17/09
Revised: 10/11/18
https://www.nhtsa.gov/recalls?nhtsaId=10150934
MC-10150934-9999.pdf 2573.047KB
MC-10150934-9999
NHTSA ID Number: 10143726
Manufacturer Communication Number: 01-168-09R
Summary
The purpose of this bulletin is to provide replacement key and immobilizer information along with an overview of the Subaru Lock Information web-site.
1 Associated Document
Manufacturer Communications
NUMBER: 01-168-09R
DATE: 06/17/09
Revised: 07/24/18
https://www.nhtsa.gov/recalls?nhtsaId=10143726
MC-10143726-9999.pdf 1681.202KB
MC-10143726-9999
NHTSA ID Number: 10182593
Manufacturer Communication Number: 0116809R
Summary
The purpose of this bulletin is to provide replacement key and immobilizer information along with an overview of the Subaru Lock Information web-site.
1 Associated Document
Manufacturer Communications
NUMBER: 01-168-09R
DATE: 06/17/09
Revised: 08/22/16
https://www.nhtsa.gov/recalls?nhtsaId=10182593
MC-10182593-9999.pdf 1375.189KB
MC-10182593-9999
NHTSA ID Number: 10232879
Manufacturer Communication Number: 0116809R
Summary
Replacement Key and Immobilizer info
1 Associated Document
Manufacturer Communications
NUMBER: 01-168-09R
DATE: 06/17/09
Revised: 04/25/13
https://www.nhtsa.gov/recalls?nhtsaId=10232879
MC-10232879-9999.pdf 1226.071KB
MC-10232879-9999
- High Quality OEM Electronic Remote Head Key Fob Guaranteed to Work with Your Vehicle or Your Money Back
- MUST be Programmed and Cut by a Professional Automotive Locksmith
- Subaru “G” Transponder Chip Compatible, Unique Programming Code Included Required to Program Remote to Your Vehicle
- Match FCC ID and Part Number in Description to an Existing Remote to Ensure Compatibility with Your Vehicle
- Compatible Models: 2012-2018 Subaru Impreza, 2013-2016 Subaru XV CrossTrek, 2014-2018 Subaru Forester, 2015-2017 Subaru Outback, 2015-2017 Subaru Legacy
- 👍[Compatible Vehicles] Keyless Entry Remote 2014-2018 Fit for Subaru Forester 2.0L,2014-2018 Fit for Subaru Forester 2.5L,2012-2016 Fit for Subaru Impreza 2.0L,2012-2014 Fit for Subaru Impreza 2.5L,2015-2017 Fit for Subaru Legacy 2.5L,2015-2017 Fit for Subaru Legacy 3.6L,2015-2017 Fit for Subaru Outback 2.5L,2015-2017 Fit for Subaru Outback 3.6L,2015-2018 Fit for Subaru WRX 2.0L,2016 Fit for Subaru WRX 2.5L,2015 Fit for Subaru WRX L,2015-2018 Fit for Subaru WRX STI 2.5L
- ▶ REPLACE OE: ROADFAR Keyless replace with CWTWB1U811, 57497AL00A, 1788D-FWB1U811
- ▶ REMINDER: This key fob does not support self-programming, for your car's safety, please find local automotive locksmith or dealer to program
- ▶ PERFECT FIT: ROADFAR key fob signal does not be affected. Excellent touch feeling and stylish, buttons still have great feel and work the same. Sensors remain unrestricted without compromising on protection
- ▶ MAKE SURE IT FIT: Please check your car model in the Amazon Fitment list System in the top left corner before purchasing. Compatibility information provided is for reference only
- 【FITMENT】Fit For SUBARU LEGACY 2015-2017, OUTBACK 2015-2017, FORESTER 2014-2018, XV CROSSTREK 2013-2016, IMPREZA 2012-2016
- 【REFERENCE NUMBER】Replacement for FCC ID: CWTWB1U811
- 【PROGRAMMING】For many people, the key programming process is a bit cumbersome, so you need to find a professional locksmith to help cutting and programming
- 【WHAT YOU GET】Complete keyless remote with electronic board and battery, 100% brand new, never used replacement part ( Every single remote is tested before it is sent to make sure it is transmitting )
- 【SERVICE】If you have any questions with our key fob, please communicate with us at any time
- This listing is for 2 brand new uncut transponder keys for select Subaru vehicles. Please check product description for vehicle fit guide.
- This transponder key must be cut and programmed by a dealership or qualified locksmith.
- This product is fully tested to guarantee its functionality.
- Cross Reference numbers: SUB4PT
- Complete working key with chip included
- [Process] Made of high quality alloy metal with high hardness and high quality genuine leather with good sense of touch, ensuring the durability of product.
- [Stylish] shiny, wear-resistant, not easy to fade.
- [Commodity] The package includes a leather keychain and a screwdriver.
- [Install] Easy installation,The keychain can hang your car key and family key at the same time.
- [Customer First] If you have any questions, please feel free to contact us! We will solve the problem for you as soon as possible.
Last update on 2023-05-22 / Affiliate links / Images from Amazon Product Advertising API
This product was presentation was made with AAWP plugin.
SEOCONTENT-START
Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 1 of 20 NUMBER: 01-168-09R DATE: 06/17/09 Revised: 01/04/21 APPLICABILITY: 2000MY to Current, All Models SUBJECT: Replacement Key and Immobilizer Information INTRODUCTION The purpose of this bulletin is to provide replacement key and immobilizer information along with an overview of the Subaru Lock Information web-site. OVERVIEW OF THE RETAILER-ONLY SUBARU LOCK INFORMATION SITE The Subaru Lock Information Site (SLIS) is located at http://lockinfo.subaru.com, and provides information on how to obtain immobilizer codes and key cut codes for Subaru vehicles from the 2000MY to present. This bulletin identifies the equipment required to initialize (reset) the immobilizer code and cut the key blanks, for both immobilizer and non-immobilizer type keys. Subaru of America began using immobilizer systems in some 2005MY vehicles (please refer to Immobilizer Chart for more detailed information). KEY BLANK TYPES Subaru vehicles are equipped with either standard edge cut keys or high security laser cut keys. All high security keys are equipped with an immobilizer device installed. Some standard edge cut keys may or may not be equipped with an immobilizer device. Key blanks can be purchased through normal parts channels. The following page are examples of the Subaru key blank styles: There are many different styles of key cuts. Be sure to order the correct blank for your particular application and verify your key cutting equipment is compatible. Master keys are shown below. 2005-2007 Legacy & Outback edge cut key w/immobilizer (also available without immobilizer) 2008-2011 Impreza, WRX, & STI and 2012-2014 WRX & STI high security laser cut key w/immobilizer continued… SERVICE BULLETIN ATTENTION: GENERAL MANAGER q PARTS MANAGER q CLAIMS PERSONNEL q SERVICE MANAGER q IMPORTANT – All Service Personnel Should Read and Initial in the boxes provided, right. © 2016 Subaru of America, Inc. All rights reserved. CAUTION: VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS. Subaru Service Bulletins are intended for use by professional technicians ONLY. They are written to inform those technicians of conditions that may occur in some vehicles, or to provide information that could assist in the proper servicing of the vehicle. Properly trained technicians have the equipment, tools, safety instructions, and know-how to do the job correctly and safely. If a condition is described, DO NOT assume that this Service Bulletin applies to your vehicle, or that your vehicle will have that condition. SUBARU OF AMERICA, INC. IS ISO 14001 COMPLIANT ISO 14001 is the international standard for excellence in Environmental Management Systems. Please recycle or dispose of automotive products in a manner that is friendly to our environment and in accordance with all local, state and federal laws and regulations. Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 2 of 20 2008 Legacy, Outback, and Tribeca edge cut key w/immobilizer and keyless entry 2009-2013 Forester high security laser cut key w/immobilizer 2009 Legacy & Outback and 2009-2014 edge cut key w/immobilizer and keyless entry 2010-2014 Legacy & Outback high security standard laser cut key w/immobilizer and keyless entry 2012+ Impreza, 2013+ Crosstrek and 2014+ Forester, 2015+ Legacy & Outback, and 2015+ WRX & STI edge cut key w/immobilizer and keyless entry 2013+ BRZ edge cut key w/immobilizer and keyless entry continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 3 of 20 2014-2015 Forester, 2014 Crosstrek Hybrid, and 2015 WRX & STI keyless access with pushbutton start system access key with inside cut high security laser cut emergency key, immobilizer, and keyless entry. (Different part number and key cutting code from 2013 BRZ.) 2013-2014 BRZ keyless access with pushbutton start system access key with inside cut high security laser cut emergency key, immobilizer, and keyless entry 2013-2014 Legacy & Outback keyless access with push-button start system access key with high security laser cut emergency key, immobilizer, and keyless entry continued… 2015+ BRZ, 2015+ Legacy, Outback, Impreza, Crosstrek and 2016+ WRX, WRX STI and Forester keyless access with push button start system access key with single-sided inside cut high security laser cut emergency key, immobilizer, and keyless entry. Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 4 of 20 SUBARU VEHICLES EQUIPPED WITH ENGINE IMMOBILIZER SYSTEM Baja Forester Impreza Legacy Outback Tribeca BRZ Crosstrek 2005 n/a 2.5XT STi 2.5GT 2.5XT, 3.0R — — — 2006 n/a 2.5XT WRX, STi All All All — — 2007 — 2.5XT WRX, STi All All All — — 2008 — 2.5XT All All All All — — > 2009 — All All All All All All All WEB SITE ACCESS: AUTOMOTIVE SECURITY PROFESSIONALS The public-facing locksmith site (linked off of STIS, via the “Immobilizer Key Access” button), is a pay site for lock professionals. WEB SITE ACCESS: AUTHORIZED SUBARU RETAILERS Authorized Subaru Retailers can access SLIS through Subarunet (under the Service tab, or by directly following the URL http://lockinfo.subaru.com. Access to the immobilizer information is restricted to Subaru Dealership Service Managers and Parts Managers. Access will be granted by using the managers’ SKILS user name. Subaru Parts Managers (PM) and Service Managers (SM) who are registered in the Dealer Employee Maintenance Database as such are designated as the only persons at a retailer authorized to access the Subaru Lock Information System (SLIS). Sharing of access information with other retailer employees is not allowed. Access to and use of the SLIS system is provided strictly for internal retailer use. Use of this system is restricted to Subaru vehicles owned or being repaired by the SM/PM’s respective retailer as documented by a properly executed and signed repair order with a complaint requesting a repair requiring the information provided by SLIS. Use of the SLIS system for any other purpose is strictly forbidden. Anyone found to be providing lock code or immobilizer information to any entity (outside their respective retailer for authorized purposes) will have their (and their retailer’s) access immediately terminated and may be referred to law enforcement officials for prosecution if the VIN accessed is subsequently reported to the National Insurance Crime Bureau (NICB) as a stolen vehicle. Note: It is the retailers’ responsibility to perform due diligence by entering or deleting employees in the SKILS Dealer Employee Maintenance Database. This is especially true of Service Manager and Parts Manager position changes. Step by Step Process To Access the Site • Once on the SLIS home page, the Service Manager or Parts Manager will be asked for their SKILS user name. At that time, if this is the first time he/she has logged on to the web site, the password “Welcome” should be used. He/she will then be prompted to create a new password (this will not change your current SKILS password). • The Service Manager or Parts Manager will then be prompted to read the disclaimer and answer “accept” or “not accept”. If they answer “not accept”, the system will not let them access the immobilizer information. continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 5 of 20 • A page will then be displayed, allowing for entry of the full 17 character VIN of the vehicle in question. • Provided the VIN is found in the database, the immobilizer Security ID along with the key/ cutting code will appear. • A charge of $2.80 will be incurred for each immobilizer request. Note: Costs are $9.95 per transaction. SOA Warranty will only reimburse an approved warranty claim with an Immobilizer Code access cost of $2.80 per transaction, as a sublet cost. The public-facing (professional locksmith) web site’s public access fee of $9.95 will be reduced to $2.80 per transaction, if those fees are submitted as a part of a warranty claim. NASTF SECURE DATA RELEASE MODEL (SDRM) Positive Identification Policy NASTF SDRM Subaru Parts and Service Managers who are registered in the Dealer Employee Maintenance Database and are designated as Registry Vehicle Security Professionals (VSPs) shall comply with the following Positive Identification Policy when servicing orders for keys, immobilizer reset, or other anti-theft services for vehicles: 1. Inform the Customer – At the time of initial request, ask the customer whether he or she has identification and authority for the service. Inform them of the requirements of this Positive Identification Policy. 2. Complete the Form – Upon arrival at the job site or when the customer comes in, the VSP shall complete an Authorization for Automotive Key Generation and/or Immobilizer System / Anti-Theft Services form (aka Form D-1, page 15) that asks for the name, address, phone number, driver’s license, vehicle make, model and year, vehicle license plate number, Vehicle Identification Number (VIN), odometer reading, and disclaimer and signature. An invoice or work order that contains all identifying information, when stapled to a duly signed Form D-1, is acceptable for collection of this customer information. Subarunet.com user name should be used in place of LSID. 3. Verify I.D. – Verify the customer’s valid photo ID and compare to the information provided by the customer on the authorization form. The customer must present a valid state issued driver’s license as proof of identity to qualify for use of Registry services. 4. Verify Authority – Ask the customer to present proof of entitlement, which shall include at least one of the following: a valid registration certificate, a valid insurance ID card, a valid insurance policy, vehicle title or a certificate of ownership for the vehicle. The name and address on the proof of entitlement document must match the information on the driver’s license to qualify for use of Registry services. In the event that necessary documentation is locked within the vehicle, the vehicle may be entered to verify the authority of the requestor. If upon entry to the vehicle, you are unable to verify the authority of the requestor, the vehicle shall be shut and locked. Do not produce a replacement key, do not provide any key related information to the requestor and destroy all information acquired from the automaker during the transaction. 5. Ask for Signature – Require the customer to read and sign Form D-1(page 15). The customer is attesting to: continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 6 of 20 continued… a. the information given by the customer being correct and truthful, b. the customer having the authority to obtain keys or immobilizer services for the vehicle and, c. the customer agreeing to indemnify and hold harmless the service provider and related parties against liability. 6. File the Form – Keep the completed Form D-1 on file for two (2) years, or longer as required by law. 7. Compliance with Applicable Laws. The VSP will take all other actions required by applicable laws. In the event of a conflict between the steps set forth herein and the applicable laws, the VSP should comply with applicable laws. 8. Sublet work – A mobile VSP doing work for a body shop, garage, or dealership may accept a legible photocopy of the picture I.D. in order to match it to the registration/title documents. This cannot be a faxed copy. The shop owner or manager must verify the customer’s I.D. in person and attest they have done so by signing the bottom of the Form D-1 EQUIPMENT The Subaru Diagnostic System (SDS) is required to reprogram Subaru immobilizer codes. See the Subaru Technical Information System (STIS) (http://techinfo.subaru.com) for more information. Instructions for Immobilizer re-initialization for keys, etc., can be found in the applicable Immobilizer Manual on STIS. TEACHING OPERATION CODES A Teaching Operation Code may be needed. The following are the necessary Teaching Codes: VEHICLE LINE MODEL YEAR TEACHING CODE Legacy 2005-2014 3781 Impreza 2005~07 3178 2008-2011 3781 Forester 2005~08 3178 2009-2013 3781 Tribeca 2006-2014 3781 Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 7 of 20 KEY CUTTING MACHINERY RECOMMENDATIONS Subaru of America recommends the use of the Class C Solutions Group “BD Laser Max” key cutting machine for standard edge cut and high security laser cut keys. Consult http://subaru.service-solutions.com for key machine purchases. BD Laser Max RETAILER CENTRALIZED KEY CUTTING SERVICE The Subaru of America Parts Department offers a key cutting service for retailers who have not purchased the key cutting machine. The service program details can be found on Subarunet.com, in the Parts Operations area, using the “Key Request” link. Forms, details, and costs are found in this area of Subarunet.com. Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 8 of 20 Key Cutting Tips For Using a BD Laser Max Every Subaru vehicle has a key code that can be found on the original key ring tag and on Subarunet. This code is known as an indirect (obfuscated) code. To cut a key, the indirect code must be translated to the direct code which is the actual key cutting depth information. Behind the scenes there is a database for each key type which converts the indirect key codes into the respective direct depth codes required to cut a key. In the past Subaru provided third party companies with this database so they could program their key cutting machines for indirect code cutting. The indirect key code could be typed into the key machine and the key machine would automatically convert the indirect code into the direct depth code and cut the key. For security reasons Subaru is no longer providing this database. The keys for newer Subaru models must be cut using the direct method. The direct code cut depth information for a given key must be obtained through Subaru Lock Information Service (SLIS). The following information will guide you through both indirect and direct depth key cutting methods. Prior to Using Machine 1. Locate model and model year in the Key Type & Cutting Information chart found on the following pages to find the vehicle specific cutting information 2. Note Cut By, Jaw, Cutter Size and Adapter requirement 3. If the Cut By is listed as Code, obtain the key code for the vehicle through Subaru.net or through the SLIS service (listed as Key No in SLIS) 4. If the Cut By is listed as Depth, obtain the Depth Code through the SLIS service (listed as Key Code in SLIS) Machine Tips 1. To limit the selection to US market vehicles, from the Main menu go to Cars and change region to North America 2. Maintain up-to-date software. Software releases prior to March 2016 will not cut all of the keys listed in this bulletin. Refer to attached BD Laser Max instructions for updating software and sign up for software update alerts at https://blueclassc.mscdirect.com/ acton/form/1684/0039:d-0001/0/index.htm 3. When inserting a key blank into the jaw, make sure that the jaw is clear of debris 4. Press down on the blank as you tighten the jaw to ensure that the blank is fully seated Cutting a Subaru Key 1. From the main menu, select CARS 2. Select Subaru 3. Select Subaru model 4. Select the row with the year range and key type 5. If cut by code, select CODES and input the key code 6. If cut by depth, select DIRECT and input the depth code per the input sequence chart 7. Follow the machine prompts to set up the required cutter size and jaw type 8. Follow the machine prompts to set up the tip stop or adapter (if required). For assistance in setting up the tip stop and adapter refer to following pages for more information 9. If application calls for F/G jaw, either a F or G jaw can be used 10. If an original key is available, check that the image of the key cut matches the original key and proceed with cutting the key continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 9 of 20 Tip Stop Setup for A and C Jaws A and C jaws use an integrated tip stop that slides into place when required Tip Stop Integrated Into Jaw Tip Stop Setup for F/G Jaw F/G jaws use a magnetic tip stop that is placed into the required grooved track Tip Stop In G1 Position Magnetic Tip Stop Adapter (AD03) Setup 4IT 4+4 thin type emergency keys require use of the AD03 adapter that is placed into the jaw as shown prior to inserting the key blank Adapter AD03 continued… KEY TYPE & CUTTING INFORMATION (Legend for charts on Pages 8-11): Multiple part numbers = Refer to Electronic Parts Catalog for the correct VIN specific part number Sub Master = Master Key without remote keyless entry functions Valet = Door and ignition only. No remote keyless entry functions. Will not unlock glovebox on Forester and Outback, trunk and glovebox on Legacy and 2008-2011 Impreza, and trunk on BRZ Push-Button Start Emergency = Emergency Key for Keyless Access with Push-Button Start Pre-cut available = A pre-cut replacement key can be ordered through the TRMI service Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 10 of 20 Model Key Type & Cutting Information 2008MY 2009MY 2010MY 2011MY 2012MY 2013MY 2014MY 2015MY 2016MY 2017MY Impreza Master 57497AG070 57497AG070 57497FG080 57497FG160 57497FJ021 57497FJ021 57497FJ021 57497FJ230 57497FJ230 57497FL00A Sub Master – – – – 57497FJ090 57497FJ090 57497FJ090 / 57497FJ250 57497FJ250 57497FJ250 57497FL08A Valet 57497FG010 57497FG010 57497FG090 57497FG170 – – – – – – Pre-cut available Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Cut Type Laser Laser Laser Laser Edge Edge Edge Edge Edge Edge Key Type 4ET 5+5 4ET 5+5 4ET 5+5 4ET 5+5 10 10 10 10 10 10 Key Code Series T0001-3000 T0001-3000 T0001-3000 T0001-3000 32000 – 39999 32000 – 39999 32000 – 39999 32000 – 39999 32000 – 39999 32000 – 39999 BD Laser Setup Cut By Code Code Code Code Depth Depth Depth Depth Depth Depth Jaw A A A A F/G F/G F/G F/G F/G F/G Cutter Size 2.5 mm 2.5 mm 2.5 mm 2.5 mm 1.5 mm 1.5 mm 1.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No No No No No No No No Push Button Start Emergency – – – – – – – 57497AL020 57497AL020 57497AL02A Pre-cut available – – – – – – – Yes Yes Yes Cut Type – – – – – – – Laser Laser Laser Key Type – – – – – – – 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series – – – – – – – 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By – – – – – – – Depth Depth Depth Jaw – – – – – – – C C C Cutter Size – – – – – – – 2.5 mm 2.5 mm 2.5 mm Adapter Required – – – – – – – Yes Yes Yes Key Type & Cutting Information 2018MY 2019MY 2020MY 2021MY Master 57497FL00A 57497XC01A 57497XC01A 57497XC01B Sub Master 57497FL08A 57497FL08A 57497FL08A 57497FL08B Valet – – – – Pre-cut available Yes Yes Yes Yes Cut Type Edge Edge Edge Edge Key Type 10 10 10 10 Key Code Series 32000 – 39999 32000 – 39999 32000 – 39999 32000 – 39999 BD Laser Setup Cut By Depth Depth Depth Depth Jaw F/G F/G F/G F/G Cutter Size 1.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No No Push Button Start Emergency 57497AL02A 57497AL02A 57497AL02A 57497AL02A Pre-cut available Yes Yes Yes Yes Cut Type Laser Laser Laser Laser Key Type 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series 90000 – 94999 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By Depth Depth Depth Depth Jaw C C C C Cutter Size 2.5 mm 2.5 mm 2.5 mm 2.5 mm Adapter Required Yes Yes Yes Yes continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 11 of 20 Model Key Type & Cutting Information 2008MY 2009MY 2010MY 2011MY 2012MY 2013MY 2014MY 2015MY 2016MY 2017MY WRX / STI Master 57497AG070 57497AG070 57497FG080 57497FG160 57497FG160 57497FG160 57497FG160 57497FJ021 57497FJ230 57497FJ230 Sub Master – – – – – – – 57497FJ090 57497FJ250 57497FJ250 Valet 57497FG010 57497FG010 57497FG090 57497FG170 57497FG170 57497FG170 57497FG170 – – – Pre-cut available Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Cut Type Laser Laser Laser Laser Laser Laser Laser Edge Edge Edge Key Type T0001-3000 4ET 5+5 4ET 5+5 4ET 5+5 4ET 5+5 4ET 5+5 4ET 5+5 10 10 10 Key Code Series T0001-3000 T0001-3000 T0001-3000 T0001-3000 T0001-3000 T0001-3000 T0001-3000 32000 – 39999 32000 – 39999 32000 – 39999 BD Laser Setup Cut By Code Code Code Code Code Code Code Depth Depth Depth Jaw A A A A A A A F/G F/G F/G Cutter Size 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No No No No No No No No Push Button Start Emergency – – – – – – T0001-3000 57497FJ060 57497AL020 57497AL020 Pre-cut available – – – – – – – Yes Yes Yes Cut Type – – – – – – – Laser Laser Laser Key Type – – – – – – – 4IT 5+4 4IT 4+4 thin 4IT 4+4 thin Key Code Series – – – – – – – 77000 – 78569 90000 – 94999 90000 – 94999 BD Laser Setup Cut By – – – – – – – Depth Depth Depth Jaw – – – – – – – A C C Cutter Size – – – – – – – 2.5 mm 2.5 mm 2.5 mm Adapter Required – – – – – – – No Yes Yes Key Type & Cutting Information 2018MY 2019MY 2020MY Master 57497FJ230 57497FJ230 5749VA330 Sub Master 57497FJ250 57497FJ250 57497FJ250 Valet – – – Pre-cut available Yes Yes Yes Cut Type Edge Edge Edge Key Type 10 10 10 Key Code Series 32000 – 39999 32000 – 39999 32000 – 39999 BD Laser Setup Cut By Depth Depth Depth Jaw F/G F/G F/G Cutter Size 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No Push Button Start Emergency 57497AL020 57497AL020 57497AL020 Pre-cut available Yes Yes Yes Cut Type Laser Laser Laser Key Type 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By Depth Depth Depth Jaw C C C Cutter Size 2.5 mm 2.5 mm 2.5 mm Adapter Required Yes Yes Yes continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 12 of 20 Model Key Type & Cutting Information 2008MY 2009MY 2010MY 2011MY 2012MY 2013MY 2014MY 2015MY 2016MY 2017MY 2018MY Forester Master 57497FC000 57497SC010 57497SC010 57497AJ070 57497AJ070 57497AJ070 57497FJ021 57497FJ021 57497FJ230 57497FJ230 57497FJ230 Sub Master – – – – – – – – – – – Valet 57497FC030 57497SC020 57497SC020 57497AJ010 57497AJ010 57497AJ010 57497SG000 57497SG000 57497SG000 57497SG000 57497SG000 Pre-cut available No Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Cut Type Edge Laser Laser Laser Laser Laser Edge Edge Edge Edge Edge Key Type 10 4ET 5+5 4ET 5+5 4ET 5+5 4ET 5+5 4ET 5+5 10 10 10 10 10 Key Code Series 30001-37850 T0001-3000 T0001-3000 T0001-3000 T0001-3000 T0001-3000 32000 – 39999 32000 – 39999 32000 – 39999 32000 – 39999 32000 – 39999 BD Laser Setup Cut By Code Code Code Code Code Code Depth Depth Depth Depth Depth Jaw F/G A A A A A F/G F/G F/G F/G F/G Cutter Size 1.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 1.5 mm 1.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No No No No No No No No No Push Button Start Emergency – – – – – – 57497FJ060 57497FJ060 57497AL020 57497AL020 57497AL020 Pre-cut available – – – – – – Yes Yes Yes Yes Yes Cut Type – – – – – – Laser Laser Laser Laser Laser Key Type – – – – – – 4IT 5+4 4IT 5+4 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series – – – – – – 77000 – 78569 77000 – 78569 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By – – – – – – Depth Depth Depth Depth Depth Jaw – – – – – – A C C C C Cutter Size – – – – – – 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm Adapter Required – – – – – – No No Yes Yes Yes Key Type & Cutting Information 2018MY 2019MY 2020MY 2021MY Master 57497FJ230 57497SJ050 57497SJ050 57497SJ051 Sub Master – 57497SJ000 57497SJ000 57497SJ001 Valet 57497SG000 – – – Pre-cut available Yes Yes Yes Yes Cut Type Edge Edge Edge Edge Key Type 10 10 10 10 Key Code Series 32000 – 39999 32000 – 39999 32000 – 39999 32000 – 39999 BD Laser Setup Cut By Depth Depth Depth Depth Jaw F/G F/G F/G F/G Cutter Size 1.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No No Push Button Start Emergency 57497AL020 57497AL020 57497AL020 57497AL020 Pre-cut available Yes Yes Yes Yes Cut Type Laser Laser Laser Laser Key Type 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series 90000 – 94999 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By Depth Depth Depth Depth Jaw C C C C Cutter Size 2.5 mm 2.5 mm 2.5 mm 2.5 mm Adapter Required Yes Yes Yes Yes continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 13 of 20 Model Key Type & Cutting Information 2008MY 2009MY 2010MY 2011MY 2012MY 2013MY 2014MY 2015MY 2016MY 2017MY Crosstrek Master – – – – – 57497FJ021 57497FJ021 57497FJ230 57497FJ230 57497FJ230 Sub Master – – – – 57497FJ090 57497FJ090 / 57497FJ250 57497FJ250 57497FJ250 57497FJ250 Valet – – – – – – – – – – Pre-cut available – – – – – Yes Yes Yes Yes Yes Cut Type – – – – – Edge Edge Edge Edge Edge Key Type – – – – – 10 10 10 10 10 Key Code Series – – – – – 32000 – 39999 32000 – 39999 32000 – 39999 32000 – 39999 32000 – 39999 BD Laser Setup Cut By – – – – – Depth Depth Depth Depth Depth Jaw – – – – – F/G F/G F/G F/G F/G Cutter Size – – – – – 1.5 mm 1.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required – – – – – No No No No No Push Button Start Emergency – – – – – – 57497FJ060 57497AL020 57497AL020 57497AL020 Pre-cut available – – – – – – Yes Yes Yes Yes Cut Type – – – – – – Laser Laser Laser Laser Key Type – – – – – – 4IT 5+4 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series – – – – – – 77000 – 78569 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By – – – – – – Depth Depth Depth Depth Jaw – – – – – – A C C C Cutter Size – – – – – – 2.5 mm 2.5 mm 2.5 mm 2.5 mm Adapter Required – – – – – – No Yes Yes Yes Key Type & Cutting Information 2018MY 2019MY 2020MY 2021MY Master 57497FL000 57497SJ051 57497SJ051 57497SJ051 Sub Master 57497FL080 57497FL081 57497FL081 57497FL081 Valet – – – – Pre-cut available Yes Yes Yes Yes Cut Type Edge Edge Edge Edge Key Type 10 10 10 10 Key Code Series 32000 – 39999 32000 – 39999 32000 – 39999 32000 – 39999 BD Laser Setup Cut By Depth Depth Depth Depth Jaw F/G F/G F/G F/G Cutter Size 1.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No No Push Button Start Emergency 57497AL020 57497AL020 57497AL020 57497AL020 Pre-cut available Yes Yes Yes Yes Cut Type Laser Laser Laser Laser Key Type 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series 90000 – 94999 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By Depth Depth Depth Depth Jaw C C C C Cutter Size 2.5 mm 2.5 mm 2.5 mm 2.5 mm Adapter Required Yes Yes Yes Yes continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 14 of 20 Model Key Type & Cutting Information 2008MY 2009MY 2010MY 2011MY 2012MY 2013MY 2014MY 2015MY 2016MY 2017MY Legacy Master 57497AG35A 57497AG48A 57497AJ00A 57497AJ10A 57497AJ10A 57497AJ10A 57497AJ10A 57497AL00A 57497AL00A 57497AL00A Sub Master – – – – – – – – – – Valet 57497AG12A 57497AG12A 57497AJ01A 57497AJ01A 57497AJ01A 57497AJ01A 57497AJ01A 57497AL01A 57497AL01A 57497AL01A Pre-cut available No No Yes Yes Yes Yes Yes Yes Yes Yes Cut Type Edge Edge Laser Laser Laser Laser Laser Edge Edge Edge Key Type 10 10 4ET 5+5 4ET 5+5 4ET 5+5 4ET 5+5 4ET 5+5 10 10 10 Key Code Series 30001-37850 30001-37850 T0001-3000 T0001-3000 T0001-3000 T0001-3000 T0001-3000 32000 – 39999 32000 – 39999 32000 – 39999 BD Laser Setup Cut By Code Code Code Code Code Code Code Depth Depth Depth Jaw F/G F/G A A A A A F/G F/G F/G Cutter Size 1.5 mm 1.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No No No No No No No No Push Button Start Emergency – – – – – 57497AJ11A 57497AJ11A 57497AL02A 57497AL02A 57497AL02A Pre-cut available – – – – – Yes Yes Yes Yes Yes Cut Type – – – – – Laser Laser Laser Laser Laser Key Type – – – – – 4ET 5+5 4ET 5+5 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series – – – – – T0001-3000 T0001-3000 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By – – – – – Code Code Depth Depth Depth Jaw – – – – – A A C C C Cutter Size – – – – – 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm Adapter Required – – – – – No No Yes Yes Yes Key Type & Cutting Information 2018MY 2019MY 2020MY 2021MY Master 57497AL27A 57497AL37A 57497AN00A 57497AN00B Sub Master – – – – Valet 57497AL02A 57497AL01A 57497XC00A 57497XC00B Pre-cut available Yes Yes Yes Yes Cut Type Edge Edge Edge Edge Key Type 10 10 10 10 Key Code Series 32000 – 39999 32000 – 39999 32000-39999 32000-39999 BD Laser Setup Cut By Depth Depth Depth Depth Jaw F/G F/G F/G F/G Cutter Size 1.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No No Push Button Start Emergency 57497AL02A 57497AL02A 57497AL02A 57497AL02A Pre-cut available Yes Yes Yes Yes Cut Type Laser Laser Laser Laser Key Type 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series 90000 – 94999 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By Depth Depth Depth Depth Jaw C C C C Cutter Size 2.5 mm 2.5 mm 2.5 mm 2.5 mm Adapter Required Yes Yes Yes Yes continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 15 of 20 Model Key Type & Cutting Information 2008MY 2009MY 2010MY 2011MY 2012MY 2013MY 2014MY 2015MY 2016MY 2017MY Outback Master 57497AG35A 57497AG48A 57497AJ00A 57497AJ10A 57497AJ10A 57497AJ10A 57497AJ10A 57497AL00A 57497AL00A 57497AL00A Sub Master – – – – – – – – – – Valet 57497AG12A 57497AG12A 57497AJ01A 57497AJ01A 57497AJ01A 57497AJ01A 57497AJ01A 57497AL01A 57497AL01A 57497AL01A Pre-cut available No No Yes Yes Yes Yes Yes Yes Yes Yes Cut Type Edge Edge Laser Laser Laser Laser Laser Edge Edge Edge Key Type 10 10 4ET 5+5 4ET 5+5 4ET 5+5 4ET 5+5 4ET 5+5 10 10 10 Key Code Series 30001-37850 30001-37850 T0001-3000 T0001-3000 T0001-3000 T0001-3000 T0001-3000 32000 – 39999 32000 – 39999 32000 – 39999 BD Laser Setup Cut By Code Code Code Code Code Code Code Depth Depth Depth Jaw F/G F/G A A A A A F/G F/G F/G Cutter Size 1.5 mm 1.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No No No No No No No No Push Button Start Emergency – – – – – 57497AJ11A 57497AJ11A 57497AL02A 57497AL02A 57497AL02A Pre-cut available – – – – – Yes Yes Yes Yes Yes Cut Type – – – – – Laser Laser Laser Laser Laser Key Type – – – – – 4ET 5+5 4ET 5+5 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series – – – – – T0001-3000 T0001-3000 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By – – – – – Code Code Depth Depth Depth Jaw – – – – – A A C C C Cutter Size – – – – – 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm Adapter Required – – – – – No No Yes Yes Yes Key Type & Cutting Information 2018MY 2019MY 2020MY 2021MY Master 57497AL27A 57497AL37A 57497AN00A 57497AN00B Sub Master – – – – Valet 57497AL02A 57497AL01A 57497XC00A 57497XC00B Pre-cut available Yes Yes Yes Yes Cut Type Edge Edge Edge Edge Key Type 10 10 10 10 Key Code Series 32000 – 39999 32000 – 39999 32000-39999 32000-39999 BD Laser Setup Cut By Depth Depth Depth Depth Jaw F/G F/G F/G F/G Cutter Size 1.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No No Push Button Start Emergency 57497AL02A 57497AL02A 57497AL02A 57497AL02A Pre-cut available Yes Yes Yes Yes Cut Type Laser Laser Laser Laser Key Type 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series 90000 – 94999 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By Depth Depth Depth Depth Jaw C C C C Cutter Size 2.5 mm 2.5 mm 2.5 mm 2.5 mm Adapter Required Yes Yes Yes Yes continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 16 of 20 Model Key Type & Cutting Information 2008MY 2009MY 2010MY 2011MY 2012MY 2013MY 2014MY 2015MY 2016MY 2017MY BRZ Master – – – – – 57497CA110 57497CA110 57497CA310 57497CA310 57497CA310 Sub Master – – – – – – – – – – Valet – – – – – 57497CA250 57497CA250 57497CA250 57497CA250 57497CA250 Pre-cut available – – – – – Yes Yes Yes Yes Yes Cut Type – – – – – Edge Edge Edge Edge Edge Key Type – – – – – 10 10 10 10 10 Key Code Series – – – – – 50000 – 69999 50000 – 69999 50000 – 69999 50000 – 69999 50000 – 69999 BD Laser Setup Cut By – – – – – Code Code Code Code Code Jaw – – – – – F/G F/G F/G F/G F/G Cutter Size – – – – – 1.5 mm 1.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required – – – – – No No No No No Push Button Start Emergency – – – – – 57497CA200 57497CA200 57497AL020 57497AL020 57497AL020 Pre-cut available – – – – – Yes Yes Yes Yes Yes Cut Type – – – – – Laser Laser Laser Laser Laser Key Type – – – – – 4IT 5+5 4IT 5+5 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series – – – – – 40000 – 49999 40000 – 49999 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By – – – – – Depth Depth Depth Depth Depth Jaw – – – – – C C C C C Cutter Size – – – – – 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm Adapter Required – – – – – No No Yes Yes Yes Key Type & Cutting Information 2018MY 2019MY 2020MY Master 57497CA310 57497CA310 – Sub Master – – – Valet 57497CA250 57497CA250 – Pre-cut available Yes Yes – Cut Type Edge Edge – Key Type 10 10 – Key Code Series 50000 – 69999 50000 – 69999 – BD Laser Setup Cut By Code Code – Jaw F/G F/G – Cutter Size 1.5 mm 1.5 mm – Adapter Required No No – Push Button Start Emergency 57497AL020 57497AL020 57497AL020 Pre-cut available Yes Yes Yes Cut Type Laser Laser Laser Key Type 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By Depth Depth Depth Jaw C C C Cutter Size 2.5 mm 2.5 mm 2.5 mm Adapter Required Yes Yes Yes continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 17 of 20 continued… Model Key Type & Cutting Information 2019MY 2020MY 2021MY Ascent Master 57497XC01A 57497XC01A 57497XC01A Sub Master – – – Valet 57497XC00A 57497XC00A 57497XC00A Pre-cut available Yes Yes Yes Cut Type Edge Edge Edge Key Type 10 10 10 Key Code Series 32000 – 39999 32000 – 39999 32000 – 39999 BD Laser Setup Cut By Depth Depth Depth Jaw F/G F/G F/G Cutter Size 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No Push Button Start Emergency 57497AL02A 57497AL02A 57497AL02A Pre-cut available Yes Yes Yes Cut Type Laser Laser Laser Key Type 4IT 4+4 thin 4IT 4+4 thin 4IT 4+4 thin Key Code Series 90000 – 94999 90000 – 94999 90000 – 94999 BD Laser Setup Cut By Depth Depth Depth Jaw C C C Cutter Size 2.5 mm 2.5 mm 2.5 mm Adapter Required Yes Yes Yes Model Key Type & Cutting Information 2008MY 2009MY 2010MY 2011MY 2012MY 2013MY 2014MY Tribeca Master 57497AG35A 57497AG48A 57497XA12A 57497XA20A 57497XA20A 57497XA20A 57497XA20A Sub Master – – – – – – – Valet 57497AG12A 57497AG12A 57497XA13A 57497XA13A 57497XA13A 57497XA13A 57497XA13A Pre-cut available No No No No No No No Cut Type Edge Edge Edge Edge Edge Edge Edge Key Type 10 10 10 10 10 10 10 Key Code Series 30001-37850 30001-37850 30001-37850 30001-37850 30001-37850 30001-37850 30001-37850 BD Laser Setup Cut By Code Code Code Code Code Code Code Jaw F/G F/G F/G F/G F/G F/G F/G Cutter Size 1.5 mm 1.5 mm 1.5 mm 1.5 mm 1.5 mm 1.5 mm 1.5 mm Adapter Required No No No No No No No Push Button Start Emergency – – – – – – – Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 18 of 20 Edge cut key depth code input sequence 2012MY+ Impreza, 2015MY+ WRX/STI 2013MY+ Crosstrek, 2014MY+ Forester, 2015MY+ Legacy, 2015MY+ Outback The machine will automatically populate the second row Depth Code: 1-2-3-4-5-6-7-8-9-10 Key Blank 1 2 3 4 5 6 7 8 9 10 Key Blank Emergency key depth code input sequence (4IT 4+4 key) 2015MY+ Impreza, 2016MY+ WRX/STI 2015MY+ Crosstrek, 2016MY+ Forester, 2015MY+ Legacy, 2015MY+ Outback, 2015MY+ BRZ Enter code in reverse order from sequence provided Depth Code: 1-2-3-4-5-6-7-8 Key Blank 8 7 6 5 4 3 2 1 Key Blank Emergency key depth code input sequence (4IT 5+5 key) 2013-14MY BRZ Enter code in reverse order from sequence provided Depth Code: 1-2-3-4-5-6-7-8-9-10 Key Blank 10 9 8 7 6 5 4 3 2 1 Key Blank Emergency key depth code input sequence (4IT 5+4 key) 2015MY WRX/STI, 2014MY Crosstrek, 2014-15MY Forester Enter code in reverse order from sequence provided Depth Code: 1-2-3-4-5-*-7-8-9-10 Key Blank 10 9 8 7 * 5 4 3 2 1 Key Blank continued… Depth Code Input Sequence Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 19 of 20 BD Laser Max Keyonline Via PC (USB Memory Stick) Update Instruction USB Memory stick requirements: 2-4 GB flash/thumb drive. Drive must be free of information prior to performing the update. 1. From the main menu select: a. Setup b. Updates c. Keyonline via pc i. Do you want to update the software? 1. Select “Yes”. ii. Please insert the USB memory stick in to the console and press “OK”. 1. The BD Laser Max will then transfer a “.csk” file to the USB memory stick. iii. Once the file transfer is complete the machine will display “Please remove the USB memory stick, download the update from Keyonline website on your personal computer and save it on the USB memory stick” 1. Select “OK” and remove the USB memory stick from the console. 2. Insert USB memory stick in to desktop/laptop. 3. Visit http://bdlaser.mscdirect.com/ 4. Double click “choose file”. 5. Search and select the “.csk” file downloaded from the BD Laser Max and select “open”. 6. Click “request update” a. A dialogue box with the message “This action may require some time. Please wait” will appear. Select “OK”. 7. The update package will then be created. a. Once the package creation is completed select i. For Windows users: Select “SAVE” and then “SAVE AS” under the drive that is associated with your USB drive. ii. For Chrome users: Select the “Show in folder” option, then pull to transfer the file to the USB drive. 8. Once the download/transfer is complete, safely eject the USB memory stick from the desktop/laptop. 9. Return to the BD Laser Max which displays the message “Please insert the USB memory stick containing the update”. a. Insert the USB memory stick and select “OK”. 10. The BD Laser Max will then display the message “Do you want to update the software?” a. Select “yes”. b. Please note: The update process may take some time. 11. Once the update file transfer is complete the machine will display “Software update successfully installed”. Select “OK” then remove the USB memory stick and save for future use. 1301 E. 9th Street Suite, #700 ∙ Cleveland, OH 44114 Email: keymachines@MSCDirect.com ∙ Phone: 866-438-6767 Confidential – Property of Class C Solutions Group, a business of MSC Industrial Supply Co. continued… Bulletin Number: 01-168-09R; Revised: 01/04/21 Page 20 of 20 AUTHORIZATION FOR AUTOMOTIVE KEY GENERATION and/or IMMOBILIZER SYSTEM/ANTI-THEFT SERVICES (The LSID Holder must fill out this form, after personally looking at the photo I.D., the registration and the VIN plate on the Vehicle. These forms are to be kept for 2 years in a secured location as per the NASTF positive I.D. Policy. The NASTF Director of Operations will randomly audit these forms to ensure compliance with positive I.D policy. Failure to produce D-1 Forms when requested will result in LSID registry suspension and possible termination.) I hereby certify that I have the authority to order keys and immobilizer system reset services for the vehicle indicated below. I agree that the information I am providing is true and correct. Further, to the maximum extent permitted by applicable law, I agree to indemnify and hold harmless the service provider listed below and related parties providing security information from any and all liability or claims that may arise from the performance of this service. I further agree to indemnify the automaker and their affiliates, successors, assignees, and nominees from any and all claims, losses, or costs (including reasonable attorney’s fees) arising from any acts or omissions of the service provider, the service provider’s employees, subcontractors, or agents. Vehicle Owner/Customer Name: Address: City / State / Zip Code: Telephone: | Vehicle Owner/Customer Signature Date Driver’s License Number 1 State Expiration Date Other Form of ID (specify type and number): | | | Vehicle Year Make Model Color: License Plate Number State of Vehicle Registration Vehicle ID Number (VIN) (17 characters) Odometer Reading (mileage): (or) Not Available: For Dealership/Auctions: PO / Stock # / Service Performed: Key cut from code Immobilizer reset Other (describe below) : VSP/Service Provider Business Name: Phone: Address: City / State / Zip Code: | VSP/Technician Name | / / VSP/Technician Signature | / / Contracting Shop Owner/Manager Signature Date (Item 8 of the Positive ID Policy) 1 IMPORTANT: Mobile Service Providers – If the VSP is not present at the time vehicle is received for service by a contracting service facility, the contracting service facility must make a photocopy of the vehicle owner’s driver’s license and attach to this form. Additionally, a valid registration must be left with the vehicle so that the VSP can verify that the driver’s license matches the ownership documentation. Subaru.net Username Form D1
**************************************************************************************************************
SEOCONTENT-END
