NHTSA ID Number: 10235282
Manufacturer Communication Number: 12-281-20R
Summary
This bulletin provides a repair procedure to address a small number of customer concerns of the hood panel surface vibrating while driving.
NUMBER: 12-281-20
DATE: 02/19/20
REVISED: 04/05/23
APPLICABILITY: | 2019-23MY Ascent |
SUBJECT: | Hood Panel Vibration |
INTRODUCTION:
This bulletin provides a repair procedure to address a small number of customer concerns of the hood panel surface vibrating while driving. This condition can result if the mastic (adhesive) used to bond the inner hood reinforcing panel to the outer panel (skin) begins to separate.
REQUIRED TOOLS AND MATERIALS INFORMATION:
- 3M Panel Bonding Adhesive #08116 (200ml tube)
- 3M Mixing Nozzles #08193
- 3M Applicator #08571
- A 25 x 50 x 5mm (1” x 2” x .200 thick) non-metallic (plastic or wood) spacer with rounded edges
- Alcohol wipes (or isopropyl alcohol)
- Clean Shop Cloths
- 8: 90814FC001 Hood Insulation clips
SERVICE PROCEDURE / INFORMATION:
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
The instructions supplied with the 3M adhesive product contain information critical to performing an effective repair. The product is readily available online and from most Auto Body supply outlets. Additional information is readily available on the 3M website: www.3MCollision.com. Product directions also include important SAFETY precautions and processes to follow for a complete and lasting repair.
- Use the photos below to identify the inspection areas and determine the potential repair points.
PREPARATION FOR REPAIR:
CAREFULLY remove the under hood insulation materials following the procedure in the applicable Service Manual. NOTE: The four (4) retaining clips (qty. 8 total) for both outer sections shown below p.n. 90814FC001 are 1-time use and MUST be replaced at reassembly.
- Thoroughly clean all areas indicated in the photos above where the repair adhesive will be applied with alcohol wipes (or isopropyl alcohol on a clean shop cloth). All application areas must be completely free of any foreign material (grease, dirt) which could prevent proper adhesion to either panel. Always allow the alcohol to dry completely before proceeding with application of the adhesive.
ADHESIVE APPLICATION:
- Before applying adhesive, CAREFULLY insert the spacer between the inner and outer hood panels at the location (s) indicated in the above photo on the side intended for the repair. Use two spacers if both the left and right side need to be repaired. Keep the edge of the spacer outside the gap as shown to make removal after the adhesive is cured easier.
- Using the fine point tip of the applicator nozzle, CAREFULLY apply the adhesive between the outer and inner hood panels as indicated in the photo above. Apply enough material to adhere both panels, keeping the width of the adhesive approximately 18mm (3/4in.).
- Use a clean shop cloth to wipe away any excess adhesive protruding from the edges of the application areas. Adhesive should not protrude from the edges of the inner openings after it is cured. Follow the specific 3M product instructions for the applicable cure times.
- After the adhesive is fully cured (24 hours at 73 degrees F ambient temperature), remove the spacer(s) to complete the repair.
1 Associated Document
Manufacturer Communications
https://www.nhtsa.gov/recalls?nhtsaId=10235282
NUMBER: 12-281-20R
DATE: 02/19/20
REVISED: 04/05/23
MC-10235282-0001.pdf 398.263KB
NHTSA ID Number: 10171927
Manufacturer Communication Number: 12-281-20
Summary
This bulletin provides a repair procedure to address a small number of customer concerns of the hood panel surface vibrating while driving. This condition can result if the mastic (adhesive) used to bond the inner hood reinforcing panel to the outer panel (skin) begins to separate.
1 Associated Document
Manufacturer Communications
https://www.nhtsa.gov/recalls?nhtsaId=10171927
NUMBER: 12-281-20
DATE: 02/19/20
MC-10171927-0001.pdf 1331.138KB
- PROFESSIONAL GRADE: Recommended by many OEMs
- TWO-PART EPOXY ADHESIVE: Provides extended work-time or rapidly cured with heat
- EXCELLENT ADHESION: For use on a wide variety of plastic and metal substrates
- MULTIPLE USES: Bonds door skins, roof skins, quarter panels, box sides and bumper covers
- GLASS BEAD TECHNOLOGY: Protects against overclamping and maintains a minimum bond line thickness
- Two-part epoxy used to bond steel, aluminum, SMC, and FRP (traditional fiberglass)
- A high performance two component epoxy adhesive.
- Bonds a variety of steel, aluminum, SMC, and FRP (traditional fiberglass) non-structural components.
- Also use to reinforce welded or riveted structural components.
- Use with 08190 Performance Manual Applicator and 38191 Static Mixing Nozzle. The Net Fill amount is 47.5mL. Cartridge Volume is 50mL
- Two part urethane used to bond steel and aluminum. The primary use is to replace quarter panels, roofs, box sides, van sides, utility vehicle sides and door skins.
- Manufacturer: SEM
- Enables a long working time
- Higher impact force
- Plasticbonder: Is A Quick-Set, 2 Part, Urethane Adhesive System That Provides Strong, Lasting Repairs And Works On Thermoset, Carbon Fiber Composites, Thermoplastics, Coated Metals, Concrete & More.
- Count On Us: For More Than 40 Years, Our Products Have Earned A Loyal Following From People Who Take Pride In Their Work. With Each Product We Innovate, We Continue To Provide The World'S Strongest Bond For Your Projects.
- Simple To Use: J-B Plasticbonder Has A 1:1 Mixing Ratio, Sets In 15 Minutes And Can Be Sanded After 30 Minutes. With A Tensile Strength Of 3770 Psi, Plasticbonder Cures To A Hard, Permanent Bond.
- Versatile And Dependable: Perfect For Indoor Or Outdoor Use, Epoxy & Adhesives, Plastic, Composite, Pvc, And More. Plastic Bonder Makes A Great Gap Filler And Dries Black In Color.
- Two part urethane used to bond steel and aluminum. The primary use is to replace quarter panels, roofs, box sides, van sides, utility vehicle sides and door skins.

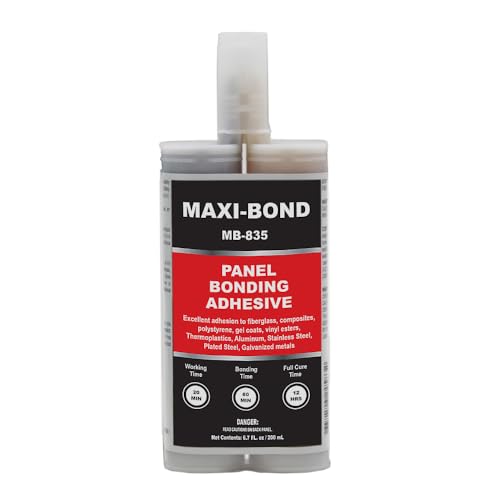

- Maxi-Bond Multi-Purpose Panel Adhesive Metal Is the product of choice when bonding steel, aluminum, SMC and fiberglass panels. Offers superior impact strength while allowing a long working time.
- Excelent Adhesion and Impact Strength. Ideal for Automotive and Transportation Assemble
- Best Adhesive Performance - Great Quality, saving you time and money!
- A non-sag, two component epoxy adhesive system formulated to bond steel, aluminum, SMC and fiberglass panels without the use of an external primer.
- STRONG BOND: 3M Universal Adhesive is a two-part urethane adhesive that bonds metal, glass and plastic substrates to each other and themselves
- GAP FILLING: High-viscosity adhesive provides exceptional gap filling
- EFFICIENT: Helps deliver fast work times
- QUICK: Produces durable bonds within minutes of application
- METERED MIXING: Comes in a dual-syringe cartridge for metered static mixing
- (1) 8571 Applicator Gun Supports 200mL Cartridges
- (1) 8115 200mL panel bondingadhesive fro aluminum, FRP, SMC, Steel
- 8115 Adhesive Fully Cures in 24 hours
- (2) 08193 Mixing Tips
- Product dimensions: 12.2 x 5.8 x 9.3 inches
- Cold weld epoxy adhesive paste to bond metal, rubber, fiberglass, and glass in automotive applications
- Forms a tough bond that flexes to provide impact and vibration resistance
- Continuous service temperature range from -20 to +250 degrees F
- Provides work time of 8 minutes and full cure time of 12 to 24 hours (at 75 degrees F)
- Resists water
Last update on 2024-03-03 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
SEOCONTENT-START
Bulletin Number: 12-281-20R; Revised: 04/05/23 Page 1 of 3
Continued…
NUMBER: 12-281-20R
DATE: 02/19/20
REVISED: 04/05/23
APPLICABILITY: 2019-23MY Ascent
SUBJECT: Hood Panel Vibration
CAUTION: VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS.
Subaru Service Bulletins are intended for use by professional technicians ONLY. They are written to inform those technicians of conditions that may occur in some vehicles, or to provide information that could assist in the proper servicing of the vehicle. Properly trained technicians have the equipment, tools, safety instructions, and know-how to do the job correctly and safely. If a condition is described, DO NOT assume that this Service Bulletin applies to your vehicle, or that your vehicle will have that condition.
Subaru of America, Inc. is ISO 14001 Compliant
ISO 14001 is the international standard for excellence in Environmental Management Systems. Please recycle or dispose of automotive products in a manner that is friendly to our environment and in accordance with all local, state and federal laws and regulations.
INTRODUCTION: This bulletin provides a repair procedure to address a small number of customer concerns of the hood panel surface vibrating while driving. This condition can result if the mastic (adhesive) used to bond the inner hood reinforcing panel to the outer panel (skin) begins to separate.
REQUIRED TOOLS AND MATERIALS INFORMATION:
• 3M Panel Bonding Adhesive #08116 (200ml tube)
• 3M Mixing Nozzles #08193
• 3M Applicator #08571
• A 25 x 50 x 5mm (1” x 2” x .200 thick) non-metallic
(plastic or wood) spacer with rounded edges
• Alcohol wipes (or isopropyl alcohol)
• Clean Shop Cloths
• Qty. 8: 90814FC001 Hood Insulation clips SERVICE PROCEDURE / INFORMATION:
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
The instructions supplied with the 3M adhesive product contain information critical to performing an effective repair. The product is readily available online and from most Auto Body supply outlets. Additional information is readily available on the 3M website: www.3MCollision.com. Product directions also include important SAFETY precautions and processes to follow for a complete and lasting repair.
SERVICE BULLETIN
ATTENTION:
GENERAL MANAGER 0
PARTS MANAGER 0
CLAIMS PERSONNEL 0
SERVICE MANAGER 0
IMPORTANT – All
Service Personnel Should Read and Initial in the boxes provided, right.
© 2020 Subaru of America, Inc. All rights reserved. • Use the photos below to identify the inspection areas and determine the potential repair points. PREPARATION FOR REPAIR:
CAREFULLY remove the under hood insulation materials following the procedure in the applicable Service Manual. NOTE: The four (4) retaining clips (qty. 8 total) for both outer sections shown below p.n. 90814FC001 are 1-time use and MUST be replaced at reassembly. • Thoroughly clean all areas indicated in the photos above where the repair adhesive will be applied with alcohol wipes (or isopropyl alcohol on a clean shop cloth). All application areas must be completely free of any foreign material (grease, dirt) which could prevent proper adhesion to either panel. Always allow the alcohol to dry completely before proceeding with application of the adhesive. Continued…
Bulletin Number: 12-281-20R; Revised: 04/05/23 Page 2 of 3 Bulletin Number: 12-281-20R; Revised: 04/05/23 Page 3 of 3
ADHESIVE APPLICATION:
• Before applying adhesive, CAREFULLY insert the spacer between the inner and outer hood panels at the location (s) indicated in the above photo on the side intended for the repair. Use two spacers if both the left and right side need to be repaired. Keep the edge of the spacer outside the gap as shown to make removal after the adhesive is cured easier.
• Using the fine point tip of the applicator nozzle, CAREFULLY apply the adhesive between the outer and inner hood panels as indicated in the photo above. Apply enough material to adhere both panels, keeping the width of the adhesive approximately 18mm (3/4in.).
• Use a clean shop cloth to wipe away any excess adhesive protruding from the edges of the application areas. Adhesive should not protrude from the edges of the inner openings after it is cured. Follow the specific 3M product instructions for the applicable cure times.
• After the adhesive is fully cured (24 hours at 73 degrees F ambient temperature), remove the spacer(s) to complete the repair. WARRANTY / CLAIM INFORMATION:
For vehicles within the Basic New Car Limited Warranty period, this repair may be submitted using the following claim information: Labor Description
ASCENT HOOD ADHESIVE REPAIR- ONE SIDE ASCENT HOOD ADHESIVE REPAIR- BOTH SIDES
Labor Operation #
A914-002 A914-004
Labor Time
0.5
0.7 Fail Code XAB-52
NOTES:
• Up to $60.00 can be claimed in sublet for the mixing nozzles and adhesive.
• Up to $80.00 can be claimed ONE TIME in sublet to cover the cost of the applicator (if needed).
• This repair is eligible for 1 day of car rental expense (claimed in sublet) to allow for adhesive curing time.
IMPORTANT REMINDERS:
• SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
• Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
• Always refer to STIS for the latest service information before performing any repairs.
**************************************************************************************************************
**************************************************************************************************************
SEOCONTENT-END
