NHTSA ID Number: 10176021
Manufacturer Communication Number: 06-176-20
This bulletin announces availability of DMS reprogramming files to address the following DTCs: B118B, B11E5, B11E6, when they appear in memory all at the same time as a group.
2 Affected Products

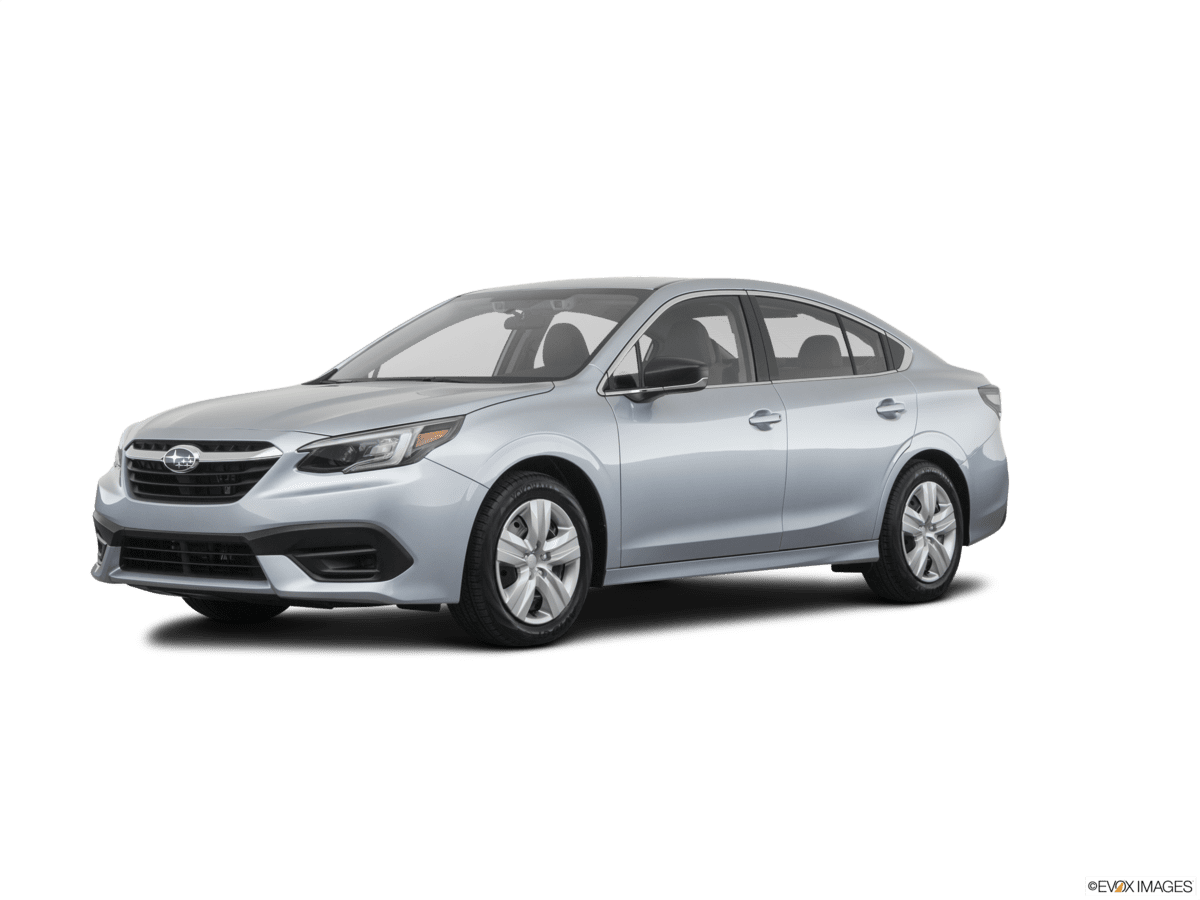

|APPLICABILITY:||2020MY Legacy and Outback|
|SUBJECT:||DTCs B118B, B11E5, B11E6 in Driver Monitoring System (DMS)|
This bulletin announces availability of DMS reprogramming files to address the following DTCs: B118B, B11E5, B11E6 when they appear in memory all at the same time as a group. A workflow to follow for proper diagnosis is also supplied in the Service Procedure section below.
PRODUCTION CHANGE INFORMATION:
This new DMS logic was incorporated into production vehicles starting with the following VINs:
PACK FILE APPLICABILITY:
|Model||PAK File Name||Old BIU Part Number||Decryption Keyword|
|2020MY Legacy and Outback Models with Driver Focus System||98401AN00AtoB-1.pak2||98401AN00A||B80240B9|
NOTE: BOTH Pack files listed in the table above above MUST be installed to complete this software update.
SERVICE PROCEDURE / INFORMATION:
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
Step1) Using the SSM4, check for any stored DTCs.
Step2) Diagnose any stored DTCs OTHER THAN B118B, B11E5, B11E6 stored in DMS system.
Step3) Turn the Ignition OFF then back ON again.
Step4) Recheck again for any stored DTCs.
CHECK #1: Are DTCs B118B, B11E5, B11E6 stored together in DMS system?
- YES: Check for any memorized (past) DTCs.
- NO: Diagnose any other stored DTCs per the applicable Service Manual.
CHECK #2: Is either B11E7 or B11E8 stored in memory?
- YES: Diagnose per the applicable Service Manual.
- NO: Proceed to Step 5 below.
Step5) Before installation of the first reprogramming file can be accomplished, the DMS / CAN system must be “put to sleep” using the following procedure:
- Switch the Ignition OFF
- Close all windows, doors and rear gate
- Wait approximately 2 minutes
- When the red LED in the small DMS window located above the CP-1 multi-function touch screen display goes out, the DMS is “asleep”.
NOTE: For push-button start vehicles, the keyless access remote must be at least 7 feet away for the system to go to sleep.
IMPORTANT: This DMS requires installation of 2 reprogramming files as shown above. Each file will take about 15 minutes to install. BOTH update files MUST be installed. If this update has been performed previously, a “Latest version already installed” message will be displayed when beginning installation of the first file. Due to the system structure, the FlashWrite reprogramming procedure must be performed twice (once for each file) to complete the update.
Midtronics DCA-8000 Dynamic Diagnostic Charging System or the Subaru Midtronics GR8-100 Diagnostic Battery Charger to the vehicle and utilizing the Power Supply Mode feature to supply a stable 13.5 volts anytime a vehicle control module is being reprogrammed.
Once the Midtronics charger is connected to the vehicle, if the battery is fully charged, it takes less than three (3) minutes to boot-up the charger, select the Power Supply Mode, and have the battery voltage stabilized and ready for reprogramming.
For instructions on using the power supply mode, reference the applicable User Manual for the Midtronics DCA-8000 Dynamic Diagnostic Charging System and the Midtronics GR8-1100 Diagnostic Battery Charger on STIS.
Confirm all electrical loads such as lights, audio, HVAC, seat heaters, and rear defroster are all switched OFF before setting up the charger for Power Supply Mode.
Select the correct battery type (Flooded, EFB, Gel, AGM or AGM Spiral).
If using a DCA-8000 Dynamic Diagnostic Charging System, set the power supply voltage to 13.5 volts.
DO NOT connect the DST-i or SDI until the Power Supply mode function has completed its battery test mode and the Charging Voltage has dropped to and shows a steady 13.5 Volts on the display.
Once Power Supply Mode reaches a steady 13.5 volts, connect the DST-i or SDI to the OBD connector and proceed with initiating the normal FlashWrite reprogramming process.
Amperage will fluctuate based upon the vehicle’s demand for power. NOTE: If the voltage rises beyond 14V while programming is in process, the procedure will abort. This can indicate a need to test or charge the vehicle battery before any further attempt at programming is made.
This information is applicable to the Subaru Midtronics DCA-8000 Dynamic Diagnostic Charging System and the Subaru Midtronics GR8-1100 Diagnostic Battery Charger ONLY. It does not apply to any other brand / type of “generic” battery charger whatsoever. ONLY the DCA-8000 and the GR8-1100 and their Power Supply Mode feature have been tested and approved by SOA.
REMINDER: If the DCA-8000 or GR8-1100 indicates the vehicle’s battery must be charged, charge it fully using the DCA-8000 or GR8-1100 before proceeding to reprogram the vehicle using the Power Supply Mode.
NOTE: Control module failures resulting from battery discharge during reprogramming are not a matter for warranty. Should any DTCs reset after the reprogramming update is performed, diagnose per the procedure outlined in the applicable Service Manual.
Step6) Proceed with reprogramming. Install the FIRST of TWO DMS update files:
98401AN00AtoB-1.pak2 using FlashWrite.
NOTE: If during the reprogramming, the screen shown here is displayed ignore it and select OK. If no error screen is displayed, select OK.
Step7) After the FIRST file installation is successfully completed, switch the Ignition back on and repeat the FlashWrite procedure to install the SECOND file: 98401AN00AtoB-2.pak2.
Step8) After successful installation of BOTH update files, switch the Ignition back ON and using the SSM4, check for any stored DTCs.
CHECK: Are any of DTC B118B, B11E5, B11E6 stored?
- YES: Diagnose any stored DTC per the applicable Service Manual.
- NO: Proceed to Step 9.
Step9) Repeat Step 5 above and put the CAN / DMS system back to sleep.
Step10) Using the SSM4, confirm the DMS Part Number to confirm the update was successful. Go to: Diagnosis > Confirm VIN > Each System > Driver Monitor (scroll down) > Work Support > ECU Parts Number.
When the update has been completed successfully, the ECU p.n. displayed will be 98401AA00B. Select OK to complete the procedure.
WARRANTY / CLAIM INFORMATION:
For vehicles within the Basic New Car Limited Warranty period or covered by an active Subaru Added Security Gold plan, this repair may be submitted using the following claim information:
|Labor Description||Labor Operation #||Labor Time||Fail Code|
|DRIVER MONITORING SYSTEM CONTROL MODULE REPROGRAMMING||A067-458||0.8||ZTC-48|
- SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
- Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
- Always refer to STIS for the latest service information before performing any repairs.
What J2534 reprogramming capabilities are available?
(4a) J2534 Reprogramming
Subaru reprogramming files using a generic (non-OEM) SAEJ2534 pass-thru vehicle programming device are available by contacting Service Technical Information Company toll free at 1-866-428-2278. The cost for the CD-ROM with all reprogramming files is $75.00 plus S/H and applicable state tax. Files will be updated four (4) times per year, in CD-ROM format, with all available reprogramming service information at the same above offered cost. Authorized Subaru Dealers are provided the same reprogramming information.
Before purchasing, the reprogramming details can be found in the following Reprogramming J-2534 Files chart. Click the link to view the PDF chart.
Subaru J2534 Reprogramming software meets the latest available J2534-1 specification. Our Reprogramming J2534 Files chart does not specify the Calibration Identification Number (CID); however, this information is included in our offered CD-Rom.
Note: The ECM or TCM being reprogrammed may already contain some or all of the reprogramming files listed in the Reprogramming J2534 Files chart shown by release date. It is possible to damage the vehicles ECM/TCMduring the reprogramming event. Once the reprogramming process has started, it is recommended not to interrupt the process until the event is completed. If you experience any problems, please contact your scan tool maker for further instructions.
No. Subaru has no reprogramming capability for model years 1996-1998. Starting with our 1999 model year, please see our Reprogramming Pre-J2534 Files chart for affected model reprogramming information.
