Accessory Installation Guide
STI Pedal Pad Set (CVT)
APPLICABILITY: | C8110FG001 |
Installation Instructions
STI Pedal pad set (AT) installation/instruction manual
CAUTION
1. Be sure vehicle is parked in gear with the parking brake on.
2. Be sure tighten fasteners including bolts and nuts to the specified torque.
3. This part is used an adhesion bond called “Thread lock”.
When you fix the nut to the bolt, it will completely harden in 30 minutes.
It is one time use only. If you temporarily f ix the bolt, please fully tighten it within 5 minutes.
Installation procedures
Installation of accelerator pedal
( 1 ) Clean the OE accelerator pedal.
( 2) Fit accelerator embossed pedal into accelerator pedal pad.
( 3) Set accelerator bracket on the upper side of the OE accelerator pedal by covering it from the back.
(4) Set accelerator pedal pad on the OE accelerator pedal from the bottom.
( 5) Temporarily tighten G)accelerator pedal pad and @accelerator bracket with ®flat-head screw M4 x 10 and @)flat-head screw M4 x 6. * For L.H.D. vehicle, temporarily tighten it on the left side position.
(6) Insert (Z)cap screw M3 x 42 to the prepared hole of the bolt on the side of G)accelerator pedal pad from the left side to the right side, then attach @cap nut. After checking the right and left positions (L.H.D. vehicle – the left position)of the accelerator pedal pad, tighten the cap screw until it reaches the bottom of the cap nut.
CAUTION
Make sure to insert the screw from the left side to the right side.
For L. H. D. vehicle, the pedal pad may interfere to vehicle floor parts if it is not on the left side position.
Tightening torque of a cap screw
1. 5 + 0. 5 Nm
(1. 1 + 0. 37 lb-ft)
(7) Fully tighten ®flat-head screw M4 x 10 and @)flat-head screw M4 x 6 which are temporarily tightened in (5) .
Installation of brake pedal
( 1 ) Remove the rubber cover of the OE brake pedal by peeling the upper side.
( 2) Fit brake embossed pedal (AT) into brake pedal pad (AT) .
( 3 ) Clean the OE pedal.
( 4) Insert the LI-shaped groove on the underside of brake pedal pad (AT) to the genuine brake pedal from the bottom.
Insert the U-shaped groove first.
( 5) Set brake bracket (AT) on the upper back of the OE brake pedal , and temporarily tighten with flat-head screw M4 x 16 and nut M4.
( 6) Adjust the right and I eft positions of the OE pedal and pedal pad to be even by using a mirror. Then, fully tighten the bolt and nut.
Tightening torque
2. 16 + 0.5 Nm
(1. 59 + 0. 37 lb-ft)
IMPREZA-3B-2008
C8110FG001
Loading...
Reload document
Open in new tab
| “This site contains affiliate links for which OEMDTC may be compensated” |
- Subaru

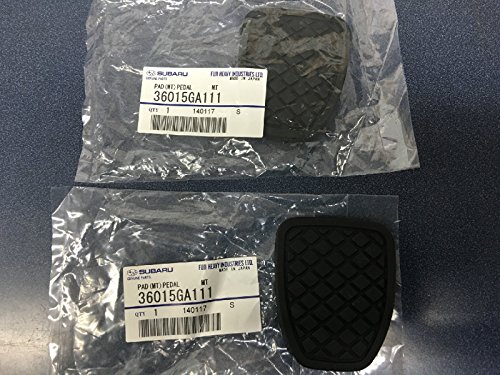

Genuine Part Number: 36015GA111 x1 - Fits all manual 5 or 6 speed back to 1973
