Accessory Installation Guide
2019-21MY Forester Body Side Molding | J101SSJ201 |
INSTALLATION INSTRUCTIONS
PART NUMBER: J101SSJ201
DESCRIPTION: FORESTER Body Side Molding
PRE-INSTALLATION NOTES
NOTE:
VEHICLE AND ALL INSTALLATION MATERIAL TEMPERATURES MUST BE 60°F (16°C) TO 86°F (31 °C) BEFORE AND DURING INSTALLATION PROCESS.
NOTE:
IF INSTALLING BODY SIDE MOLDING ALONG WITH DOOR EDGE GUARDS, THE BODY SIDE MOLDING MUST BE INSTALLED FIRST TO ALLOW PROPER ALIGNMENT OF THE INSTALLATION TEMPLATE.
TOOLS REQUIRED:
Wash Supplies
Rubber Roller
Surface Preparation
1
Make sure that all shaded installation surfaces (shown below) are washed and free of LJ dirt, grease, and debris. Next use the alcohol wipes included in the kit and then dry.
Inspect vehicle for damage before installation of body side molding. Before beginning, vehicle and body side molding must be at room temperature. If the temperature is below 60F (21 C) or above 110F (43 C). Let vehicle sit indoors until the doors and body side molding are at room temperature.
Body Side Molding Installation
2
Position the front and rear body side moulding location templates together using locking profile as shown. Make sure templates are aligned then tape together at locking profile as shown.
3
Position the assembled template and align the front upper corner to the bottom edge of the mirror and tape cut out hole, then align middle and back cut outs to bottom highlight / radius on door around the door handles (not directly against the handles). Make sure that bottom and top cut outs match to door gap then tape all cut outs.(18)
4
Remove blue film tape at shaped pieces first then remove tape liners from backside of body side mouldings, using tabs start with horizontal pieces first then shaped pieces, DO NOT TOUCH EXPOSED TAPE.
NOTE: DO NOT LET ANYTHING CONTAMINATE TAPE BEFORE MOUNTING.
5
Place rear then front body side moulding into locations as shown and tack down along entire lengths of tape. Remove templates and reverse for other side of vehicle.
6
Using a rubber roller, apply firm, even pressure across the body side mouldings to adhere all pieces of tape to vehicle. Repeat procedure for the passenger side.
7
Installation is complete for driver side of vehicle.
8
Repeat steps 1 through 7 on passengers side of vehicle, using other side of paper template.
ISSUE:
REV-2
DATE:
1-15-21
https://static.oemdtc.com/AccessoryInstallationGuide/J101SSJ201.pdf
https://static.oemdtc.com/AccessoryInstallationGuide/J101SSJ201FR.pdf
- Lifetime warranty
- Made in the USA
- 100% paint match guarantee
- Quick and easy no-drill installation with the use of self-adhering 3M Tape
- Added protection against shopping carts, door dings, scratches, chipping, and other road hazards
- Lifetime warranty
- Made in the USA
- 100% paint match guarantee
- Quick and easy no-drill installation with the use of self-adhering 3M Tape
- Added protection against shopping carts, door dings, scratches, chipping, and other road hazards
- Lifetime warranty
- Made in the USA
- 100% paint match guarantee
- Quick and easy no-drill installation with the use of self-adhering 3M Tape
- Added protection against shopping carts, door dings, scratches, chipping, and other road hazards
- Lifetime warranty
- 100% paint match guarantee
- Quick and easy no-drill installation with the use of self-adhering 3M Tape
- Painted Body Side Molding with a stylish chrome insert
- Lifetime warranty
- Made in the USA
- 100% paint match guarantee
- Quick and easy no-drill installation with the use of self-adhering 3M Tape
- Added protection against shopping carts, door dings, scratches, chipping, and other road hazards

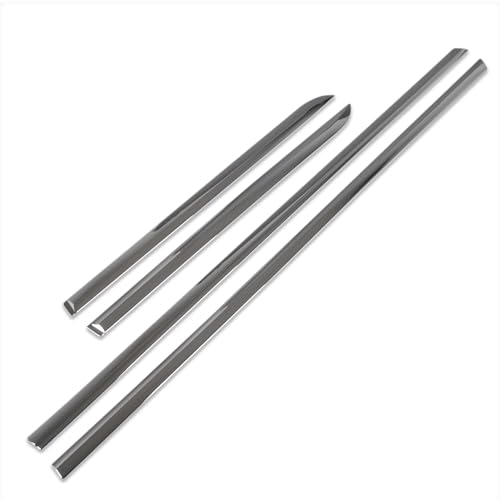

- [ Quality Material ] --- This body side molding cover trim provides stylish accents to your vehicle's exterior. Made of high quality ABS plastic. The majority of automotive add-ons are manufactured from ABS plastic since it is well known for its strength, high durability and resistance.
