NHTSA ID Number: 10237271
Manufacturer Communication Number: 03-78-17
Summary
This bulletin announces a design change to the clutch release bearing.
NUMBER: 03-78-17R
DATE: 01/03/17
REVISED: 05/11/23
APPLICABILITY: | 2015-2017MY WRX 2.0L DIT Models |
SUBJECT: | Clutch Release Bearing- Design Change |
INTRODUCTION:
This bulletin announces a change to the clutch system components optimizing their durability and resistance to certain severe driving conditions including high-temperature operation.
PRODUCTION CHANGE INFORMATION:
The new clutch components were incorporated into production during mid-2018MY production starting with VIN J*806877.
PART INFORMATION:
The new clutch system components consist of the following:
Part Number / Description | Details / Notes |
12342AA170 FLYWHEEL AY-FLEX ASSEMBLY |
|
30210AA800 COVER COMPLETE-CLUTCH |
SERVICE PROCEDURE / INFORMATION:
When replacing the clutch release bearing, follow the procedure in the applicable Service Manual.
IMPORTANT NOTES:
(for Anytime the Clutch Assembly and/or Release Bearing are serviced or replaced)
- Always inspect for any excessive or abnormal wear on the release fork pivot point, operating cylinder rod and release lever pivot points, and the pivot ball.
- Always use the proper grease (Nichimoly N-130, Conoco-Philips Multiplex Red #2 or Subaru p.n. 000041000) when lubricating the contact points of the release bearing and related components as specified in the Service Manual and shown below.
3 Affected Products
Vehicle
MAKE | MODEL | YEAR |
SUBARU | WRX | 2015-2017 |
1 Associated Document
Manufacturer Communications
NUMBER: 03-78-17
DATE: 01/03/17
REVISED: 05/11/23
https://www.nhtsa.gov/recalls?nhtsaId=10237271
MC-10237271-0001.pdf 348.022KB
NHTSA ID Number: 10186366
Manufacturer Communication Number: 03-78-17R
Summary
This bulletin announces a design change to the clutch release bearing.
1 Associated Document
Manufacturer Communications
NUMBER: 03-78-17R
DATE: 01/03/17
REVISED: 01/12/21
https://www.nhtsa.gov/recalls?nhtsaId=10186366
MC-10186366-0001.pdf 570.927KB
“This site contains affiliate links for which OEMDTC may be compensated” |
- !!!--Please Note--!!!: Only Fit for Brwon Torque Converter Solenoid 12.2-13.2Ω (Brwon 12.2-13.2Ω)!!!
- Torque Converter Clutch Solenoid Replacement Number: TR580 TR690 31825AA050 31825AA051 31825AA052 31706AA030, 31706AA030, 31706AA031, 31706AA032, 31706AA033.
- Fit Car Model: For Subaru Crosstrek Forester Legacy Outback Impreza with CVT TR580 TR690 Transmission.
- Package Included: 1 x AWD Solenoid as pictures Brown 12.2-13.2Ω
- Notice: Please check the part number before purchasing to ensure fitment. Any question, please feel free to cantact us at any time.

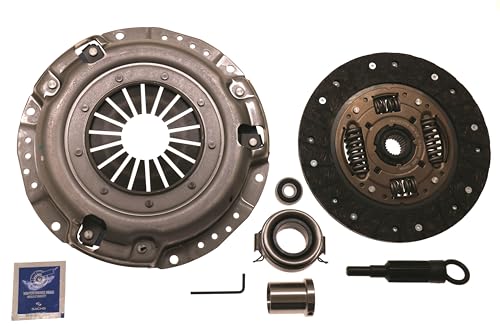

- SACHS OE Quality Clutch Kit Application Matched for OE Form, Fit, and Function
