Gear Oil Leaking from Rear Differential Cover
NUMBER: 03-74-14
DATE: 08/18/14
| APPLICABILITY: | 2015 WRX STI |
|---|---|
| SUBJECT: | Gear Oil Leaking from Rear Differential Cover |
INTRODUCTION
This bulletin provides a repair procedure to address a customer concern of a gear oil leak from the rear differential cover area. As with any diagnosis, begin by confirming the source of the leak. This will involve thoroughly cleaning the contaminated surfaces of all residual gear oil and the application of a suitable leak tracing developer such as Castle Leak Tracer Powder or similar. If the source of the leak is confirmed as the breather vent assembly which is pressed into the aluminum rear differential cover, both the cover and the breather vent will require replacement. In some cases, you may find the breather vent is visibly not fully or evenly seated while in others, it may appear flush. Proper seating of the breather vent is not the criteria for replacement of the vent and cover. Rely on the results of your leak tracing to determine what repair is required. While this bulletin addresses a specific possible leak source, if your diagnosis leads to a different source, repair that condition by following the applicable Service Manual information.
COUNTERMEASURE IN PRODUCTION
A change to the breather vent installation procedure was made in production July 21, 2014 starting with VIN F9812950.
PART INFORMATION
The following list of parts will be required to perform the rear differential cover replacement:
| PART NAME | PART NUMBER | QUANTITY REQUIRED | NOTES |
|---|---|---|---|
| Cap, Breather | 38354AA020 | 1 | n/a |
| Cover, Differential Carrier | 38316AA061 | 1 | |
| Gasket, Differential Carrier | 38353AA050  | 1 | |
| Gasket, Drain Plug | 803920050 | 2 | 1 for Drain Plug, 1 for Temperature Sensor |

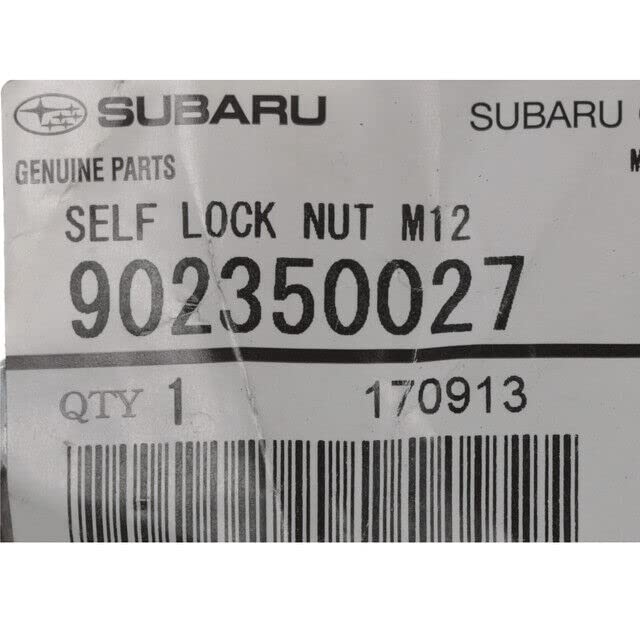

| Self-Locking Nuts | 902350027 | 4 | These are all one-time use hardware items which require replacement when removing the rear differential assembly. |
| Exhaust Gasket | 44022AA123 | 1 | |
| Self-Locking Nuts | 802008270 | 2 | |
| Gear Oil | SOA427V1800 | 1 | Case of 12, 1-quart bottles. (See more information at the end of this procedure.) |
SERVICE PROCEDURE / INFORMATION
The repair for this condition involves replacement of the rear differential cover and gasket along with the installation of a new breather vent assembly.
- Remove the rear differential assembly from the vehicle following the procedures outlined in the applicable Service Manual.
- To make it easier, CAREFULLY remove the 2 mounting studs from the original cover BEFORE removing the cover, as they will need to be changed over to the replacement.
- Drain the gear oil then remove the original cover and thoroughly clean and inspect the gasket sealing surface differential case for any irregularities.
- Fit the new gasket to the cover as shown. Reinstall the 8 cover mounting bolts and torque to 44 Nm (32.5 ft. lbs). NOTE: The new gasket goes on “dry” with NO SEALER.
- Clean and transfer the drain plug into the new cover and install a new sealing gasket. Torque the drain plug to 60 Nm (44.3 ft. lbs.).
- Reinstall the 2 differential assembly mounting studs into the new cover until they bottom out. DO NOT OVERTIGHTEN.
VERY IMPORTANT: When installing the new breather vent assembly into the rear cover, DO NOT tap on portion “A” shown in the illustration below. The square drive end of a 12mm ½-inch drive deep-well impact socket fits over and past portion “A” down onto the “flange” portion “B” and makes an excellent installation tool / driver.
NOTE: The new breather vent assembly is also installed “dry” with NO SEALER. CAREFULLY tap the new breather vent into the cover while keeping the impact socket (installation tool) square and perpendicular as shown in the photos below. The tapping sound will change when the flange portion of the breather vent bottoms out and is fully seated (no gap) against the rear cover.
- The rear differential assembly is now ready for reinstallation into the vehicle in the opposite order of removal. REMINDER: The 6 self-locking nuts are one-time use and must be replaced.
- After installation, fill the rear differential assembly with the required Genuine Subaru 80W90 LSD Gear Oil. The part number to use for ordering purposes is: SOA427V1800 (which is a case of 12, 1- quart bottles). Two (2) 1 quart bottles may be claimed when performing this repair procedure. (Actual fill amount is 1.1 quarts.) *Use part number SOA635302 when claiming these 2 quarts of LSD Gear Oil.
- Install the gear oil temperature sensor with a new sealing gasket and torque to 60 Nm (44.3 ft. lbs.).
