NHTSA ID Number: 10187308
Manufacturer Communication Number: 07-112-16R
Summary
This bulletin provides a procedure for diagnosis and repair of DTC P0300 which may result from fluctuation of the alternator’s current output outside of the specified limits.
NUMBER: 07-112-16R
DATE: 08/12/16
REVISED: 08/08/17
| APPLICABILITY: | 2014-16MY Forester 2.5L Models |
|---|---|
| SUBJECT: | New Alternator Assembly to Address DTC P0300 |
INTRODUCTION:
This bulletin provides a procedure for diagnosis and repair of DTC P0300 which may result from fluctuation of the alternator’s current output outside of the specified limits.
PRODUCTION CHAGE INFORMATION
The new alternator and tensioner were incorporated into production starting with VIN: G*544643.
PART INFORMATION:
| Description | Part Number |
|---|---|
| ALTERNATOR ASSEMBLY | 23700AB030 |

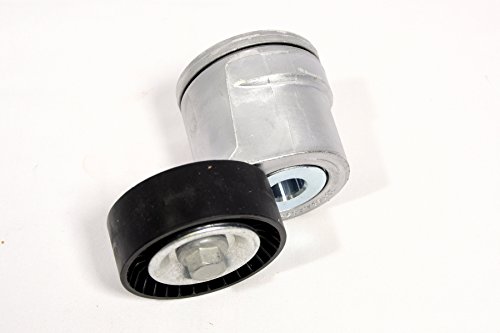

| TENSR AY-VBELT | 23769AA05A  |
IDENTIFICATION:
SERVICE PROCEDURE / INFORMATION:
- Connect the SSM4 and inspect for stored DTC(s).
- If any DTC(s) other than P0300 are stored, follow the corresponding diagnostic procedure(s) in the applicable Service Manual before proceeding further with these repairs.
- Select the data for Roughness Monitor and Battery Current values.
- Check for any increase in the Roughness Monitor value along with the Battery Current value. If a fluctuation of more than +/- 3A is confirmed, both the alternator assembly and belt tensioner assembly must be replaced as a set with the new parts listed in the table above.
The reference illustrations below show examples of “Normal” and “Abnormal” SSM4 data.
The abnormalities shown above for the Roughness Monitor and Battery Current Value are a result of resonance originating in the alternator pulley assembly. Although a DTC P0300 can also be set, there is not an actual misfire of the engine.
- When determined necessary to replace the alternator and tensioner, follow the service procedures in the applicable Service Manual.
NOTES:
- The retaining bolt cover / plug has been deleted from the new tensioner, discard the original.
- Accessory drive belt replacement is NOT required as part of this repair.
3 Affected Products
Vehicle
| MAKE | MODEL | YEAR |
| SUBARU | FORESTER | 2014-2016 |
1 Associated Document
Manufacturer Communications
NUMBER: 07-112-16R
DATE: 08/12/16
REVISED: 08/08/17
https://www.nhtsa.gov/recalls?nhtsaId=10187308
MC-10187308-0001.pdf 423.629KB
MC-10187308-0001
