NHTSA ID Number: 10234913
Manufacturer Communication Number: 0215114R
Summary
Revised Valve Train Parts to Reduce a Warm Engine Tapping Sound from the Left Cylinder Head
NUMBER: 02-151-14
DATE: 04/22/14
REVISED: 09/23/14
APPLICABILITY: | 2013MY BRZ |
SUBJECT: | Revised Valve Train Parts to Reduce a Warm Engine Tapping Sound from the Left Cylinder Head |
INTRODUCTION
This bulletin announces the availability of revised valve train components developed to reduce a tapping sound (sometimes described as “a sewing machine type” sound) which may be heard coming from the left-hand (B2) side of the engine when the engine is warm. This bulletin does not address any cold engine or start-up sounds. The changes consist of:
- Design change to the valve rockers
- Camshaft profile change
- 65mm longer intake and 2.47mm longer exhaust valve stem lengths
PART INFORMATION

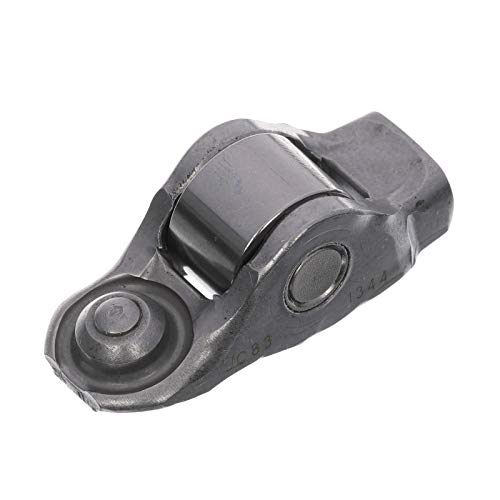

PART NAME | NEW | OLD | |
INTAKE VALVE | Part Number | 13201AA660 | 13201AA600 |
Change | Stem Length: | Stem Length: | |
104.95mm | 103.3mm | ||
Identification | I3H | I2H | |
EXHAUST VALVE | Part Number | 13202AA790 | 13202AA710 |
Change | Stem Length: | Stem Length: | |
97.57mm | 95.1mm | ||
Identification | E3H | E2H | |
VALVE ROCKER | Part Number | 13249AA250 | 13249AA240 |
Change | Change to Roller Portion | n/a | |
Identification | Circular groove added on pivot side | n/a | |
INTAKE CAMSHAFT, LEFT | Part Number | 13037AA980 | 13037AA830 |
Change | Cam Profile Change | n/a | |
Identification | 38B370 | 38B230 | |
PART NAME | NEW | OLD | |
EXHAUST CAMSHAFT, LEFT | Part Number | 13052AA980 | 13052AA830 |
Change | Cam Profile Change | n/a | |
Identification | 53B370 | 53B230 | |
PIVOT, ROCKER ARM | Part Number | 13296AA090 | 13296AA070 |
The illustrations below show additional information about the changes to the valve rockers, camshafts and valves to help readily distinguish them from the previous version parts.
SERVICE PROCEDURE / INFORMATION
If you receive a customer concern of a tapping sound from the B2 cylinder head, confirm it is isolated to the B2 valve train area before proceeding with any repairs. Once verified, order and replace the intake and exhaust camshafts, the 4 intake valves, 4 exhaust valves, all 8 rockers and all 8 pivots. Refer to the service procedures outlined in the applicable Service Manual for installation.
NOTE: When setting the valve clearances, the intakes should be set to 0.13mm +0.02 / – 0.03 and the exhausts set to 0.22mm +/- 0.02. These are revised clearance specifications and are not reflected in the Service Manual.
IMPORTANT: Do not mix old and new parts together as it will become impossible to obtain intake valve clearances that are within specification.
TIP: An egg carton makes a perfect organizer tray. Make sure to mark it as necessary (front, intake, exhaust) to eliminate any mixing of parts.
1 Affected Product
Vehicle
MAKE | MODEL | YEAR |
SUBARU | BRZ | 2013 |
1 Associated Document
Manufacturer Communications
NUMBER: 02-151-14R
DATE: 04/22/14
REVISED: 09/23/14
https://www.nhtsa.gov/recalls?nhtsaId=10234913
MC-10234913-9999.pdf 327.719KB
NHTSA ID Number: 10232502
Manufacturer Communication Number: 0215114R
Summary
Revised Valve Train Parts to Reduce a Warm Engine Tapping Sound from the Left Cylinder Head
1 Associated Document
Manufacturer Communications
NUMBER: 02-151-14R
DATE: 04/22/14
REVISED: 06/12/14
https://www.nhtsa.gov/recalls?nhtsaId=10232502
MC-10232502-9999.pdf 420.457KB
NHTSA ID Number: 10233440
Manufacturer Communication Number: 0215114
Summary
This bulletin announces the availability of revised valve train components developed to reduce a tapping sound (sometimes described as ?a sewing machine type? sound) which may be heard coming from the left-hand (B2) side of the engine when the engine is warm. This bulletin does not address any cold engine or start-up sounds.v
1 Associated Document
Manufacturer Communications
NUMBER: 02-151-14
DATE: 04/22/14
https://www.nhtsa.gov/recalls?nhtsaId=10233440
MC-10233440-9999.pdf 420.325KB
