NHTSA ID Number: 10233119
Manufacturer Communication Number: 0214013
Summary
Oil Filler Cap Gasket Coming Unseated
NUMBER: 02-140-13
DATE: 04/25/13
APPLICABILITY: | 2011MY and Later, All Models with FA or FB Engines |
SUBJECT: | Oil Filler Cap Gasket Coming Unseated |
INTRODUCTION
This Bulletin provides a procedure for reinstallation of the oil filler cap sealing ring in the event it comes unseated upon oil filler cap removal.
SERVICE PROCEDURE / INFORMATION
- When removing the oil filler cap, if the sealing gasket has come loose, inspect it and the receiving groove (see photo below, left) for any dirt or debris. If any is found, remove the sealing gasket completely and clean it along with the receiving groove in the filler cap thoroughly.
- Reinstall the sealing gasket into the oil filler cap receiving groove until fully seated with the squared edge up as shown in the photo below, right.
140 Affected Products
Vehicles
MAKE | MODEL | YEAR |
SUBARU | ASCENT | 2019-2023 |
SUBARU | B9 TRIBECA | 2011 |
SUBARU | BRZ | 2013-2023 |
SUBARU | CROSSTREK | 2012-2023 |
SUBARU | CROSSTREK HYBRID | 2016-2023 |
SUBARU | FORESTER | 2011-2023, 9999 |
SUBARU | GL | 9999 |
SUBARU | IMPREZA | 2011-2023, 9999 |
SUBARU | IMPREZA WRX | 2015 |
SUBARU | LEGACY | 2011-2023, 9999 |
SUBARU | LEVORG | 2022 |
SUBARU | OUTBACK | 2011-2023, 9999 |
SUBARU | SOLTERRA | 2023 |
SUBARU | SUBARU | 9999 |
SUBARU | SUBARU TRUCK | 9999 |
SUBARU | SVX | 9999 |
SUBARU | TRIBECA | 2011-2014 |
SUBARU | WRX | 2011-2023 |
SUBARU | WRX STI | 2011-2022 |
SUBARU | XV CROSSTREK | 2012-2017, 2022-2024 |
SUBARU | XV CROSSTREK HYBRID | 2014-2015 |
1 Associated Document
Manufacturer Communications
NUMBER: 02-140-13
DATE: 04/25/13
https://www.nhtsa.gov/recalls?nhtsaId=10233119
MC-10233119-9999.pdf 432.694KB
“This site contains affiliate links for which OEMDTC may be compensated” |

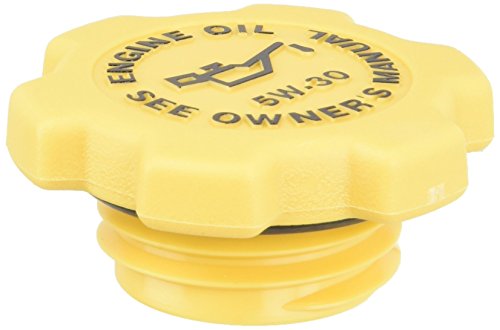

- OEM PART #:15255AA161
