Accessory Installation Guide
| 2025MY Forester – STI Under Spoiler – Front | E2410SL000 |
| 2025MY Forester – STI Under Spoiler – Front (Cherry Red) | E2410SL010 |
Installation Manual
Genuine part number : E2410SL000 STI FT SPOILER(Black)
E2410SL010 STI FT SPOILER(Cherry Red)
Applicable model : FORESTER(SL) TYPE A～
– This manual describes how to install and handle the STI FT SPOILER.
– Read this manual carefully before work and make sure to install it correctly.
Precautions
– Install the STI FT SPOILER by reading the Installation Manual carefully.
– Handle the STI FT SPOILER with care and do not let it fall.
– Do not install or use this product in any way other than described in this manual.
– We do not assume any responsibility for any trouble arising from failure to comply with the instructions in this manual.
– Double-sided tape is used to attach the STI FT SPOILER.
Attach it with care as once it is attached, it is extremely difficult to remove.
Before Work
– When installing this product, park the car on a level ground and apply the parking brake.
– When installing this product, be sure not to damage the car body.
– Before installing this product, wipe off any dirt or oil film from the Front bumper attachment surface with a soft waste cloth dampened in a neutral detergent. Then, let it dry completely before work.
– The adhesive strength is weakened significantly when the temperature is 15 or low.In this case, use a dryer to warm the double-sided tape before attachment.
(Do not warm up excessively as doing so may result in deformation.)
– Be extremely careful not to let this product get wet by washing, etc. for 24 hours after attaching it.
Dosing so may cause the product to come off.
– To protect yourself from burns, make sure to stop the engine and let it cool completely before work – When jacking up the vehicle, be sure to keep the ground level and a hard place where the jack does not bite, and be sure to support it with a rigid rack before carrying out the work.
– All pictures in this book are from the LH side. Do the same thing on the RH side.
Installation procedure
1. Drill holes in the Front Bumper
(1) Remove the vehicle clip on the bottom of the Front bumper (1 places on one side) as shown in Fig 1.
(1 places each for LH and RH, 2 places in total)
(2) Remove the vehicle clip that attaches the Bumper guard on the wheel arch side
(1 places on one side) as shown in Fig 1.
(1 places each for LH and RH, 2 places in total)
CAUTION
Do not reuse the removed vehicle clip.
Be sure to use the supplied clips.
(3) As shown in Fig 2, Pattern paper A to E on the bottom of the Front bumper, secure with masking tape, etc., and mark the center of the hole with a scriber, etc.
(4) Remove Pattern paper A to E and use a drill to drill holes in the center of the positions marked in (3).
Drill pilot holes in the order of 3mm, 6mm, and finally 9.5mm as shown in Fig 3.
(1 place in the center 6 places each for LH and RH 13 places in total)
CAUTION
To prevent the drill from interfering with other parts when drilling, make a stoppe r with cloth adhesive tape, etc., at a point about 5 mm from the tip of the drill before working.
CAUTION
After drilling, remove the burrs around the hole.
(1) Insert the Wellnut into the 9.5 mm hole.
(1 place in the center 6 places each for LH and RH 13 places in total)
CAUTION
If it is difficult to insert the wellnut, do not twist it too much and insert it carefully.
(2) Insert the J nut into the Front bumper as shown in Fig 5.
Align J nut hole with the Front bumper guard hole.
(1 places each for LH and RH, 2 places in total)
CAUTION
Insert the J nut into the Front bumper body inside the bumper guard as shown in the diagram on the left (cross-section of the J nut section).
(3) Clean, degreas, and dry the shaded area of the Front bumper with a degreasing agent.
CAUTION
If rainwater is attached, wipe it dry with a dry cloth.
Insufficient wiping and drying can cause the product to come off.
Advice
– Clean the front bumper before work.
– Work indoors at a temperature of 15C or higher.
– If the temperature is less than 15C , please use a hair dryer to warm the adhesive surface and double-sided tape.(Guideline: 25-40C )
– If air gets between the adhesive surface, the adhesive strength will weaken.
Make sure to crimp it thoroughly.
– Please avoid washing your car for 24 hours after pasting.
3. Installation of Front Spoiler
(1) Peel off about 30mm of the release paper from double-sided tape attached to the Front spoiler, fold it back to the surface, and then attach it to the product surface using masking tape, etc., as shown in Fig 7.
CAUTION
Do not remove the release paper more than necessary.
The double-sided tape clings to the peripheral parts, which makes it difficult to position them.
(2) As shown in Fig 8, align the Front spoiler to the Front bumper and secure the rear end of the vehicle with the Washer and Clip.
(1 places each for LH and RH, 2 places in total)
(3) As shown in Fig 9, align the shaded part ( mark) of the Front spoiler with the shape of the Front bumper, and temporarily tighten Bolt.
(1 place in the center 6 places each for LH and RH 13 places in total)
(4) As shown in Fig 10, temporarily tighten the wheel arch with the tapping Tapping screw.
(1 places each for LH and RH, 2 places in total)
Advice
If you do not have a Low head Phillips screwdriver, steer the front tire when working
(5) As shown in Fig 11, press the double-sided tape while slowly pulling out the release paper in the direction of the arrow so as not to tear it in the middle.
When pulling out the release paper, be careful not to get Front spoiler molding caught between it and the Front bumper.
CAUTION
If it is difficult to remove the release paper, slowly pull it out with needle-nose pliers.ully.
(6) Press the adhesive part of the double-sided tape with enough force to shake the car.
(50N or more)
How to correct when the mall is involved
Hook your finger on the winding part and put it back
If the molding gets involved, please fix it while paying attention to the damage to the bumper and peeling of the double-sided tape.
If you fix it by hooking your finger on the winding part, it will return to the normal position.
(7) Fully tighten Bolt that were temporarily tightened in step (3).
Tightening torque: 1.0N m (0.1kgf m)
(1 place in the center 6 places each for LH and RH 13 places in total)
CAUTION
Reference tightening torque 1.0NM ( 0.1kgf )
Please be careful not to overtorque.
Doing so may cause Wellnut to break or fall off.
(8) Fully tighten Tapping screw that was temporarily tightened in step (4).
Reference tightening torque: 2.0N m (0.2kgf m)
Advice
If you do not have a Low head Phillips screwdriver, steer the front tire when working.
(9) Check the mounting part for lifting or tilting, check that there are no missing clips or bolts, or forget to tighten them, and finally check that there are no scratches or dirt.
This is the end of the work.
E2410SL000
https://techinfo.subaru.com/stis/doc/accInstallGuide/Installation%20Manual_E2410SL000_010%20(2).pdf
Loading...
Reload document
Open in new tab

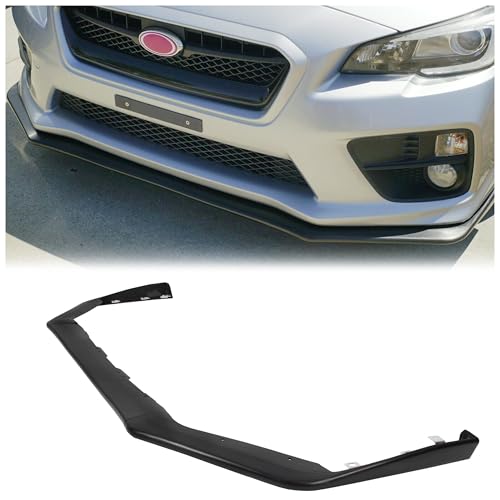

- 👍👍【Fit For】fits for Subaru WRX STi Sedan 2015 2016～2018 2019 2020 (Please check whether this item can fit on your car before purchasing)
- 👍👍【 High Quality】Made of high quality ABS material .100% brand new and high quality guaranteed . ISO 9001 certification to ensure quality.
- 👍👍【Advantage】Provide an elegant and personalized appearance, Front bumper guard anti-collision protective, protect from scrapes from driveways, speed bumps and curbs.
- 👍👍【Easy Installation】Installation can be easily done, no modification required. Note : Package does not come with instructions. Professional installation is always recommended.
- 👍👍【Intimate Customer Service】If you have any quality problems, please don't hesitate to contact us with e-mail.It is our pleasure to solve any problems for you .

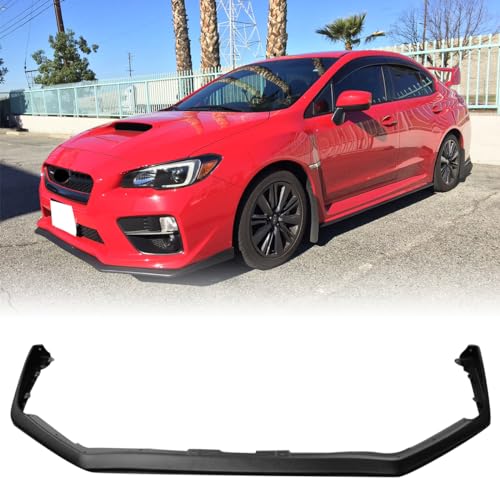

- FITMENT - Front Bumper Lip Compatible with 2015-2021 Subaru Impreza WRX & STI (All Models/Trims). Please confirm product description and compatibility chart before purchasing.
- SUPERIOR PERFORMANCE - The front bumper lip reduces airflow under the vehicle, protects the front bumper from damage in the event of a collision, and improves the aesthetics of the body by making the underside of your vehicle appear lower from the ground.
- MATERIAL SELECTION - The Front Bumper Lip is made of high quality auto grade injection molded plastic, which means it has better wear resistance, reflectivity, aging resistance, and aesthetics. To the maximum extent, ensure strength and durability for long lasting usage.
- SEGMENTED DESIGN - On the basis of ensuring product quality and high quality, we adopt a three-section split design for easy installation. With a black unpainted exterior, you can enjoy DIY by painting it to match your car.
- INSTALLATION TIPS - Instruction is not included. You will receive a three-piece front bumper lip and screws. No additional modification or cutting required, can be directly installed and used.

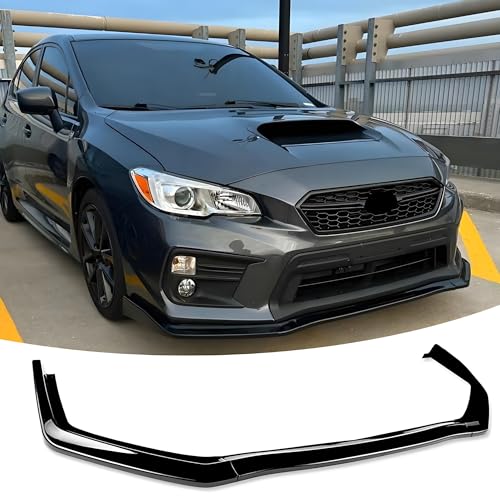

- Fit ALL 2015-2021 Subaru WRX & STi Models
- 100 % Brand New Condition, A Brand-New, Unused, Unopened, Undamaged Item in its Original Packaging (Where Packaging is Applicable).
- Package Included With 1 X Subaru WRX STi V-Limited Front Lower Lip Splitter & 1 X Bag of Hardware
- Material: Constructed from High-Quality ABS Plastic, Known for Its Durability, Lightweight Nature, and Impact Resistance
- Surface Finish: Finished with a Sleek and Matte Black Surface, Adding a Touch of Sportiness and Style to the Vehicle's Front End
- Compatible With 2015-2017 Subaru WRX & STI
- Style: V-Limited Style | Material: High Quality Polypropylene (PP) | Color: Unpainted Raw Material Black
- Package includes: 1x Front Bumper Lip
- Bolt-on Installation, Instructions NOT included, Professional Installation is Highly Recommended.
- 30 Days Limited Warranty

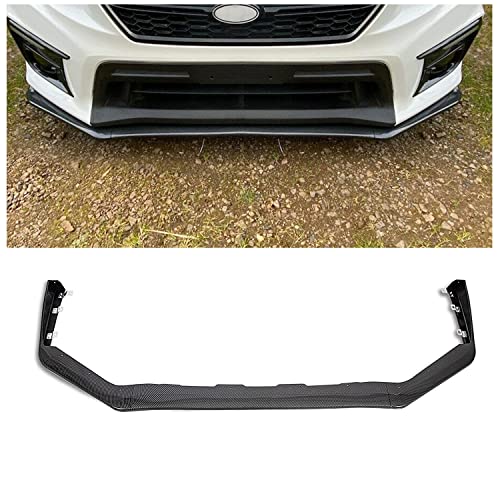

- FRONT LIP FITMENT - Compatible with 2015-2021 Subaru Impreza WRX & STI (All Models/Trims).
- REAR LIP FITMENT - Compatible with 2015-2021 Subaru WRX & STI (All Models/Trims).
- HEAVY DUTY - Made of high quality auto grade injection molded plastic, which means it has better wear resistance, reflectivity, aging resistance, and aesthetics. To the maximum extent, ensure strength and durability for long lasting usage.
- FEATURE - Dramatically improve the sporty appearance for your vehicle. Matt black unpainted plastic finish. Sanding, prepping, and primer needed before paint.
- PACKAGE - You will receive 2 Packages (3 Pcs Front & 2 Pcs Rear Bumper Lips with Hardware). Easy installation with basic hand-tools. Self-tapping screws only if applicable. Some lips re-uses the factory hardware or only double-sided tape. Professional installations are always recommended.
- [Model] - Compatible with Subaru BRZ Impreza WRX STI (Please measure and check the position you are going to install the spoiler, and make sure these splitters will fit your vehicle before purchase.)
- [Material] - Made of updated durable and sturdy ABS material, no deformation in long-term use.Exquisite Paint through strict quality control standards to build and test.
- [Design] - Special Grid Design on the back of the front spoiler, physically strong firm and durable, anti-collision and scratch-resistant.
- [Features] - Elegant surface and exquisite workmanship, perfectly decorate your dear car, always shows your charming and highlight your dear car. Enjoy the super cool and exquisite appearance of your car after installing.
- [Spoiler Tyle] - COMPLETE ONE PIECE type front lip splitter with SPECIAL GRID DESIGN on the back , which is much firmer and more stable than those divided into 2 pieces in the middle of the splitter.
- Improve the visual effects and create a new iconic racing appearance. You can find your car at a glance from similar models. The low-profile wraparound design provides a stylish aerodynamic appearance, minimizes wind resistance and improves fuel economy.
- Fitments - Compatible with 2015 2016 2017 2018 2019 2020 2021 Subaru Impreza WRX and STI (all models/interior). Replace directly.
- Features - High quality. Colour: Black. High quality auto grade injection molded plastic. Our products are sturdy and durable, which can effectively protect your car and reduce damage in the event of a collision. It can effectively prevent destructive marks such as scratches and bumps, and protect your previous front bumper lip.
- Package Included - 1x Carbon Fiber Style front bumper lip spoiler. (Including installation hardware-as shown in the picture).
- Easy Installation - Direct bolt-on installation, easy snap-in installation.
- Fit for 2004-2005 SUBARU IMPREZA ALL MODELS EXCEPT WRX STI
- Style: STI STYLE FRONT LIP | Material: High Quality polypropylene (PP) | Color: Unpainted Raw Material Black
- Package includes: 1x Front Bumper Lip
- Bolt-on Installation, Instructions NOT included, Professional Installation is Highly Recommended.
- 30 Days Limited Warranty
Last update on 2024-06-18 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.

SEOCONTENT-START
Front bumper
STI FT SPOILER
– Install the STI FT SPOILER by reading the Installation Manual carefully.
– Handle the STI FT SPOILER with care and do not let it fall.
– Do not install or use this product in any way other than described in this manual.
– We do not assume any responsibility for any trouble arising from failure to comply with the
instructions in this manual.
– Double-sided tape is used to attach the STI FT SPOILER.
Attach it with care as once it is attached, it is extremely difficult to remove.
-1-
STI FT SPOILER
Installation Manual
△00
– This manual describes how to install and handle the STI FT SPOILER.
– Read this manual carefully before work and make sure to install it correctly.
！ △ Precautions
Installation Completion Illustration
Genuine part number : E2410SL000 STI FT SPOILER(Black)
E2410SL010 STI FT SPOILER(Cherry Red)
Applicable model : FORESTER(SL) TYPE A～
Components
Tools
Before Work
No. Part Name Qty
Front Spoiler
2
– Make sure to check the components below before installation.
– When installing this product, park the car on a level ground and apply the parking brake.
– When installing this product, be sure not to damage the car body.
– Before installing this product, wipe off any dirt or oil film from the Front bumper attachment surface
with a soft waste cloth dampened in a neutral detergent. Then, let it dry completely before work.
– The adhesive strength is weakened significantly when the temperature is 15 or low.In this case,
use a dryer to warm the double-sided tape before attachment.
(Do not warm up excessively as doing so may result in deformation.)
– Be extremely careful not to let this product get wet by washing, etc. for 24 hours after attaching it.
Dosing so may cause the product to come off.
– To protect yourself from burns, make sure to stop the engine and let it cool completely before work
– When jacking up the vehicle, be sure to keep the ground level and a hard place where the jack does
not bite, and be sure to support it with a rigid rack before carrying out the work.
– All pictures in this book are from the LH side. Do the same thing on the RH side.
Clip
2
13
2
Bolt
Wellnut
Tapping screw 2
1
– E2410SL001 : Parts set
Masking tape
Drill 3mm 6mm 9.5mm
Needle
Clean cloth
Degreasing agent (recommended nonane) Gloves
Sandpaper
Phillips screwdriver
Torque wrench
Low head Phillips screwdriver Protective eyewear
Cloth adhesive tape
Clip remover
13
1
Pattern paper A to E 8 pieces set
Washer
J nut
1. Drill holes in the Front Bumper
Installation procedure
(1) Remove the vehicle clip on the bottom of the
Front bumper (1 places on one side) as
shown in Fig 1.
(1 places each for LH and RH, 2 places in total)
CAUTION
Do not reuse the removed vehicle clip.
Be sure to use the supplied clips.
Front bumper
Bottom view LH
Remove the
Vehicle clip
Front bumper
wheel arch surface LH
Front bumper
Bumper guard
Remove the
Vehicle clip
(2) Remove the vehicle clip that attaches the
Bumper guard on the wheel arch side
(1 places on one side) as shown in Fig 1.
(1 places each for LH and RH, 2 places in total)
Bottom view
Pattern
paper A
Pattern
paper E LH
Pattern
paper D LH
Pattern
paper C LH Pattern
paper B
Pattern
paper C RH
Pattern
paper D RH
Pattern
paper E RH
Detail view a
Match the shape
of the bumper
Pattern
paper A Marking position
Detail view c
Perform the same procedure
on the RH side.
Match the shape
Marking
position
Pattern
paper C LH Marking position
Detail view b
Match the shape
of the bumper
Pattern
paper B
Detail view e
of the bumper
Perform the same procedure
on the RH side.
of the bumper
Marking
position
Pattern
paper E LH
Detail view d
Perform the same procedure
on the RH side.
Match the shape
paper D LH of the bumper
Marking
position
(3) As shown in Fig 2, Pattern paper A to E
on the bottom of the Front bumper, secure with
masking tape, etc., and mark the center of the
hole with a scriber, etc.
( Pattern paper A 2 places
Pattern paper B 1 place
Pattern paper C LH,RH 2 places each
Pattern paper D LH,RH 1 place each
Pattern paper E LH,RH 2 places each
13 places each in total)
Pattern Match the shape
3mm 6mm 9.5mm
Bottom view LH
(4) Remove Pattern paper A to E and use
a drill to drill holes in the center of the positions
marked in (3).
Drill pilot holes in the order of 3mm, 6mm,
and finally 9.5mm as shown in Fig 3.
CAUTION
Drill
cloth adhesive tape
To prevent the drill from interfering with other
parts when drilling, make a stoppe r with cloth
adhesive tape, etc., at a point about 5 mm
from the tip of the drill before working.
(1 place in the center
6 places each for LH and RH
13 places in total)
CAUTION
After drilling, remove the burrs around
the hole.
2. Preparation for installation
Bottom view LH
Wellnut
CAUTION
If it is difficult to insert the wellnut, do not
twist it too much and insert it carefully.
(1) Insert the Wellnut into the 9.5 mm hole.
(1 place in the center
6 places each for LH and RH
13 places in total)
Front bumper
Bumper guard
wheel arch surface LH
J nut
Front bumper
Bumper guard
J nut
Mud guard
Front
Align the
J nut holes
(2) Insert the J nut into the Front bumper as
shown in Fig 5.
Align J nut hole with the Front bumper
guard hole.
(1 places each for LH and RH, 2 places in total)
CAUTION
Insert the J nut into the Front bumper body
inside the bumper guard as shown in the
diagram on the left (cross-section of the
J J nut cross section nut section).
Clean with a waste cloth, etc.
Front bumper
If rainwater is attached, wipe it dry with
a dry cloth.
Insufficient wiping and drying can cause
the product to come off.
CAUTION
(3) Clean, degreas, and dry the shaded area of
the Front bumper with a degreasing
agent.
Advice
– Clean the front bumper before work.
– Work indoors at a temperature of 15 or higher.
– If the temperature is less than 15 , please use a hair dryer to warm the adhesive surface
and double-sided tape.(Guideline: 25-40 )
– If air gets between the adhesive surface, the adhesive strength will weaken.
Make sure to crimp it thoroughly.
– Please avoid washing your car for 24 hours after pasting.
3. Installation of Front Spoiler
Masking tape
Front Spoiler
Front Spoiler
Front bumper
Washer
Clip
(1) Peel off about 30mm of the release paper from
double-sided tape attached to the Front
spoiler, fold it back to the surface, and
then attach it to the product surface using
masking tape, etc., as shown in Fig 7.
CAUTION
Do not remove the release paper more than
necessary.
The double-sided tape clings to the peripheral
parts, which makes it difficult to position them.
(2) As shown in Fig 8, align the Front spoiler
to the Front bumper and secure the rear
end of the vehicle with the Washer and
Clip.
(1 places each for LH and RH, 2 places in total)
Phillips screwdriver
Bolt
Front Spoiler
Detail view f
Match the shape
of the bumper
Front Spoiler
Front Spoiler
Bumper guard
Front bumper
apping screw
(3) As shown in Fig 9, align the shaded part
( mark) of the Front spoiler with
the shape of the Front bumper, and temporarily
tighten Bolt.
(1 place in the center
6 places each for LH and RH
13 places in total)
(4) As shown in Fig 10, temporarily tighten the
wheel arch with the tapping Tapping screw.
(1 places each for LH and RH, 2 places in total)
Advice
If you do not have a Low head Phillips
screwdriver, steer the front tire when working.
(5) As shown in Fig 11, press the double-sided tape
while slowly pulling out the release paper in the
direction of the arrow so as not to tear it in the
middle.
When pulling out the release paper, be careful
not to get Front spoiler molding caught
between it and the Front bumper.
Front
bumper
Front
bumper
Front Spoiler Front Spoiler
No
entanglement
entanglement
open
CAUTION
If it is difficult to remove the release paper,
slowly pull it out with needle-nose pliers.ully.
(6) Press the adhesive part of the double-sided
tape with enough force to shake the car.
(50N or more)
Front Spoiler
Front bumper
Hook your finger
on the winding
part and put it back
How to correct when the mall is involved If the molding gets involved, please fix it
while paying attention to the damage to
the double-sided tape.
the bumper and peeling of
the normal position.
If you fix it by hooking your finger on the
winding part, it will return to
Bolt
Front Spoiler
Tapping screw
Low head Phillips screwdriver,
etc.
(7) Fully tighten Bolt that were temporarily
tightened in step (3).
Tightening torque: 1.0N m (0.1kgf m)
(1 place in the center
6 places each for LH and RH
13 places in total)
CAUTION
Reference tightening torque 1.0N
( 0.1kgf )
Please be careful not to overtorque.
Doing so may cause Wellnut to break
or fall off.
Advice
normal state over torque
(8) Fully tighten Tapping screw that was
temporarily tightened in step (4).
Reference tightening torque: 2.0N m
(0.2kgf m)
Advice
If you do not have a Low head Phillips
screwdriver, steer the front tire when working.
(9) Check the mounting part for lifting or tilting,
check that there are no missing clips or bolts,
or forget to tighten them, and finally check
that there are no scratches or dirt.
This is the end of the work.
