Accessory Installation Guide
| 2019-24MY ASCENT DOOR SCUFF PROTECTOR (All Trims) | J131SXC000 |
INSTALLATION INSTRUCTIONS
PART NUMBER: J131SXC000
J131SXC000
J135SCX000
J131SXC010
J131SXC020
DESCRIPTION: DOOR SCUFF PROTECTOR – ASCENT
1
Clean driver’s side front door in area shown above, first with soap and water, then with alcohol pad included. Allow time to dry.
2
Using scissors, cut out paper templates for Right Front Door fold light template on dotted line
3
Using masking tape, adhere templates to door in the locations shown. Align to speaker grill, top of map pocket and door light as shown
4
Fold over tabs on adhesion tape 45 degrees as shown and use tape to adhere tabs to front of protector in all 8 perimeter locations
5
Remove adhesion tape backing from center
6
Align protector on door referencing speaker template, then door light template and character line in door. Apply pressure in center to secure protector to door.
7
Remove adhesive backing tape by pulling out exposed tabs. Then apply pressure around Perimeter of Scuff protector to ensure proper adhesion to door
8
Remove installation templates and repeat process on passenger side by using backside of templates
9
Clean driver’s side rear door in area shown above, first with soap and water, then with alcohol pad included. Allow time to dry.
10
Using scissors, cut out paper templates for Right Rear Door fold light template on dotted line
11
Using masking tape, adhere templates to door in the locations shown. Align to speaker grill, top of map pocket and door light as shown
12
Fold over tabs on adhesion tape 45 degrees as shown and use tape to adhere tabs to front of protector in all 7 perimeter locations
13
Remove adhesion tape backing from center
14
Align protector on door referencing speaker template, then door light template and character line in door. Apply pressure in center to secure protector to door.
15
Remove adhesive backing tape by pulling out exposed tabs. Then apply pressure around Perimeter of Scuff protector to ensure proper adhesion to door
16
Remove installation templates and repeat process on passenger side by using backside of templates
J131SXC000
https://static.oemdtc.com/AccessoryInstallationGuide/J131SXC000.pdf
Loading...
Reload document
Open in new tab
- Door Scuff Protector set
- J131SAN000
- A durable, easy to clean plastic shell that protects your doors from common shoe scuffs and other scrapes when entering and exiting your vehicle
- The unique texture compliments the design of the Outback.
- Comes in a set of four
- Subaru Ascent Door Scuff Protector SET OF 4 for the front AND rear doors
- J131SXC000
- Protects your doors from shoe scuffs and other scrapes when entering and exiting your vehicle.
- Texture matched to blend in with your Ascent door panel. Comes in a set of 4.
- GENUINE SUBARU
- [Applicable]: The car scratch protector for Subaru Crosstrek 2018-2023. 1:1 custom-made according to the original car size, perfect match with your car, no need to cut.
- [Function]: Car door kick panels can prevent you ending up constantly scuffing and kicking your door when you exit the vehicle. Also, they can be used to cover any existing scratches and paint damage. Decorative protection effect. Avoid expensive car repairs.
- [Installation]: Easy to Install and Remove. Self-adhesive design. Just peel off the car door kick pad and stick it. Easily remove without leaving any glue after tearing off during long-term use, and will not damage the painted surface of your Crosstrek.
- [Material]: For Subaru Crosstrek 2023 car stickers and decals are made of high-quality textured leather with a nice carbon fiber pattern. It will give the car more class. Scratch and dirt resistant, waterproof material. Just a wipe can make it clean.
- [Design]: Automotive door entry guards will not destroy interior decoration style. The car door protectors have a long service life, won't fade or crack, and are environmentally friendly and durable, without a peculiar smell.
- Package Includes?Included 4pcs/Set, 2pcs Front Car Door Sill Trim Scuff Plate Guard & 2pcs Rear Auto Door Sill Cover Scuff Plate Protector.The Front Door Is Long, The Back Door Is Short. Produced To Oem Standards For A Perfect Fit
- Product Features?Unlike The Door Thresold Sticker Will Fade And Damage For Long Time Usage.Brand New And High Quality Door Entry Guard Plate Protect Your Car From Wear And Tear And Scratches
- High-Quality Material?Car Welcome Pedal Cover Is Made Of Stainless Steel And Rubber. Even If It Is Trampled By High-Heeled Shoes, It Can Well Protect The Paint Surface. If It Is Parked In The Outdoor Parking Lot At High Temperature Day And Night, It Will Not Foam Or Change
- Easy Installation?Clean The Target Surface To Ensure That There Is No Oil And Dust; Remove The Protective Film Of The Strong Tape And Paste It To The Correct Position;Press The Surface Firmly After Installation To Make The Sticker Completely Match The Car Surface
- Multifunctional?Protect The Inner Door Sills From Scratches / Scratch When You Enter Or Exit The Vehicle.It Has Good Protection For Your Car. It Is Also Can Highlight The Beauty Of Car Body. At The Same Time, It Is Smooth And Easy To Clean. Whether It Is Dust Or Dirt, Cleaning The Surface With A Brush Rag Slightly, It Will Become New Immediately

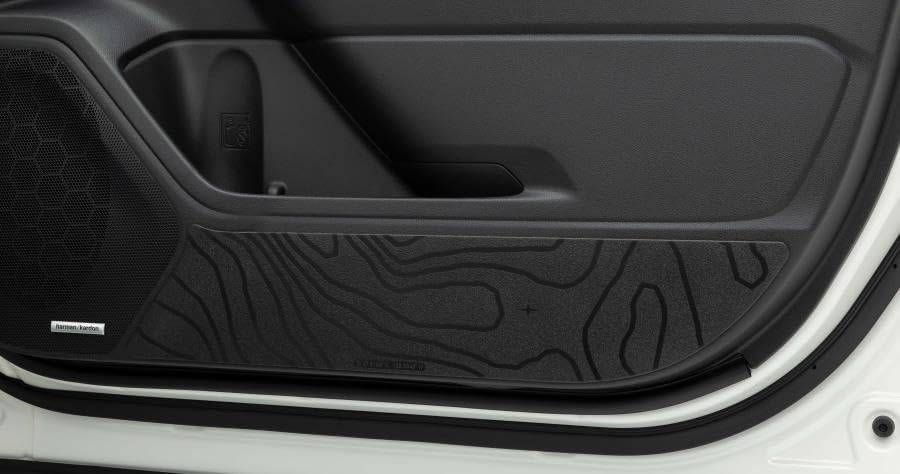

- Front Door Scuff Protector
