Accessory Installation Guide
2020MY Legacy/Outback Exterior Autodimming Door Mirrors | J201SAN000 |
SEOCONTENT-START
SUBARU OF AMERICA
Part number:
Numéro de piéce:
Vehicle:
Véhicule:
J201SAN000

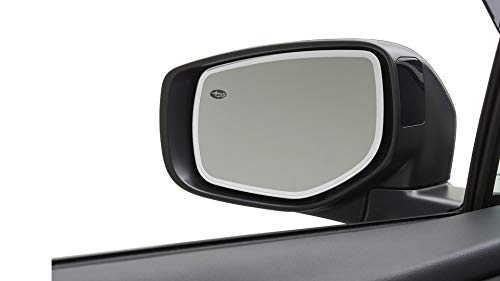

Description: Exterior auto dimming mirror with approach lighting
Description: Rétroviseur extérieur à antiéblouissement automatique
avec éclairage d’approche
Installation instructions
Instructions d’installatiion
Kit contents Contenu de la trousse
Auto dimming mirror
Tetroviseur antieblouissement
Friction Damper Spring
Ressort amortisseur à friction
Grease Pack
Nécessaire de lubrification
A
B C
GREASE
2X
OBJECTS IN MIRROR ARE
CLOSER THAN THEY APPEAR
Tools required
Outils requis
10 mm
12 mm
PART NUMBER
J201SAN000
PAGE
1/6
2020 OUTBACK / LEGACY
DATE
11/19/2018
ISSUE
A
PART NUMBER
J201SAN000
ISSUE
A
DATE
11/19/2018 SUBARU OF AMERICA PAGE
2/6
1
Disconnect battery. If equipped disconnect eyelet cable only.
Déconnectez la batterie. Si elle en est équipée, déconnectez
le câble de l’oeillet uniquement.
2
Protect mirror housing to prevent damage. Using screwdriver,
remove mirror by disengaging the four mirror clips. Pull
straight out to remove. Driver’s side shown.
Protéger le boîtier de rétroviseur pour éviter de l’endommager.
À l’aide d’un tournevis, retirer le rétroviseur en dégageant les
quatre attaches. Tirer dessus directement pour le retirer. Côté
du conducteur montré.
4
Locate and remove prearranged vehicle connector. (a)
WARNING – Do not pull harness wire to retrieve connector.
Repérez le connecteur prémonté du véhicule et déposez-le.
(a) ATTENTION : Ne tirez pas sur le fil du faisceau pour le
récupérer.
3
If equipped, disconnect heater terminals.
Débranchez les bornes de chauffage, si le véhicule en est
équipé.
!
a
10 mm
12 mm
!
PART NUMBER
J201SAN000
ISSUE
A
DATE
11/19/2018 SUBARU OF AMERICA PAGE
3/6
5
Remove foam from prearranged connectors.
Enlevez la mousse qui couvre les connecteurs prémontés.
6
Remove prearranged connector mate (a) by depressing locking
tabs. Dispose of connector mate.
Déposez le coupleur de connecteur (a) en appuyant sur les
languettes de verrouillage. Mettez le coupleur de connecteur
au rebut.
a
7
Insert friction damper spring into outboard mirror
holder.
Introduisez le ressort de l’amortisseur à friction dans le
support du rétroviseur extérieur.
B
A
GREASE
8
Apply grease to inner face of the outboard friction damper (a).
Note all grease may not be used.
Graissez la face intérieure de l’amortisseur à friction extérieur
(a). Il est possible que vous n’ayez pas besoin de toute la
graisse.
a C
PART NUMBER
J201SAN000
ISSUE
A
DATE
11/19/2018 SUBARU OF AMERICA PAGE
4/6
9
Plug prearranged vehicle connector’s into mirror connector’s.
(i.e. black connector to black connector and white connector to
white connector) Do not mix connectors of different colors.
Branchez le connecteur prémonté du véhicule sur le connecteur
du rétroviseur, c.-à-d. le connecteur noir sur le connecteur
noir, et le connecteur blanc sur le connecteur blanc;
ne mélangez pas la couleur des connecteurs.
10
Secure connector pair (a) to mirror clip.
Fixez la paire de connecteurs (a) à l’attache du rétroviseur.
12
Secure mirror to vehicle motor pack by gently pressing until
all four clips are engaged. Ensure friction damper spring
inserts correctly into the housing damper pocket. Repeat for
passenger’s side.
Fixer le rétroviseur au bloc-moteur du véhicule en appuyant
doucement dessus jusqu’à ce que les quatre attaches
s’enclenchent. Veiller à ce que le ressort amortisseur à friction
soit inséré correctement dans le logement de l’amortisseur du
boîtier. Répéter la procédure du côté passager.
a
11
If equipped, connect heater terminals.
Branchez les bornes de chauffage, si le véhicule en est
équipé.
PART NUMBER
J201SAN000
ISSUE
A
DATE
11/19/2018 SUBARU OF AMERICA PAGE
5/6
13
Reconnect battery. If equipped reconnect eyelet cable. Tighten
bolt to 66 in-lbs.
Rebranchez la batterie. Si elle en est équipée, rebranchez le
câble de l’oeillet. Serrez les boulons à 66 lb-po.
10 mm
12 mm
PART NUMBER
J201SAN000
ISSUE
A
DATE
11/19/2018 SUBARU OF AMERICA PAGE
6/6
OBJECTS IN MIRROR ARE
CLOSER THAN THEY APPEAR
OBJECTS IN MIRROR ARE
CLOSER THAN THEY APPEAR
OBJECTS IN MIRROR ARE
CLOSER THAN THEY APPEAR
14
15
To test the dimming function, cover the forward facing
sensor and shine light on the interior mirrors rear facing
sensor.
Pour vérifier la fonction d’assombrissement, couvrir le
capteur tourné vers l’avant et éclairer le capteur tourné vers
l’arrière des rétroviseurs intérieurs.
Rear facing sensor
Capteur tourné vers l’arrière.
