NHTSA ID Number: 10183697
Manufacturer Communication Number: 05-81-20
Summary
This bulletin announces design changes made to certain rear shock absorbers used on the models listed.
NUMBER: 05-81-20
DATE: 11/10/20
APPLICABILITY: | 2018-19MY WRX and WRX STI |
SUBJECT: | Rear BILSTEIN® Shock Absorbers- Design Changes |
INTRODUCTION:
This bulletin announces design changes made to the BILSTEIN rear shock absorbers used on the models listed above. The changes listed below were made to enhance the durability of the seals and to prevent oil loss:
- guide bushing changed from a dry type to a wet type
- configuration of the guide bushing, oil seal and dust seal were changed.
PART INFORMATION:
REMINDER: Always order the most up-to-date replacement parts based on the specific VIN being repaired.
The part number for the new SHOCK ABSORBER – REAR is 20365VA061.
SERVICE PROCEDURE / INFORMATION:
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
The service procedures for rear shock absorber replacement remain unchanged. Always refer to the applicable Service Manual and review the full requirements of the repair. Service Manual procedures contain information critical to performing an effective repair the first time, every time. This includes but is not limited to important SAFETY precautions, proper inspection criteria, necessary special tools, required processes and related one-time-use parts needed for a complete and lasting repair.
4 Affected Products
Vehicles
MAKE | MODEL | YEAR |
SUBARU | WRX | 2018-2019 |
SUBARU | WRX STI | 2018-2019 |
1 Associated Document
Manufacturer Communications
NUMBER: 05-81-20
DATE: 11/10/20
https://www.nhtsa.gov/recalls?nhtsaId=10183697
MC-10183697-0001.pdf 1078.365KB
“This site contains affiliate links for which OEMDTC may be compensated” |
- 【Compatibility】Fits for Subaru Outback 2000 2001 2002 2003 2004
- 【Includes 】2 Pcs (1 Pair) of Complete Strut Assembly which Equiped with Strut, Coil, Spring and Mounts. Replace Complete Strut Assembly:1345398
- 【Improved Safety】The Shocks are designed to improve your car's safety by providing increased stability and control on the road. They provide a smooth and comfortable ride while enhancing your car's handling and control on the road
- 【Durable Construction】Constructed with high-quality materials to deliver long-lasting durability and reliability. Their strong build ensures that they withstand the toughest driving conditions and last for many miles to come.
- 【Easy Installation】These Shocks are easy to install and require no special tools or skills. The installation process quick and straightforward.
- [Vehicle Fitment]: Compatible with Subaru Forester 1998-2002 H4 2.5L and without Self Leveling Rear Suspension
- [Reference Number]: 334191, 334192, 20360FC100, 20360FC101, 20360FC120, 20360FC140, 20360FC110, 20360FC111
- [Installation Position]: Rear Left and Right (Driver and Passenger Side)
- [Specifications]: ①Dust Shield Included: No; ②Extended Length (in.): 25.08; ③Compressed Length (in.): 17.32; ④Stroke Length (in.): 7.76; ⑤Upper Mount Type: 14x1.50; ⑥Rebound Stop: Yes
- [1-Year Quality Guarantee]: This brand new set of suspension shock strut assembly for car is the ideal choice for direct replacement. We extremely value your satisfaction and strive to provide you good shopping experience. Any further question, please feel free to contact us at any time.
- 🚗APPLICABLE VEHICLES - for 2009 2010 2011 2012 2013 for Subaru Forester
- 🚗INCLUDE- 172695 ( 2 )Rear Strut Spring Assembly
- 🚗ADVANTAGES - One pair struts with high quality can Reduce the necessity for an upper control arm and save on weight and production costs and can help you save time and money to buy the upper strut bearings and bushings or other parts separately
- 🚗MORE STABLE-Effectively reduce the impact of the vehicle when driving, improve the stability when turning, improve the comfort of the ride and the life of the surrounding suspension system
- 🚗NOTICE -Most satisfied service will be offered if any problem or defect occurs. In order to ensure that the product is suitable for your car please check description and OE part number carefully which will help you avoid unnecessary hassle
- [Vehicle Fitment]: Compatible with Subaru Forester 2009 2010 2011 2012 2013 AWD
- [Reference Number]: 341486, 20365SC000, 20365SC020, 20365SC050
- [Installation Position]: Rear Left and Right (Driver and Passenger Side)
- [Specifications]: ①Dust Shield Included: No; ②Extended Length (in.): 18.93; ③Compressed Length (in.): 13.22; ④Stroke Length (in.): 5.71; ⑤Upper Mount Type: 10x1.25; ⑥Lower Mount Type: E2(12.4x55)
- [Customer Support]: 1 Year Unlimited-mileage Quality Guarantee; Being brand-new and sturdy, this set of strut assembly is the ideal choice for direct replacement. We extremely value your satisfaction and strive to provide you good shopping experience. Any further question, please feel free to contact us at any time.
- 👉 👉 𝗢𝗘𝗠 𝗣𝗔𝗥𝗧 𝗡𝗢𝗨𝗠𝗕𝗘𝗥 𝗥𝗘𝗙𝗘𝗥𝗘𝗡𝗖𝗘: 341487 72696
- 👉 👉 𝗔𝗨𝗧𝗢 𝗦𝗛𝗢𝗖𝗞𝗦 𝗙𝗜𝗧𝗦: 2008-2011 for Subaru Impreza
- 👉 👉 𝗔𝗧𝗧𝗘𝗡𝗧𝗜𝗢𝗡: 1)Shocks sets kits (𝙬𝙞𝙩𝙝𝙤𝙪𝙩 strut mount/coil spring/rubber buffer/bushings) 2)Check compatibility chart for fitment
- 👉 👉 𝗜𝗡𝗦𝗧𝗔𝗟𝗟𝗔𝗧𝗜𝗢𝗡 𝗘𝗔𝗦𝗜𝗟𝗬: Direct replacement. Buckle holes are consistent with the original mounting points. No modification required,professional installation is highly recommended
- 👉 👉 𝗞𝗘𝗬 𝗙𝗘𝗔𝗧𝗨𝗥𝗘𝗦: (1)100% new; (2)stability and comfort experience; (3)longer service life;(4)avoid oil leakage and no abnormal noise

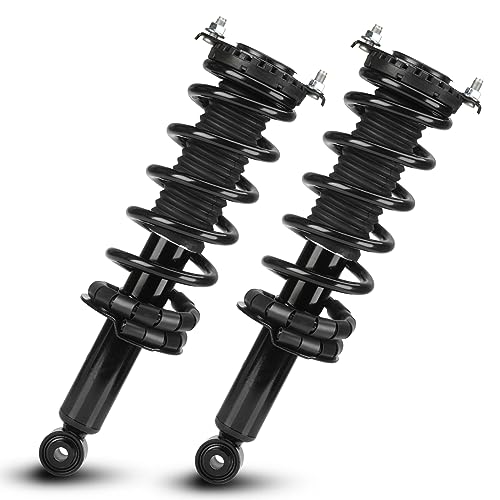

- 【Compatibility】Fits for Subaru Legacy 2005 2006 2007 2008 2009
