Accessory Installation Guide
2022MY WRX Strake Kit – Front | E2410VC500 |
Strake Kit – Front
Installation Manual
This manual describes how to install the Strake Kit – Front.
Request
Before installing this product, please ensure to read this manual and carry out proper installation.
Precautions
1. When installing this product on a car, park the car on a flat surface and securely apply the parking brake before carrying out the work.
2. Before starting the installation work, use a neutral detergent (or cleaning detergent) and waste cloth to remove dirt adhering to the car’s surfaces to which the Strake Kit -Front are to be attached, and completely dry the surfaces. Moreover, if sand or mud adheres to the back of the clip insertion holes, etc., then clean the contaminated sections.
3. Install the Strake Kit -Front before applying a car body coating treatment. When installing them on a coated car, remove the coating in the areas where the double-sided tape is to be applied before carrying out the installation work.
4. During the installation work, pay careful attention not to damage the car with tools, etc.
5. The purpose of this document is to illustrate explanations common to installation work on the left and right sides. Check the shape of the components to be installed before carrying out the work.
6. When the air temperature is 15℃ or lower, use a dryer to warm up this product and the surfaces of the car where the double-sided tape is to be applied to 30℃ to 50℃ or thereabouts. Avoid using an industrial dryer.
7. The double-sided tape attached to this product does not adhere to the surfaces unless it is adequately pressed. Moreover, reattaching the product significantly reduces the adhesive strength of the tape; therefore, properly position the product before attaching it to the car.
8. The adhesive strength of the double-sided tape gradually increases after it is applied to the car. Avoid washing the car within 24 hours after attachment. When washing and waxing the car are necessary on the day of the attachment, leave the car as is for at least one hour and subsequently cover the Strake Kit -Front with tape, etc. to prevent water from penetrating into areas where the double-sided tape is applied. Further, be careful not to apply an excessive force to the guards.
9. When blowing air on this product after it is attached to the car, maintain a distance of at least 300 mm between the exhaust port of the blower and the product. Insufficient distance may cause this product to peel.
10. When a car has undergone a body coating treatment including glass coating, this product cannot exhibit its original adhesive performance. Please confirm whether or not a body coating treatment is applied to the car. Moreover, ensure to remove dirt, oil, grease, etc. adhering to the surface on which the product is to be attached, and also ensure to adequately pressure bond it to the car.
<<How to remove a body coating film and confirm the removal>>
– Use a fine-grained compound agent (so as not to affect the car’s paint) to rub the coating film off the area on which the product is to be attached.
– After polishing the area, spray water on it. You can confirm that the coating film has been removed when there is no repelling of water on the area.
Genuine Part Number : E2410VC500
Applicable Model : WRX 2022MY～
Tools
- Degreasing agent (recommended nonane)
- Clean cloth
- Torque screwdriver
- Dryer
- Stubby driver
- Masking tape
- Clip remover
Installation procedure
This document shows the LH side. Do the same for the RH side.
1. Removing the vehicle clip
(1) Remove the vehicle clip from the Front bumper.
※Do not reuse vehicle clip.
2. Cleaning/Degreasing
(1) Clean, degrease, and dry the shaded area of the Front bumper with a degreasing agent.
Attention
If rainwater is attached, wipe it dry with a dry cloth.
Insufficient wiping and drying can cause the product to come off.
3. Preparing to install the ②Strake Kit – Front LH
(1) Part of the double-sided tape liners on the ② Strake Kit – Front LH is peeled off and fixed with masking tape.
Attention
Do not peel off the double-sided tape liner more than necessary.
Double-sided tape clings to the bumper, which hinders positioning.
4. Install the ②Strake Kit – Front LH
(1) Cover the Front bumper with a ② Strake Kit – Front LH and attach it with a ③ clip.
(2) Temporarily fix the ④ Bracket with ⑤ Truss head bolts as shown in the left figure.
Advice
If it is difficult to install, change the direction of the tire to make it easier to install.
(3) Temporarily fix the ④ Bracket to the underside of the ② Strake Kit – Front LH with ⑤ Truss head bolt as shown in the left figure.
(4) The mounting position is decided as shown in
the left figure, and it is confirmed that there is
no gap in the place of the circle.
Crimping while pulling out the double-sided tape liners in the order shown on the left figure.
Attention
To crimp the double-sided tape, press it with a force of 49N(5kgf) for about 10 seconds.
(5) Tighten the ⑤ Truss Head bolts attached to the front unders and wheel arch surfaces. (4 locations on each side)
Attention
Reference tightening torque 1.5 to 2.0 N･m (0.15 to 0.2 kgf･m)
This is the end of the work.
Inspection guidelines
Make sure the clips are attached, the bolts are secured, adhesion of the double-sided tape, and there is no rattling.
Make sure there are no scratches or stains.
There shall be no significant gaps or separation.
E2410VC500
2022MY WRX Strake Kit – Front
Loading...
Reload document
Open in new tab
| “This site contains affiliate links for which OEMDTC may be compensated” |
- Fitment: Compatile With 2002-2007 Subaru
Impreza WRX/Sti Models - Package Includes: A Set of Front and Rear Side Skirt Add-On Strake Guards as Shown (Total 4 Pieces)
- Comes In As A Set For Both Front and Rear
- Made of Quality and Durable Polyurethane Material
- Improves Appearance and Gives the JDM Look To Your WRX/Sti.
- Compatible with 2022-2025 Subaru BRZ Coupe 2-Door
- Material: Front Lip& Diffuser: PU - Polyurethane, Side Strakes: PP - Polypropylene | Color: Unpainted Black
- Package Includes: 1x Front Bumper Lip, 1x Rear Bumper Diffuser, 1x Set of Side Strakes (2 Pieces)
- Bolt-on Installation, Instructions NOT included, Professional Installation is Highly Recommended.
- 30 Days Limited Warranty

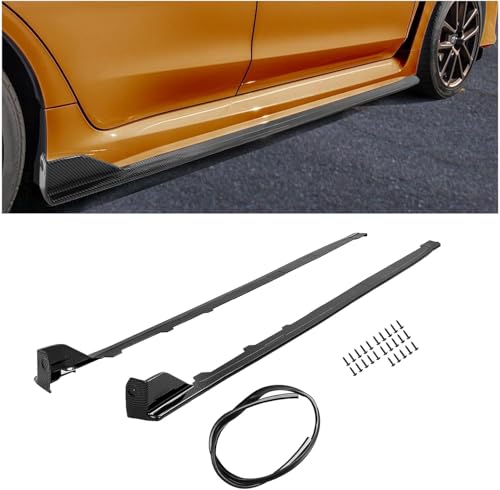

- FITMENT - Our side skirts are compatible with 2015-2021 Subaru WRX Sedan 4-Door; compatible with 2015-2021 Subaru WRX STI Sedan 4-Door. Please confirm your car model before purchasing to avoid that the purchased product is not suitable for your car
- PREMIUM MATERIAL - Durable high quality ABS plastic provides strong durability and long-lasting lifespan, has a good temperature resistance, impact resistant and weathering resistance. Carbon fiber printing finish gives your vehicle an attractive upgrade of appearance
- ADDITIONAL PROTECTION - Side skirt spoilers are installed along the sides of the car to stop rocks and debris from flying up from underneath and damaging the car's surface, thus protecting your car's paintwork
- AERODYNAMIC PERFORMANCE - Side skirts do not just streamline the sides of your car, they also help prevent airflow from the sides of the vehicle into the underside of the chassis, damaging the low-pressure front. Make your drive smoother, faster and safer
- PACKAGE & INSTALLATION - No Instructions. 1 Pair of Side Skirts (Carbon Fiber Color). Bolt on design for mounting, necessary installation hardware is included, installation can be done easily
- Custom Fitment: Compatible with 2022-2025 Subaru BRZ & Toyota GR86 Coupe 2-Door
- Specification: Material: ABS Plastic: Acrylonitrile Butadiene Styrene | Color: Unpainted Black | Style: STI Style | Package Include: 1x Set of Side Strakes (2 Pieces)
- Fashion Design: Unpainted Black side skirts extension splitter features a newly designed unique ground effects body kit, perfectly enhance the sporty racing look. It add an extra level of customized styling but will not lower the side height of the car
- Excellent Performance: Install a side rocker panel can offer great protection from side body scratch. It help reduce side air drag and keep stability at high speed, providing you with a comfortable and safe driving experience.
- Easy Installation: Comes with all necessary mounting hardwares. Since it is aftermarket auto part, installation instruction is not included. If you find it is difficult to install, professional installation is recommend.
- Fitment: Fits 2022-2023 Subaru BRZ / 2022-2023 Toyota GR 86
- Package Includes : 1 Pair of Carbon Fiber Side Add-On Spats Aprons (Both Left and Right Sides)
- STI Style Real Carbon Fiber Side Skirt Aero Guards Strake At Decent Price.
- Great Fitment And Quality.
- Made of Light Weight & Top-Grade Durable Carbon Fiber Material
- Package includes:1 set of Front Bumper Lip Chin Spoiler Guard Body Kits (3pcs) + Side Skirt Splitter (2pcs) + Rear Bumper Lip Wrap Splitter Canard (2pcs)
- Material:Made of updated durable and sturdy ABS, no deformation in long-term use,waterproof and never fade.
- Function:Provide an elegant and personalized appearance, provide anti-collision protective experience to your original bumper, protect from scrapes from driveways, speed bumps and curbs, alleviate the damage
- Compatibility:Perfect compatible with Subaru BRZ Impreza WRX STI,It won't scrape the paint off or damage the original equipment. Enjoy the super cool and exquisite appearance of your car after installing.
- Note:1.Please measure the position you are going to install the package, and make sure these splitters will fit your vehicle before purchase 2.Professional installation is highly recommended 3.Product may require drilling holes and use the screws to permanently secure.

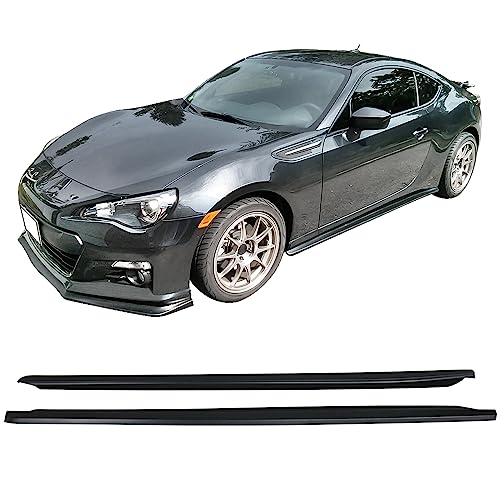

- FITMENT - Our Side Skirts are compatible with 2012-2021 Subaru BRZ; compatible with 2012-2021 Toyota 86; compatible with 2012-2021 Scion FR-S. Please make sure that if your car is compatible with our products.
- IMPROVED AERODYNAMICS - Side skirts reduce the body's ground clearance above the road, creating less air pressure under the car, improving road-holding and allowing the car to be driven safely at higher speeds.
- ENHANCE APPEARANCE - The side skirts are also a design element that adds to the sporty feel of the car's design and enhances its visual appeal. Made from ABS for strength and durability.
- ADDITIONAL PROTECTION - The side skirts are fitted to the sides of the car to provide a degree of protection against the splashing of stones and debris from the road, which can scratch the surface of your car.
- INSTALLATION & PACKAGE INCLUDED - Screws help hold it in place and 3M tape makes it more securely mounted on your car. You will receive 1 Pair of side skirts and mounting hardware. No instructions.

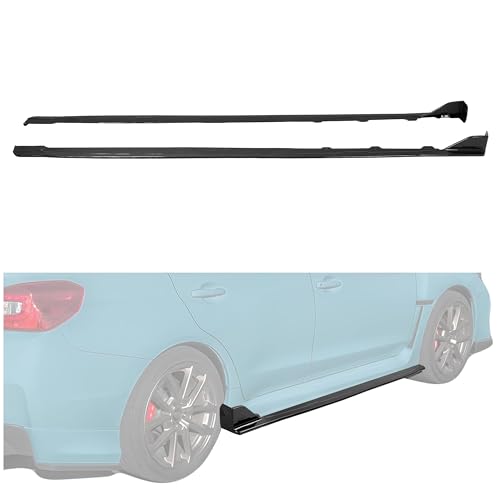

- Product Compatibility: The side skirts are specifically designed to seamlessly compatible with 2015-2021 Subaru WRX Sedan/STI Sedan 4-Door, ensuring a direct fit and enhancing the overall aesthetics of the vehicle.
- Durable Construction: Made from high-quality ABS plastic, these side skirts are built to withstand the rigors of daily driving and provide long-lasting durability.
- Stylish Design: Featuring a sleek and sporty appearance, the side skirts add a touch of style and aggression to the vehicle's profile. Also provide additional protection against road debris, such as rocks, dirt, and grime.
- Enhanced Aerodynamics: These side skirts effectively redirect airflow around the car, reducing drag and increasing stability at higher speeds. The streamlined design helps to enhance fuel efficiency and performance.
- Easy Installation: No instruction. With a bolt-on installation process, these body kits can be easily mounted onto the vehicle without the need for extensive modifications. Including 1 pair of black side skirts and mounting hardware.

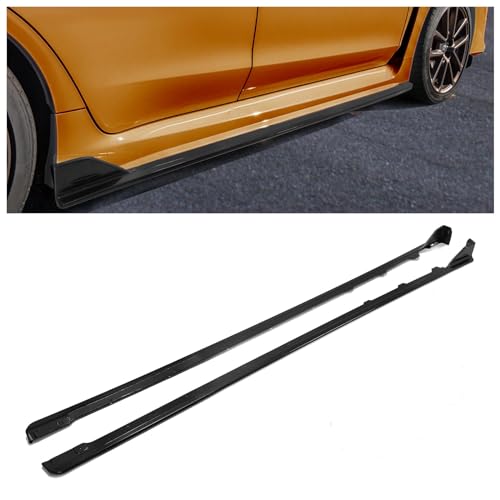

- Fitment: For Sub*aru 2015-2021 WRX Sedan 4-Door, For Sub*aru 2015-2021 WRX STI Sedan 4-Door
