Accessory Installation Guide
| 2022MY Rear Bumper Diffuser | E5610VC550 |
Rear Bumper Diffuser
Installation Manual
This manual describes how to install the Rear Bumper Diffuser
Request
Before installing this product, please ensure to read this manual and carry out proper installation.
Precautions
1. When installing this product on a car, park the car on a flat surface and securely apply the parking brake before carrying out the work.
2. Before starting the installation work, use a neutral detergent (or degreasing agent) and waste cloth to remove dirt adhering to the car’s surfaces to which the Rear Bumper Diffuser are to be attached, and completely dry the surfaces. Moreover, if sand or mud adheres to the back of the clip insertion holes, etc., then clean the contaminated sections.
3. Install the Rear Bumper Diffuser before applying a car body coating treatment. When installing them on a coated car, remove the coating in the areas where the double-sided tape is to be applied before carrying out the installation work.
4. During the installation work, pay careful attention not to damage the car with tools, etc.
5. The purpose of this document is to illustrate explanations common to installation work on the left and right sides. Check the shape of the components to be installed before carrying out the work.
6. When the air temperature is 15℃ or lower, use a dryer to warm up this product and the surfaces of the car where the double-sided tape is to be applied to 30℃ to 50℃ or thereabouts. Avoid using an industrial dryer.
7. The double-sided tape attached to this product does not adhere to the surfaces unless it is adequately pressed. Moreover, reattaching the product significantly reduces the adhesive strength of the tape; therefore, properly position the product before attaching it to the car.
8. The adhesive strength of the double-sided tape gradually increases after it is applied to the car.
Avoid washing the car within 24 hours after attachment . When washing and waxing the car are necessary on the day of the attachment, leave the car as is for at least one hour and subsequently cover the Rear Bumper Diffuser guards with tape, etc. to prevent water from penetrating into areas where the double-sided tape i s applied. Further, be careful not to apply an excessive force to the guards.
9. When blowing air on this product after it is attached to the car, maintain a distance of at least 300 mm between the exhaust port of the blower and the product. Insufficient distance may cause this product to peel.
10. When a car has undergone a body coating treatment including glass coating, this product cannot exhibit its original adhesive performance. Please confirm whether or not a body coating treatment is applied to the car. Moreover, ensure to remove dirt, oil, grease, etc. adhering to the surface on which the product is to be attached, and also ensure to adequately pressure bond it to the car.
<<How to remove a body coating film and confirm the removal>>
– Use a fine-grained compound agent (so as not to affect the car’s paint) to rub the coating film off the area on which the product is to be attached.
– After polishing the area, spray water on it. You can confirm that the coating film has been removed when there is no repelling of water on the area.
Genuine Part Number : E5610VC550
Applicable Model : WRX
2022MY～
Tools
- Degreasing agent (recommended nonane)
- Clean cloth
- Dryer
- Masking tape
- Clip remover
Installation procedure
1. Removing the vehicle clip
(1) Remove the vehicle clip from the Rear Bumper. ( 4 places )
※ Do not reuse vehicle clip.
2. Cleaning/Degreasing
(1) Clean, degrease, and dry the shaded area of the Rear Bumper with a degreasing agent.
Advice
If rainwater is attached, wipe it dry with a dry cloth.
Insufficient wiping and drying can cause the product to come off.
3. Preparing to install the ①Rear Bumper Diffuser
(1) Part of the double-sided tape liners on the ①Rear Bumper Diffuser is peeled off and fixed with masking tape.
Advice
Do not peel off the double-sided tape liner more than necessary.
Double-sided tape clings to the bumper, which hinders positioning.
4. Install the ①Rear Bumper Diffuser
(1) Cover the Rear bumper with a ①Rear Bumper Diffuser and attach it with a ②clip.
Advice
Work with the ①Rear Bumper Diffuser slightly widened so that the metal bracket does not damage the Rear Bumper.
(2) Check the mounting position referring to the left figure.
Advice
Please follow the order in which you pull out the double-sided tape liner.
There is a possibility that the position shift occurs at the time of mounting.
(3) Pull out the double-sided tape liner in the order of ① to ③ referring to the figure on the left, and crimp it.
(4) Pull out the double-sided tape liner in the order of (4) to (9) referring to the figure on the left, and crimp it.
Advice
To crimp the double-sided tape, press it with a force of 49N(5kgf) for about 10 seconds.
This is the end of the work.
Inspection guidelines
Make sure the clips are attached, the adhesion of the double-sided tape, and make sure that there is no rattling.
Make sure there are no scratches or stains.
There shall be no significant gaps or separation.
E5610VC550
2022MY Rear Bumper Diffuser
Loading...
Reload document
Open in new tab
| “This site contains affiliate links for which OEMDTC may be compensated” |

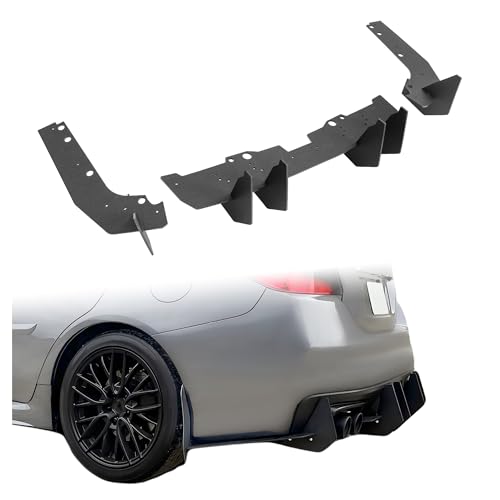

- Superior Adaptability: The rear bumper diffuser will be compatible with 2015-2021 Subaru
WRX STI; 2015-2021 Subaru WRX. Please check the model and year of your vehicle to buy appropriate products - Great Construction: Made from premium PE Plastic, our rear diffuser is durable enough to withstand daily wear and tear. Unfinished surfaces allow for do-it-yourself DIY, enabling you to paint or modify them to suit your personal style preferences
- Enhanced Functionality: This diffuser effectively improves airflow management underneath the vehicle. By optimizing airflow, it reduces rear-end turbulence, resulting in improved stability and handling. This subtle but important enhancement can make your driving experience more enjoyable and efficient
- Improved Style: This diffuser increases a sleek black finish to the rear of your vehicle that not only protects it, but also enhances its visual appeal. The modern design complements the lines of your vehicle, giving it an aggressive and sporty look
- Easy Installation: You will receive 2 x Rear Bumper Aprons Spats, 1 x Center Diffuser Fin. Instructions are not included, but there are mounting points on the surface to make your installation process smoother
- Noted - There is a protective film on the surface of the product to prevent scratches during transportation.Please remove the protective film on the surface of the product after receiving it, and then proceed with installation and use!!!!
- Fitment: For Subaru Wrx 2022-2024
- Package Includes：1Set of Painted Glossy Black Rear Bumper Diffuser For Subaru Wrx 2022 2023 2024
- Installation : The surface of the product is covered with double-sided film during transportation. When installing the product, the double-sided film needs to be torn open for installation
- Great material: Made of High density plastic, lightweight, and with good impact resistance, Can adapt to various harsh environments and has a long service life. Gives your car an more aggressive rear end instantly and dramatically improves the sporty appearance for your car
- 🚕Fitment： For Subaru WRX STI 2015 2016 2017 2018 2019 2020 2021（Only suitable for the original factory back lip !!!!!!）
- 🚕Installation : The surface of the product is covered with double-sided film during transportation. When installing the product, the double-sided film needs to be torn open for installation. If you need an installation video, please feel free to contact us at any time.
- 🚕Package Includes：1Set of Painted Glossy Black Rear Bumper Diffuser As Shown in Pictures.
- 🚕Great material: Made of High density plastic, durable, lightweight, and with good impact resistance, Can adapt to various harsh environments and has a long service life. Gives your car an more aggressive rear end instantly and dramatically improves the sporty appearance for your car.
- 🚕Function: This Rear Bumper Lip Diffuser is designed to improve the aerodynamic performance of the vehicle, could reduces the adverse airflow generated by the car while driving improves high-speed stability，Give you a good driving experience.

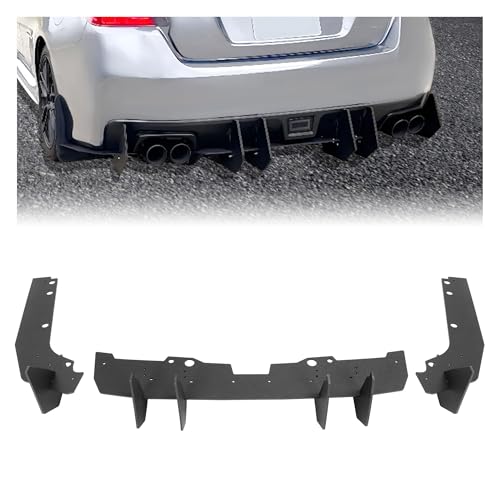

- Custom Fitment: Compatible with 2015-2021 Subaru WRX & STI
- Specification: Material: High Quality PP - Polypropylene | Color: Matte Black | Package includes: 1x Rear Bumper Lip Diffuser
- Aerodynamic Design: Classic air dam rear under chin spoiler visually enhances the car's performance appearance; it improves aerodynamic efficiency by reducing lift and enhancing stability at high speeds, ensuring driving safety and reducing fuel consumption.
- Ready to Install: Ships in Matte Black surface finish rear bumper protector diffuser lip, ready to install; UV-protected clear coated, resistant to fading for longer life-span
- Installation: Smooth cutout will not scratch car body.Since it is aftermarket part, installation instruction not included. If you want to install it yourself, you can watch the installation video on Web for some installation tips. Of course, IKON MOTORSPORTS always recommends professional installation. Do not forget to keep your vehicle clean and dry before installation.

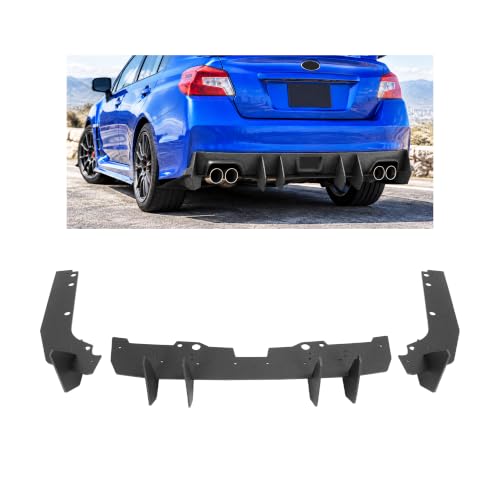

- Product Compatibility: Rear Bumper Diffuser is compatible with 2015-2021 Subaru WRX STI; compatible with 2015-2021 Subaru WRX. Please confirm your car model before purchasing to avoid that the purchased product is not suitable for your car
- Superior Material: Made of high quality PE Plastic with good impact ability, not easy to bend and deform. The surface is unfinished black, which maintains a good appearance even after long-term outdoor use and is durable without frequent replacement
- Improved Aerodynamics: Rear diffuser follows aerodynamics and optimizes the flow of air into the underbody to keep the vehicle stable at high speeds, thus effectively improving driving safety and comfort while maximizing vehicle performance
- Various Protection: Black surface is personalized and sporty aesthetics, so that your car is different from the others, but also take into account the role of protecting the rear of the vehicle, in the event of a collision to absorb some of the impact, to avoid direct damage to the vehicle
- Simple Installation: The package includes 1Pc Rear Bumper Lip Spats Winglet Splitter Diffuser Apron (Center). Instructions are not included. Directly install with screws. No need for any special tools or expertise
- 1. Product compatibility: Replacement for Subaru Impreza WRX STI Sedan 2004-2007.
- 2. An excellent rear bumper for your vehicle, No modification needed.
- 3. This product is constructed with high-quality material and rigorously tested to ensure structural strength and integrity.
- 4. Professional installation is highly recommended. The instruction manual is not included.
- 5. Note: Please make sure our product fits your model before placing an order and dont hesitate to contact us if you have any issue.

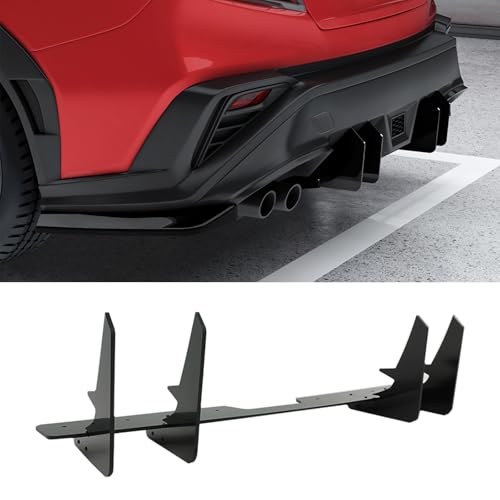

- Fitment： Rear Bumper Lip Diffuser For Subaru WRX & STi 2022 2023 2024 2025
- Installation：Drilling is Required For Installation！！！！ The surface of the product is covered with double-sided film during transportation. When installing the product, the double-sided film needs to be torn open for installation.
- Package Includes：1Set of Rear Bumper Diffuser As Shown in Pictures.
- Great material: Made of High density plastic, durable, lightweight, and with good impact resistance, Can adapt to various harsh environments and has a long service life. Gives your car an more aggressive rear end instantly and dramatically improves the sporty appearance for your car.
- Easy to install：The product design is simple, the installation steps are simple, and no complicated operations are required, and the installation can be completed quickly，Installation instructions are not included
- Fits ALL 2015-2021 Subaru WRX | WRX STi Models
- Package Included 1 X Subaru WRX | WRX STi JDM Performance Style ABS Plastic - Hydro-Dipped Carbon Fiber Rear Bumper Diffuser & 1 X Bag of Hardware
- Package Included 1 X Subaru WRX | WRX STi JDM Performance Style ABS Plastic - Painted Glossy Black Rear Bumper Diffuser & 1 X Bag of Hardware
- Enhances the rear aesthetics of your 2015-2021 Subaru WRX STi with an aggressive, race-inspired design that improves the overall sporty appearance.

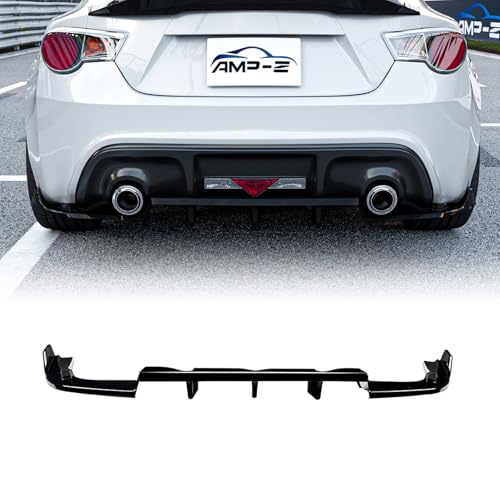

- Fitment: Compatible with 2013-2020 Subaru BRZ; Compatible with 2012-2017 Scion FRS; Compatible with 2012-2016 Toyota 86. Replacement for E5610CA000.
