Accessory Installation Guide
2022MY WRX – Trunk Spoiler | E7210VC200 |
TRUNK SPOILER
INSTALLATION MANUAL
E7210VC200
https://static.oemdtc.com/AccessoryInstallationGuide/E7210VC200.pdf
“This site contains affiliate links for which OEMDTC may be compensated” |

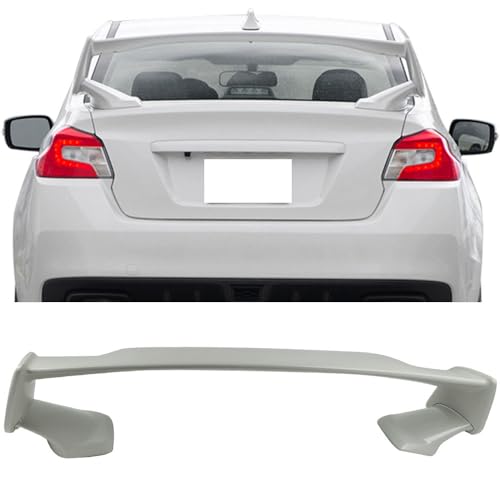

- FITMENT - Compatible with 2015-2021 Subaru WRX 4 Door Sedan; Compatible with 2015-2021 Subaru WRX STI 4 Door Sedan. Please confirm the product if it matches your car before you purchase.
- PREMIUM MATERIAL - Made of high quality ABS plastic, durable, impact resistance and heat resistance, which has the advantages of high shock resistance and light weight. The carbon fiber printing finish can adapt to any environment and improve the sporty appearance.
- EXCELLENT PERFORMANCE - This trunk spoiler will provide better aerodynamic characteristics for your vehicle, increase the downforce of the wheels, and reduce the air resistance when facing high speed driving, which improves grip and driving stability. It can also improve the grade of your vehicle and make it look cooler.
- PACKAGE INCLUDED - 1 Set of Trunk Spoiler (Carbon Fiber Color). Mounting hardware is included.
- EASY INSTALLATION - Bolt-on installation. Easy to install without drilling or cutting. Instructions are NOT included.
- Fit For 2002-2007 SUBARU IMPREZA WRX
- Style: OE STYLE | Material: High Quality ABS | Color: Unpainted Raw Material Color
- Package Includes: 1x Trunk Spoiler With LED Light
- Instructions are not included, Professional Installation is Highly Recommended.
- 30 Days Limited Warranty (This is NOT an OEM part. This product is designed to be a replacement for the OEM part)
- FITMENT - Compatible with 2002-2007 Subaru Impreza WRX Sedan 4-Door. Please confirm the product if it matches your car before you purchase.
- PREMIUM MATERIAL - Made of high quality plastic, which has the advantages of high shock resistance and light weight. The painted surface can adapt to any environment and improve the sporty appearance.
- EXCELLENT PERFORMANCE - This trunk spoiler will reduce the air resistance when facing high speed driving and it will improve the stability of the vehicle. Brake light is very easy to be seen by the car behind, greatly avoiding a rear-end accident.
- PACKAGE INCLUDED - 1 x Trunk Spoiler & Brake Light (Matte Black). Hardware is included.
- EASY INSTALLATION - Bolt-on installation. Easy to install without drilling or cutting. Instructions are NOT included.
- Perfect Fitment: Matte black rear spoiler wing perfect fit for 2015-2021 for Subaru WRX STI Sedan and 2011-2016 for Scion tC. Dont worry about any more. We have been Specialized in automotive parts for many years. Any question, please feel free contact us.
- Enhances Aerodynamic Performance: SCITOO trunk spoiler helps to reduce the influence of air resistance while the car driving in high speeds. When the wind resistance coefficient reduced, the fuel efficiency increases and the down force reinforces to make the car wheels close to the road surface so that improving the traction, stability and more safety.
- Superior Quality & Stylish Look: Rear trunk spoiler wing is made of high-quality strong ABS in matte black and with reinforced structure. Rear spoiler can withstand the exposure weather without damage. After installing, the wing spoiler increase the streamlined appearance of the car, making your car look cooler and more stylish.
- Installation: Rear wing is bolt-on design and easy to assemble with all parts included. But Instruction is not included and required to extra drilling, hope your installation with the help of the professionals.
- After-sale Service - Weve been researched and developed automotive parts for many years. If you have any questions after receiving the products, please feel free to contact us. And professional team will provide a profession instruction for you. We will reply you within 24 hours to make sure your shopping experience in satisfied.
- ✅Compatible with Subaru OEM WRX STI 2015-2021 factory spoiler. (spoiler not included)
- ✅The spoiler is installed by automotive grade double sided adhesive tape (included). Easy installation, no modification required.
- ✅Made of high impact ABS material to be light weight and durable. High quality that is unmatched with other manufacturers.
- ✅The gurney flap will add the aggressive look to your trunk spoiler without looking too instrusive.
- ✅Perfect addition that will improve the aerodynamic efficiency to your vehicle.

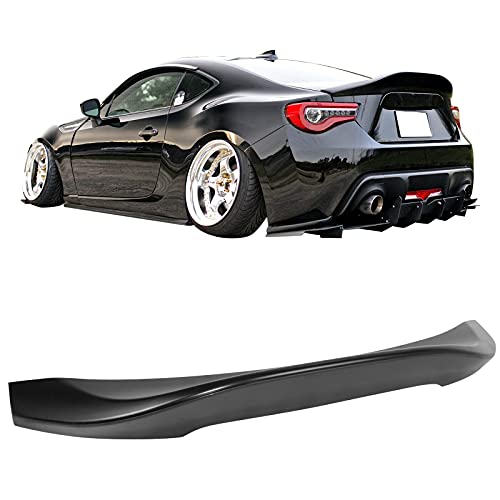

- Good Fitment: This rear trunk spoiler wing is well fits for Subaru BRZ 2013-2018 Toyota GT86 2012-2017 Scion FR-S 2012-2017
- Professional Installation: Replacement of the original rear trunk spoiler, installed on with screws included
- Premium Material: Top-rated 3K carbon fiber with advanced technology and elaborate workmanship
- Outstanding Performance: Enhance visual impact, create an new iconic look and set your car apart from similar models on street
- Aerodynamic Design:The automotive spoiler wing can effectively reduce the impact of air resistance, add more downforce and improve the stability of vehicles when driving at high speed, making the driver feel more confident.
- Fitment: Suitable for all 2015-2021 Subaru WRX | WRX STi Models
- Purpose: This spoiler is designed to enhance aerodynamics, reducing fuel costs and improving vehicle aesthetics. It gives the car a more dynamic and sleek appearance, while also potentially increasing stability and performance at high speeds. Additionally, it helps to minimize air resistance, which can lead to improved acceleration and efficiency
- Package Includes: 1 X Subaru WRX | WRX STi Rocket Bunny High-Kick Duckbill Style ABS Plastic Primer Black Rear Trunk Lid Wing Spoiler & 1 X Bag of Hardware
- Material: This product is constructed from high-quality, durable ABS plastic, designed to withstand harsh weather conditions and challenging driving terrains. Its robust construction ensures both longevity and reliability, making it an ideal choice for maintaining performance and appearance in any environment
- Installation: This product features a bolt-on installation process, and all necessary hardware is included to ensure a hassle-free fit. This makes it a perfect addition to your vehicle, designed for a seamless and straightforward setup
- Fit For 2008 - 2014 Subaru Impreza WRX STi / 2.5i / 2.5GT / Sport 4-Door Sedan Models Only
- Made of High Quality Light Weight and Durable Material
- Unpainted Finished; Ready To Be Painted To Match Your Vehicle
- Gives Your Vehicle Upgrade And Style Look
- Installation Manual is Not Included, Professional Installation Is Highly Recommend
- Fitment: Compatible With 2015-2021 Subaru WRX 4 Door Sedan; Compatible With 2015-2021 Subaru WRX STI 4 Door Sedan.
- Excellent Material: Made of high-quality ABS plastic with superior durability and impact resistance. It ensures high strength, uneasy to deform, break and rust. Using carbon fiber printing to enjoy a high value carbon fiber exterior gives your vehicle more fashionable and luxurious attractive appearance that looks great.
- Product Usage: Trunk spoiler can reduce high-speed wind resistance, improve the stability of the car, and provide you with a better driving experience. Excellent decoration to enhance the appearance of your vehicle.
- Package Content: Come with 1 Set Carbon Fiber Color Trunk Spoiler. NO instructions but including installation hardware.
- Installation: Installed directly with screws. Professional installation is strongly recommended.
Last update on 2024-06-21 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
SEOCONTENT-START
TRUNK SPOILER INSTALLATION MANUAL Precautions 1. Be sure to observe the content in CAUTION for installation described in the main text during the work. Neglecting it may cause dropping of or peeling-off on the part, and also may prevent the vehicle from functioning. 2. Before the installation, turn the ignition switch to OFF, and apply the parking brake without fail. 3. Do not use thinner or the like, otherwise the surface of the trunk spoiler may be corroded. Also, keep the spoiler away from fire, otherwise it may be deformed. 4. When the ambient temperature is 15°C or lower, warm up all strips of the double-sided tape and around the installation portion of the trunk panel to approximately 30 to 50°C using a dryer or infrared lamp. Local warming may deform the part. Do not use an industrial dryer. 5. Firmly press the double-sided tape to adhere well. If it is reattached, the adhesive performance will extremely decrease. To avoid redoing, position the tape correctly before attachment. 6. The adhesive strength of the double-sided tape increases gradually after the attachment. Do not wash the vehicle within 24 hours after attaching the part. When washing the vehicle or applying wax to the vehicle is required on the day when the part is attached, leave the vehicle for at least 1 hour, and seal the double-sided tape attached portions with tape or the like to prevent water intrusion. (Do not perform a high-pressure or automatic car wash on the day when the part is installed.) 7. When performing an air blow after the installation of the part, keep the nozzle 300 mm or more away from the part. If it is too close, the surface of the part may be peeled off. 8. After installing the part, leave it for 2 to 3 hours, and do not drive the vehicle. 9. When a body coating treatment (glass coating, etc.) is applied, the original adhesive strength cannot be exerted. Check if the body coating treatment is applied. Also, remove any dirt or fat and oil from the part installation position on the vehicle without fail, and press fit the part with sufficient force. <Removal and check method for body coating film> – Using compound with fine particles (in order not to impair painting), scrub off the coating film in the application area. – After grinding, sprinkle water using a spray or the like. If the area is no longer water-repellent, the coating film has been removed. Sold by: SUBARU CORPORATION This manual describes how to install and handle the trunk spoiler. Before installing the part, please be sure to read this manual for proper installation. Template set (E7210VC206) E7210VC300 57529VC020 57529VC030 E7210VC206 E7210VC205 E7210VC200 E7210VC300 With torsion bars, for vehicles without a factory spoiler E7210VC200 Without torsion bars, for vehicles a factory spoiler Trunk spoiler Nut Bolt Clip Template R Template L Instruction Manual Protection seal set (a set of 2 stickers) *1 THSN BAR RH THSN BAR LH Part No. 1 ① ② ③ ④ 2 22 ⑤ Repair part No.: Parts set (E7210VC205): ②×2, ③×2, ④×2 Template set (E7210VC206): ⑤×1, ⑥×1 ⑥ 11 ⑩ 1 Trunk spoiler with torsion bars (E7210VC300) Trunk spoiler (E7210VC200) ① Parts set (E7210VC205) Trunk spoiler ⑦ ③ ④ ⑤ ⑥ ② ⑧ 1 ⑨ 1 ⑦ 1 ⑧ *1: The protection seal set is used only for the installation work to a vehicle with a factory trunk spoiler. Scope Genuine part number: E7210VC300/ E7210VC200 Applicable model: WRX 2022MY and later THSN BAR LH (57529VC030) ⑩ THSN BAR RH (57529VC020) ⑨ Components No. Part name Qty. Trunk spoiler Vacuum Waste cloth Work glove Safety glasses 91% or Greater isopropyl alcohol Masking tape Socket wrench (8mm,10mm) Rust preventative Drive torque wrench ortouch up paint Drive ratchet and Extension bar Power drill and Drill bits(3㎜,5㎜,8.5㎜) Center punch Torsion bar tool Clip remover Phillips screwdriver Deburring tool Adjustable support rod Completion image Tools to be used The work described in the following section is applicable to vehicles equipped with the factory trunk spoiler. For other vehicles, start the work from Section 4 on page 5. *The work for the RH side is explained. Perform the same work for the LH side. CAUTION CAUTION CAUTION Masking tape Marking Portion B Portion A Portion B Broken line Broken line Trunk panel Trunk lid trim panel Reference to panel end Reference to panel end Enlarged view of template ⑤ * Fold template along broken line to follow the shape, and fix it with tape. ⑤ Template Factory trunk spoiler * Prevention from scratch Masking tape protection 2. Removing factory trunk spoiler (1) To prevent scratches on the vehicle body during the removing work, apply masking tape for protection as shown in the figure on the left. (2) Gently pull the factory spoiler to disengage the four clips. Fixing clip (4 locations) 1. Removing trunk lid trim panel and bolts (2) Remove the two bolts. Fixing bolt (2locations) (1) Remove the nine clips, and then remove the trunk lid trim panel. Fixing clip (9 locations) 3. Preparation for installation (on vehicle side) (1) Referring to the figure on the left, attach the template ⑤ to the exterior panel of the trunk with masking tape or the like. (2) Referring to the portion B in the figure on the left, make a mark with masking tape or the like at the part installation position. (2 locations) (3) Perform the same work for the LH side. After removing the factory trunk spoiler, check that the 6 holes used for fixing have not been deformed. These holes will be used to install the part. The removed trunk lid trim panel and clips will be reused. Be careful not to damage or lose them. The masking tape attached to the portion B is used to decide the part installation position. Bolts Trunk panel NOTE This step only applies to vehicles that are equipped with a factory spoiler. The protection seals are not needed for vehicles without a factory spoiler. Proceed to the next section for more details. The work described in the following section is applicable to vehicles not equipped with the factory trunk spoiler. For the subsequent work procedure, go on to Section 6 on page 7. CAUTION Trunk panel Trunk lid trim panel ⑧ Protection seal 91% or Greater isopropyl alcohol Waste cloth Surface to be degreased and cleaned (4) Referring to the figure on the left, degrease the trunk surface with a waste cloth soaked with a 91% or greater isopropyl alcohol. (5) Attach the protection seals ⑧ to the positions shown in the figure on the left. (2 locations) 4. Removing trunk lid trim panel (1) Remove the clips, and then remove the trunk lid trim panel. Fixing clip (9 locations) The removed trunk lid trim panel and clips will be reused. Be careful not to damage or lose them. 3mm5mm8.5mm * Fold template along broken line to follow the shape, and fix it with tape. CAUTION CAUTION CAUTION Marking Marking Marking Portion A Portion B Reference to panel end Reference to panel end ⑤ Template Portion A Portion B Broken line Broken line Enlarged view of template ⑤ 5mm Drill bit Fabric adhesive tape Before the work, make a stopper with fabric adhesive tape to a position approximately 5 mm away from the tip of the drill bit to prevent interference with the drill. *The work for the RH side is explained. Perform the same work for the LH side. 5. Preparation for installation (on vehicle side) (1) Referring to the figure on the left, attach the template ⑤ to the exterior panel of the trunk with masking tape or the like. (2) Referring to the portions A and B in the figure on the left, make a mark with a center punch or the like at the center of each drilling position on both templates. (4 locations) (3) Referring to the portion B in the figure on the left, make a mark with masking tape or the like at the part installation position. (2 locations) (4) Perform the same work for the LH side. (5) Apply a drill to the center of the position marked in the step (2) to make a prepared hole with a 3 mm drill bit and 5 mm drill bit (2 locations each on RH and LH, 4 locations in total) (6) After making the prepared hole, make a hole with a 8.5 mm drill bit. (2 locations each on RH and LH, 4 locations in total) (7) Finish the drilled holes with a file to eliminate burrs or the like. (8) Apply a rust preventive treatment to the drilled holes using a touch-up pen or the like. The masking tape attached to the portion B is used to decide the part installation position. Be careful not to leave chips inside the panel during the work. Center punch Bottom view of trunk spoiler ④ Clip ④ Clip ② Nut ② Nut Backing paper (fixed with masking tape) Backing paper (fixed with masking tape) ④ Clips Adjust position so that gaps on LH and RH sides will be uniform. Adjust position so that gaps on LH and RH sides will be uniform. Installation procedure The work described from the following section is the common work to install any trunk spoiler. CAUTION Trunk spoiler Trunk spoiler Trunk spoiler Waste cloth Surface to be degreased and cleaned 6. Preparation for installation (trunk spoiler side) 7. Installing trunk spoiler (9) Referring to the figure on the left, degrease the trunk surface with a waste cloth soaked with a 91% or greater isopropyl alcohol. (1) Referring to the figure on the left, attach the nuts ② to the inner holes on the back side of the trunk spoiler ①. (2 locations) (2) Referring to the figure on the left, attach the clips ④ to the outer holes on the back side of the trunk spoiler ①. (2 locations) (3) Peel off each of the backing paper of the double-sided tape attached on the trunk spoiler ① by approximately 3 to 5 cm from the end, bend it outward, and attach it to the front side with masking tape. (4 locations) (1) Install the trunk spoiler ① with the clips ④ attached to it aligned to the outer side of each installation hole. (2 locations) (2) After installing the trunk spoiler ①, adjust the position by referring to the figure on the left so that the gaps indicated by arrows will be uniform on the LH and RH sides. Paint may be peeled off while the nuts or clips are installed, but it is not a problem. 91% or Greater isopropyl alcohol Bolts Sectional view of B-B Sectional view of A-A Align part position. Top surface of trunk Rear surface of trunk Align LH and RH positions so as to eliminate gap between trunk and cushion. Align LH and RH positions so as to eliminate gap between trunk and cushion. Trunk CAUTION CAUTION Trunk spoiler Trunk spoiler Trunk spoiler Trunk spoiler Masking tape Masking tape Trunk panel (3) Temporarily fix the nuts attached to the trunk spoiler ① and the inner side of each installation hole with the bolts ③. (2 locations) (4) Referring to the sectional view of A-A in the figure on the left, adjust the trunk spoiler ① to the installation positions marked with masking tape. (2 locations) (5) Referring to the sectional view of B-B in the figure on the left, make sure that the gaps on the LH and RH sides of the trunk spoiler ① are eliminated. (6) Pull the backing paper attached on the top surface of the trunk outward from the center, and firmly press the entire double-sided tape area with a force of 49 N or more. (7) Pull the backing paper attached on the rear surface of the trunk outward from the center, and firmly press the entire double-sided tape area with a force of 49 N or more. Be sure to install the trunk spoiler onto the top surface of the trunk first. Then, start the installation to the rear surface of the trunk. The double-sided tape must be firmly pressed for at least 10 seconds with a force of 49 N or more. The work described from the following section is applicable to vehicles not equipped with the factory trunk spoiler. For a vehicle equipped with the factory trunk spoiler, go on to Section 13 on page 12. CAUTION Bolts Trunk panel Trunk panel Adjuster support rod (8) Finally tighten the bolts ③ temporarily fixed in the step (3). ③ Bolt: Tightening torque of 4.0 N•m±1.0 N•m (2 locations) (1) Remove the trunk mat, sub-trunk box, and rear floor side spacer. (2) Disengage the clips and tabs, and remove the trunk rear trim panel. (3) Remove the clips, and then remove the trunk side trim panel. (4) Fix the trunk panel with the adjuster support rod. Insufficient fixing of the adjuster support rod may cause falling of the trunk panel, which can lead to injury during the work or damages on the vehicle. 8. Preparation for removal of torsion bars (a) in the figure: RH torsion bar (b) in the figure: LH torsion bar EB-11083 VB-*BU Torsion bar tool (b) (a) This work uses the remover (99099FL000). When the removal work of torsion bars has been finished, go on toSection 10 on page 11. Reference 1 2 Torsion bar tool Torsion bar tool EB-11085 VB-*BU CAUTION CAUTION Handle the torsion bars carefully during the installation or removal work as they have a reaction force. When removing the torsion bars, exercise caution because the trunk may close suddenly. Make a mark on each of the LH and RH torsion bars. 9. Removing torsion bars (1) Disengage the bracket clip. (2) Remove the torsion bars from the clamp shape portion of the bracket clip. (3) Remove the bracket clip from the vehicle body. (4) Remove the LH torsion bar from the U-shaped portion of the RH hinge link. (5) Use the torsion bar tool to remove the right end of the LH torsion bar from the RH hinge bracket. (6) Remove the left end of the LH torsion bar from the LH bracket. (7) Remove the LH torsion bar from the U-shaped portion of the RH hinge link. (8) Use the torsion bar tool to remove the left end of the RH torsion bar from the LH hinge bracket. (9) Remove the right end of the RH torsion bar from the RH hinge bracket. Attach the remover to a torsion bar by the following procedure. (1) Hook the inner plate of the torsion bar tool onto the U-shaped end of the torsion bar. (2) Make a contact between the bottom surface of the torsion bar tool and the torsion bar. Use a small flathead screwdriver to securely press the center of the bracket clip from both sides in the vehicle lateral direction. The clip tabs are found on both sides. Revision history Content Newly created Date December 17 , 2021 CAUTION Handle the torsion bars carefully during the installation or removal work as they have a reaction force. Be careful when removing the torsion bars because the trunk may close suddenly. Make a mark on both LH and RH torsion bars. 10. Installing torsion bars 11. Restoring trunk room trim 12. Check or inspection after installation work (1) Install torsion bars in a separate package. (2) Install the torsion bars in the reverse order of removal. (1) Install the trunk side trim panel and trunk lid trim. (1) Open and close the trunk lid to check that there is no abnormality (malfunction or abnormal noise) during the open/close operation. (2) Check for any looseness, inclination, coming-off of bolts, and others in the installed area, and make corrections if necessary. Finally, check that there is no scratch, dirt, or the like. The installation work has been completed.
**************************************************************************************************************
