Body Repair Manual Correction

“This site contains affiliate links for which OEMDTC may be compensated”

NHTSA ID Number: 10208690

Manufacturer Communication Number: 12-234-22

Summary

This bulletin announces additional information for the 2022MY BRZ Body Repair Manual.

NUMBER: 12-234-22
DATE: 02/28/22

INTRODUCTION:

This Service Information Bulletin announces additional information for the 2022MY BRZ Body Repair Manual. This information supplies added detail for roof panel replacement. It is IMPORTANT to fully review this bulletin prior to performing any roof panel replacement on 22MY BRZ.

BODY REPAIR MANUAL REVISION INFORMATION:

A revision of the 2022MY BRZ Body Repair Manual concerning this information is currently being developed and the release date is TBD.

SERVICE PROCEDURE / INFORMATION:

REMINDER: Customer satisfaction and retention starts with performing quality repairs.

The additional information outlined in this bulletin is to be used in conjunction with procedures currently provided in the Body Repair Manual. The information listed below is the current roof panel replacement section beginning on page #196 with the revisions outlined in RED.

B: INSTALLATION

Overall view 1

(1) 1 point (Clamp)
(3) 4 points (Countersunk rivet)
(5) 10 points (Countersunk rivet)
(2) 2 points (Countersunk rivet)
(4) 8 points (Blind rivet)

NOTES:

In locations where countersunk rivets are used, drill a pilot hole of 6.5 mm [0.26 in] in diameter. With the roof panel removed from the vehicle, taper the hole to a diameter of 12 mm [0.47 in] with a taper of 120° so the rivet head does not protrude above the roof panel. See images below.

Treat the cut remaining shaft of the rivet so it does not protrude above the rivet head. See images below.

Install the roof panel so the gap between the plate rail and roof panel in the structural adhesive application location is 2 mm [0.08 in] or less.
The clamps shown in (1) should be removed after the structural adhesive is completely cured.

1 Affected Product

Vehicle

1 Associated Document

Manufacturer Communications

NUMBER: 12-234-22
DATE: 02/28/22

https://www.nhtsa.gov/recalls?nhtsaId=10208690

MC-10208690-0001.pdf 1194.8KB

Taking too long?

Reload document

Open in new tab

Download [1.14 MB]

“This site contains affiliate links for which OEMDTC may be compensated”

Bestseller No. 1

Bates- Pop Rivets Assortment Kit, 500 Pcs, 10 sizes, 1/8", 3/16", 5/32", Silver, Aluminum Rivets, Rivet Assortment Kit, Pop Rivet Kit, Blind Rivets for Metal, Rivet Box, Rivets Aluminum, Rivets Kit

Bates offers a comprehensive set of 500 aluminum rivets, providing a variety of sizes to meet all your fastening needs.
The assortment includes 10 different sizes, ranging from 1/8" to 3/16" in diameter and various lengths, ensuring versatility for multiple applications.
Each rivet is made from high-quality aluminum caps and steel core, ensuring durability and resistance to corrosion for long-lasting performance.
The set comes organized in a convenient storage case, keeping all the rivets neatly arranged and easy to access.
Perfect for use in automotive, construction, and DIY projects, these rivets offer reliable and secure fastening for various materials, including metal and plastic.

Bestseller No. 2

SATANTECH 500pcs Pop Rivets Assortment Kit,14 SAE Sizes Aluminum Rivets (3/32" 1/8" 5/32" 3/16" 1/4"), Assorted Blind Rivets with Reinfored Divider & Labeled Case

【Premium Aluminum Rivets】All of our pop rivets are made of high-quality aluminum and steel. Great performance in any environment because of corrosion resistance and acid resistance, no worry about rusting and breaking.
【500pcs 14 Standard Sizes】This pop rivets assortment kit includes 500 pieces 14 most used sizes for your various needs. Including 50pcs 3/32” x 1/4”, 50pcs 3/32” x 5/16”, 35pcs 1/8” x 1/4”, 40pcs 1/8” x 5/16”, 50pcs 1/8” x 3/8”, 50pcs 1/8” x 1/2”, 45pcs 5/32” x 3/8”, 35pcs 5/32” x 1/2”, 30pcs 3/16” x 5/16”, 30pcs 3/16” x 3/8”, 30pcs 3/16” x 1/2”, 30pcs 3/16” x 5/8”, 15pcs 1/4” x 3/8”, 10pcs 1/4” x 1/2”, total 50pcs.
【Reinforced Labeled Case】The pop rivets assortment kit is well packed in a reinforced labeled storage case with thickened latch and dividers. 14 sizes are separately placed in 14 grids, handy and neat, orderly and no mess.
【Great Performance】Adopting self-plugging open end design, 14 SAE sizes, well matched with the rivet gun. Smooth surface, strong and handy, easy to install. These rivets are perfect for joining all kinds of metal plate and pipe, durable and no deformation.
【Worry-free Service】We promise a 24-month warranty, if you have any matters, feel free to contact us. The rivets are strong and suitable for indoor and outdoor use, such as DIY home uses, business, automotive, aviation, ductwork, elevator, instruments, furniture etc.

Bestseller No. 3

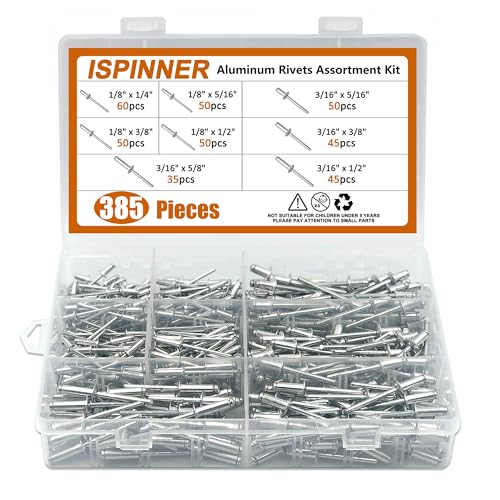

ISPINNER 385pcs 8 Sizes Aluminum Blind Rivets, Pop Rivets Assortment Kit (Silver)
