Wiper Blade Cleaning Procedure

“This site contains affiliate links for which OEMDTC may be compensated”

NHTSA ID Number: 10202839

Manufacturer Communication Number: 12-227-21

Summary

This bulletin outlines the cleaning procedure for windshield wiper blades to address instances of a juddering-type motion during operation.




NUMBER:  12-227-21
DATE: 10/20/21



INTRODUCTION:

This Service Information Bulletin outlines the cleaning procedure for windshield wiper blades to address instances of a juddering-type motion during operation. Follow the procedures outlined below if this characteristic is experienced with the front and/or rear wiper/washer system.



SERVICE PROCEDURE / INFORMATION:

REMINDER: Customer satisfaction and retention starts with performing quality repairs.



STEP 1)  Inspect the rubber portion of the wiper blade for any hardening, deformation, or damage. If found, replace the affected wiper blade. Refer to the applicable Subaru Service Manual: Body & Electrical/WIRING SYSTEMS > WIPER AND WASHER SYSTEMS > Wiper Blade.



STEP 2) Clean the tip of the blade using a soft cloth or paper towel dampened with windshield washer fluid or mild synthetic detergent such as dish soap solution or Simple Green®.

  • DO NOT clean the sides of the wiper blade, doing so may remove the protective coating from the rubber and/or accelerate the deterioration of the material.
  • DO NOT use an organic solvent-based cleaning fluid such as acetone or hexane, as they can cause damage to the rubber material.



STEP 3) After cleaning the blade tip, confirm the rubber wiper material is secure to the wiper arm.



STEP 4) Perform a function test of the wiper/washer system. If any shuddering or insufficient wiping (streaking, smearing) occurs.

A. Inspect the wiper arm for any deformation and confirm all moving parts operate with little resistance.

B. Remove any oil film and/or dirt from the Clean the glass using a soft cloth or sponge with glass cleaner. If a powder-type glass cleaner is used, it MUST be completely dissolved in water.



STEP 5) Perform a function test of the wiper/washer system.



IMPORTANT NOTE: Never test wiper function on a dry windshield. Always be sure to wet the glass with water or washer fluid before testing the wipers. Re-apply water or washer fluid as needed during the test to maintain a film on the windshield.

If there is no improvement, replace the affected wiper blade. Refer to the applicable Subaru Service Manual: Body & Electrical/WIRING SYSTEMS > WIPER AND WASHER SYSTEMS > Wiper Blade.




2 Affected Products

Vehicles

MAKE MODEL YEAR
SUBARU SUBARU 9999
SUBARU SUBARU TRUCK 9999




1 Associated Document

Manufacturer Communications

NUMBER: 12-227-21
DATE: 10/20/21

https://www.nhtsa.gov/recalls?nhtsaId=10202839

MC-10202839-0001.pdf 1020.994KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [0.97 MB]






SaleBestseller No. 1
3 Factory Wiper Blade Replacement for Subaru Impreza 2017 2018 2019 2020 2021 Crosstrek 2018 2019 2020 2021 Original Equipment Windshield Window Wiper Blades Blades Set - 26"/16"/12"(Set of 3)
  • Fitment: For Subaru Impreza 2017 2018 2019 2020 2021,Crosstrek 2018 2019 2020 2021 Top Lock wiper arm. Smooth, clean, streak-free and easy to install, no need for clumsy adapters.
  • Including: Complete set of 3 blades ( driver side windshield wipers and passenger side windshield wipers + Rear Wiper Blades) 26"/16"/12"
  • High-quality experience: The longer and thicker wiper base and left and right buckles, as well as the award-winning unsupported beam design, not only make the wiper perform well in rain and snow, but also remain stable, durable and quiet all the weather.
  • Note: Before you buy (please refer to the description for complete accessory details, and carefully study the pictures to make sure this is the correct style wiper for your application).
  • 12 months life warranty; professional customer care team with 24 hours online service.
SaleBestseller No. 2
3 wipers Replacement for 2012-2018 Subaru Forester/2015-2019 Subaru Outback, Windshield Wiper Blades Original Equipment Replacement - 26"/17"/14" (Set of 3) U/J HOOK
  • 【Fitment】: Replacement for 2012-2018 Subaru Forester/2015-2019 Subaru Outback Front Windshield Wiper Blades
  • 【Replaces OEM】:100% Brand New, Replacement OEM ( Original Equipment Part)
  • 【Performance】: High service life, quiet application, clean the front windshield thoroughly, ensure clear visibility, all-weather and all-season wiper blades
  • 【Easy installation】: Easy and simple to change, Plug and play, Tested to ensure trouble-free installation and performance. (please see description for full fitment details)
  • 【WORRY-FREE SHOPPING】 3Pcs wiper blades 26"+17"+14" and Instruction Manual. One Year warranty! Refund or return anytime in one year, Long life, smooth engagement.
SaleBestseller No. 3

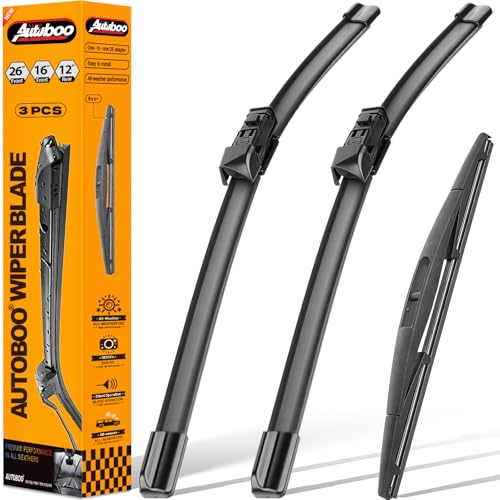

AUTOBOO 26"+16" Windshield Wipers with 12" Rear Wiper Blade Sets Replacement for Subaru Crosstrek Impreza 2018 2019 2020 2021-Original Factory Quality (Pack of 3)
