NHTSA ID Number: 10232501
Manufacturer Communication Number: 0215214R
Summary
Revised Valve Train Parts to Reduce a Warm Engine Tapping Sound from the Left Cylinder Head
NUMBER: 02-152-14R
DATE: 04/22/14
REVISED: 06/12/14
| APPLICABILITY: | 2014MY Forester Turbo |
|---|---|
| SUBJECT: | Revised Valve Train Parts to Reduce a Warm Engine Tapping Sound from the Left Cylinder Head |
INTRODUCTION
This bulletin announces the availability of revised valve train components developed to reduce a tapping sound (sometimes described as “a sewing machine type” sound) which may be heard coming from the left-hand (B2) side of the engine when the engine is warm. This bulletin does not address any cold engine or start-up sounds. The changes consist of:
- Design change to the valve rockers
- Camshaft profile change
- 65mm longer intake and 2.45mm longer exhaust valve stem lengths
- Revised rocker pivots were incorporated at the start of 2014MY production
PART INFORMATION
| PART NAME | NEW | OLD | |
|---|---|---|---|
| INTAKE VALVE | Part Number | 13201AA670  | 13201AA640 |
| Change | Stem Length: | Stem Length: | |
| 104.95mm | 103.3mm | ||
| Identification | I31 | I22 | |

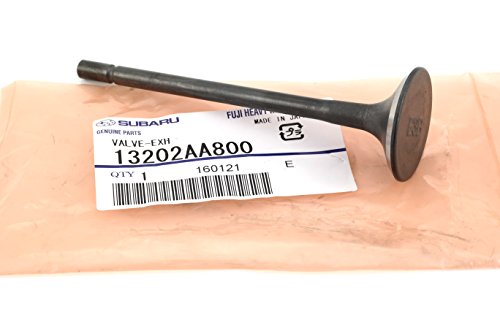

| EXHAUST VALVE | Part Number | 13202AA800 | 13202AA740 |
| Change | Stem Length: | Stem Length: | |
| 97.9mm | 95.45mm | ||
| Identification | E3B | E2B | |
| VALVE ROCKER | Part Number | 13249AA250 | 13249AA240 |
| Change | Change to Roller Portion | n/a | |
| Identification | Circular groove added on pivot side | n/a | |
| INTAKE CAMSHAFT, LEFT | Part Number | 13037AA970 | 13037AA840 |
| Change | Cam Profile Change | n/a | |
| Identification | 38B380 | 38B240 | |
| EXHAUST CAMSHAFT, LEFT | Part Number | 13052AA970 | 13052AA840 |
| Change | Cam Profile Change | n/a | |
| Identification | 53B380 | 53B240 |
The illustrations below show additional information about the changes to the valve rockers, camshafts and valves to help readily distinguish them from the previous version parts.
SERVICE PROCEDURE / INFORMATION
If you receive a customer concern of a tapping sound from the B2 cylinder head, confirm it is isolated to the B2 valve train area before proceeding with any repairs. Once verified, order and replace the intake and exhaust camshafts, the 4 intake valves, 4 exhaust valves, and all 8 rockers. Refer to the service procedures outlined in the applicable Service Manual for installation.
NOTE: When setting the valve clearances, the intakes should be set to 0.13mm +0.02 / – 0.03 and the exhausts set to 0.22mm +/- 0.02. These are revised clearance specifications and are not reflected in the Service Manual.
IMPORTANT: Do not mix old and new parts together as it will become impossible to obtain intake valve clearances that are within specification.
TIP: An egg carton makes a perfect organizer tray. Make sure to mark it as necessary (front, intake, exhaust) to eliminate any mixing of parts.
1 Affected Product
Vehicle
| MAKE | MODEL | YEAR |
SUBARU | FORESTER | 2014 |
1 Associated Document
Manufacturer Communications
NUMBER: 02-152-14R
DATE: 04/22/14
REVISED: 06/12/14
MC-10232501-9999.pdf 420.295KB
Loading...
Reload document
Open in new tab
NHTSA ID Number: 10068317
Manufacturer Communication Number: 02-152-14R
Summary
SUMMARY TO BE PROVIDED ON A FUTURE DATE.
1 Associated Document
Service Bulletin Document
NUMBER: 02-152-14R
DATE: 04/22/14
REVISED: 06/12/14
SB-10068317-0699.pdf 420.295KB
Loading...
NHTSA ID Number: 10234842
Manufacturer Communication Number: 0215214
Summary
Revised Valve Train Parts to Reduce a Warm Engine Tapping Sound from the Left Cylinder Head
1 Associated Document
Manufacturer Communications
NUMBER: 02-152-14
DATE: 04/22/14
MC-10234842-9999.pdf 420.044KB
Loading...
- Mobil 1 Advanced Fuel Economy full-synthetic motor oil 0W-20 is low-viscosity to help improve fuel economy.*
- Utilizes Mobil 1’s signature Triple Action Formula to deliver outstanding engine performance, protection, and cleanliness
- Helps protect critical engine parts for up to 10,000 miles between oil changesm,** controlling oxidation to prevent oil breakdown and maintaining excellent viscosity
- Meets ILSAC GF-6 standards to help provide low-speed pre-ignition (LSPI) and timing chain wear protection while keeping your engine clean
- Helps extend engine life by working to prevent damaging deposits and sludge buildup
- 6X better wear protection on critical engine parts than industry standards**
- 1.3X better sludge protection than industry standards*
- 3X Stronger against viscosity breakdown than leading full synthetic^
- Protection for 10,000 miles between oil changes
- Meets or exceeds the following specifications: API SP/SN PLUS/SN | ILSAC GF-6 | GM dexos1 Gen 3 | Meets Ford WSS-M2C947-B1 | Meets Ford WSS-M2C962-A1 |
- Full synthetic 0W-20 motor oil that is made with natural gas and designed to maximize engine protection
- Backed by a 15,000-mile protection guarantee* to protect your pursuit of every mile
- Provides better fuel economy (based on the latest industry standards)
- Keeps pistons cleaner than the toughest industry standard (based on Sequence IIIH results)
- Provides unsurpassed wear protection (based on Sequence IVA wear test using SAE 5W-30)
- Advanced protection against the four main causes of engine breakdown: wear friction heat and deposits
- Full synthetic 0W-20 formula offers 24X stronger protection against engine-killing contaminants than the leading full synthetic motor oil
- 40% better wear protection vs. industry standards as tested in the Sequence IVB engine test
- 25% better deposit protection with superior engine cleaning detergents as tested in the GMOD engine test
- Meets or exceeds all requirements of ILSAC GF-6A, API SP, API SN with SN Plus, API SN, GM dexos 1 Gen 3
- 3X Stronger than the leading full synthetic*
- 10X Better high stress performance**
- 20,000 miles between oil changes***
- Approved and Licensed Specifications: Exceeds API SP/SN PLUS/SN/SM |ILSAC GF-6 | GM dexos1 Gen 3 | Meets engine test requirements of Chrysler MS 6395 | Meets Ford WSS-M2C947-B1 | Meets Ford WSS-M2C962-A1 |
- Viscosity breakdown as measured in Kurt Orbahn test on 5W-30 grade |**As measured in Seq IX test under high load/torque conditions vs. API SP test limits | ***Or one year, whichever comes first
- Mobil 1 High Mileage full-synthetic motor oil 0W-20 is designed for engines with over 75,000 miles to go up to 10,000 miles between oil changes.*
- Utilizes Mobil 1’s signature Triple Action Formula to deliver outstanding engine performance, protection, and cleanliness
- Meets ILSAC GF-6 standards to help provide low-speed pre-ignition (LSPI) and timing chain wear protection while keeping your engine clean and helping to improve your fuel economy
- Provides excellent internal engine heat protection (up to 500 degrees F) and low temperature protection (to -30 degrees F)
- Mobil 1 is specially formulated to help remove sludge and lower engine temperatures
- Ultimate protection against wear, friction, heat and deposits, the main reasons for engine breakdown
- 24X stronger protection against water contamination than the industry-leading synthetic motor oil — it fights rust, corrosion, and other threats to help maximize vehicle life
- Dual Defense Additive Technology helps keep your engine clean and running at peak performance for optimal fuel economy and performance
- 10X stronger against oil breakdown and 50% greater wear protection than industry standards
- Meets or exceeds all requirements of ILSAC GF-6A, API SP, API SN with SN Plus, API SN, dexos 1 Gen 3
- Full synthetic 0W-20 motor oil provides strong engine performance and protection against deposits between oil changes
- Ideal for use in modern turbocharged engines and high-performance vehicles like sports cars, SUVs, trucks, and minivans
- Designed to deliver more power and less friction, reducing friction to maximize horsepower (compared to Quaker State motor oil)
- Provides improved fuel economy (based on the latest industry standard)
- Excellent protection against formation of sludge and other harmful deposits (based on Sequence IIIH & VH tests on 0W-20 engine oil)
- Mobil 1 Advanced Fuel Economy full-synthetic motor oil 0W-20 is low-viscosity to help improve fuel economy.*
- Utilizes Mobil 1’s signature Triple Action Formula to deliver outstanding engine performance, protection, and cleanliness
- Helps protect critical engine parts for up to 10,000 miles between oil changes,** controlling oxidation to prevent oil breakdown and maintaining excellent viscosity
- Meets ILSAC GF-6 standards to help provide low-speed pre-ignition (LSPI) and timing chain wear protection while keeping your engine clean
- Helps extend engine life by working to prevent damaging deposits and sludge buildup
- Phosphorus Replacement Technology to help extend the life of the emission system
- Reduces leaks, oil burnoff and power robbing deposits
- 15,000 miles between oil changes*
- Meets or exceeds the following specifications: API SP/SN PLUS/SN/SM | ILSAC GF-6 | Meets engine test requirements of Chrysler MS 6395 | Meets Ford WSS-M2C947-B1 | Meets Ford WSS-M2C962-A2
- Or one year, whichever comes first
SEOCONTENT-START
Bulletin Number: 02-152-14R; Date: 06/12/14 Page 1
INTRODUCTION
This bulletin announces the availability of revised valve train components developed to reduce a tapping sound (sometimes described as “a sewing machine type” sound) which may be heard coming from the left-hand (B2) side of the engine when the engine is warm. This bulletin does not address any cold engine or start-up sounds. The changes consist of:
• Design change to the valve rockers
• Camshaft profile change
• 1.65mm longer intake and 2.45mm longer exhaust valve stem lengths
• Revised rocker pivots were incorporated at the start of 2014MY production
PART INFORMATION PART NAME NEW OLD
Part Number 13201AA670 13201AA640
Change Stem Length: Stem Length: 104.95mm 103.3mm
Identification I31 I22
Part Number 13202AA800 13202AA740 EXHAUST VALVE Change Identification Stem Length: 97.9mm
E3B Stem Length: 95.45mm E2B INTAKE CAMSHAFT, LEFT
Part Number Change
Identification
Part Number Change Identification
13249AA250
Change to Roller Portion
Circular groove added on pivot side
13037AA970
Cam Profile Change 38B380
13249AA240
n/a
n/a 13037AA840
n/a 38B240
NUMBER: 02-152-14R DATE: 04/22/14
REVISED: 06/12/14
APPLICABILITY: 2014MY Forester Turbo
SUBJECT: Revised Valve Train Parts to Reduce a Warm Engine Tapping Sound from the Left Cylinder Head
SERVICE BULLETIN
ATTENTION:
GENERAL MANAGER 0
PARTS MANAGER 0
CLAIMS PERSONNEL 0
SERVICE MANAGER 0 IMPORTANT – All
Service Personnel Should Read and Initial in the boxes provided, right.
Continued…
CAUTION: VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS.
Subaru Service Bulletins are intended for use by professional technicians ONLY. They are written to inform those technicians of conditions that may occur in some vehicles, or to provide information that could assist in the proper servicing of the vehicle. Properly trained technicians have the equipment, tools, safety instructions, and know-how to do the job correctly and safely. If a condition is described, DO NOT assume that this Service Bulletin applies to your vehicle, or that your vehicle will have that condition.
SUBARU OF AMERICA, INC. IS “ISO 14001 COMPLIANT”
The international standard for excellence in Environmental Management Systems. Please recycle or dispose of automotive products in a manner that is friendly to our environment and in accordance with all local, state and federal laws and regulations. PART NAME Part Number NEW
13052AA970 OLD
13052AA840 EXHAUST CAMSHAFT, LEFT Change Cam Profile Change n/a Identification 53B380 53B240 The illustrations below show additional information about the changes to the valve rockers, camshafts and valves to help readily distinguish them from the previous version parts. Addition of groove Identification Markings SERVICE PROCEDURE / INFORMATION
If you receive a customer concern of a tapping sound from the B2 cylinder head, confirm it is isolated to the B2 valve train area before proceeding with any repairs. Once verified, order and replace the intake and exhaust camshafts, the 4 intake valves, 4 exhaust valves, and all 8 rockers. Refer to the service procedures outlined in the applicable Service Manual for installation.
NOTE: When setting the valve clearances, the intakes should be set to 0.13mm +0.02 / – 0.03 and the exhausts set to 0.22mm +/- 0.02. These are revised clearance specifications and are not reflected in the Service Manual.
IMPORTANT: Do not mix old and new parts together as it will become impossible to obtain intake
valve clearances that are within specification.
TIP: An egg carton makes a perfect organizer tray. Make sure to mark it as necessary (front, intake, exhaust) to eliminate any mixing of parts. Continued…
Bulletin Number: 02-152-14R; Date: 06/12/14 Page 2 Bulletin Number: 02-152-14R; Date: 06/12/14 Page 3
WARRANTY / CLAIM INFORMATION
For vehicles within the Basic New Car Limited and/or Powertrain Warranty, this repair may be claimed using the following information: LABOR DESCRIPTION
H4 ENGINE R&R FOR CYLINDER HEAD SERVICING LABOR OPERATION #
B293-130 FAIL CODE LABOR TIME
LH CYLINDER HEAD R&R
C293-132
5.3 ALL VALVES REPLACE, ONE CYLINDER
HEAD Includes: Valve Seating, R&R of the Springs, Valve Seals & Valve Adjustment C293-123 1.6 VALVE TRAIN NOISE DIAGNOSIS C243-001 0.3
SEOCONTENT-END
