Accessory Installation Guide
2024MY Crosstrek – Side Sill Plates | H461SFN200 |
INSTALLATION INSTRUCTIONS
PART NUMBER: H461SFN200
DESCRIPTION: 2024 CROSSTREK Illuminated Side Sill Plates
TOOLS REQUIRED:
TrimTool
Side Cutters
1. Disconnect Negative (-) battery cable from the battery sensor terminal. Hold the battery sensor carefully when removing the 10mm nut.
2. Using Trim Tool, remove driver side side sill plate. Repeat on passenger side.
3. Remove driver side clip and remove the front side sill cover. Repeat on passenger side.
4. Plug in Illuminated side sill into pre-wire connector (1), Wrap connector with included foam tape, Zip Tie harness in 2 marked locations (2), Trim the ends of the zip ties. Repeat on passenger side.
5. Remove driver side clip and remove the front side sill cover. Repeat on passenger side.
6. Install Illuminated Side Sill panel, ensure all clips have seated correctly and sill is secure. Repeat on passenger side.
7. Repeat steps 1-6 for passenger side.
8. Connect Negative (-) battery cable to the battery sensor terminal.
H461SFN200
https://static.oemdtc.com/AccessoryInstallationGuide/H461SFN200.pdf
https://static.oemdtc.com/AccessoryInstallationGuide/H461SFN200FR.pdf
“This site contains affiliate links for which OEMDTC may be compensated” |
- Genuine Subaru Forester Side Sill Plate kit
- E101SSJ020
- Add some protection and dress up the front sill plates . Side sill plates for Forester Wilderness feature a matte black finish. Set of two.
- 2022-2024 Forester ( wilderness)
- 2015 Subaru WRX
- Performance look
- Replaces existing sill plates
- Fit type: Vehicle Specific
- Genuine Subaru IMPREZA Side Sill Plate Kit
- E101SFL002
- These Genuine Subaru Side Sill Plates Kit will add some Handsome, metallic finished panels that will protect and dress up the sill plates of the Impreza.
- 2017-2024 IMPREZA
- GENUINE SUBARU not aftermarket
- Genuine Subaru Side Sill Plates Kit
- E101SFL102
- Handsome, metallic finished panels dress up the sill plates of the Crosstrek. SET OF 4
- 2018 2019 2020 2021 2022 2023 2024 Crosstrek
- lluminated side sill plates
- H461SFN200
- 2024 Crosstrek

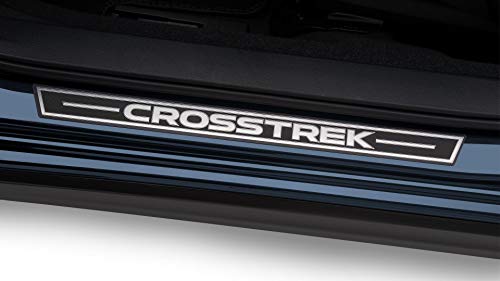

- Illuminated side sill plates feature the Crosstrek logo in bright white lighting to add an attractive accent to the door sills
