NHTSA ID Number: 10182223
Manufacturer Communication Number: 07-181-20
Summary
This Service Information Bulletin provides an important step currently missing from the Service Manual diagnostics for DTC B1572 “IMM CIRCUIT EXCEPT ANTENNA CIRCUIT”.
NUMBER: 07-181-20
DATE: 10/16/20
| APPLICABILITY: | 2017-19MY Legacy and Outback |
| SUBJECT: | DTC B1572- Revised Immobilizer Antenna Diagnostics |
INTRODUCTION:
This Service Information Bulletin provides an important step currently missing from the Service Manual diagnostics for DTC B1572 “IMM CIRCUIT EXCEPT ANTENNA CIRCUIT”. The applicable Service Manuals will be updated with this important information.
SERVICE PROCEDURE / INFORMATION:
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
When an error occurs during communication between the engine ECM and Immobilizer Unit, DTC
B1572 is recorded in the Engine ECM. When this occurs, it is CRITICAL to check for any stored DTCs in the Immobilizer system and perform the diagnostics for those stored DTCs BEFORE starting B1572 diagnosis. This very important DTC inspection step is currently missing in the Service Manual. As a result, unnecessary parts replacement may occur. Both the NEW and OLD (current, for reference) Service Manual descriptions are supplied below.
IMPORTANT NOTES:
- This change is applicable in the LEGACY/OUTBACK Service Manual, section: IMMOBILIZER (DIAGNOSTICS) > Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B1572 only.
- This change is NOT APPLICABLE to section “KEYLESS ACCESS WITH PUSH BUTTON START SYSTEM (DIAGNOSTICS) > Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B1572”.
6 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
| SUBARU | LEGACY | 2017-2019 |
| SUBARU | OUTBACK | 2017-2019 |
1 Associated Document
Manufacturer Communications
NUMBER: 07-181-20
DATE: 10/16/20
https://www.nhtsa.gov/recalls?nhtsaId=10182223
MC-10182223-0001.pdf 1094.66KB
Loading...
Reload document
Open in new tab
| “This site contains affiliate links for which OEMDTC may be compensated” |

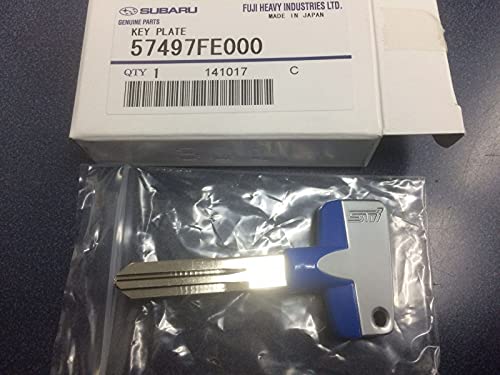

- 🚗【APPLICABLE VEHICLES】Titanium Key Blank Compatible with 2002-2007 Impreza, 1998-2008 Forester, 2002-2004 WRX, 2004 STI, 2000-2007 Legacy and Outback, 2003-2006 Baja
